Product identification
- Model
- SXHF 218 Dual 18-Inch Flown Subwoofer
- Product category
- Subwoofer Systems

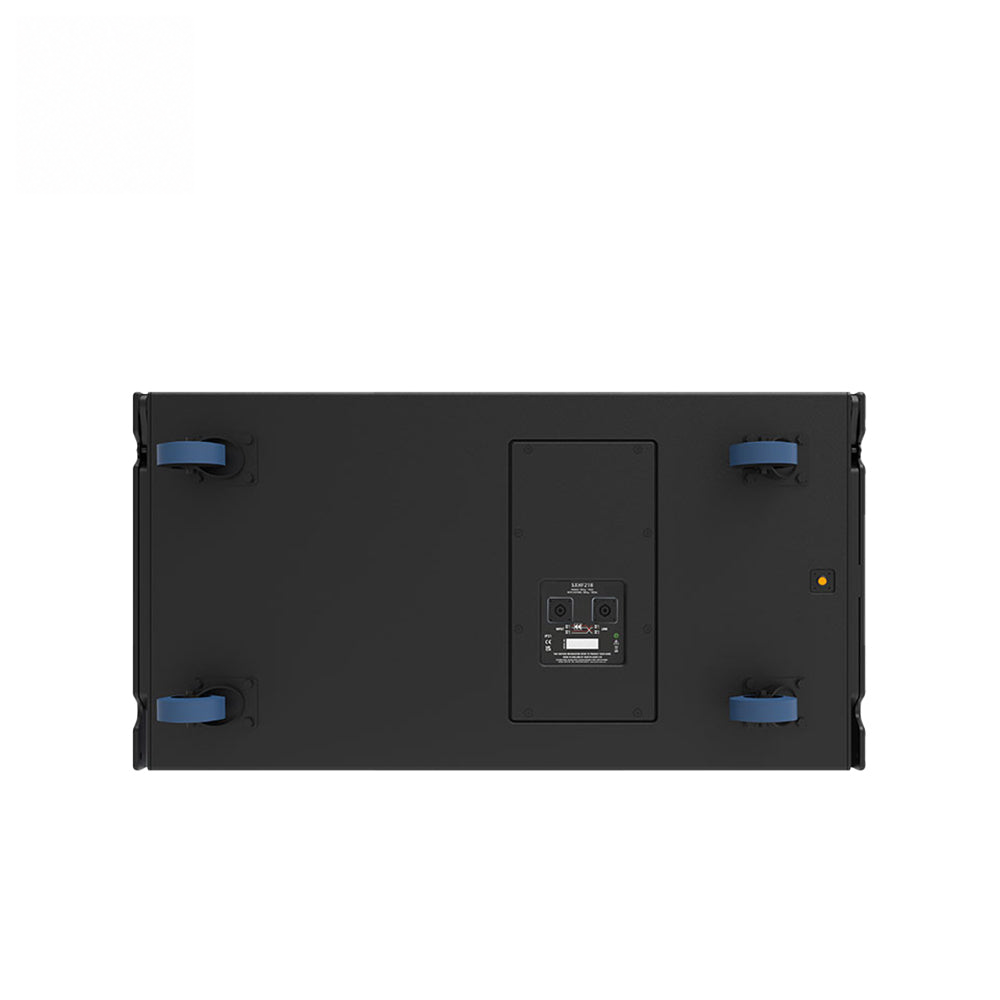

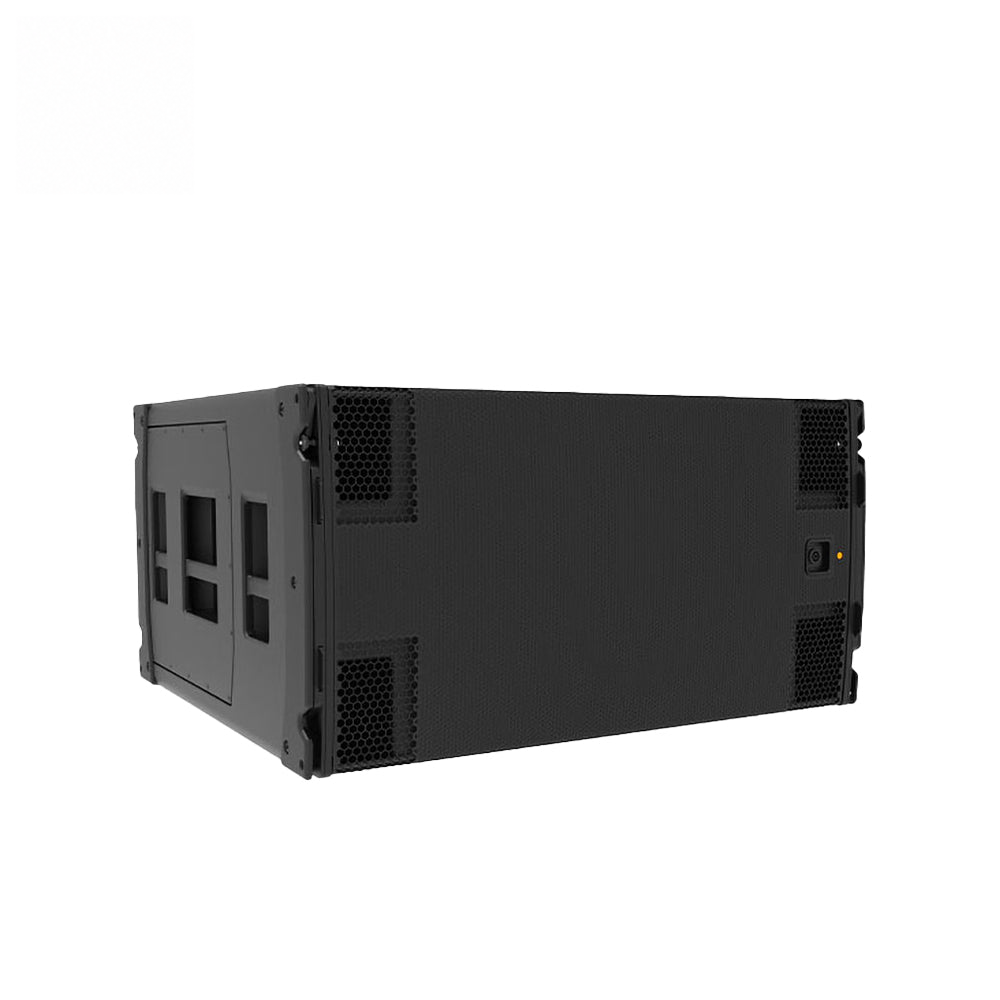

SXHF 218 Dual 18-Inch Flown Subwoofer
SXHF 218 Dual 18-Inch Flown Subwoofer is listed in the subwoofer systems category as a subwoofer system. The reference lists freq resp: 32Hz–150Hz ±3dB (-10dB @27Hz); power: 3000W AES / 12000W peak. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Max SPL
- 148dB peak @1m
- Drivers
- 2×18" neodymium long-excursion
Technical specifications
- Model
- SXHF 218 SUB
- Product
- 2 x 18" Passive Hybrid Horn/Reflex Subwoofer
- Type
- Hybrid horn/reflex loading, dual-driver subwoofer
- Freq Resp
- 32Hz–150Hz ±3dB (-10dB @27Hz)
- Power
- 3000W AES / 12000W peak
- Impedance
- 4Ω
- Max SPL
- 148dB peak @1m
- Drivers
- 2×18" neodymium long-excursion
- Connectors
- 2×speakON
- Env Rating
- IP55 (with accessory), corrosion resistance up to C4
- Sensitivity
- 107dB
Compatibility and deployment
Application: Outdoor festivals, stadiums, live sound touring
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Model | SXHF 218 SUB |
|---|---|
| Product | 2 x 18" Passive Hybrid Horn/Reflex Subwoofer |
| Type | Hybrid horn/reflex loading, dual-driver subwoofer |
| Freq Resp | 32Hz–150Hz ±3dB (-10dB @27Hz) |
| Power | 3000W AES / 12000W peak |
| Impedance | 4Ω |
| Max SPL | 148dB peak @1m |
| Drivers | 2×18" neodymium long-excursion |
| Connectors | 2×speakON |
| Env Rating | IP55 (with accessory), corrosion resistance up to C4 |
Downloads
| Title | File type | Download |
|---|---|---|
| YL SXHF 218 Selected Technical DataEnglish | PDF74 KB |
