Product identification
- Model
- SX218 Dual 18-Inch Passive Direct-Radiating Subwoofer System
- Product category
- Subwoofer Systems

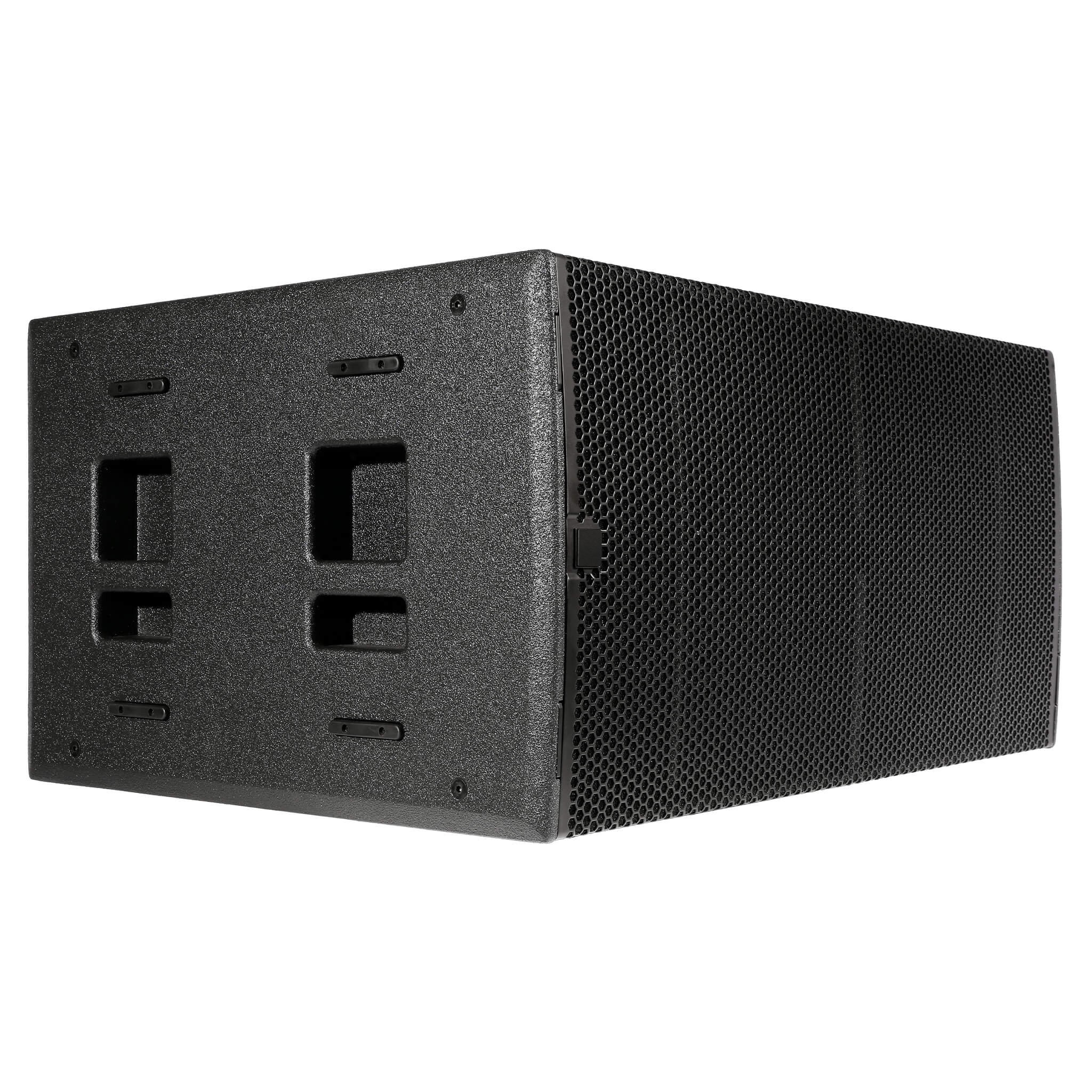

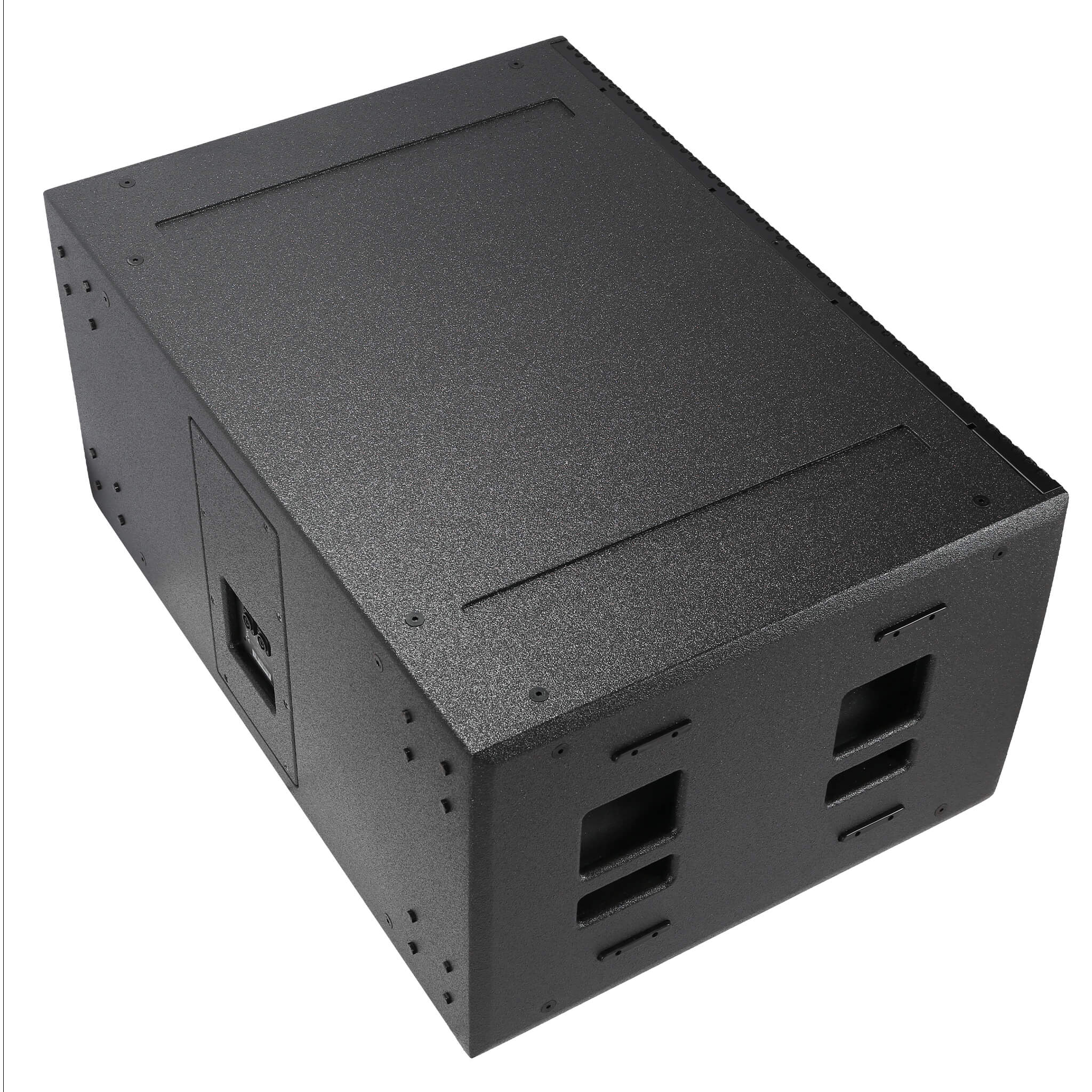

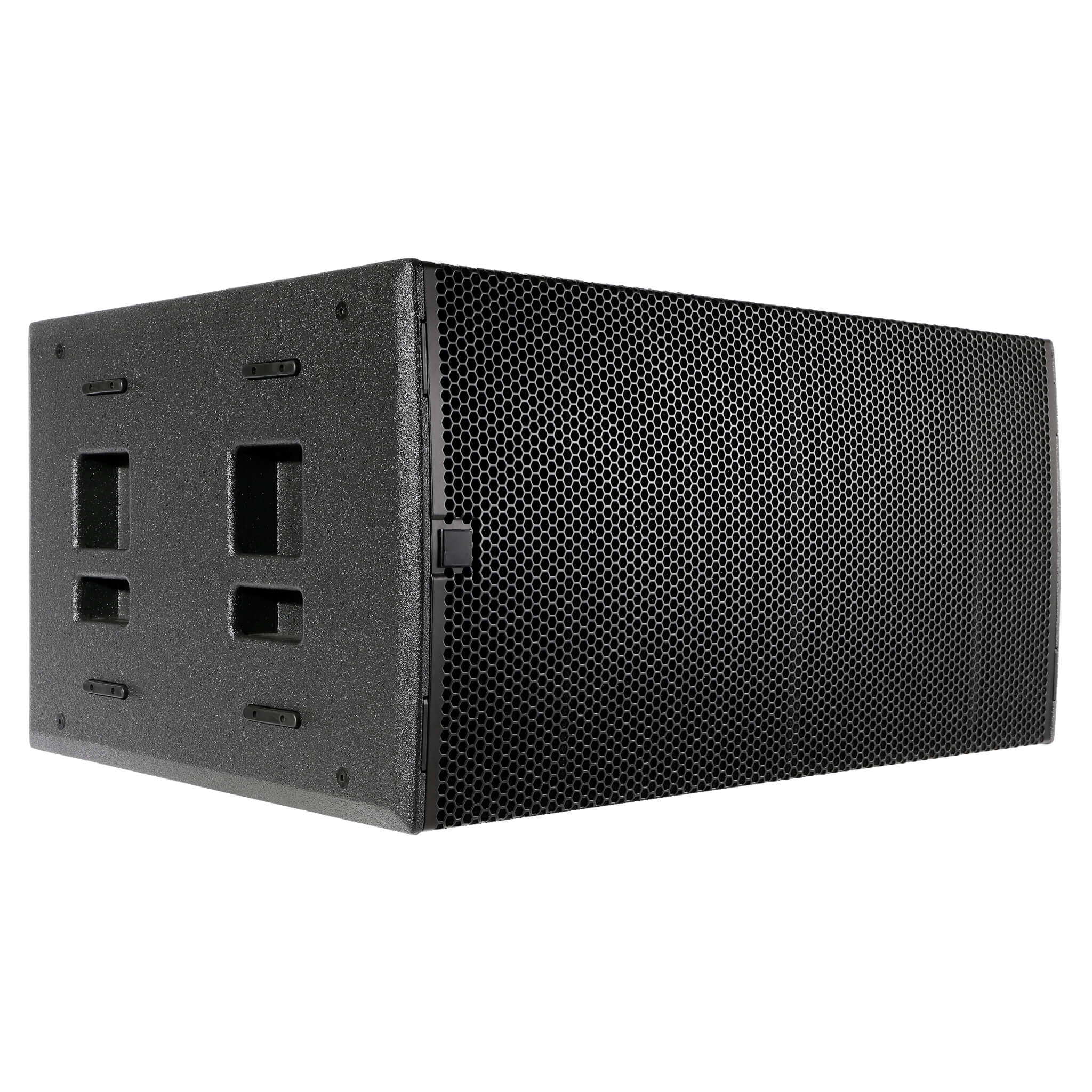

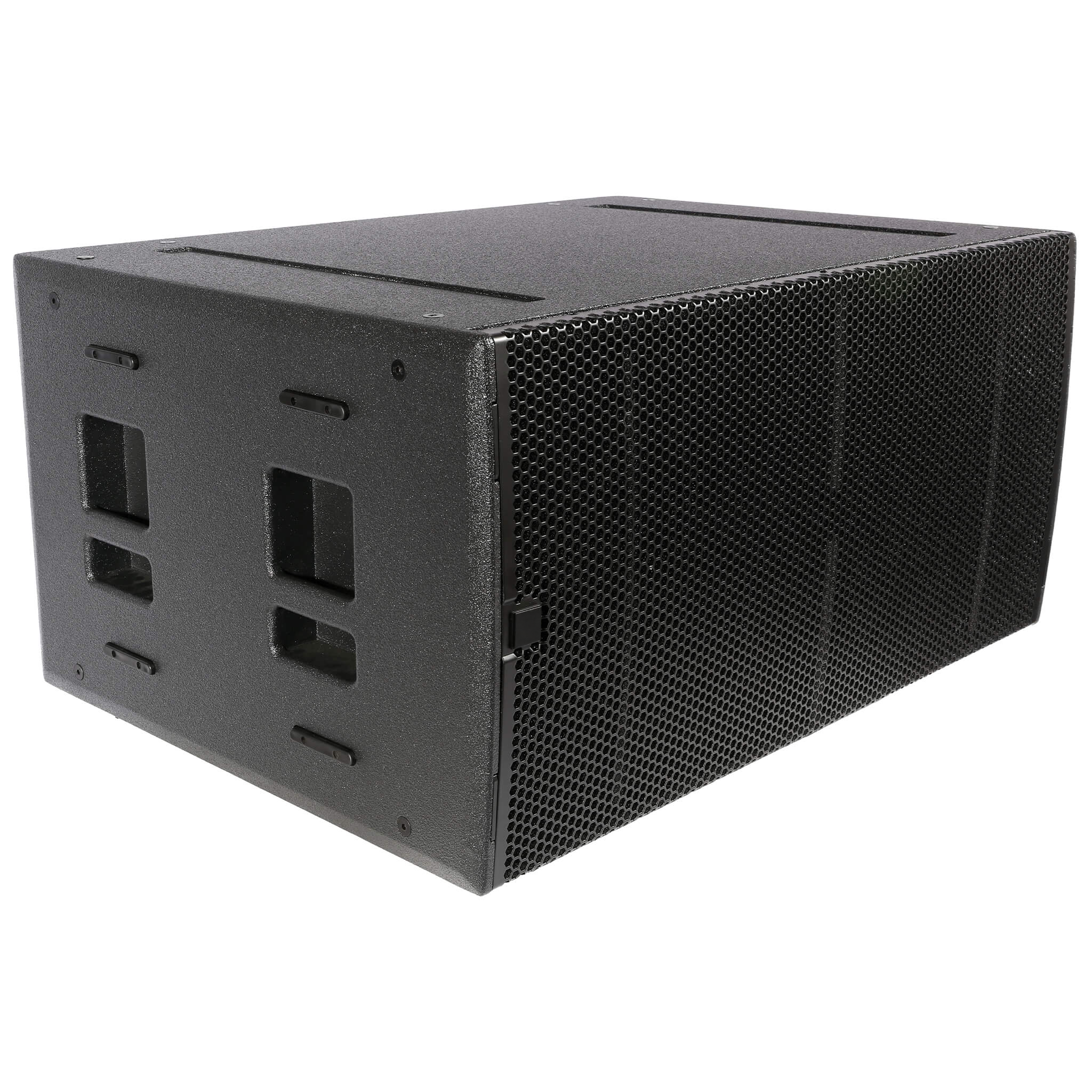

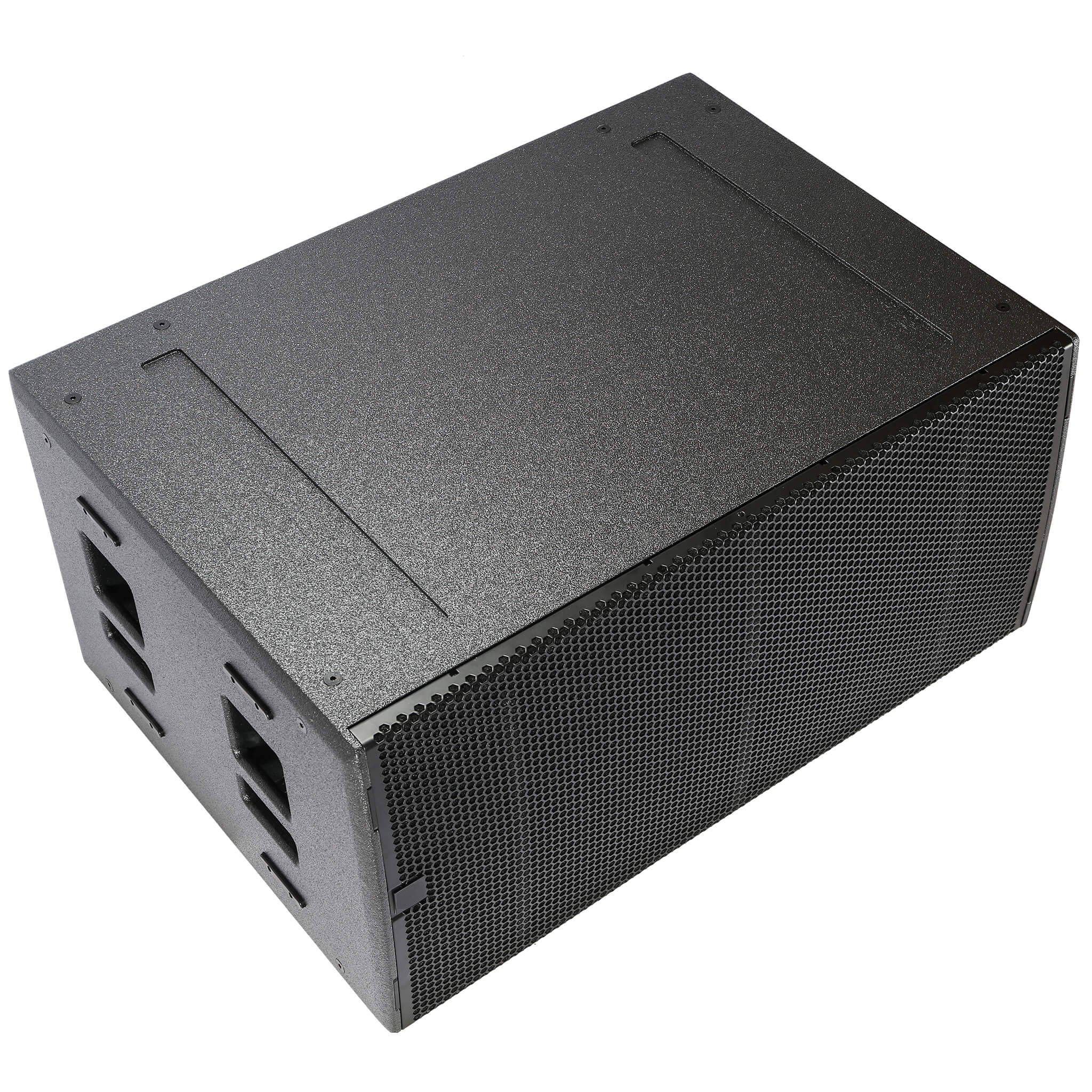

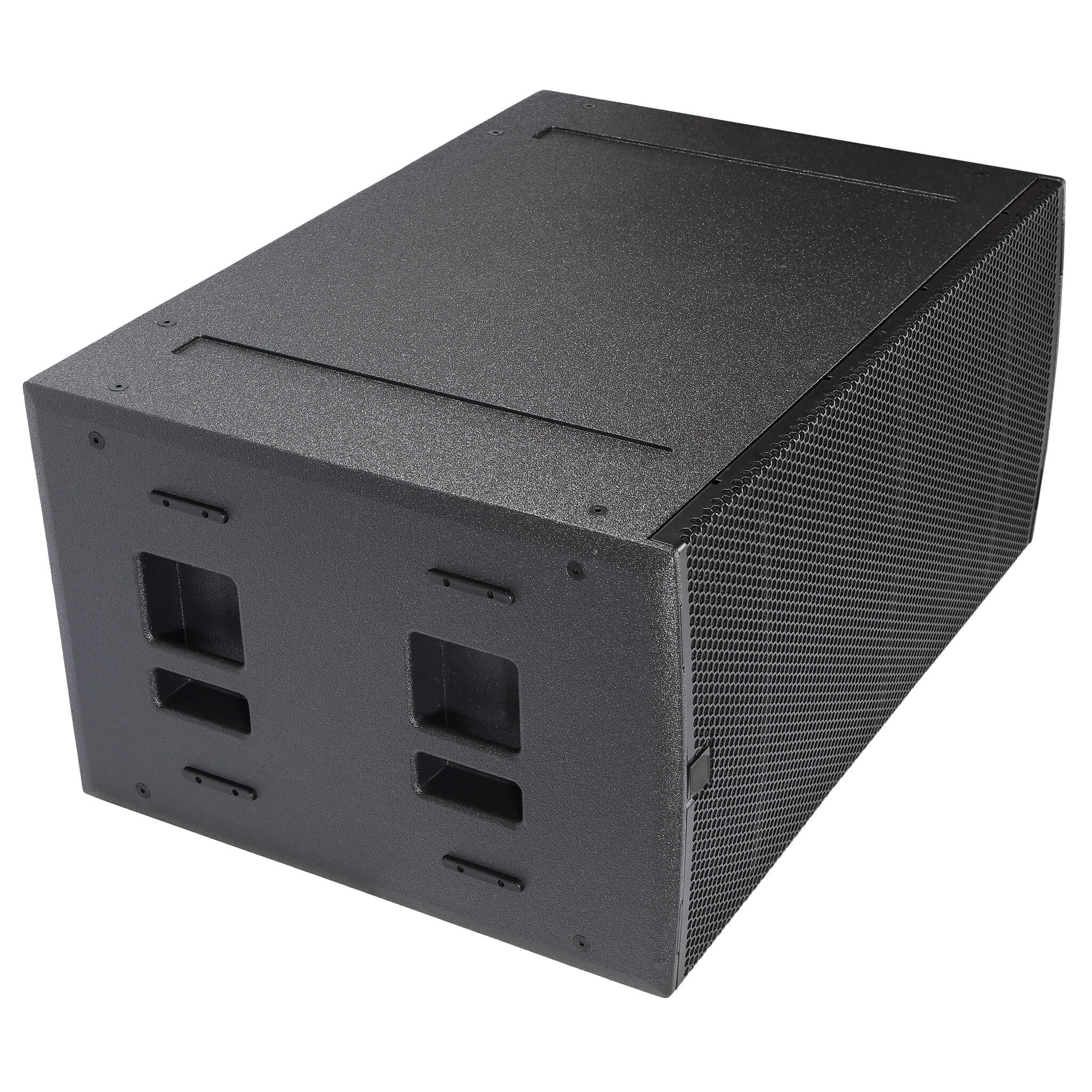

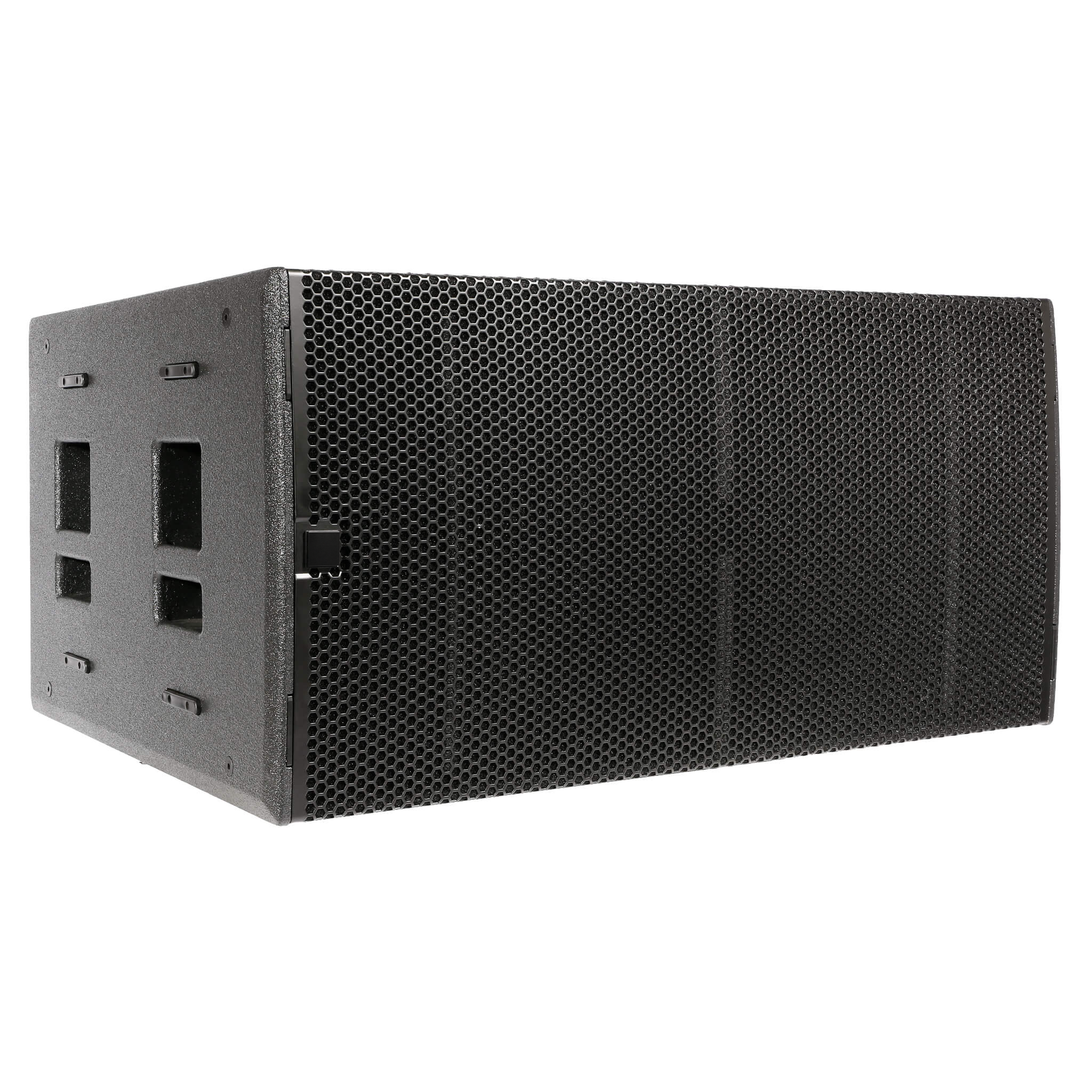

SX218 Dual 18-Inch Passive Direct-Radiating Subwoofer System
SX218 Dual 18-Inch Passive Direct-Radiating Subwoofer System is listed in the subwoofer systems category as a subwoofer system. The reference lists frequency response: 35Hz – 150Hz ±3dB,-10dB @ 30Hz; driver: 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- MAXIMUM SPL
- 144dB
- FREQUENCY RESPONSE
- 35Hz – 150Hz ±3dB,-10dB @ 30Hz
- DRIVER
- 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
Technical specifications
- TYPE
- Dual-driver, direct radiating subwoofer
- FREQUENCY RESPONSE
- 35Hz – 150Hz ±3dB,-10dB @ 30Hz
- DRIVER
- 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
- RATED POWER
- 2000W AES, 8000W peak
- SENSITIVITY
- 105dB
- MAXIMUM SPL
- 144dB
- NOMINAL IMPEDANCE
- 2 x 8Ω
- DISPERSION(-6DB)
- Omnidirectional/or Cardioid (paired)

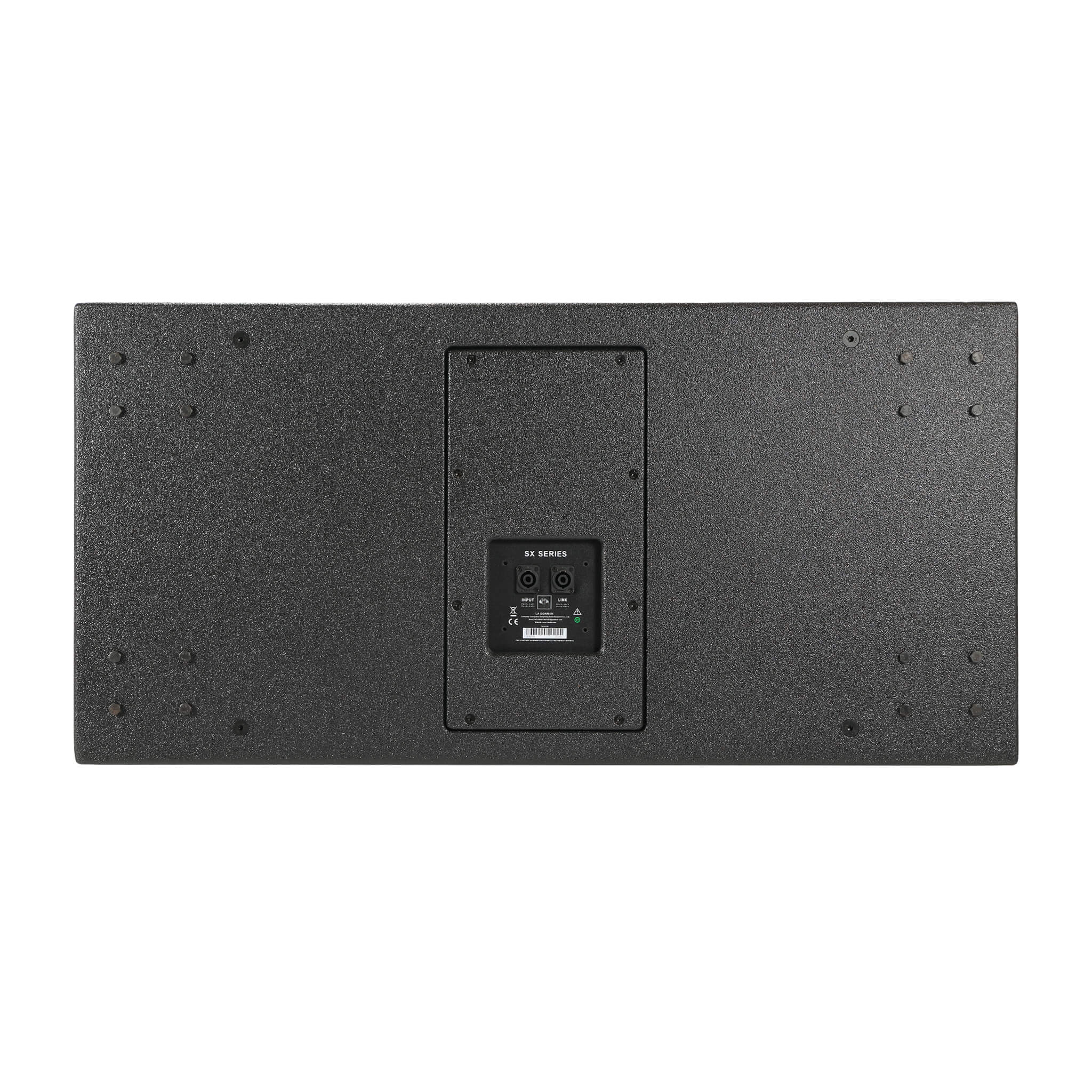

- CONNECTORS
- 2 x NL4 type
- PIN CONNECTIONS (INPUT)
- LF1: 1+, 1- LF2: 2+, 2
- PINS CONNECTIONS (LINK)
- LF1: 1+, 1- LF2: 2+, 2
- PIN CONNECTIONS (INPUT)
- LF1: 1+, 1- LF2: 2+, 2-
- PINS CONNECTIONS (LINK)
- LF1: 1+, 1- LF2: 2+, 2-
Physical specifications
- ENCLOSURE
- Multi-laminate birch/poplar ply
- FINISH
- Durable Polyurea Coating
- PROTECTIVE GRILLE
- Black perforated Zintec
Compatibility and deployment
- Function / configuration
- 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
- Function / configuration
- Very high output capability
- Function / configuration
- Tour-grade plywood enclosure with flying inserts
- Function / configuration
- 24 x M10 mounting points
- Function / configuration

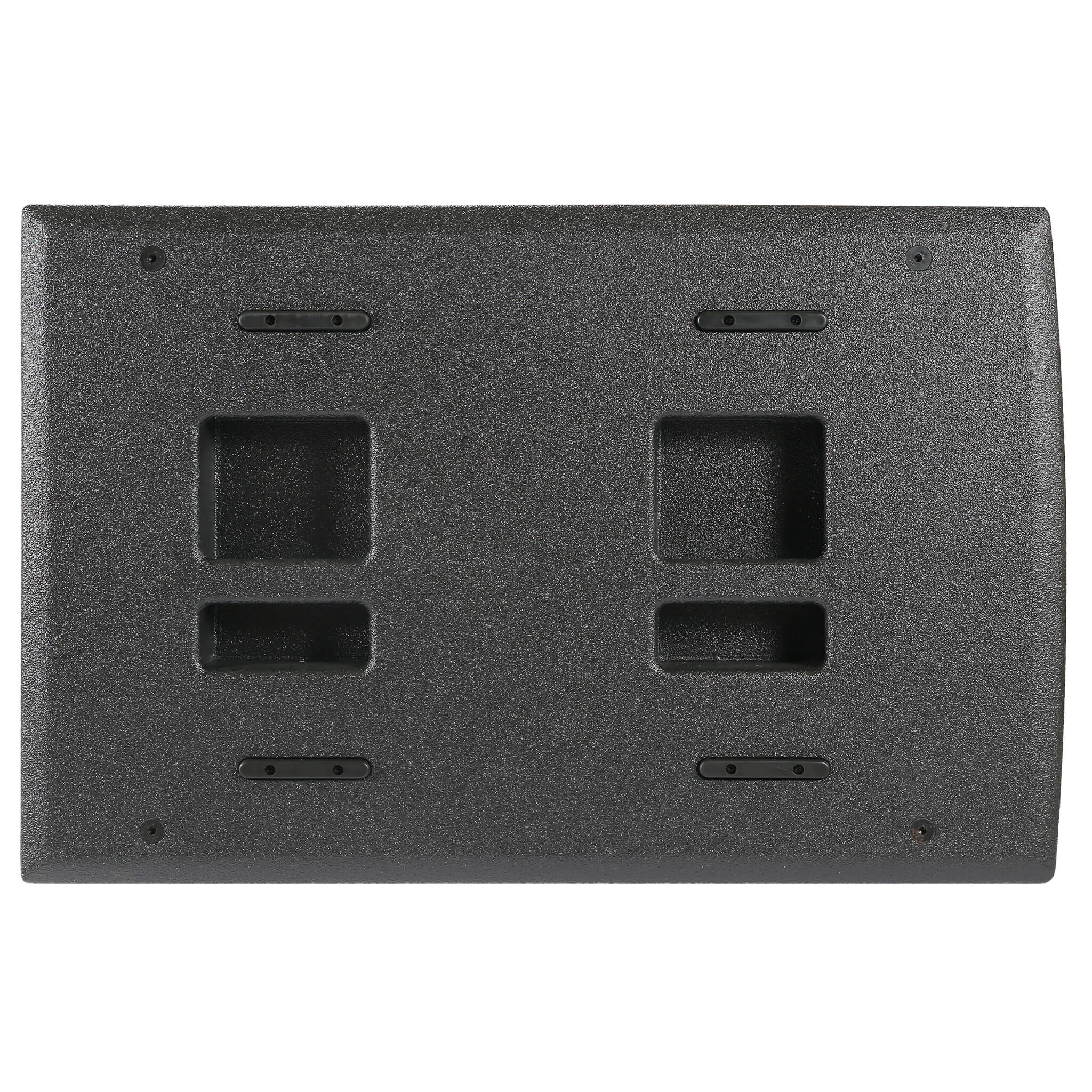

- 4 x bar handles, 2 on each side
- Function / configuration
- 4 x fittings for optional transit cover
- Function / configuration
- M20 Pole mount insert
- Function / configuration
- 16 x M8 inserts for optional castors
- Function / configuration
- (W) 1093mm x (H) 537mm x (D) 792mm
- Function / configuration
- (920mm including castors)
- Function / configuration
- (W) 43in x (H) 21.1in x (D) 31.2in
- Function / configuration
- (36.2in including castors)
- Function / configuration
- 98.5kg (217lbs) w/o castors
- Function / configuration
- 102kg (225lbs) with castors
- Function / configuration
- (W) 1093mm x (H) 537mm x (D) 792mm (920mm including castors)
- Function / configuration
- (W) 43in x (H) 21.1in x (D) 31.2in (36.2in including castors)
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| TYPE | Dual-driver, direct radiating subwoofer |
|---|---|
| FREQUENCY RESPONSE | 35Hz – 150Hz ±3dB,-10dB @ 30Hz |
| DRIVER | 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone |
| RATED POWER | 2000W AES, 8000W peak |
| SENSITIVITY | 105dB |
| MAXIMUM SPL | 144dB |
| NOMINAL IMPEDANCE | 2 x 8Ω |
| DISPERSION(-6DB) | Omnidirectional/or Cardioid (paired) |
| ENCLOSURE | Multi-laminate birch/poplar ply |
| FINISH | Durable Polyurea Coating |
| PROTECTIVE GRILLE | Black perforated Zintec |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | LF1: 1+, 1- LF2: 2+, 2 |
| PINS CONNECTIONS (LINK) | LF1: 1+, 1- LF2: 2+, 2 |
Downloads
| Title | File type | Download |
|---|---|---|
| YL SX218 Selected Technical DataEnglish | PDF74 KB |
