Product identification
- Model
- SB18 18-Inch Subwoofer
- Product category
- Subwoofer Systems

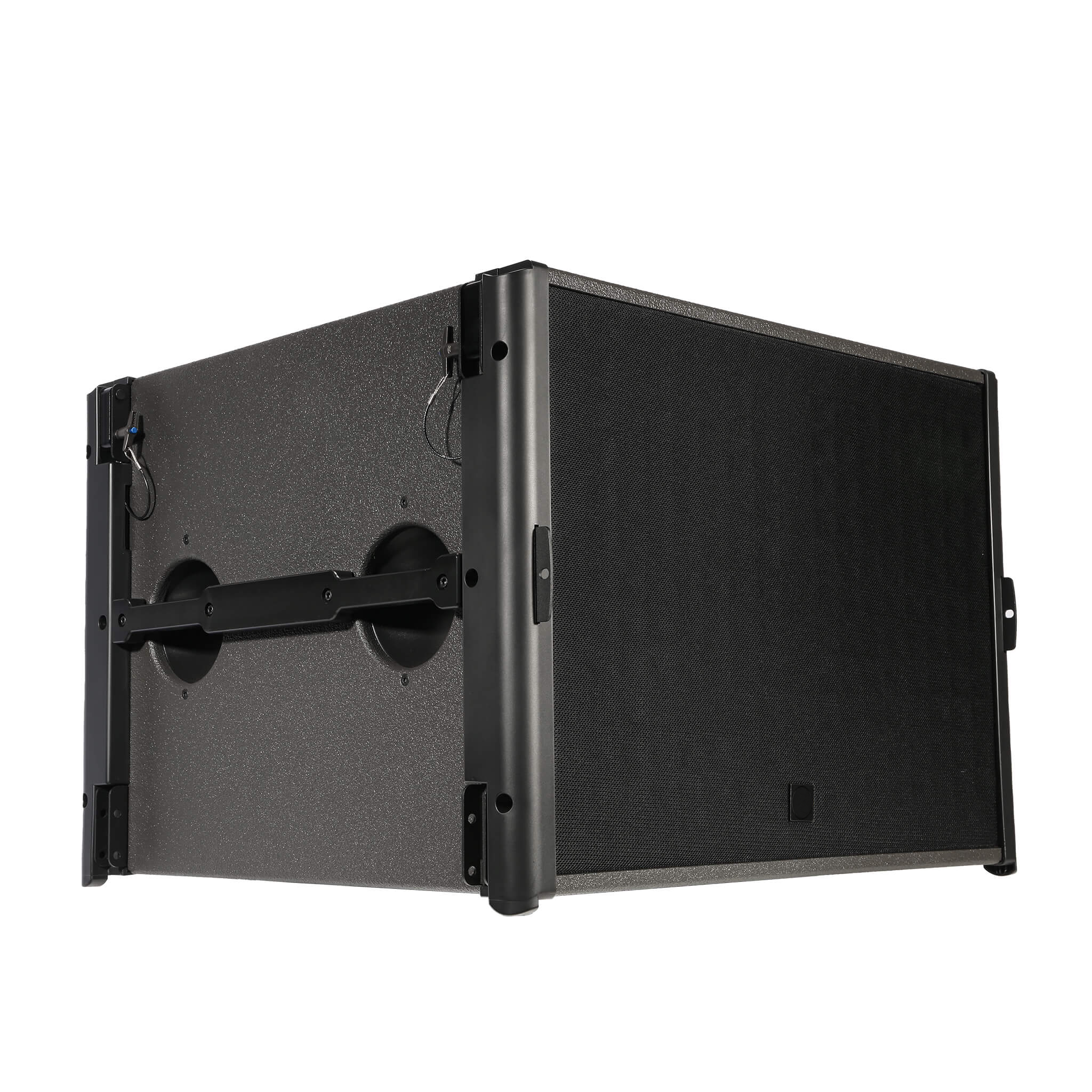

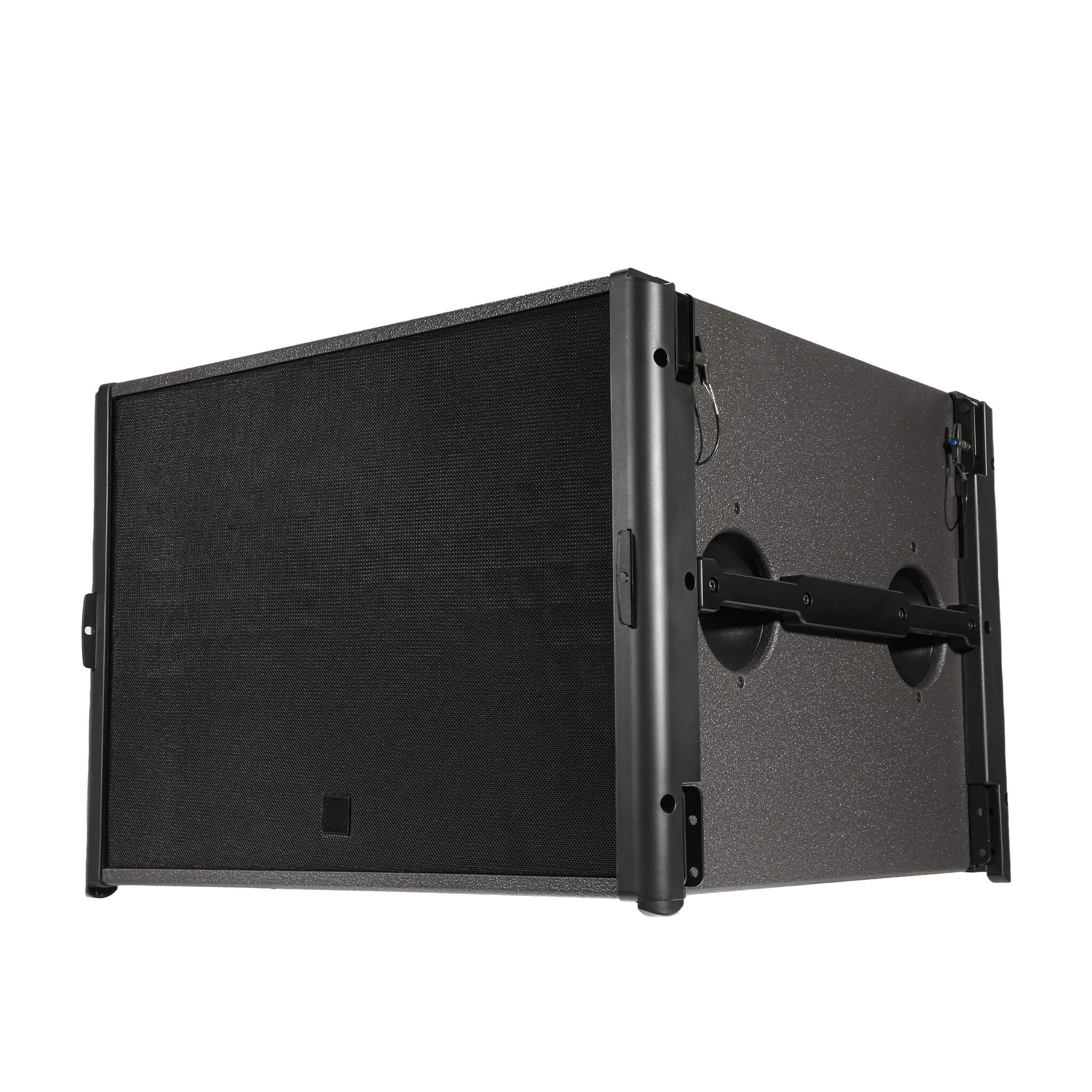

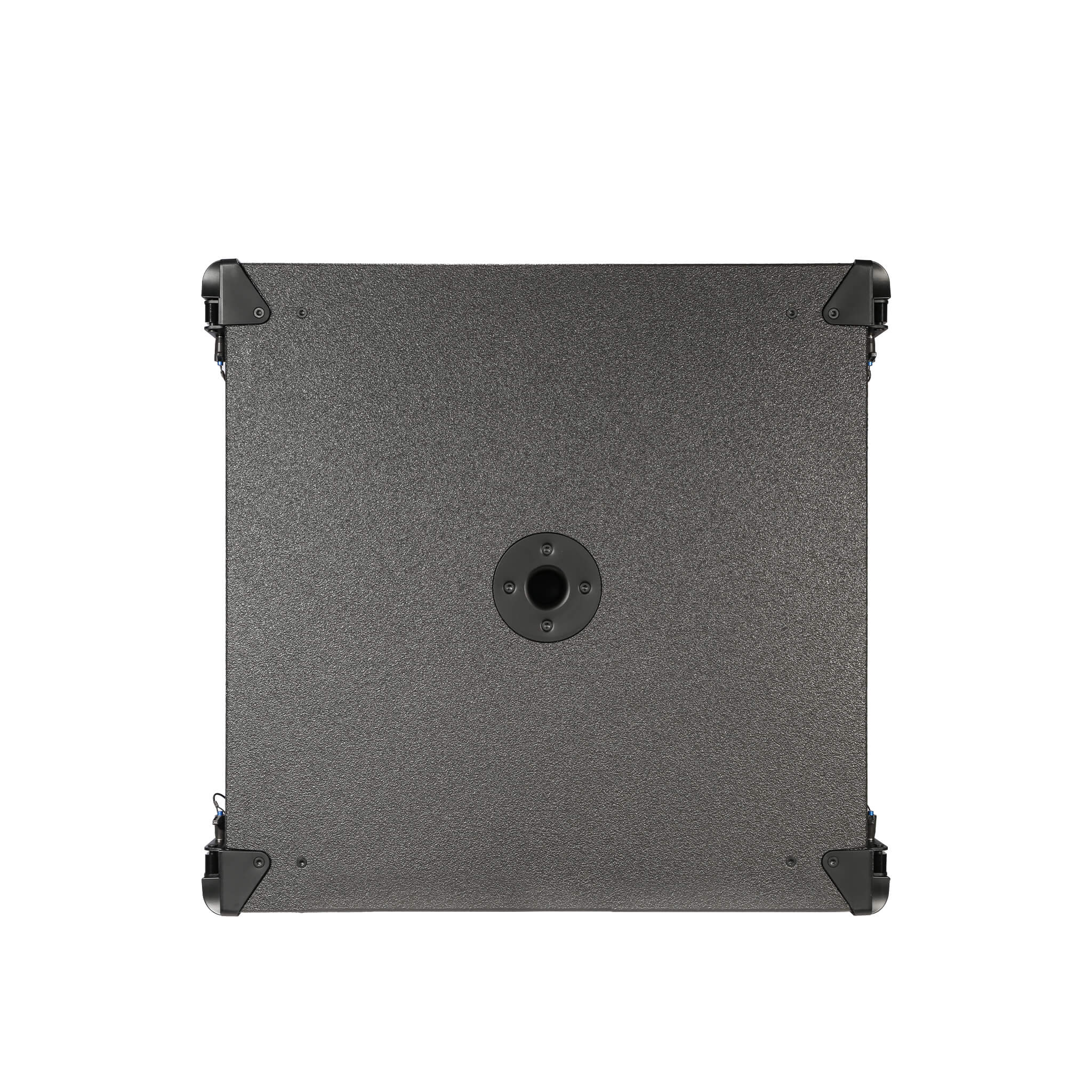

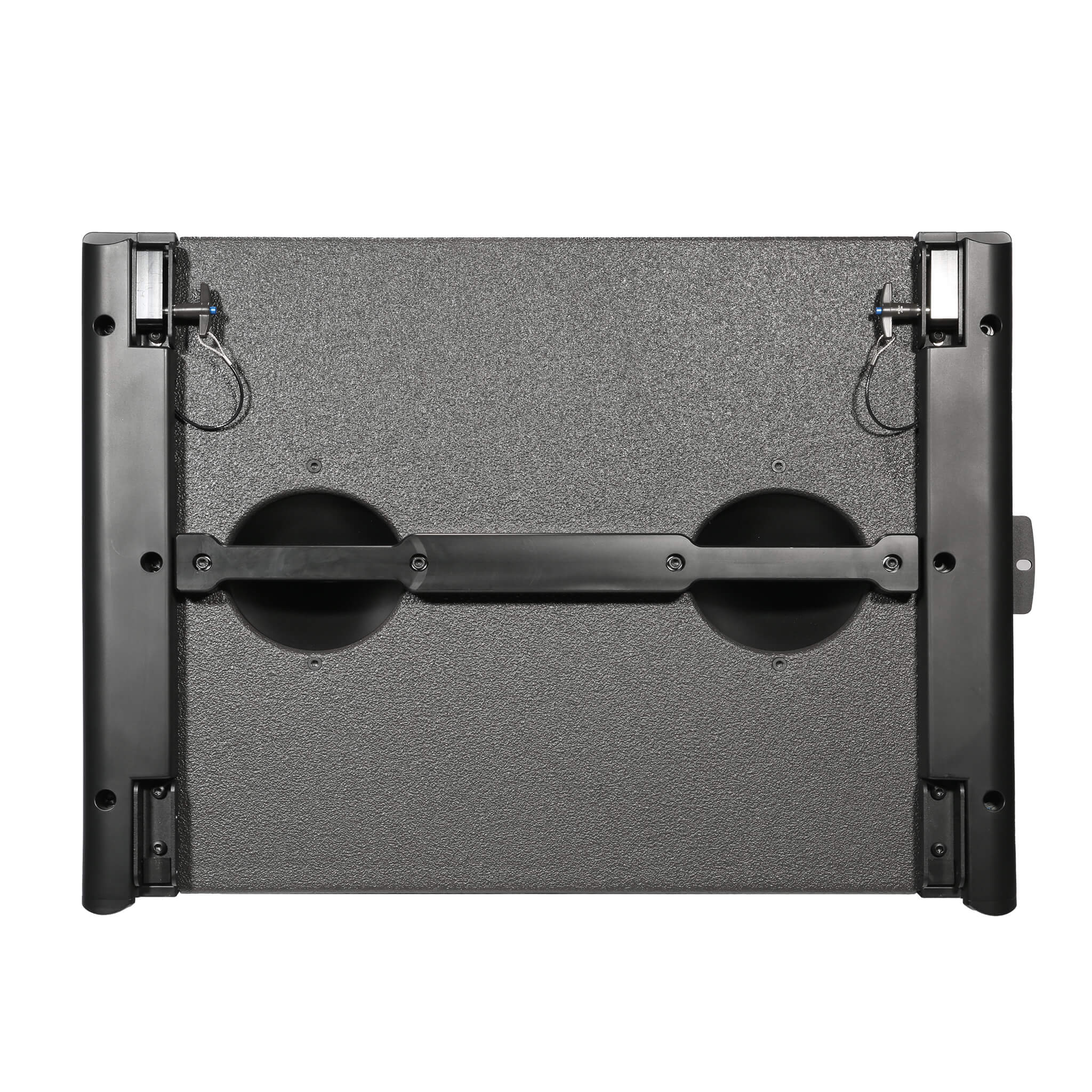

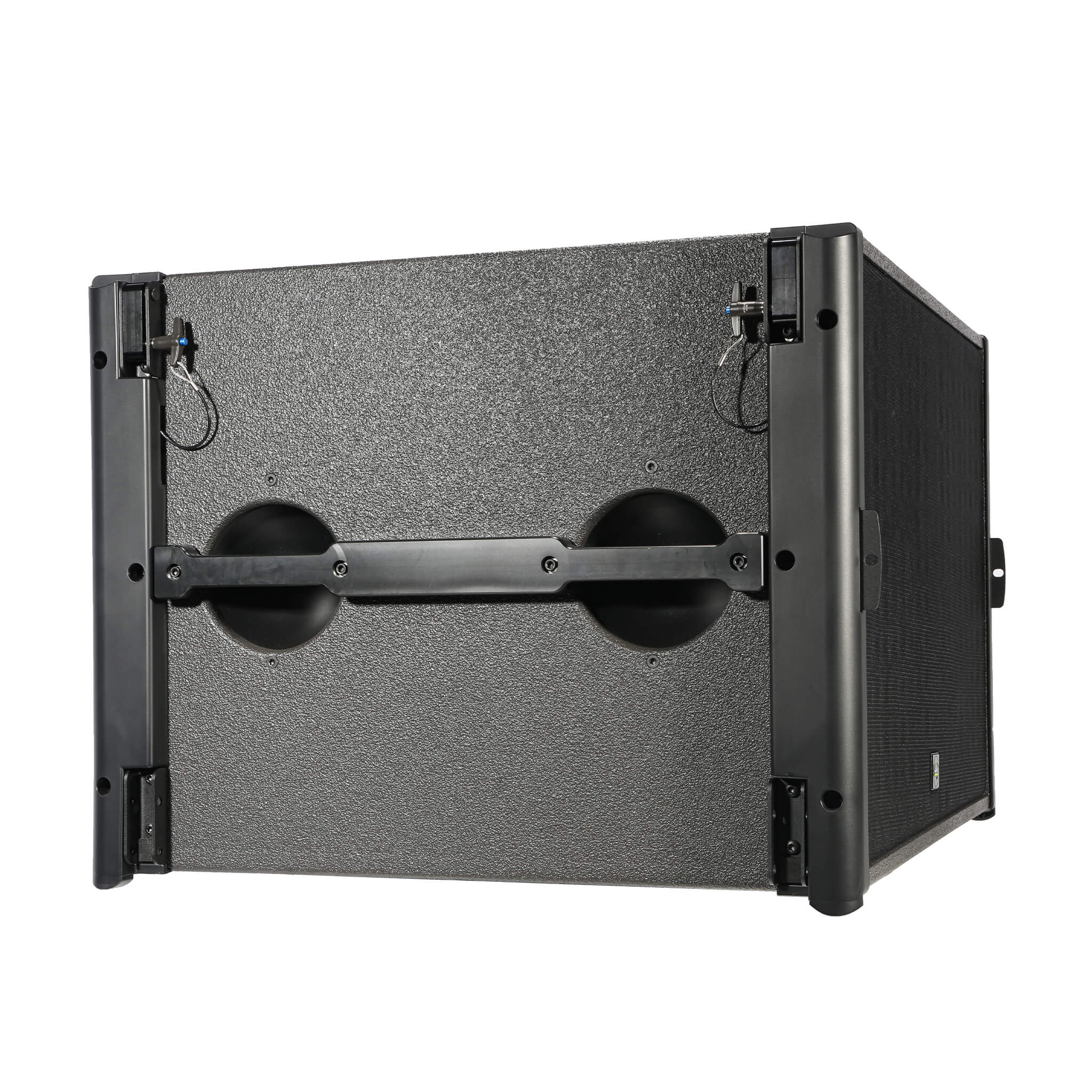

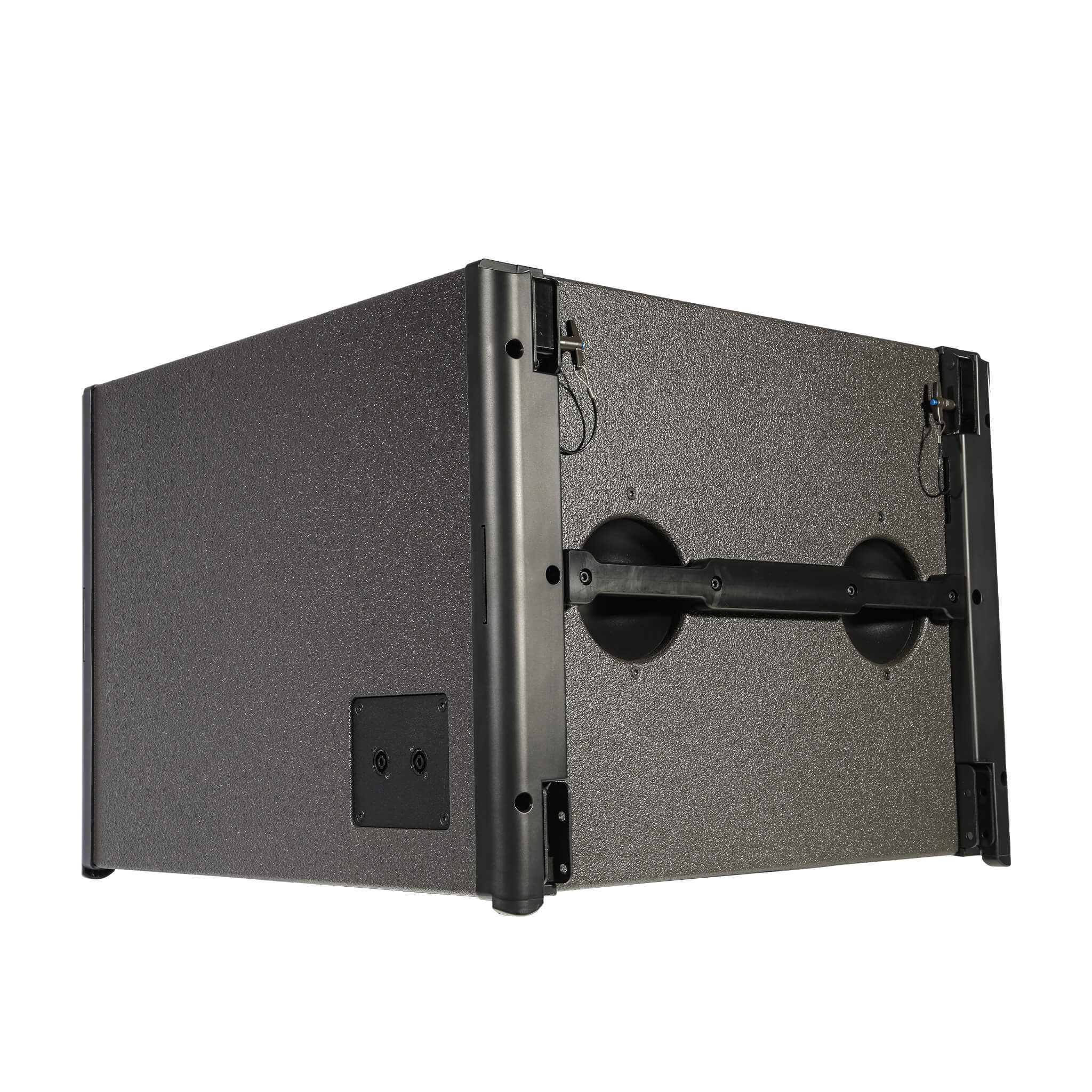

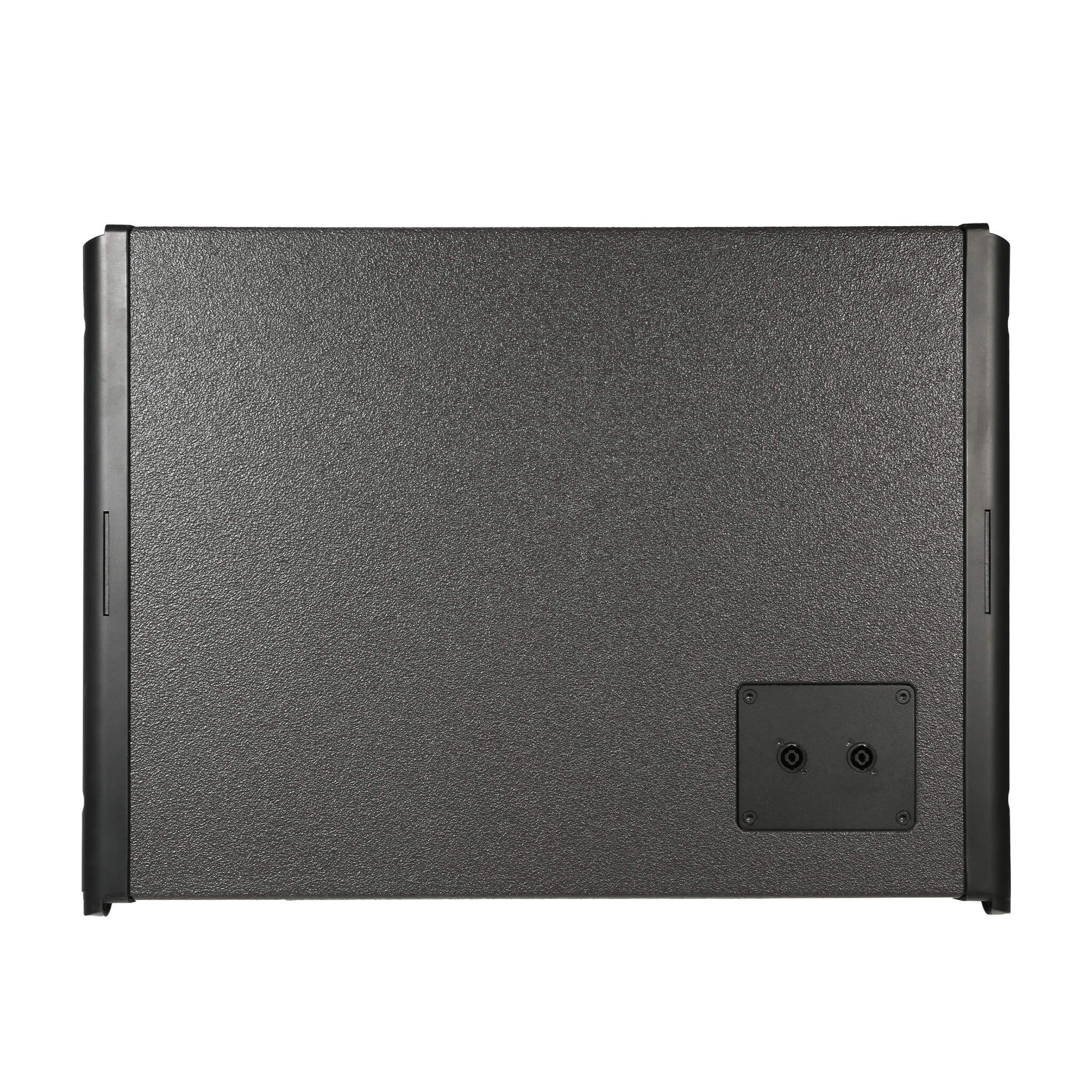

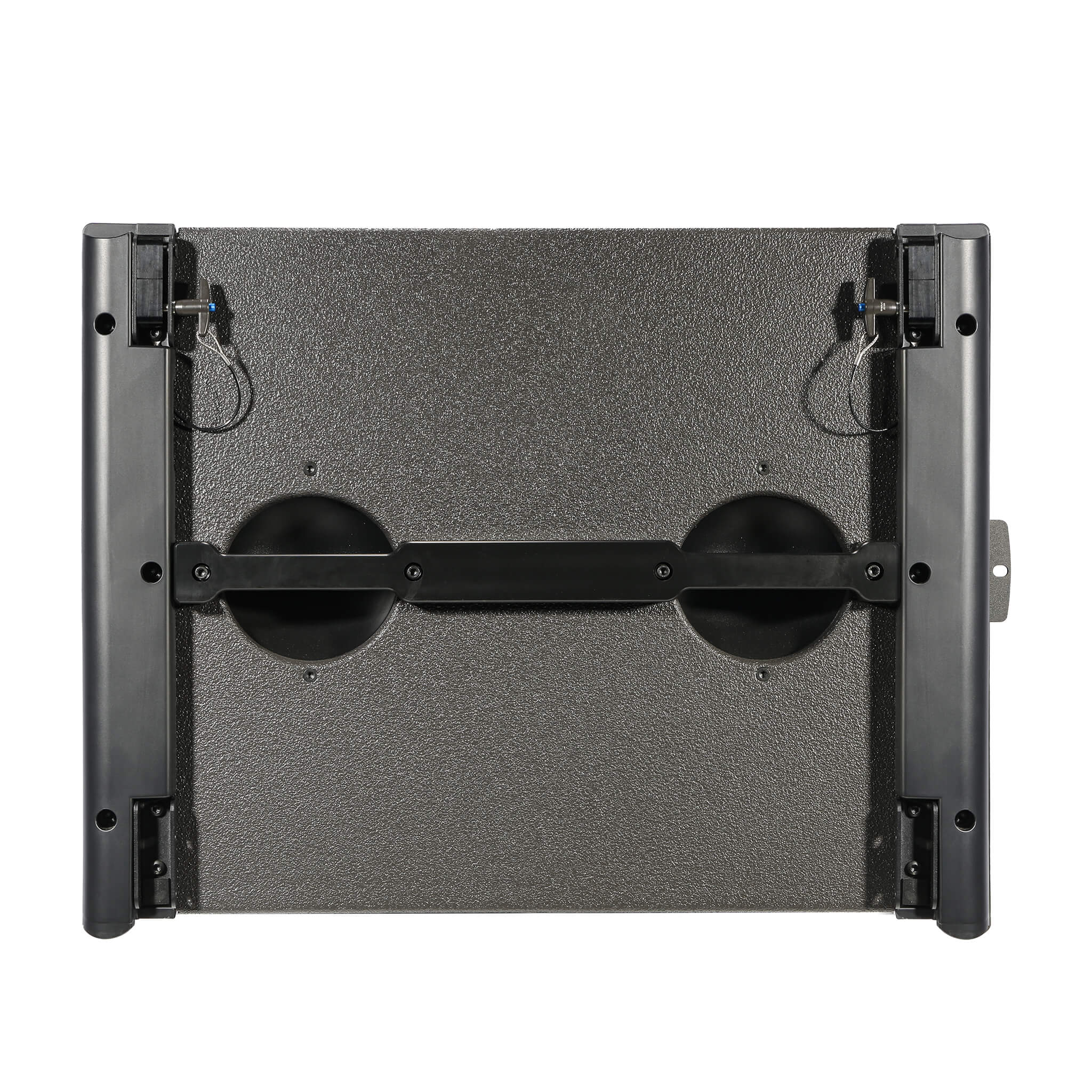

SB18 18-Inch Subwoofer
SB18 18-Inch Subwoofer is listed in the subwoofer systems category as a subwoofer system. The reference lists maximum spl: 142 dB; bandwidth: 27 Hz – 100 Hz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 142 dB
- Bandwidth
- 27 Hz – 100 Hz
- Weight
- 52 kg / 115 lb
Technical specifications
- Maximum SPL
- 142 dB
- Bandwidth
- 27 Hz – 100 Hz
- Transducers
- LF: 2 × 12″
- High power compact subwoofer
- 1 x 18'' amplified by LA4X / LA8 / LA12X
- Low frequency limit (-10 dB)
- 32 Hz ([SB18_100])
- Nominal directivity (-6 dB)
- Standard or cardioid
- Acoustical load
- Dual bass-reflex, L-Vents
- Nominal impedance
- 8 Ω
- Connectors
- 2 × 4-point speakON
Physical specifications
- Dimensions
- 675 × 540 × 700 mm
- Weight
- 52 kg / 115 lb
- Cabinet
- Baltic birch plywood
- Front
- Coated steel grill acoustically neutral 3D fabric
- Finish
- Dark grey brown Pantone 426 C
- IP
- IP55
- Front
- Coated steel grill
Compatibility and deployment
- Rigging and handling
- 4 x handles 4-point captive rigging system 1 × 35 mm pole socket
- Rigging components
- Steel with anti-corrosion coating
- Function / configuration
- 4-point captive rigging system
- Function / configuration
- 1 × 35 mm pole socket
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum SPL | 142 dB |
|---|---|
| Bandwidth | 27 Hz – 100 Hz |
| Transducers | LF: 2 × 12″ |
| Dimensions | 675 × 540 × 700 mm |
| Weight | 52 kg / 115 lb |
| High power compact subwoofer | 1 x 18'' amplified by LA4X / LA8 / LA12X |
| Low frequency limit (-10 dB) | 32 Hz ([SB18_100]) |
| Maximum SPL1 | 138 dB ([SB18_100]) |
| Nominal directivity (-6 dB) | Standard or cardioid |
| Transducers | 1 × 18″ |
| Acoustical load | Dual bass-reflex, L-Vents |
| Nominal impedance | 8 Ω |
| Connectors | 2 × 4-point speakON |
| Rigging and handling | 4 x handles 4-point captive rigging system 1 × 35 mm pole socket |
| Weight (net) | 52 kg / 115 lb |
| Cabinet | Premium grade Baltic birch plywood |
| Front | Coated steel grill acoustically neutral 3D fabric |
| Rigging components | Steel with anti-corrosion coating |
| Finish | Dark grey brown Pantone 426 C |
| IP | IP55 |
Downloads
Product documents are being prepared. Contact YL for the current information for SB18 18-Inch Subwoofer.
