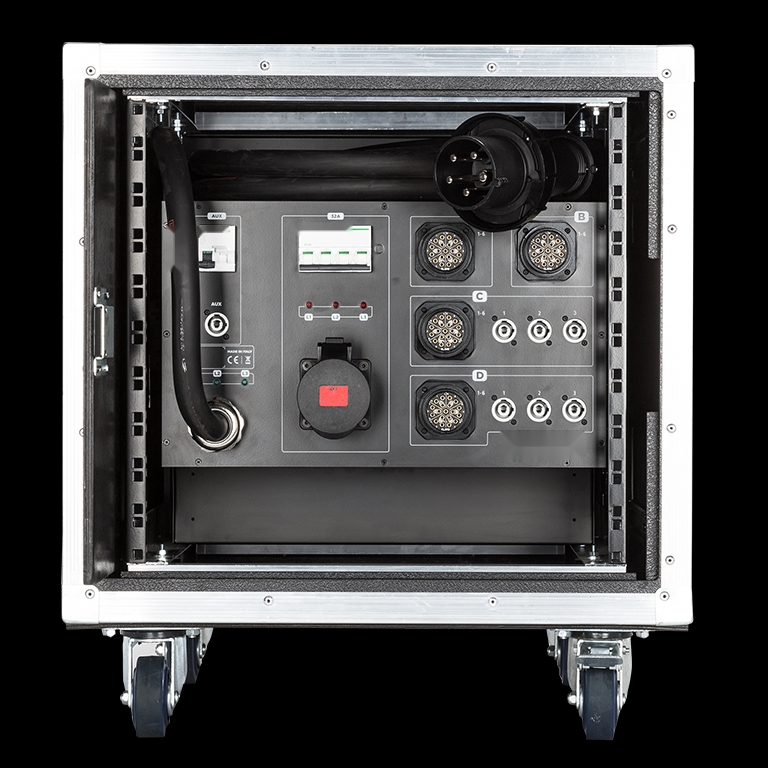

PR 63 63A Three-Phase Power Distribution Rack for Active PA Systems

Model

PR 63 63A Three-Phase Power Distribution Rack for Active PA Systems

Product category

Audio Cables

Main input

63A Cekon three-phase input with fixed 5 m cable

Operating voltage

90-240 V AC

Cekon outputs

32

LKS 19 outputs

4

PowerCON outputs

6 + 1 auxiliary

Branch protection

24 individual power line RCBOs

Front protection

32A and auxiliary individual front RCBOs

Centralized active-system power

one rack creates a repeatable three-phase hand-off point for active loudspeakers, subwoofers and control infrastructure.

Grouped output workflow

A / B / C / D output groups keep multicore cable paths organized from the rack to breakout boxes and speaker zones.

Independent circuit protection

24 individual RCBO circuits help isolate a faulty branch while the remaining system can continue operating.

Model

PR 63

System type

63A three-phase power distribution rack

Main input

63A Cekon, three-phase, fixed 5 m cable

Output grouping

A / B / C / D grouped distribution logic

High-power planning mode

Up to 32 active dual 12-inch line array speakers or active subwoofers across four groups

Compact planning mode

Up to 64 active 8-inch / 10-inch line array speakers across four groups

Best fit

Concerts, touring productions, rental companies, festivals and large-scale active PA systems

Flexible deployment scale

suitable for high-power active dual 12-inch arrays / subwoofers or compact active 8-inch / 10-inch line array systems.

Construction

tour-grade flight case

Dimensions (W × D × H)

600 × 600 × 720 mm

Net / gross weight

65.8 kg / 68.2 kg

Package size

610 × 630 × 570 mm

Net weight

65.8 kg / 145.06 lb

Gross weight

68.2 kg / 150.36 lb

Touring-ready construction

flight-case enclosure, fixed 5 m input cable and front-access protection support rental fleets and mobile productions.

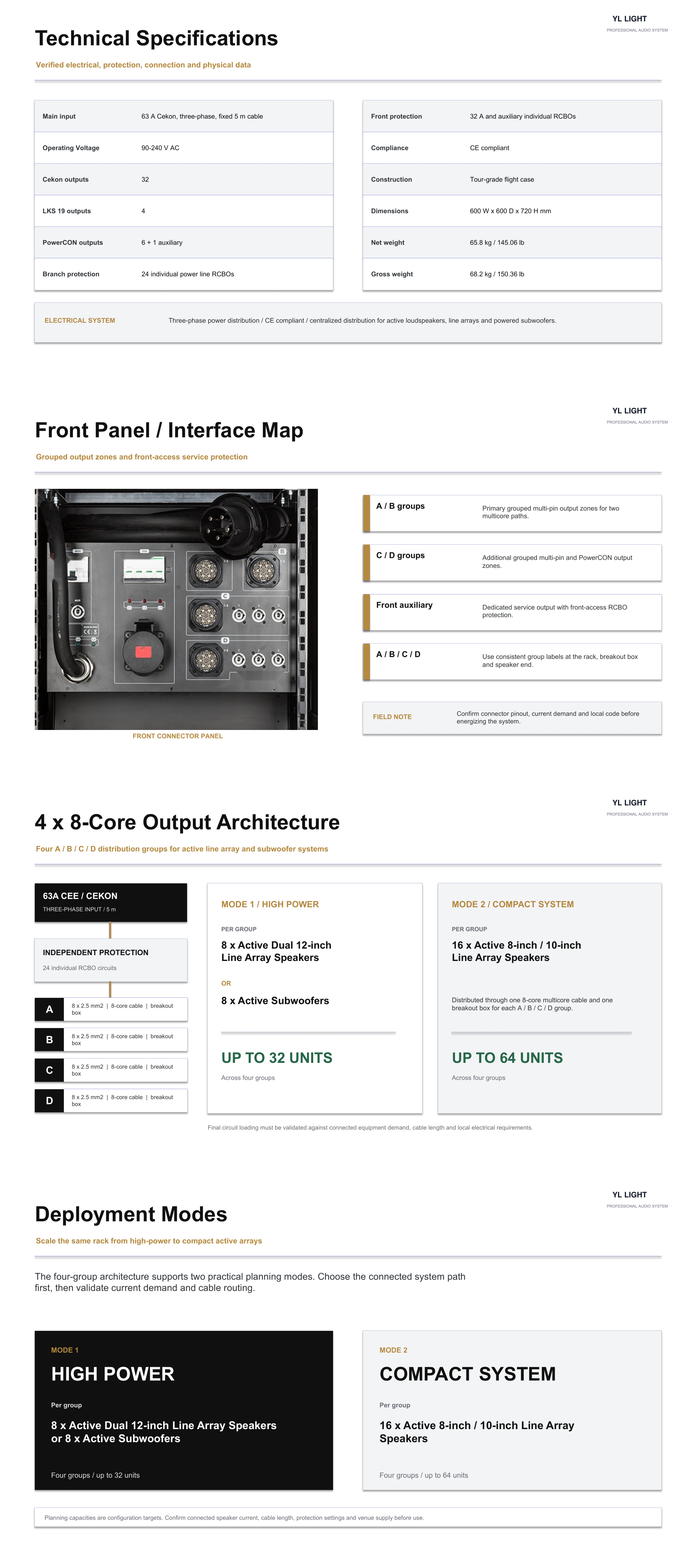

Function / configuration: Electrical & Output Data
