Product identification
- Model
- NX 912-AX 12-Inch Active Portable PA Speaker with 6-Channel Digital Mixer, Touch Screen & Bluetooth
- Product category
- Point Source Loudspeakers

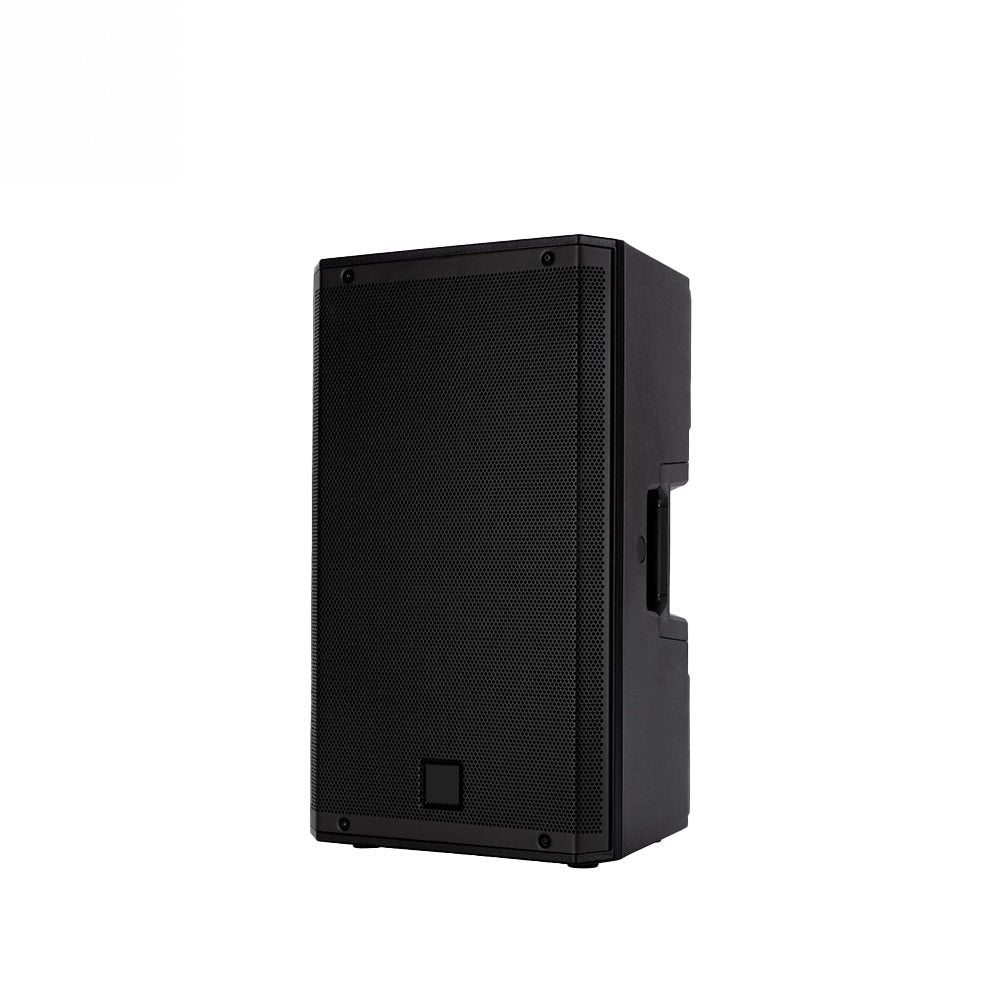

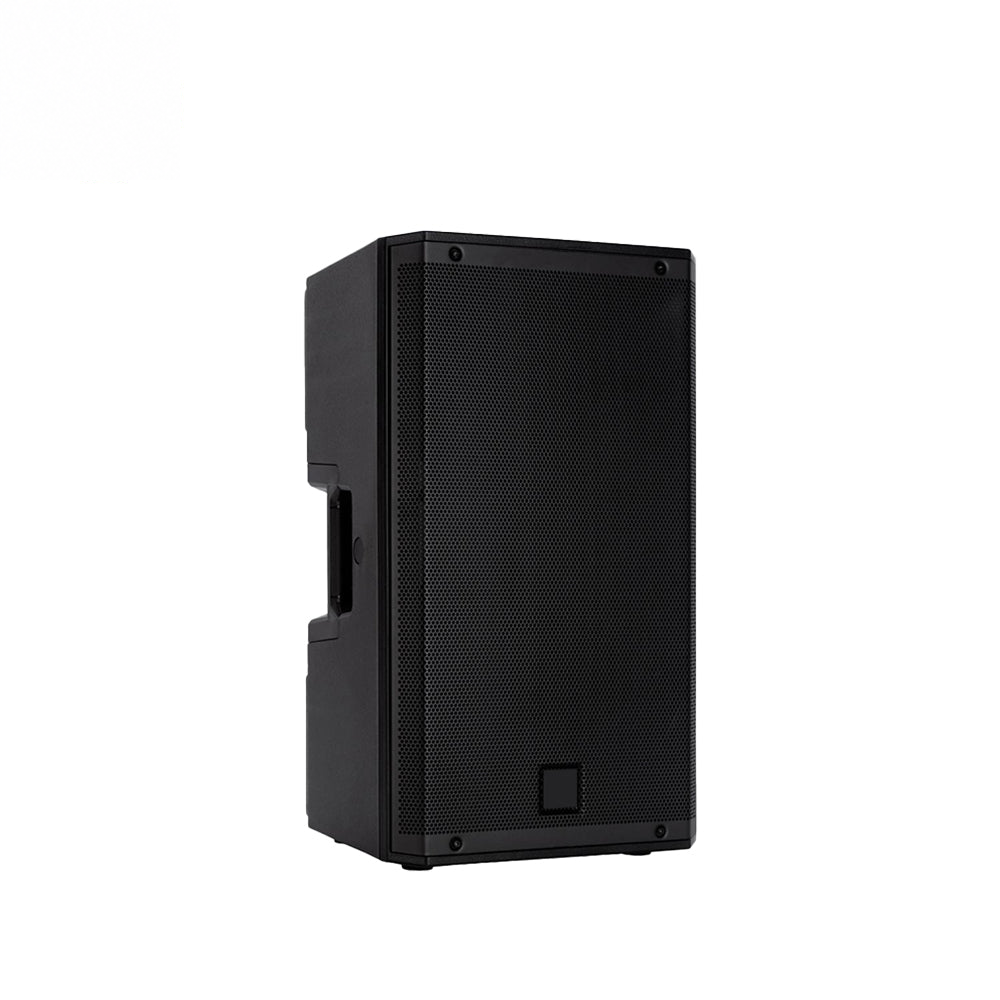

NX 912-AX 12-Inch Active Portable PA Speaker with 6-Channel Digital Mixer, Touch Screen & Bluetooth
NX 912-AX 12-Inch Active Portable PA Speaker with 6-Channel Digital Mixer, Touch Screen & Bluetooth is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists integrated mixer: 6-channel digital mixer with two MIC/LINE combo inputs, independent +48 V phantom power, AUX input and multifunction output.; frequency response: 50 Hz - 20 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 130 dB at 1 m
- Frequency response
- 50 Hz - 20 kHz
- Net weight
- 19.5 kg
Technical specifications
- Integrated mixer
- 6-channel digital mixer with two MIC/LINE combo inputs, independent +48 V phantom power, AUX input and multifunction output.
- Frequency response
- 50 Hz - 20 kHz
- Maximum SPL
- 130 dB at 1 m
- Coverage
- 100° horizontal x 60° vertical
- Amplifier power
- 2100 W peak total; 1400 W LF + 700 W HF
- High-output two-way system
- 12-inch woofer, 1.75-inch compression driver and 2100 W peak amplification.
- Consistent audience coverage
- True Resistive Waveguide with 100° horizontal x 60° vertical directivity.
- Advanced loudspeaker processing
- FiRPHASE, Bass Motion Control and soft-limiter protection.
- Model
- NX 912-AX / ART 912-AX platform
- System type
- Two-way active portable PA / point source loudspeaker
- Maximum SPL @ 1 m
- 130 dB
- Coverage H x V
- 100° x 60°

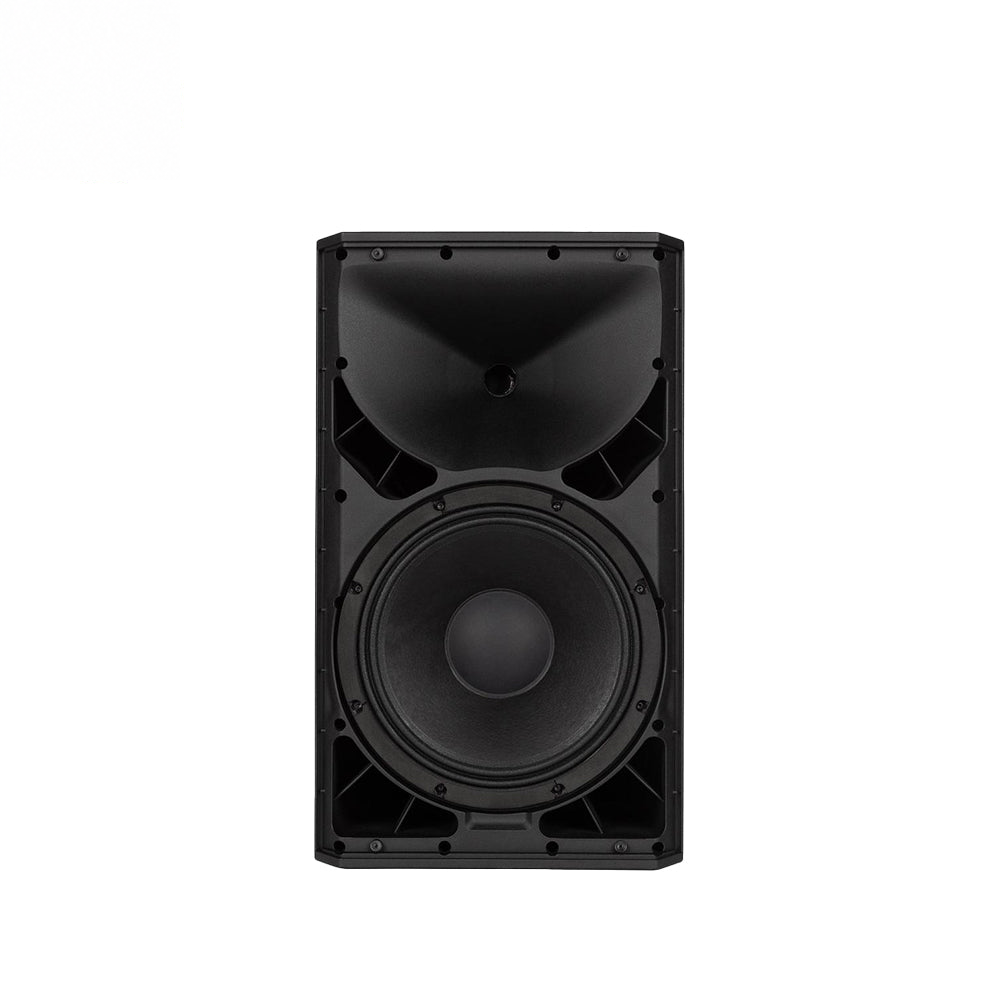

- Transducers
- 1 x 12-inch woofer / 1 x 1.75-inch compression driver
- Crossover
- 1600 Hz
- Amplifier
- 2100 W peak total; 1400 W LF + 700 W HF
- DSP
- FiRPHASE, Bass Motion Control and soft-limiter protection

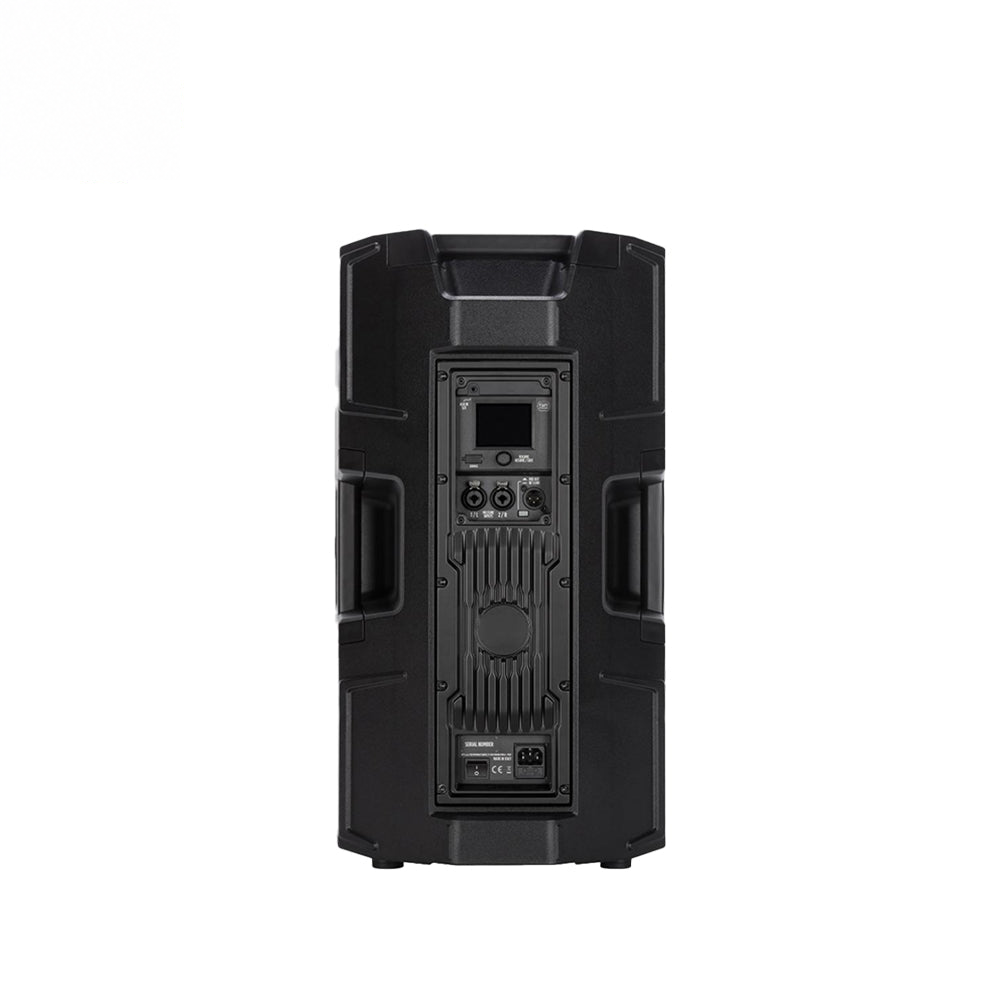

- Connections & control
- 2 x MIC/LINE combo inputs; 3.5 mm AUX; multifunction XLR MIX OUT / LINK; 2.4-inch touch screen; Bluetooth and LiveRemote
- System configuration
- 2100 W peak Class-D bi-amplification, 130 dB maximum SPL and controlled 100° x 60° coverage
- System configuration
- a built-in 6-channel digital mixer, a 2.4-inch capacitive touch screen, Bluetooth audio and LiveRemote control
- Touch and remote control
- 2.4-inch capacitive touch screen, encoder, Bluetooth audio and LiveRemote control from iOS or Android.
- Flexible pairing
- stereo, dual-mono and zone workflows for one- or two-speaker systems.
Physical specifications
- Dimensions (H x W x D)
- 642 x 370 x 363 mm
- Net weight
- 19.5 kg
Compatibility and deployment

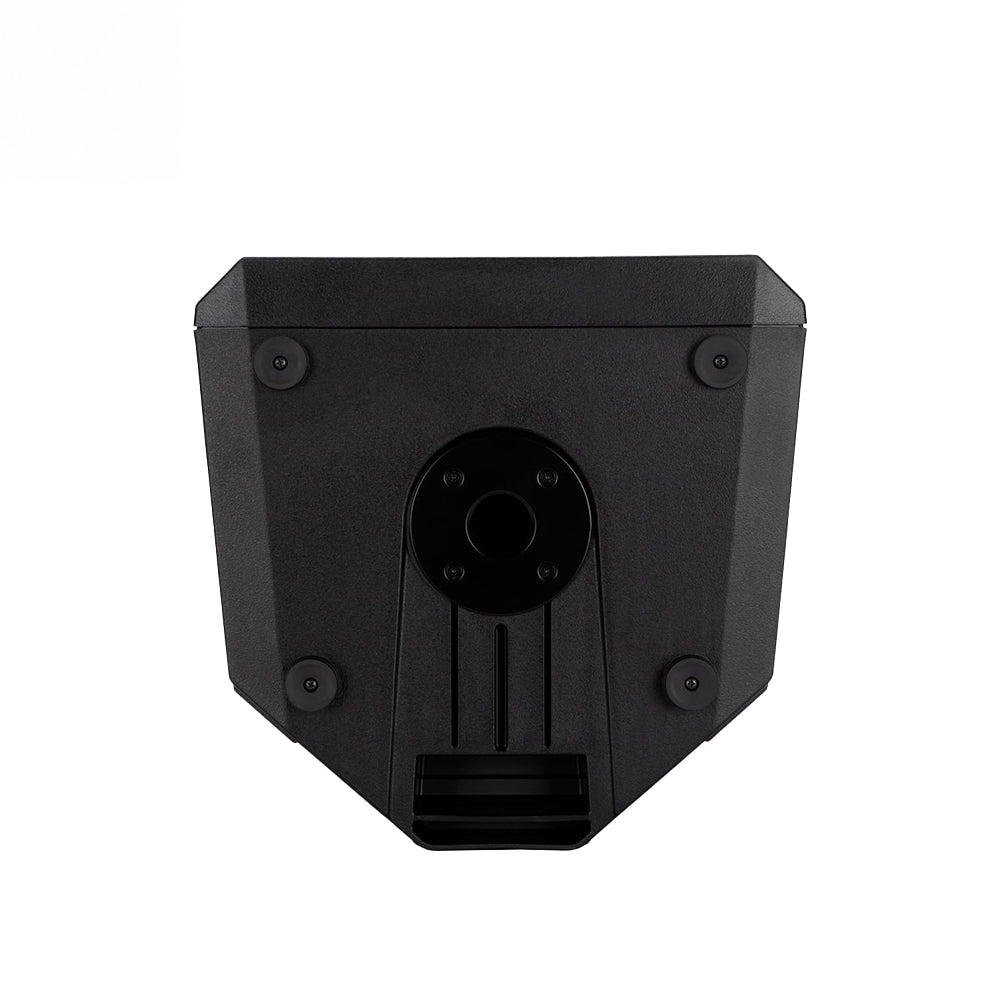

- Mounting
- 35 mm pole socket, M10 rigging points and approved brackets
- Portable and installed use
- pole socket, M10 rigging points and compatible mounting brackets.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Integrated mixer | 6-channel digital mixer with two MIC/LINE combo inputs, independent +48 V phantom power, AUX input and multifunction output. |
|---|---|
| Frequency response | 50 Hz - 20 kHz |
| Maximum SPL | 130 dB at 1 m |
| Coverage | 100° horizontal x 60° vertical |
| Amplifier power | 2100 W peak total; 1400 W LF + 700 W HF |
| Dimensions (H x W x D) | 642 x 370 x 363 mm |
| Net weight | 19.5 kg |
| High-output two-way system | 12-inch woofer, 1.75-inch compression driver and 2100 W peak amplification. |
| Consistent audience coverage | True Resistive Waveguide with 100° horizontal x 60° vertical directivity. |
| Advanced loudspeaker processing | FiRPHASE, Bass Motion Control and soft-limiter protection. |
| Model | NX 912-AX / ART 912-AX platform |
| System type | Two-way active portable PA / point source loudspeaker |
| Maximum SPL @ 1 m | 130 dB |
| Coverage H x V | 100° x 60° |
| Transducers | 1 x 12-inch woofer / 1 x 1.75-inch compression driver |
| Crossover | 1600 Hz |
| Amplifier | 2100 W peak total; 1400 W LF + 700 W HF |
| DSP | FiRPHASE, Bass Motion Control and soft-limiter protection |
| Connections & control | 2 x MIC/LINE combo inputs; 3.5 mm AUX; multifunction XLR MIX OUT / LINK; 2.4-inch touch screen; Bluetooth and LiveRemote |
| Mounting | 35 mm pole socket, M10 rigging points and approved brackets |
Downloads
| Title | File type | Download |
|---|---|---|
| YL NX 912-AX Selected Technical DataEnglish | PDF74 KB |
