Product identification
- Model
- NX 912-A 12-Inch Active Portable PA Speaker
- Product category
- Point Source Loudspeakers

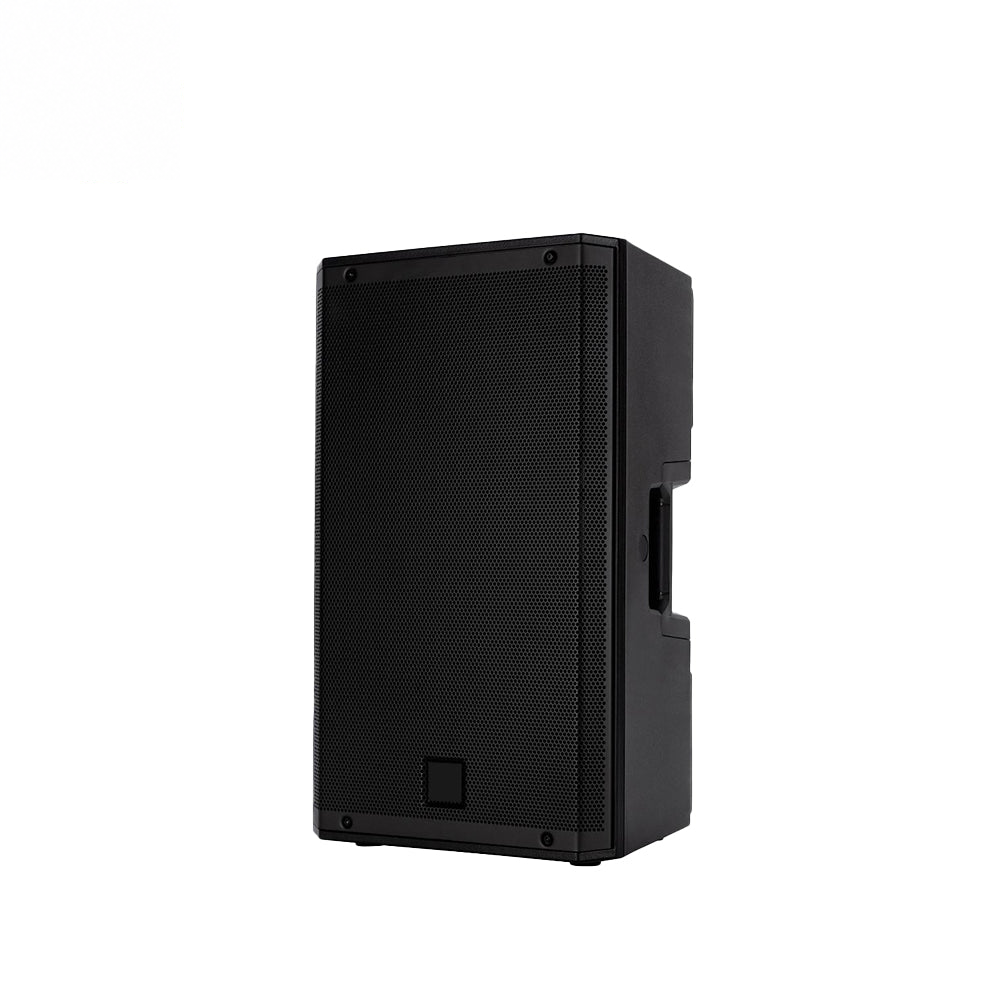

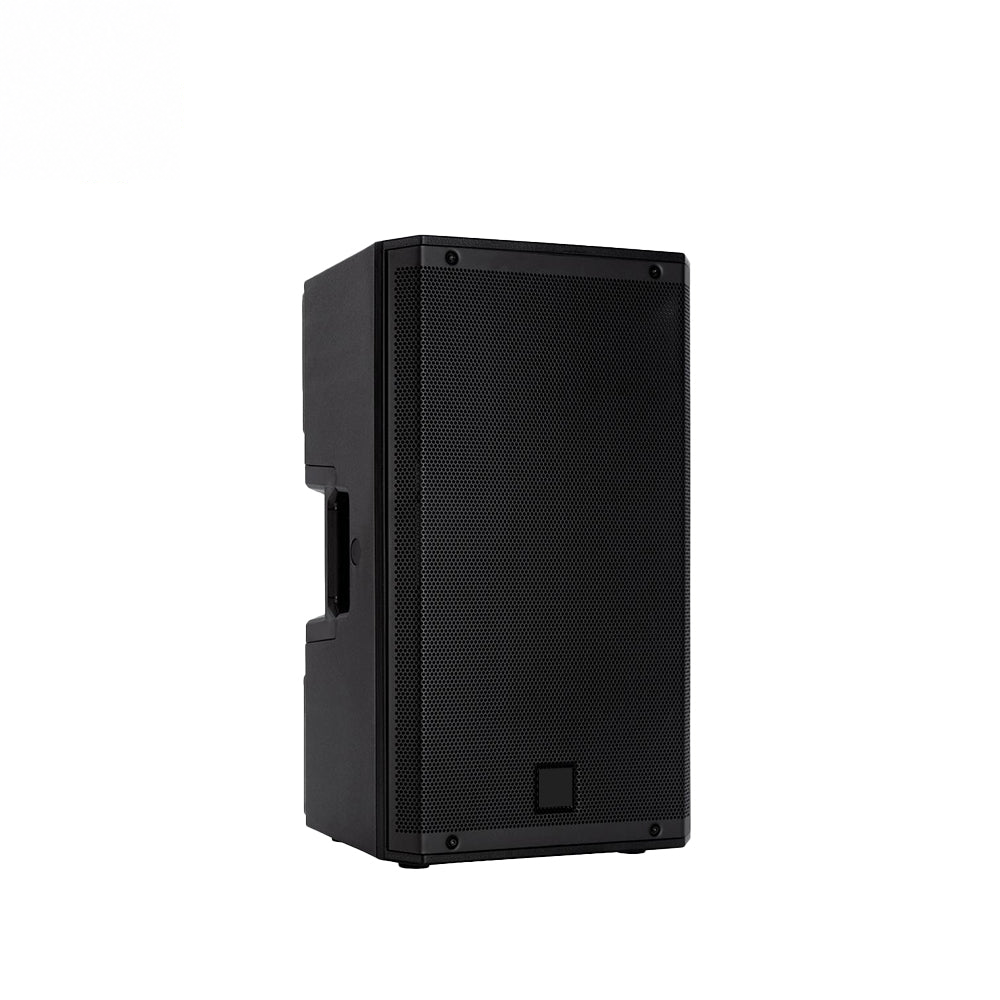

NX 912-A 12-Inch Active Portable PA Speaker
NX 912-A 12-Inch Active Portable PA Speaker is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists frequency response: 50 Hz - 20 kHz; maximum spl: 130 dB at 1 m. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 130 dB at 1 m
- Frequency response
- 50 Hz - 20 kHz
- Net weight
- 19.5 kg
Technical specifications
- Frequency response
- 50 Hz - 20 kHz
- Maximum SPL
- 130 dB at 1 m
- Coverage
- 100° horizontal x 60° vertical
- Amplifier power
- 2100 W peak total; 1400 W LF + 700 W HF
- High-output two-way system

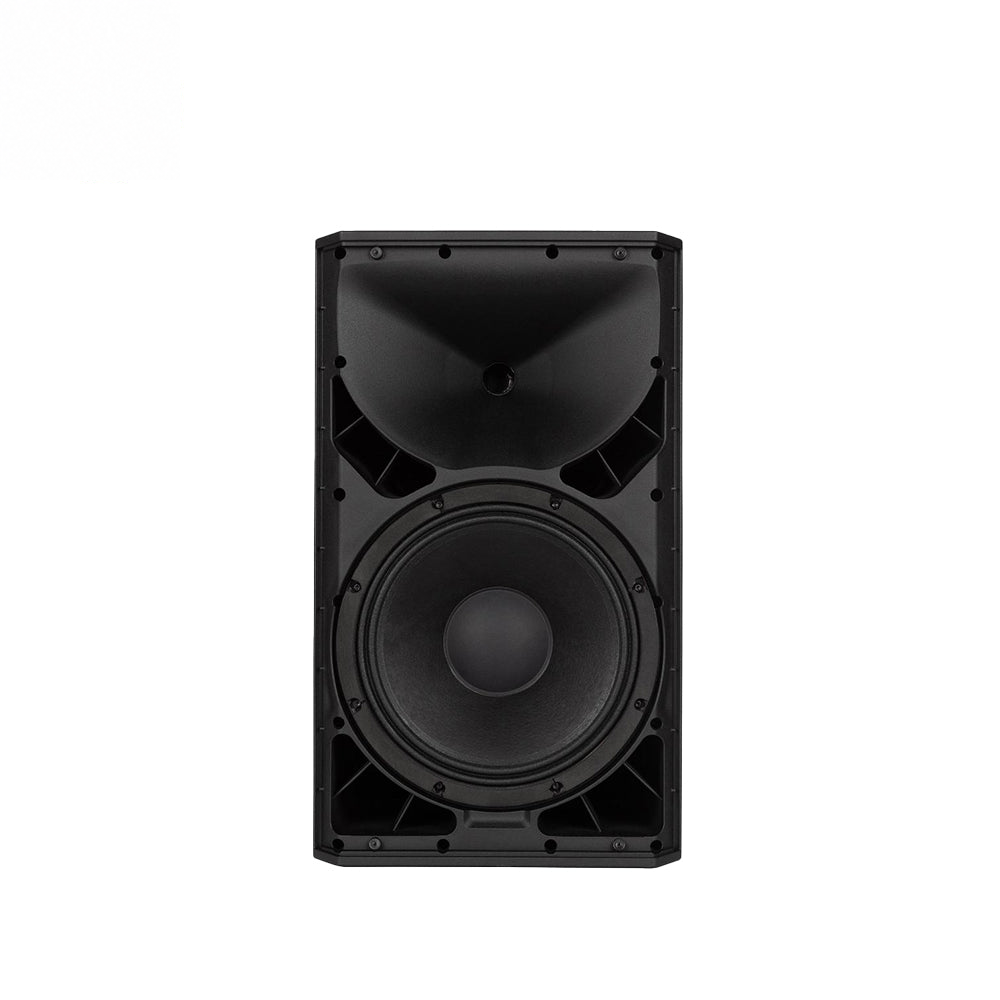

- 12-inch woofer, 1.75-inch compression driver and 2100 W peak amplification.
- Consistent audience coverage
- True Resistive Waveguide with 100° horizontal x 60° vertical directivity.
- Advanced loudspeaker processing
- FiRPHASE, Bass Motion Control and soft-limiter protection.
- Model
- NX 912-A / ART 912-A platform
- System type
- Two-way active portable PA / point source loudspeaker
- Maximum SPL @ 1 m
- 130 dB
- Coverage H x V
- 100° x 60°
- Transducers
- 1 x 12-inch woofer / 1 x 1.75-inch compression driver
- Crossover
- 1800 Hz
- Amplifier
- 2100 W peak total; 1400 W LF + 700 W HF
- DSP
- FiRPHASE, Bass Motion Control and soft-limiter protection
- Connections & control

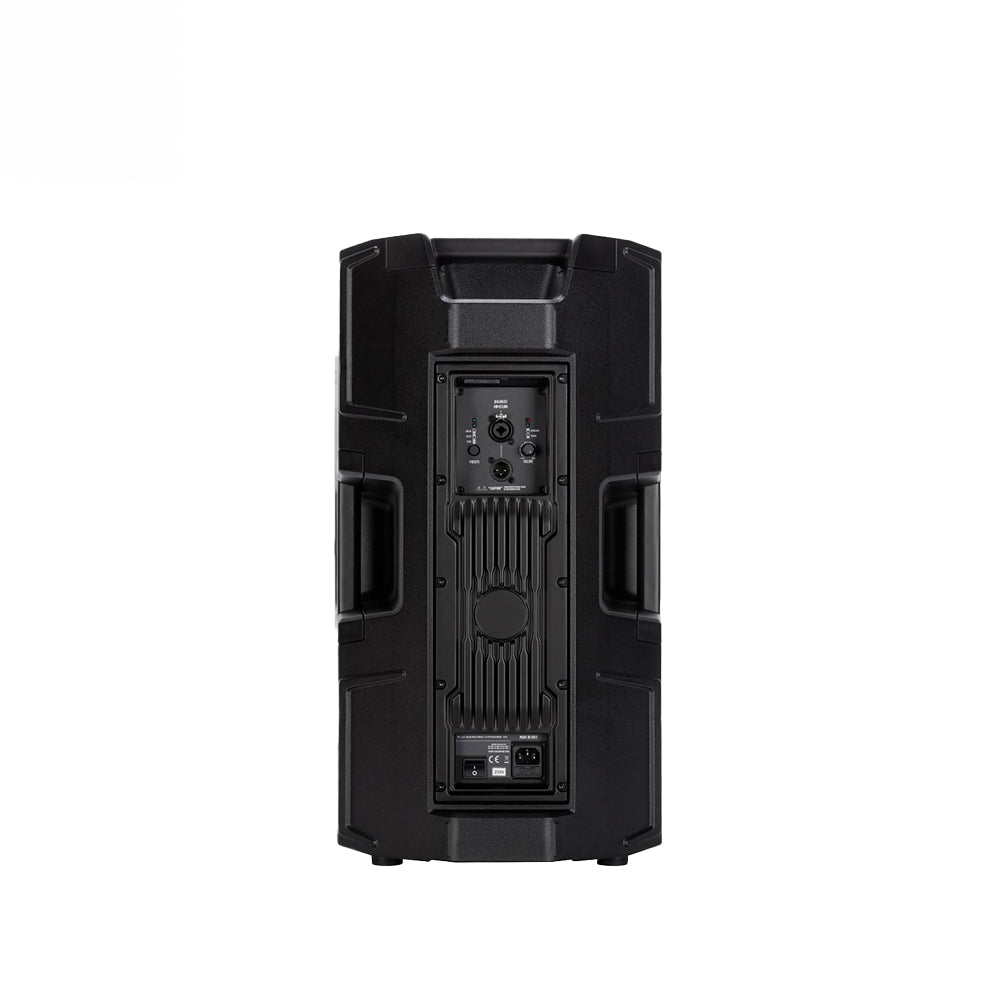

- Balanced / unbalanced XLR and 1/4-inch Jack input; XLR link output; Linear, Boost and Stage presets
- System configuration
- 2100 W peak Class-D bi-amplification, 130 dB maximum SPL and controlled 100° x 60° coverage
- Direct analog workflow
- balanced or unbalanced XLR / 1/4-inch Jack input and XLR link output.
- Simple deployment
- fast source connection for portable PA, stage use and installed sound.
Physical specifications
- Dimensions (H x W x D)
- 642 x 370 x 363 mm
- Net weight
- 19.5 kg
Compatibility and deployment
- Application presets
- Linear, Boost and Stage DSP modes with rear-panel level control.
- Mounting

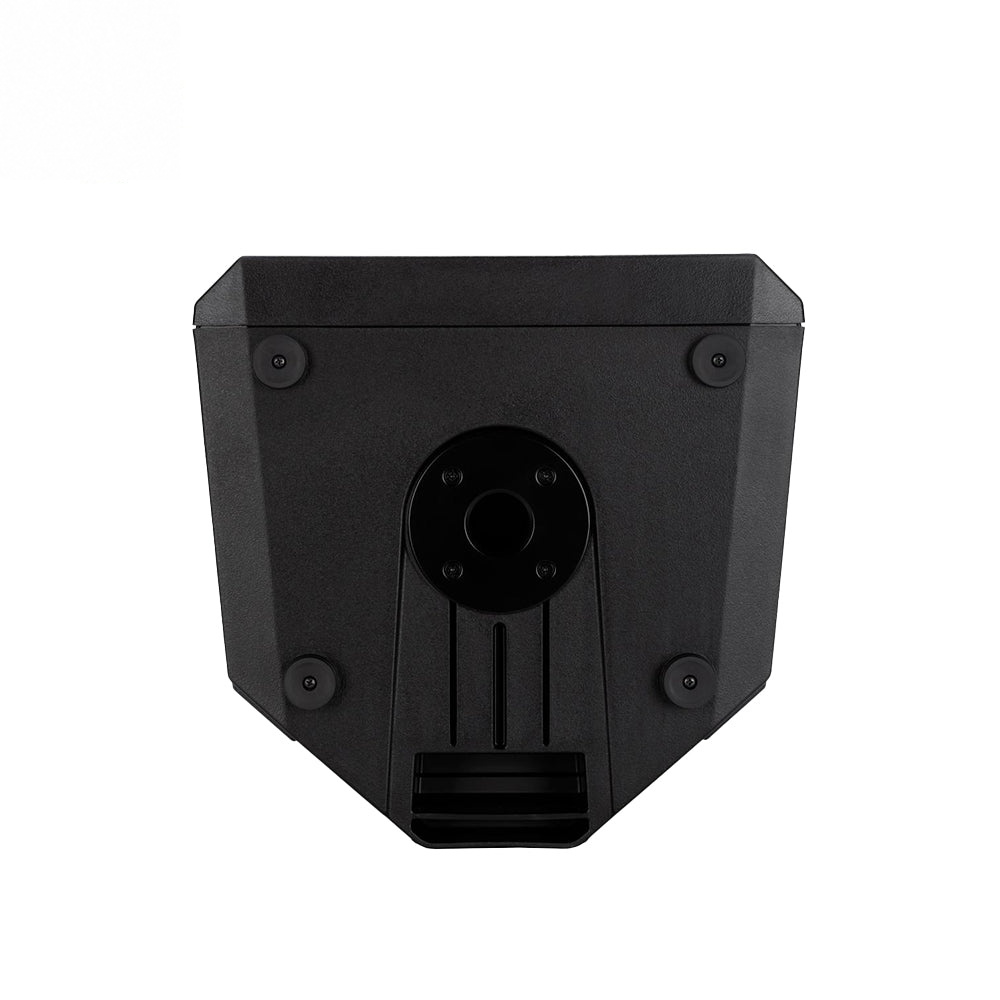

- 35 mm pole socket, M10 rigging points and approved brackets
- Portable and installed use
- pole socket, M10 rigging points and compatible mounting brackets.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Frequency response | 50 Hz - 20 kHz |
|---|---|
| Maximum SPL | 130 dB at 1 m |
| Coverage | 100° horizontal x 60° vertical |
| Amplifier power | 2100 W peak total; 1400 W LF + 700 W HF |
| Dimensions (H x W x D) | 642 x 370 x 363 mm |
| Net weight | 19.5 kg |
| High-output two-way system | 12-inch woofer, 1.75-inch compression driver and 2100 W peak amplification. |
| Consistent audience coverage | True Resistive Waveguide with 100° horizontal x 60° vertical directivity. |
| Advanced loudspeaker processing | FiRPHASE, Bass Motion Control and soft-limiter protection. |
| Application presets | Linear, Boost and Stage DSP modes with rear-panel level control. |
| Model | NX 912-A / ART 912-A platform |
| System type | Two-way active portable PA / point source loudspeaker |
| Maximum SPL @ 1 m | 130 dB |
| Coverage H x V | 100° x 60° |
| Transducers | 1 x 12-inch woofer / 1 x 1.75-inch compression driver |
| Crossover | 1800 Hz |
| Amplifier | 2100 W peak total; 1400 W LF + 700 W HF |
| DSP | FiRPHASE, Bass Motion Control and soft-limiter protection |
| Connections & control | Balanced / unbalanced XLR and 1/4-inch Jack input; XLR link output; Linear, Boost and Stage presets |
| Mounting | 35 mm pole socket, M10 rigging points and approved brackets |
Downloads
| Title | File type | Download |
|---|---|---|
| YL NX 912-A Selected Technical DataEnglish | PDF74 KB |
