Product identification
- Model
- M4 Active 2-Way Stage Monitor
- Product category
- Stage Monitors

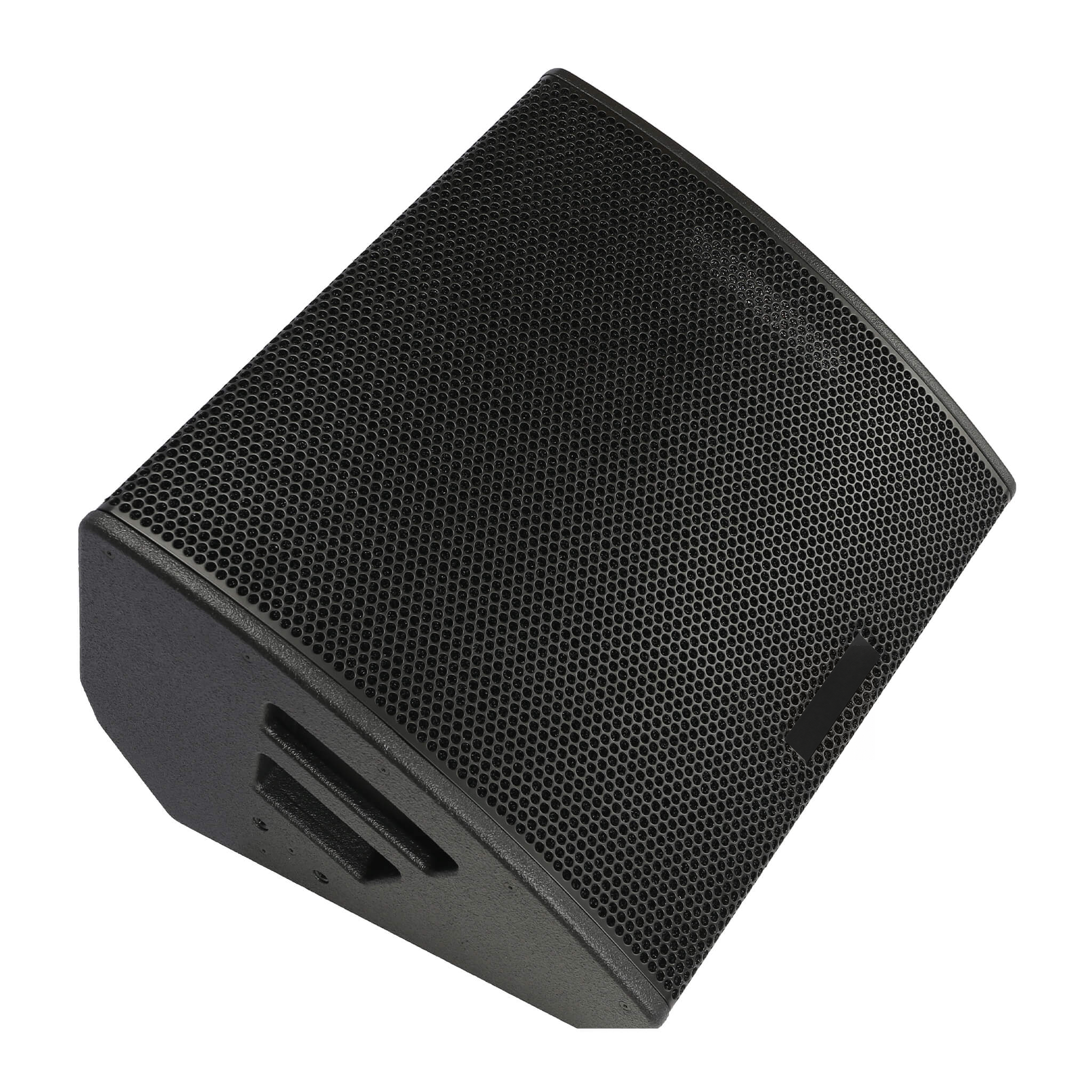

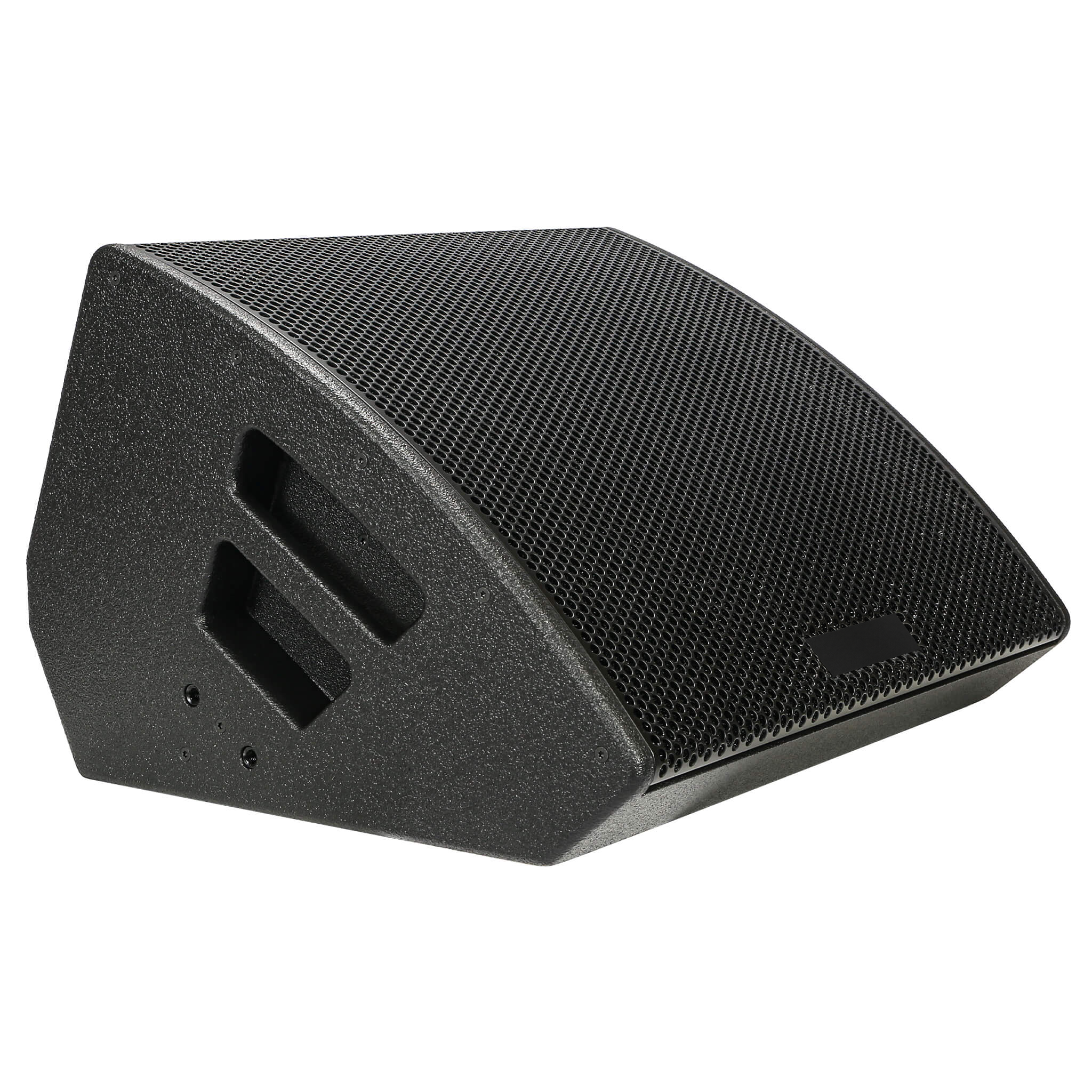

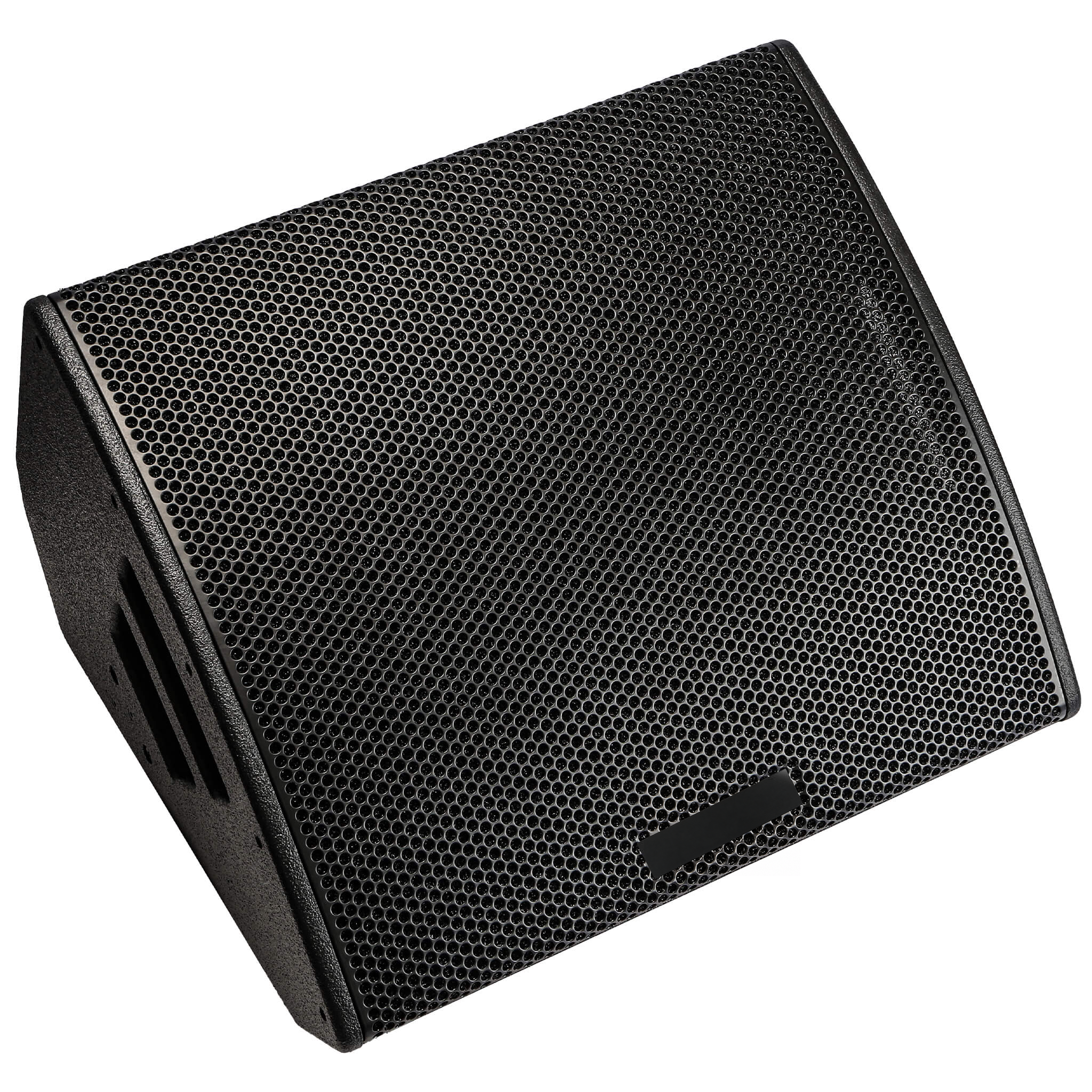

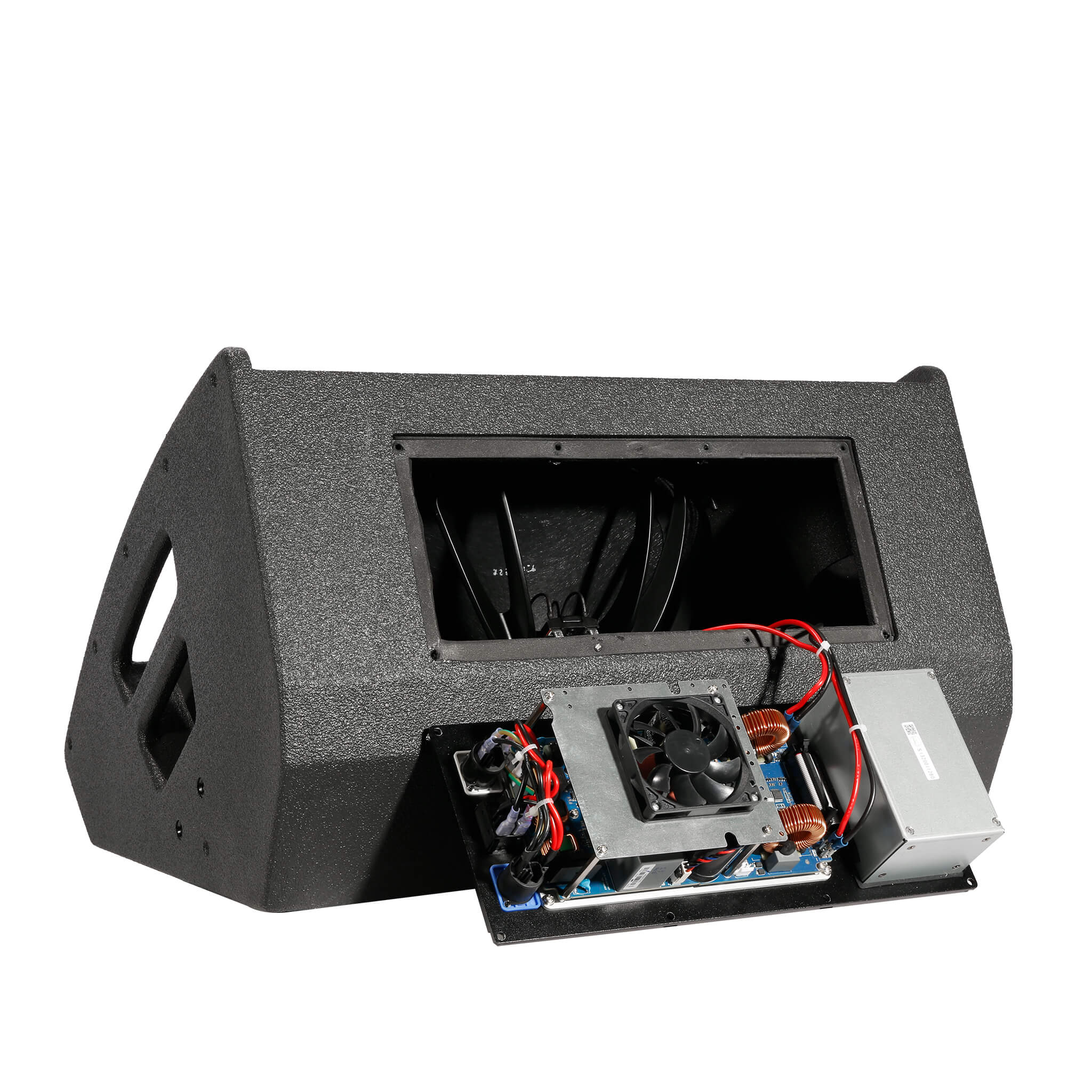

M4 Active 2-Way Stage Monitor
M4 Active 2-Way Stage Monitor is listed in the stage monitors category as a stage monitor. The reference lists components: 15"/1.3"; dispersion: 50° x 70° rotatable. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Frequency response (-5 dB standard)
- 55 Hz - 17 kHz1
- Weight
- 20 kg 44 lb
- Nominal impedance
- 8 Ω
Technical specifications
- Components
- 15"/1.3"
- Dispersion
- 50° x 70° rotatable
- SPLmax
- 140 dB
- Frequency response (-5 dB standard)
- 55 Hz - 17 kHz1
- with 10D
- 134 dB3/135 dB4
- with D20/30D
- 138 dB3/140 dB5
- with D40/D80/40D
- 138 dB3/ 140 dB5
- Configuration
- 2-way stage monitor
- Nominal impedance
- 8 Ω
- Power handling capacity (RMS/peak 10 ms)
- 400/1600 W
- Components

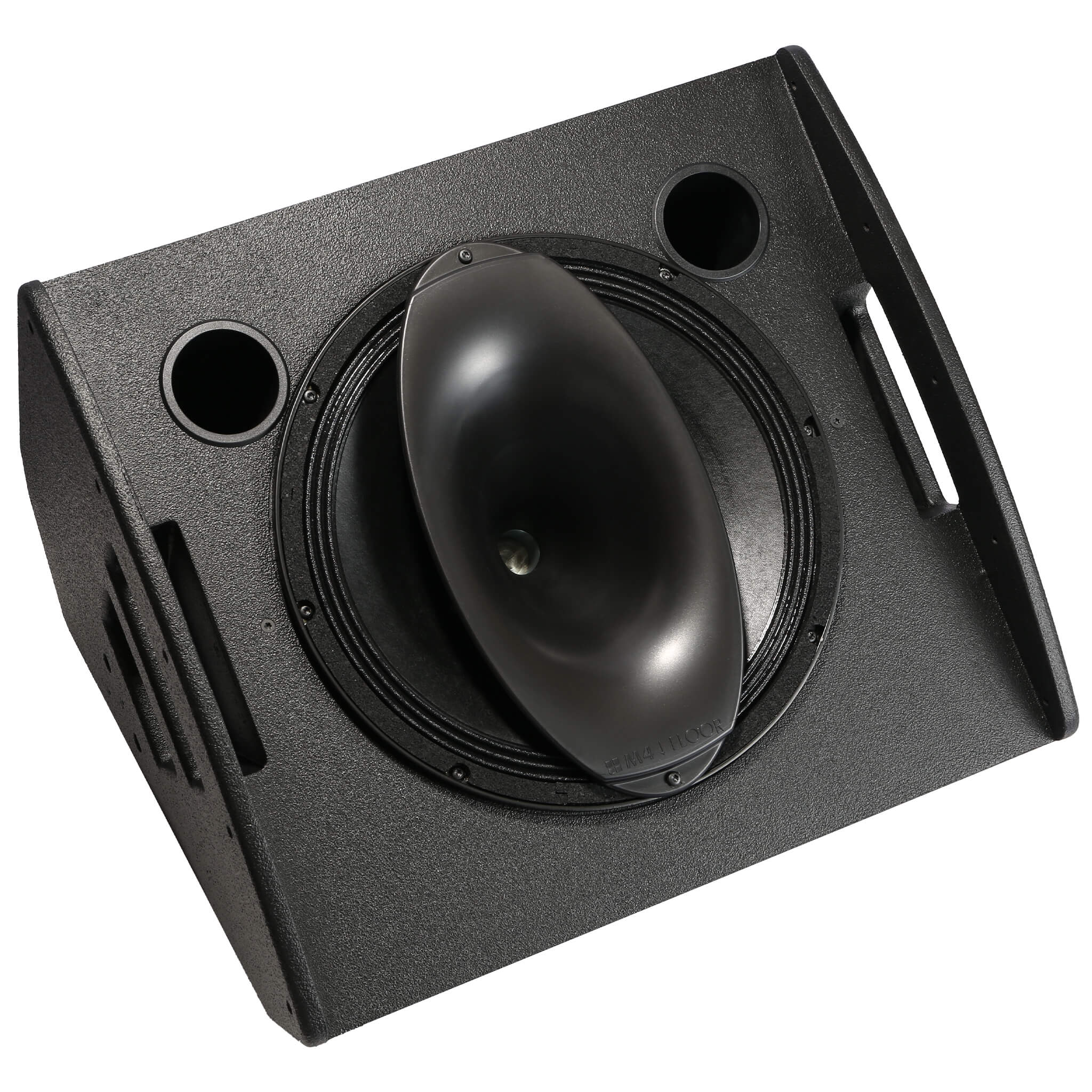

- 15" driver with neodymium magnet coaxial 1.3" exit compression driver with 3" coil and CD horn passive crossover network
- Connections

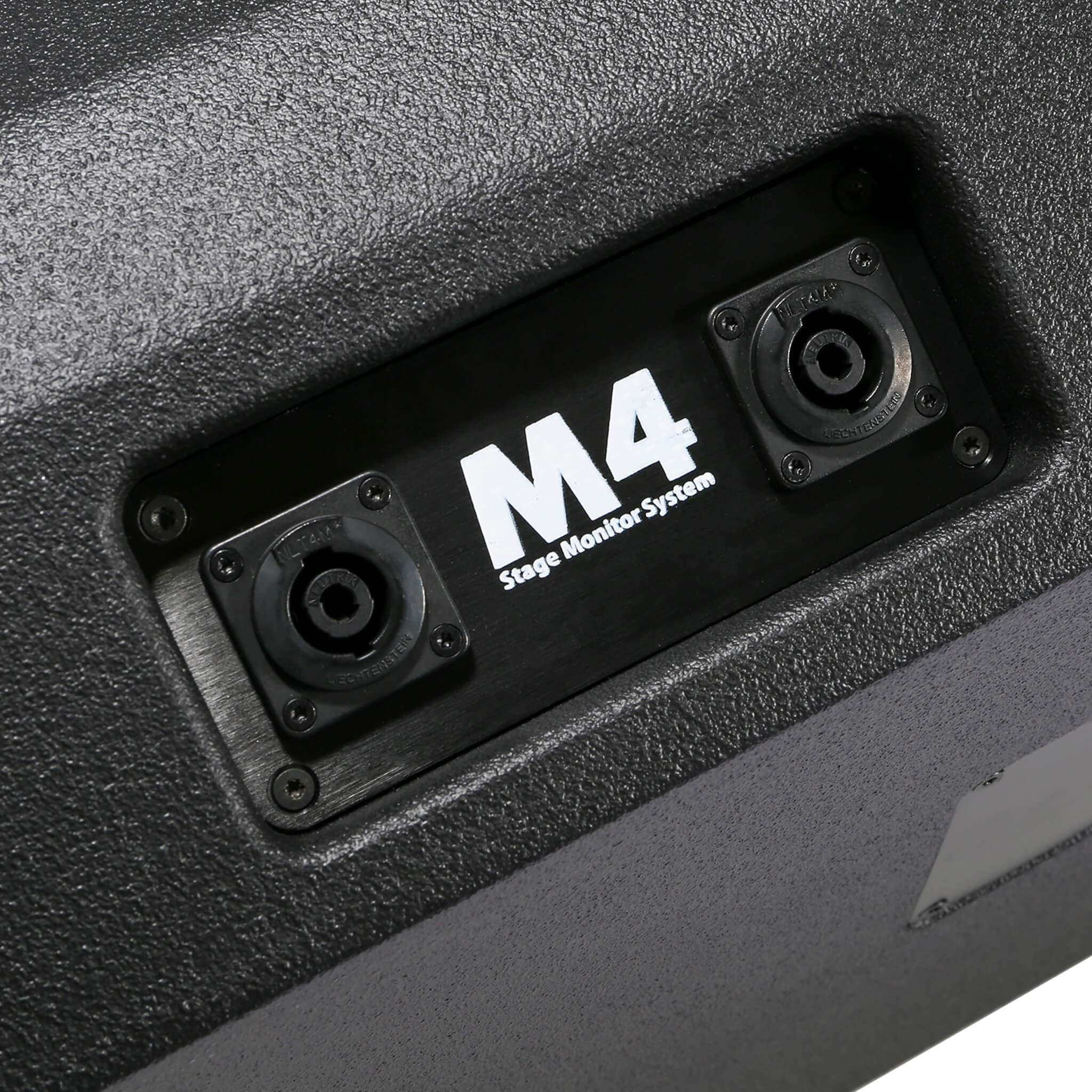

- 2 x NLT4 F/M optional 2 x NL4
Physical specifications
- Weight
- 20 kg / 44 lb Article number Z0800
- Cabinets per amplifier channel (passive mode)
- 2
- Cabinets per D20/D80 (active mode)
- 4
- Dimensions (H x W x D)
- 363 x 580 x 505 mm6 14.3 x 22.8 x 19.9" 2
Compatibility and deployment
- Nominal dispersion angle (h x v)
- 50° x 70° rotatable
- Function / configuration
- Loudspeaker data
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Components | 15"/1.3" |
|---|---|
| Dispersion | 50° x 70° rotatable |
| SPLmax | 140 dB |
| Weight | 20 kg / 44 lb Article number Z0800 |
| Frequency response (-5 dB standard) | 55 Hz - 17 kHz1 |
| with 10D | 134 dB3/135 dB4 |
| with D20/30D | 138 dB3/140 dB5 |
| with D40/D80/40D | 138 dB3/ 140 dB5 |
| Cabinets per amplifier channel (passive mode) | 2 |
| Cabinets per D20/D80 (active mode) | 4 |
| Configuration | 2-way stage monitor |
| Nominal impedance | 8 Ω |
| Power handling capacity (RMS/peak 10 ms) | 400/1600 W |
| Nominal dispersion angle (h x v) | 50° x 70° rotatable |
| Components | 15" driver with neodymium magnet coaxial 1.3" exit compression driver with 3" coil and CD horn passive crossover network |
| Connections | 2 x NLT4 F/M optional 2 x NL4 |
| Dimensions (H x W x D) | 363 x 580 x 505 mm6 14.3 x 22.8 x 19.9" 2 |
| Weight | 20 kg 44 lb |
