Product identification
- Model
- M115Q Active 2-Way 15-Inch Stage Monitor
- Product category
- Stage Monitors

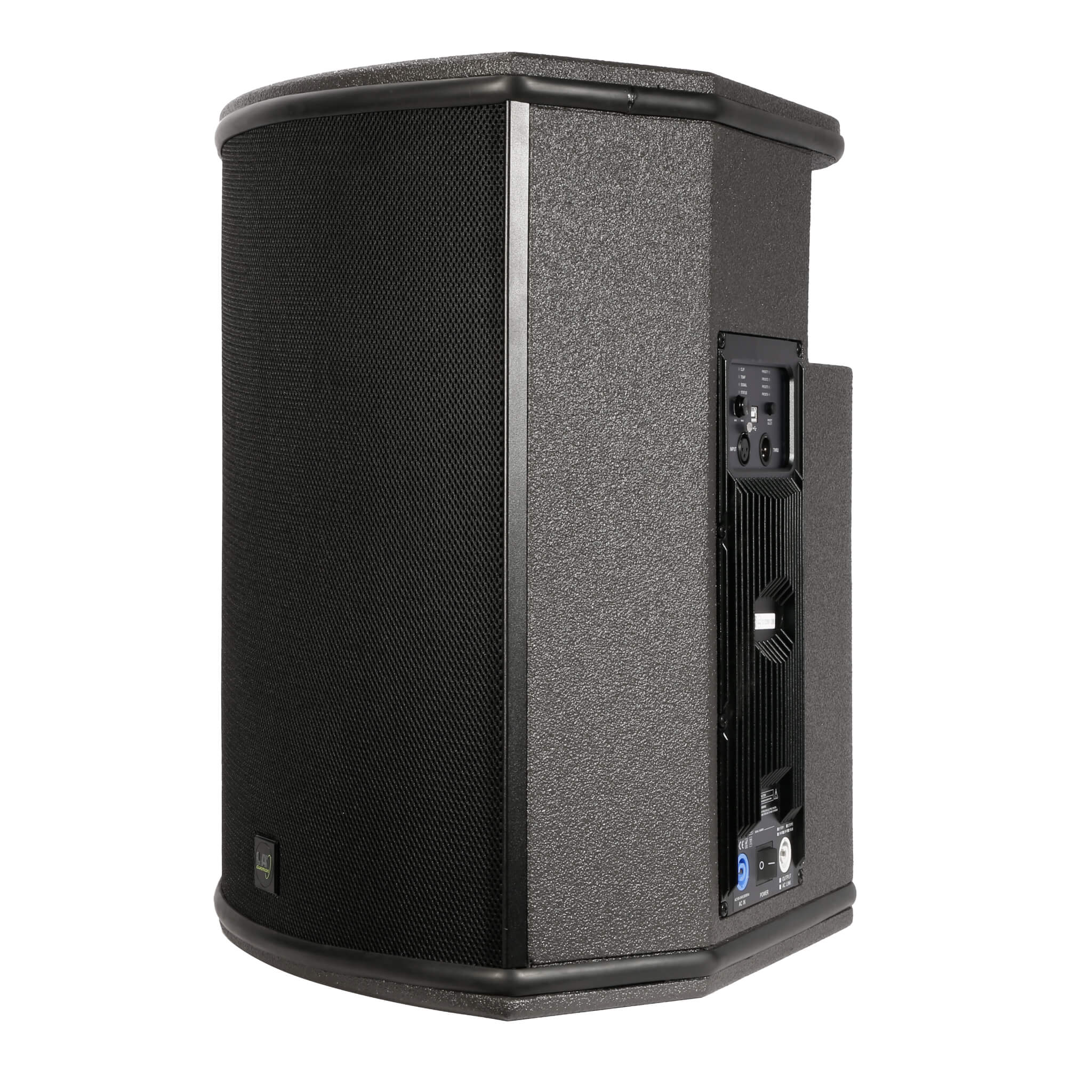

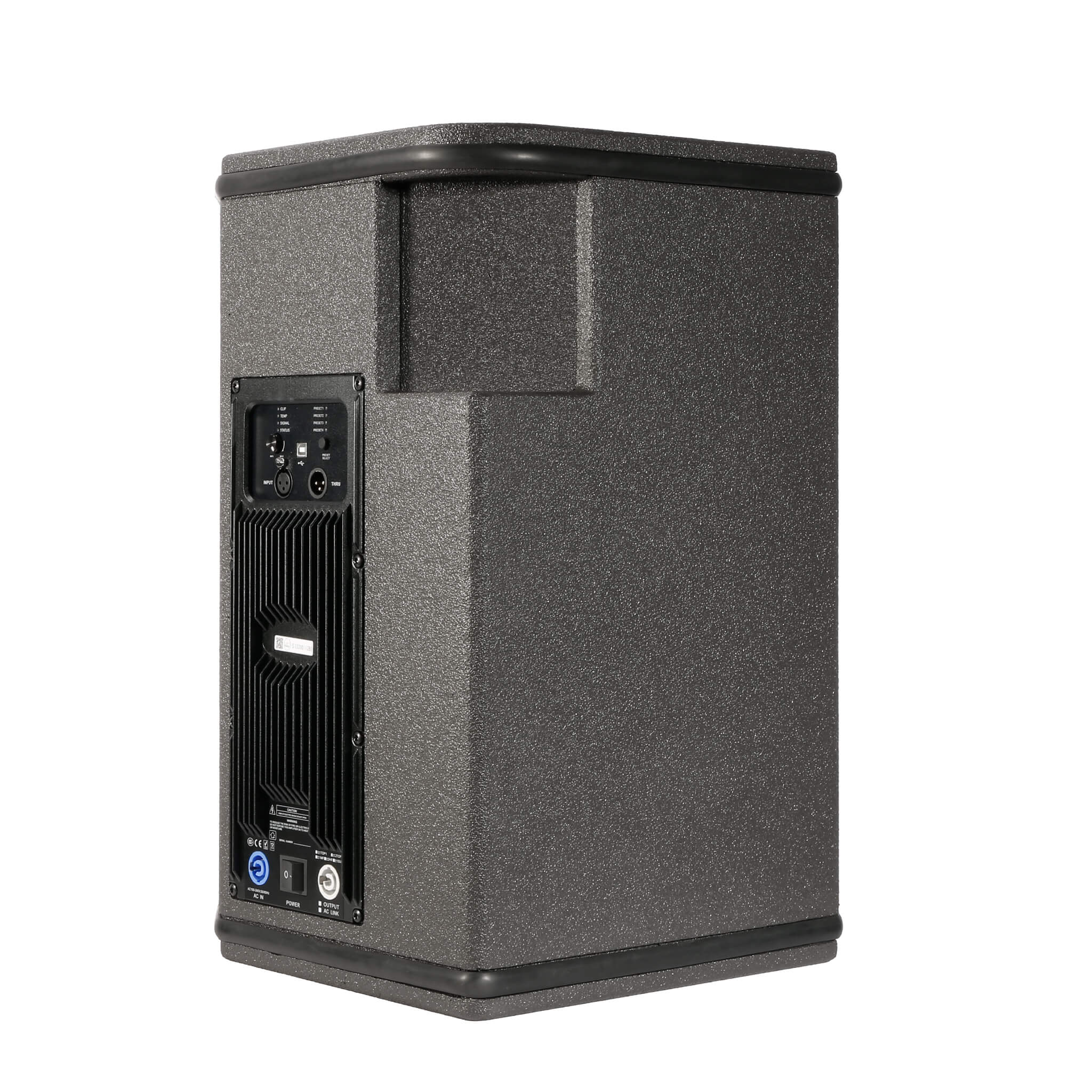

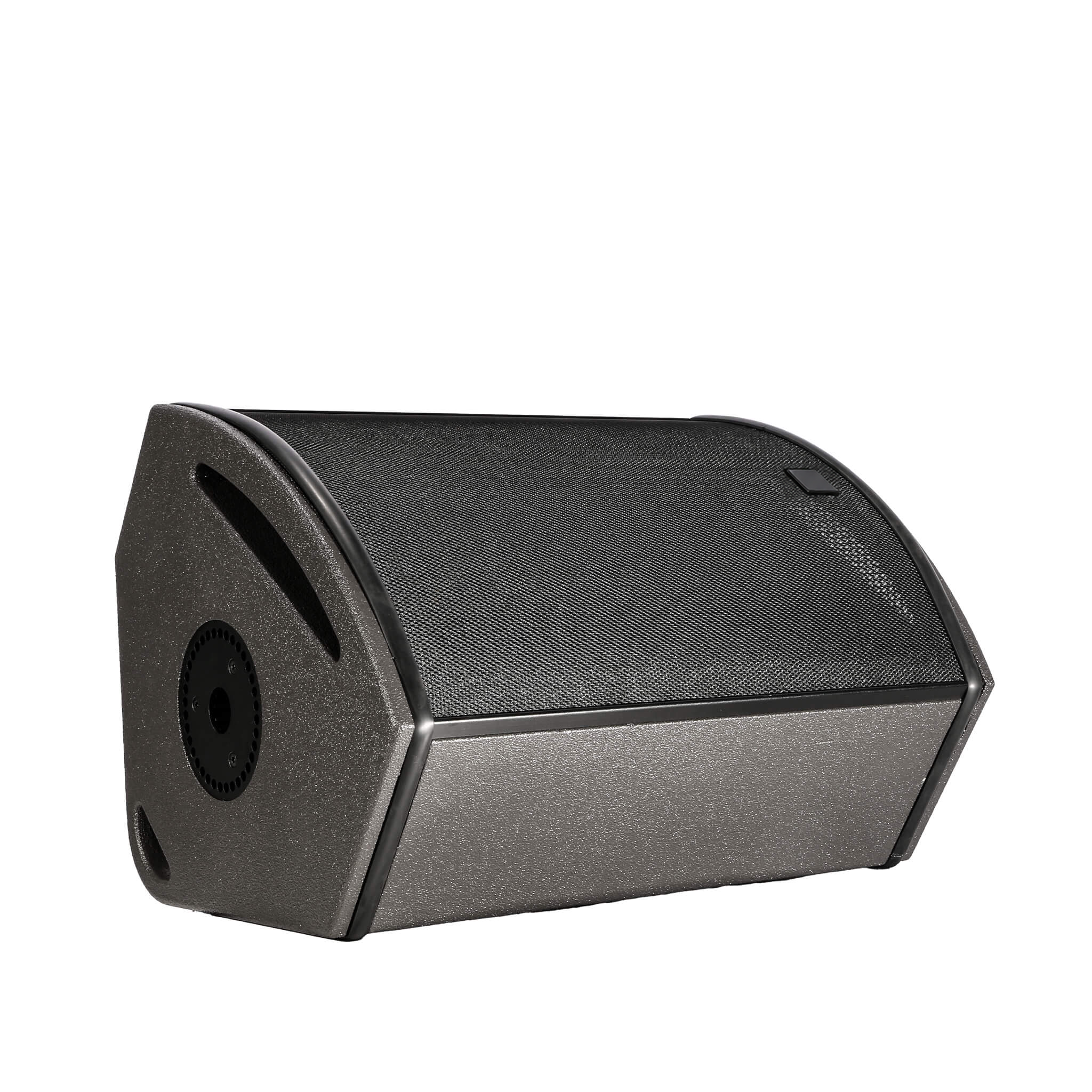

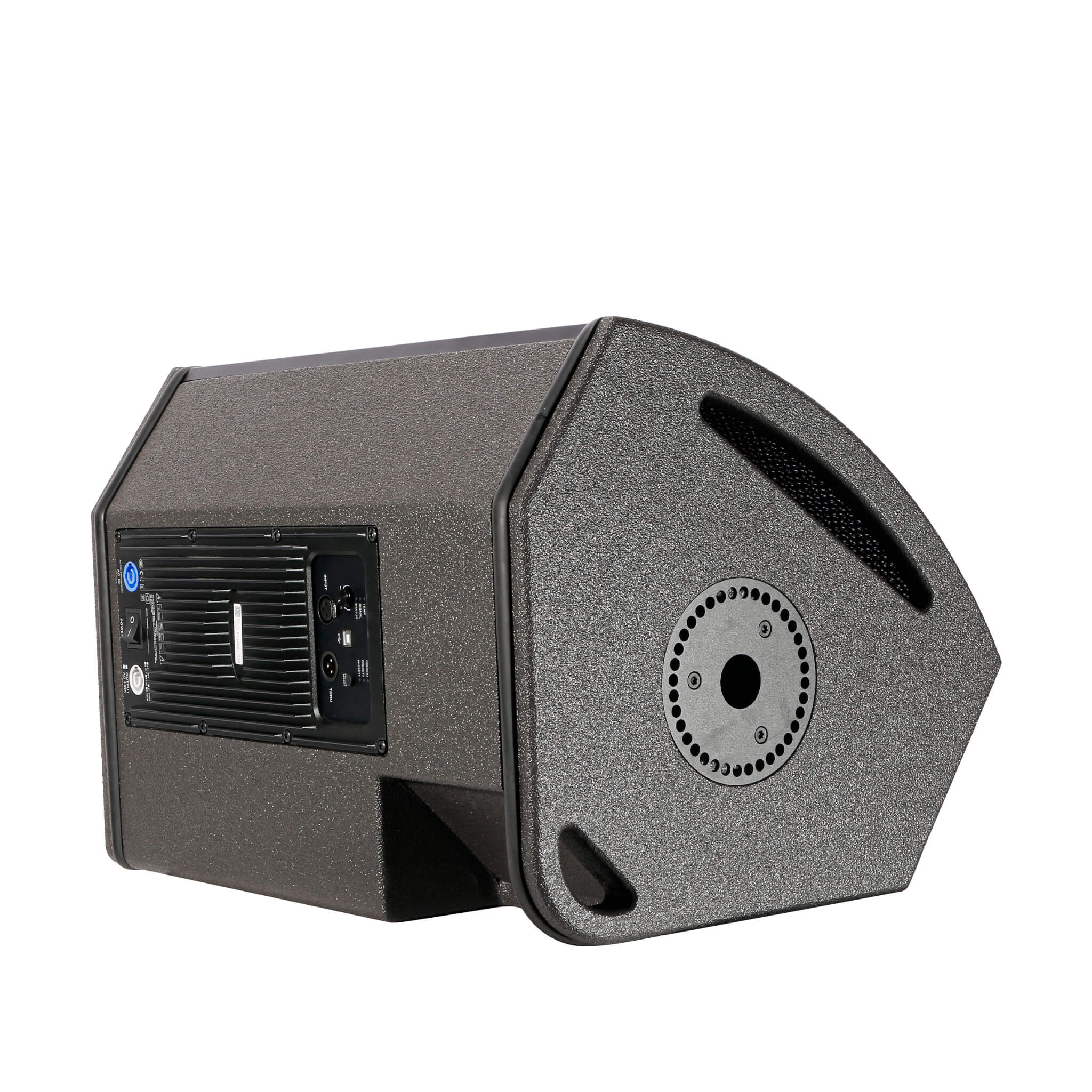

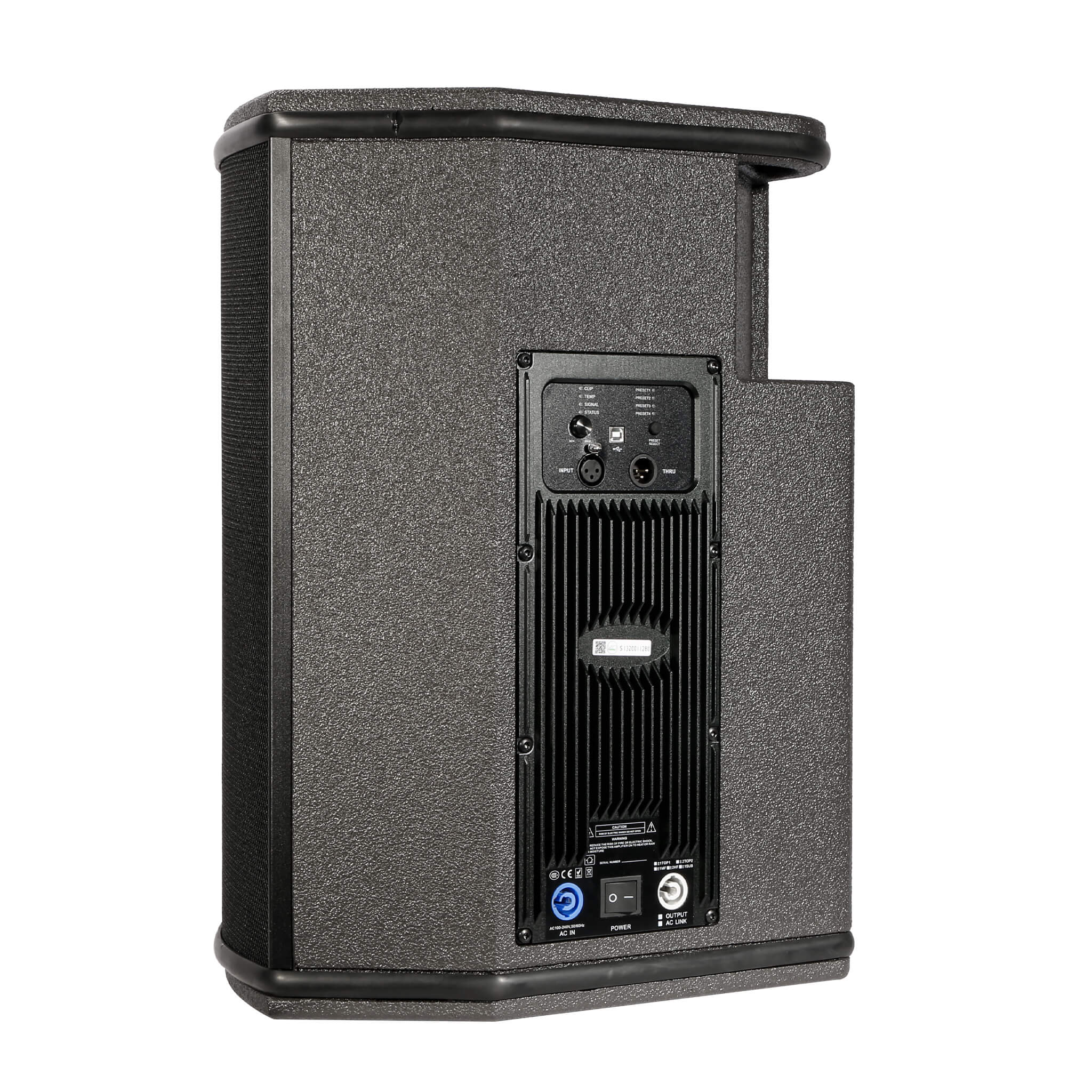

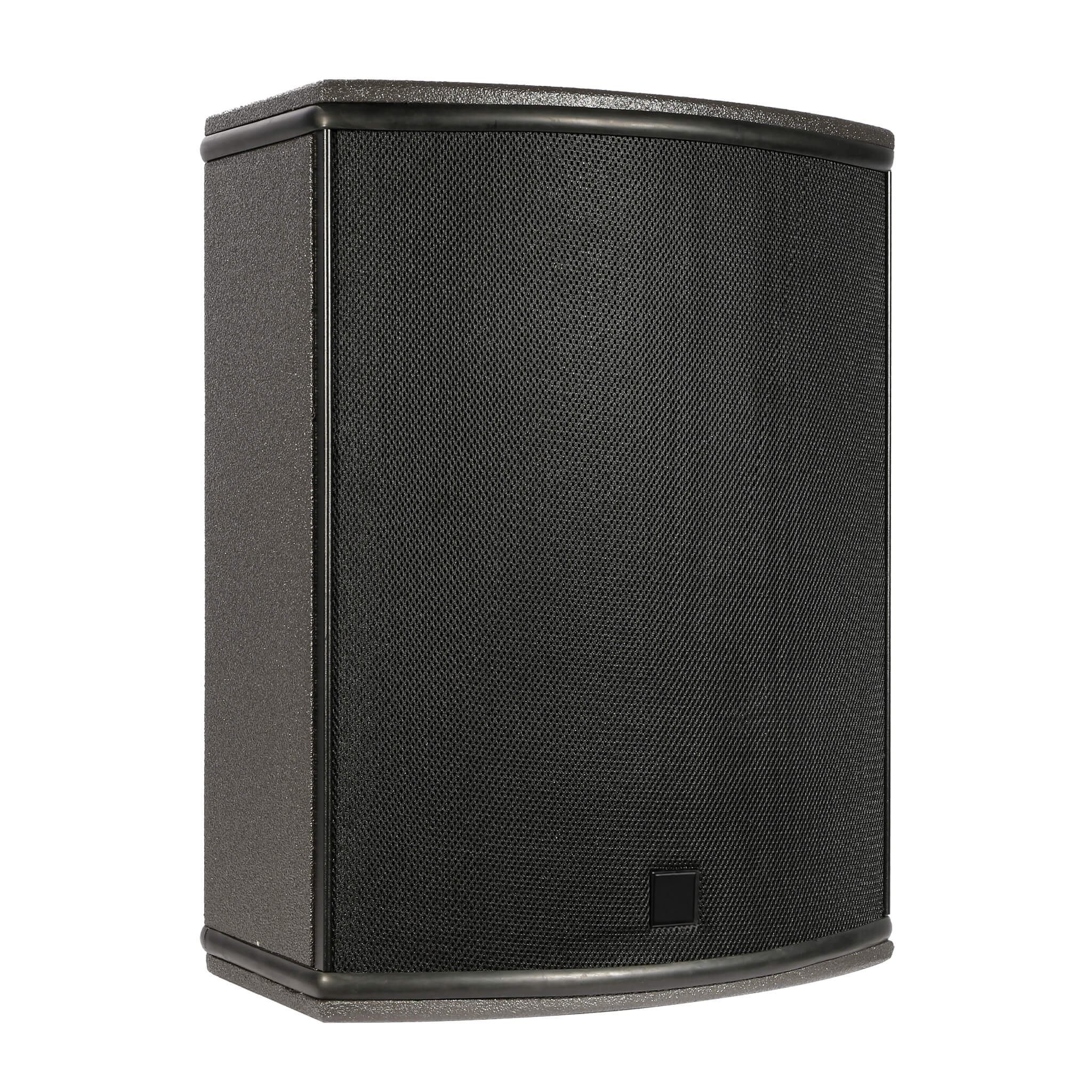

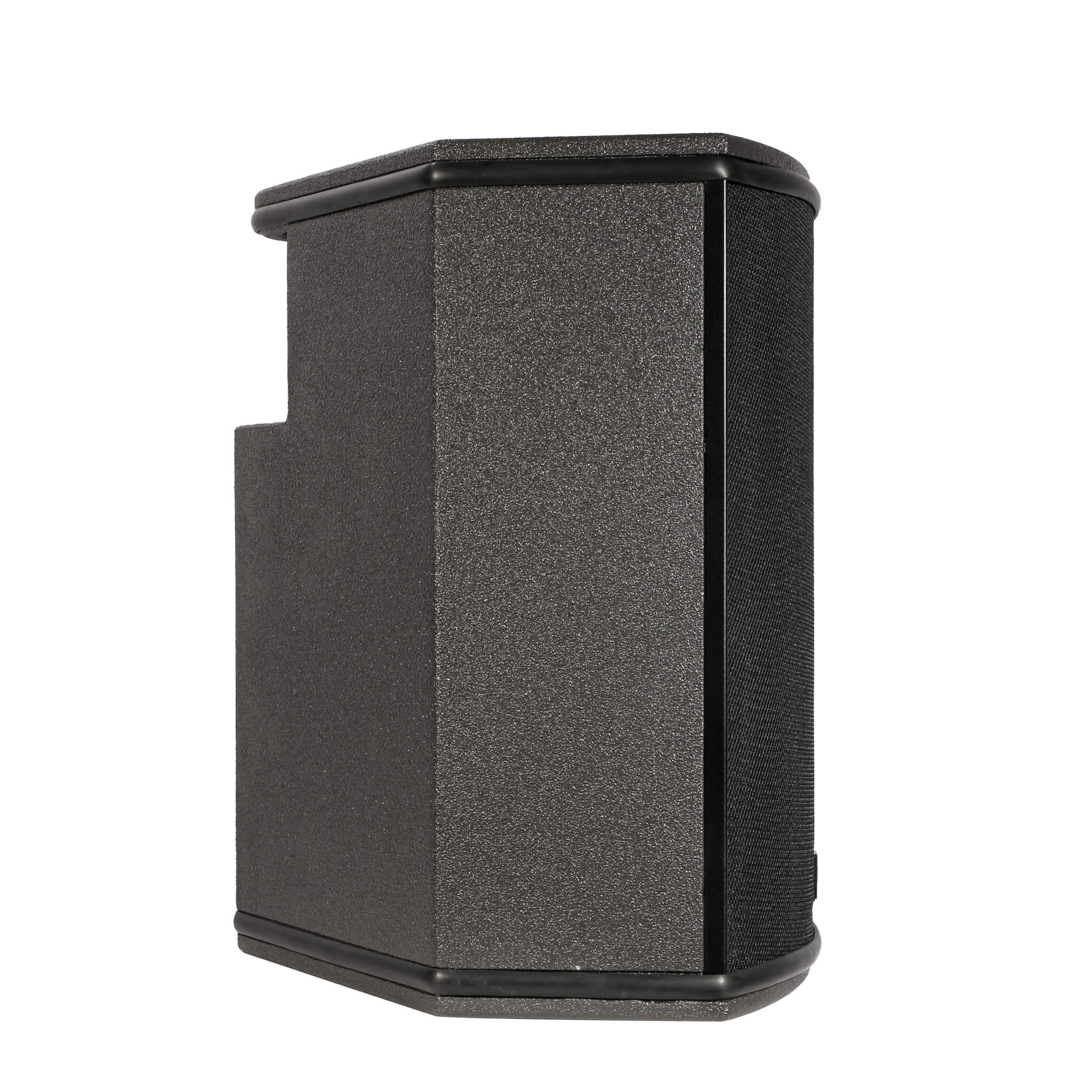

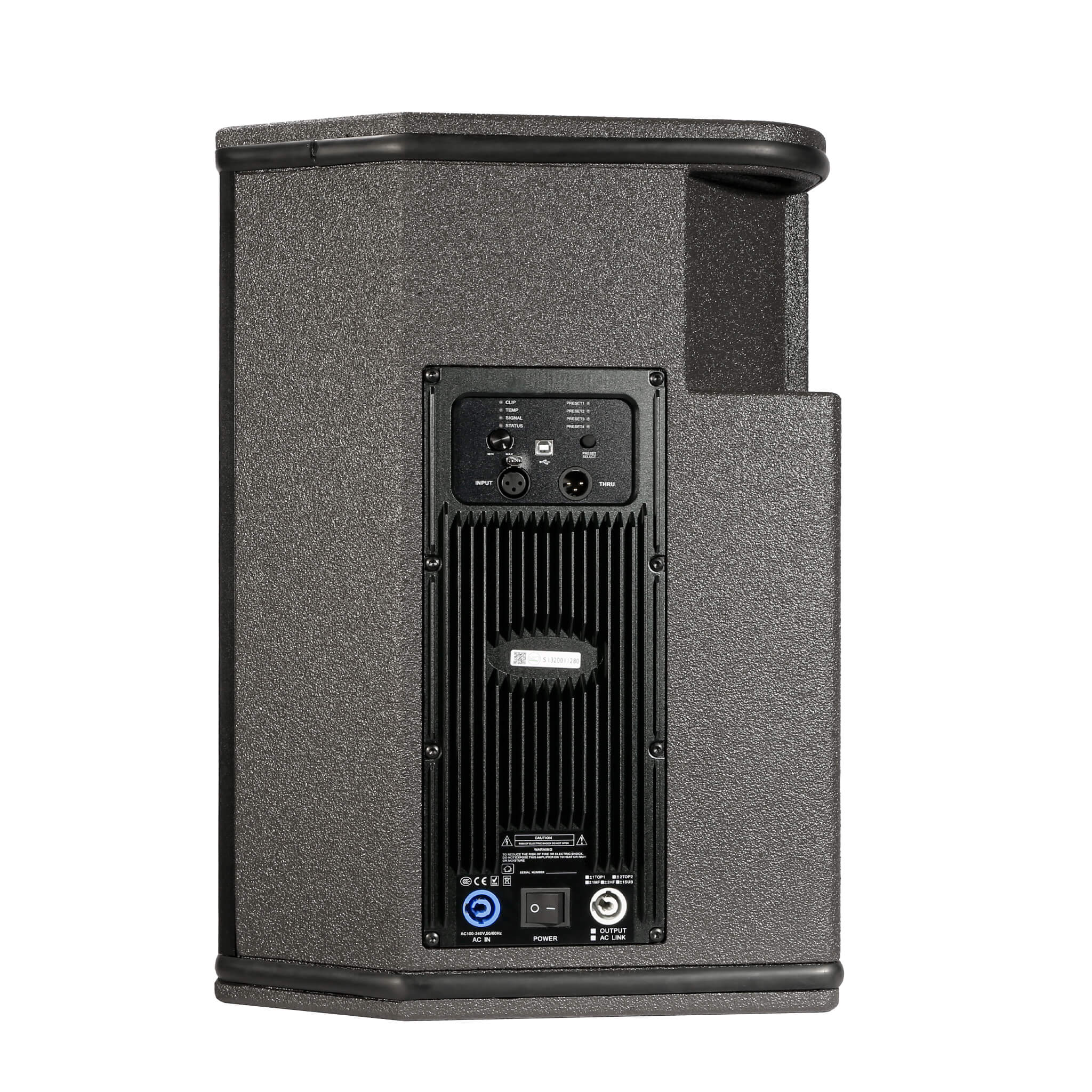

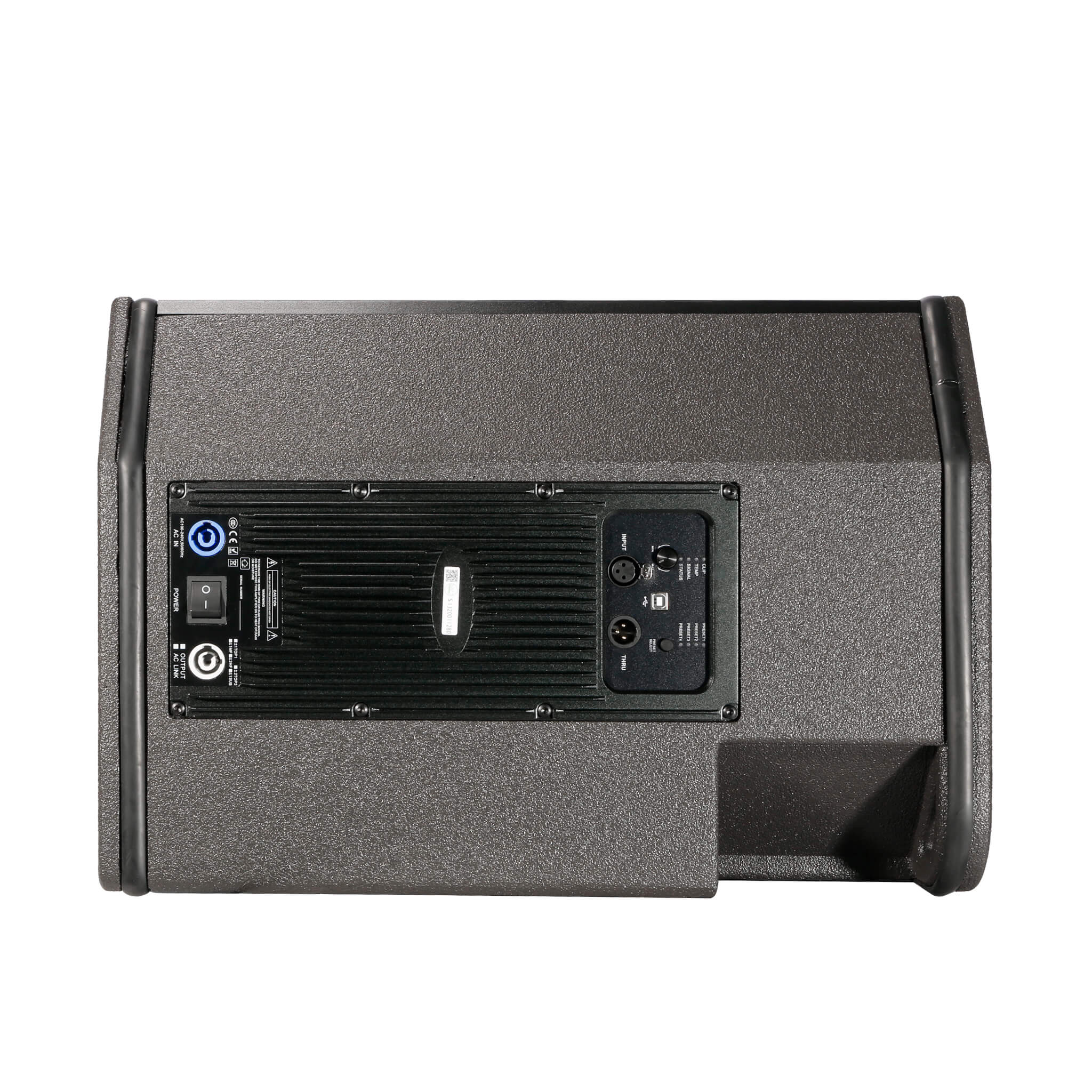

M115Q Active 2-Way 15-Inch Stage Monitor
M115Q Active 2-Way 15-Inch Stage Monitor is listed in the stage monitors category as a stage monitor. The reference lists maximum spl: 138 dB; bandwidth: 50 Hz – 20 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 138 dB
- Bandwidth
- 50 Hz – 20 kHz
- Weight
- ≈ 36 kg / 79 lb
Technical specifications
- Maximum SPL
- 138 dB
- Bandwidth
- 50 Hz – 20 kHz
- Transducers
- LF: 1 × 15″ • HF: 1 × 3″ compression driver
- Power Factor Correction (PFC)
- Universal operation
- Smart Rail Management (SRM)
- Reduce heat consumption and
- Comprehensive intelligent protection
- overheating (power
- configuration
- 2 inputs and 2 outputs)
- Input EQ
- 5 parametric EQs: Peak, High/Low Shelf, All
- Output equalizer
- Parametric IIR filters: Peak, High/Low
- Crossover filters
- Butterworth, Linkwitz-Riley, Bessel
- Limiters
- Peak limiter, RMS limiter, frequency offset
- Delay
- 340 ms input delay (1in), 10 ms output delay per
- Maximum output power (EIAJ test standard)
- 2*1000W/8Ω
- Working voltage
- AC 100-240V±10%, 50-60Hz
- Gain
- 32dB
- Input sensitivity
- 2.2V/+9dBu
- Frequency response
- 20Hz-20kHz (±0.5dB)@1W, 8Ω
- Signal-to-noise ratio
- >115dB (20Hz-20kHz, A weighted)
- Crosstalk isolation
- 71dB@1kHz
- THD＋N
- <
- DIM100
- < 0.09% from 0.1W to half power (typically
- Input impedance
- 10kΩ balanced
- Conversion rate
- 50V/μs@8Ω, input filter bypassed
- Damping coefficient
- >500@100Hz
- Nominal directivity (-6 dB) Vertical
- 60° symmetric
- horizontal
- 40° symmetric
- with risers
- 55°
- Transducers LF
- 1 × 15″ cone driver
- HF transducers
- 1 × 3″ diaphragm compression driver, neodymium
- Nominal impedance LF
- 8 Ω
- HF impedance
- 8 Ω
- Crosstalk isolation
- -71dB@1kHz
Physical specifications
- Dimensions
- 700 × 430 × 448 mm
- Weight
- ≈ 36 kg / 79 lb
Compatibility and deployment

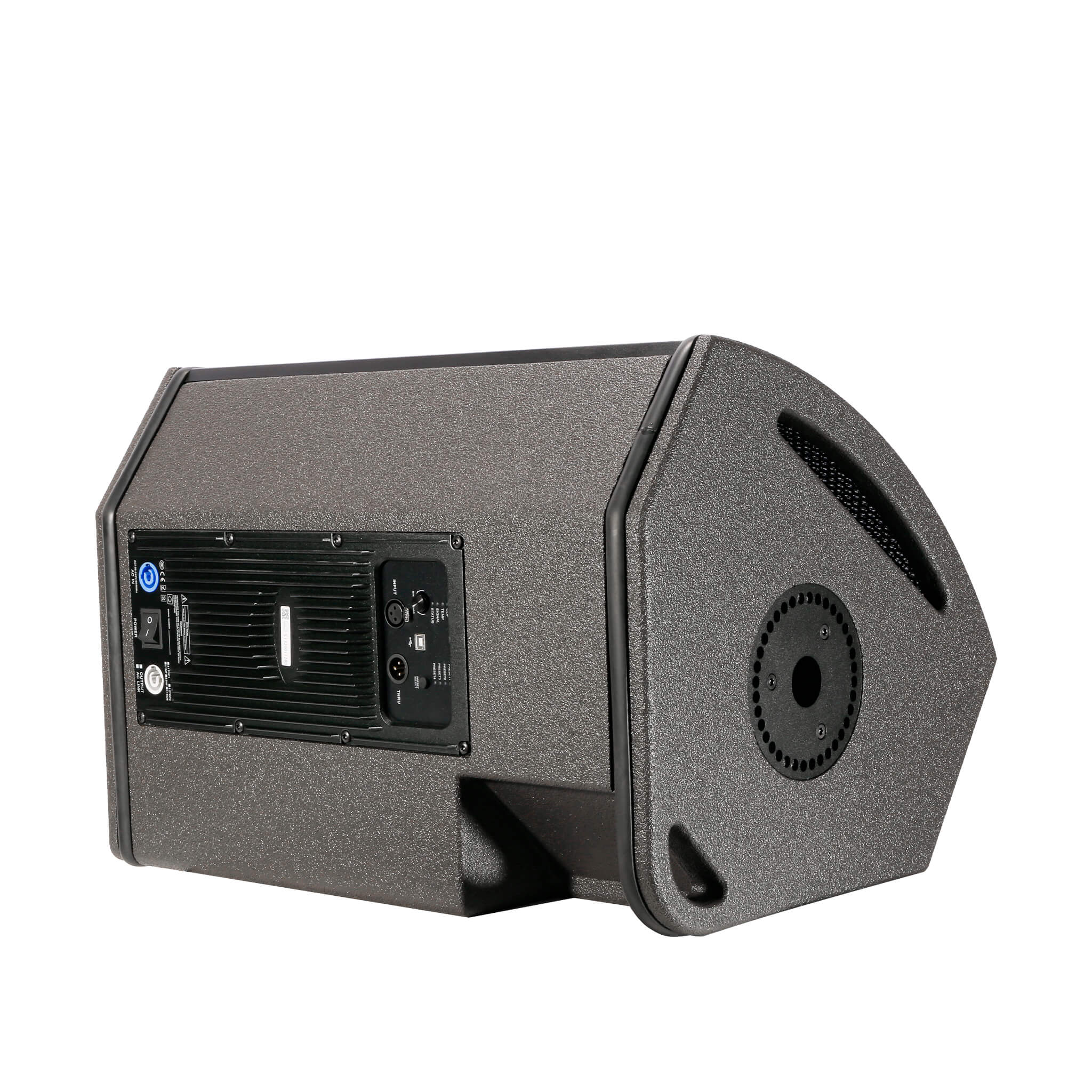

- Monitor angle Without risers
- 35°
- Function / configuration
- stage monitoring, live performance, rental inventory and production workflows
- Function / configuration
- Fixed frequency switching mode output stage for maximum
- Function / configuration

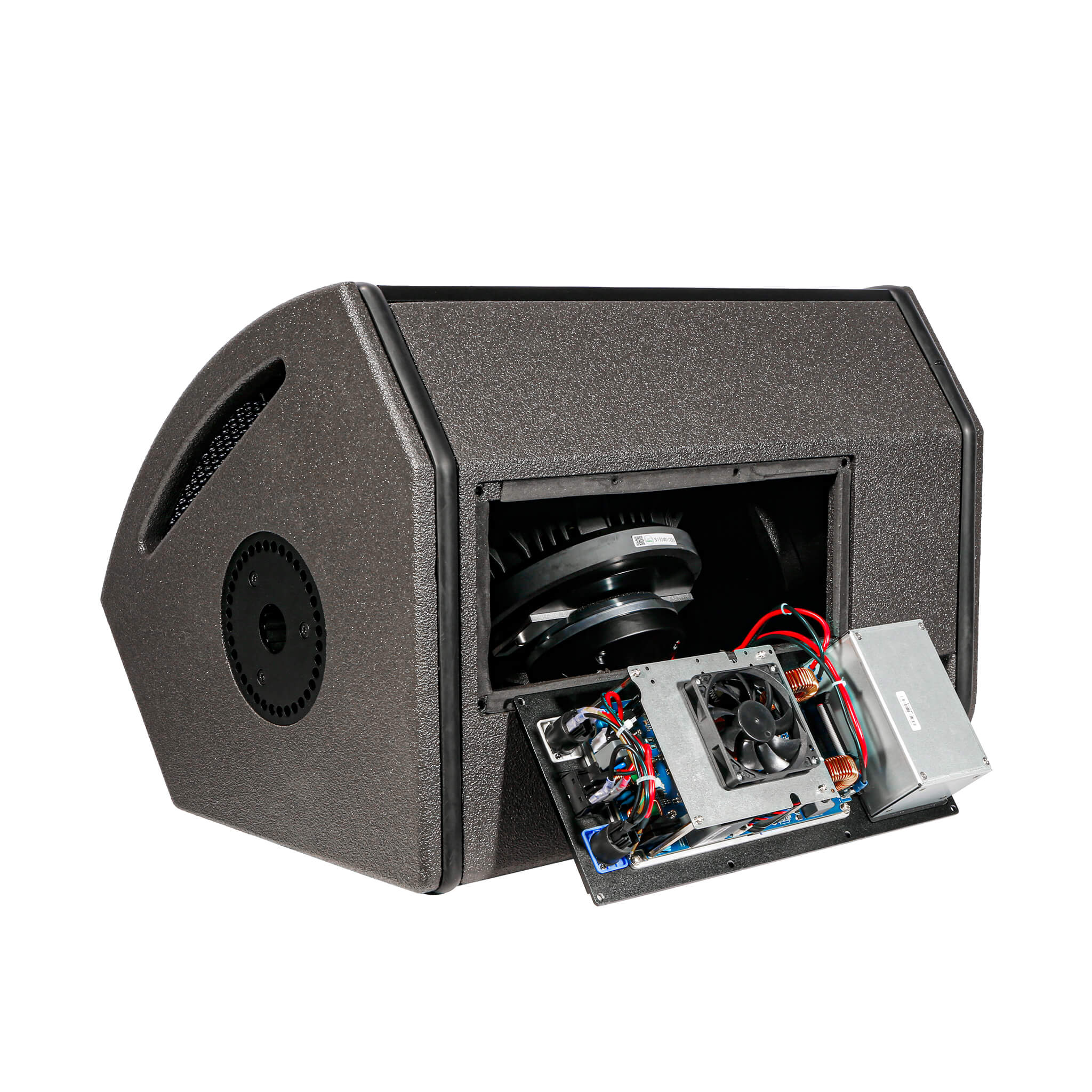

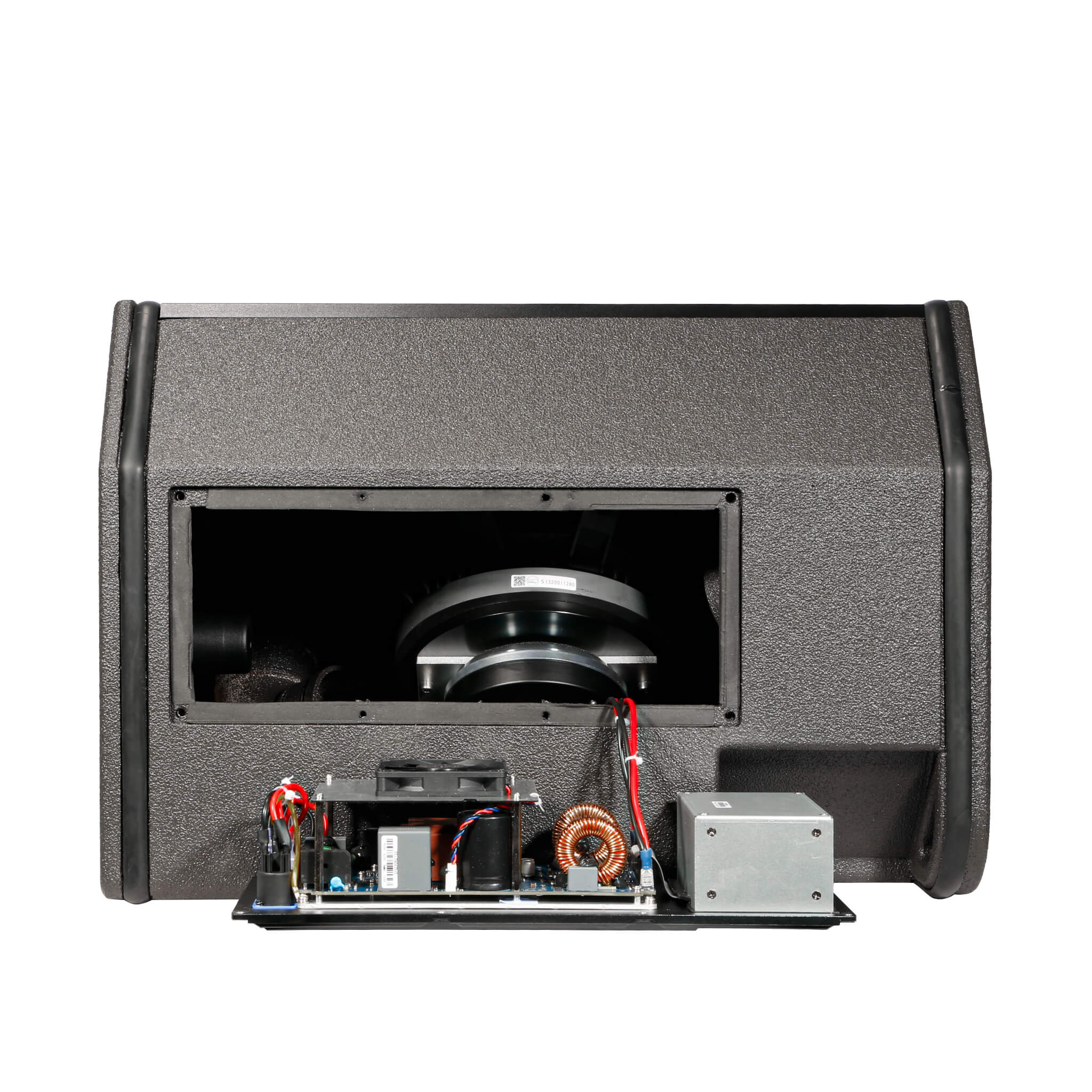

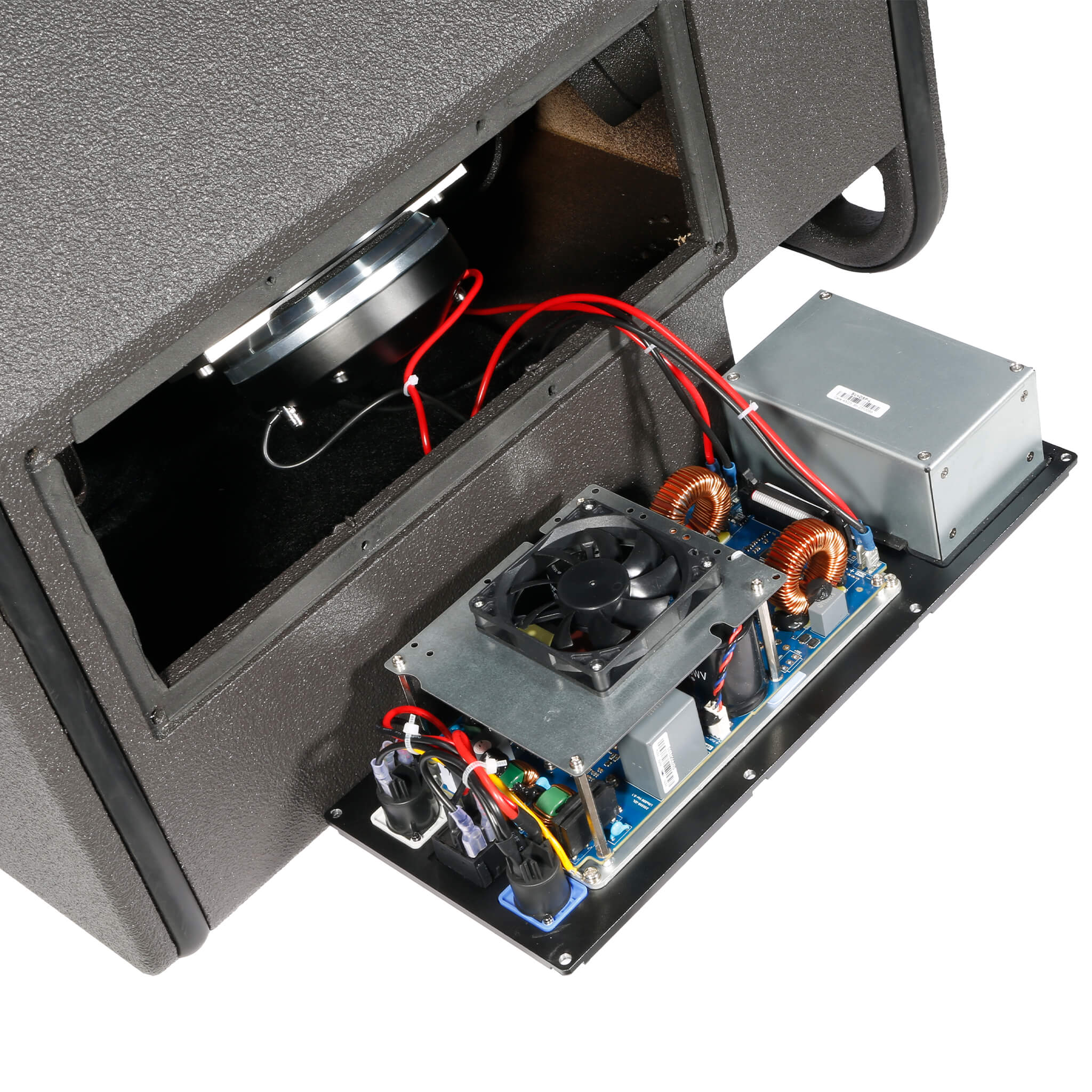

- Optional DSP board and heat sink board
- Function / configuration
- circuit/overload/clipping limiter/high
- Function / configuration
- Temperature controlled internal fan and output
- Function / configuration

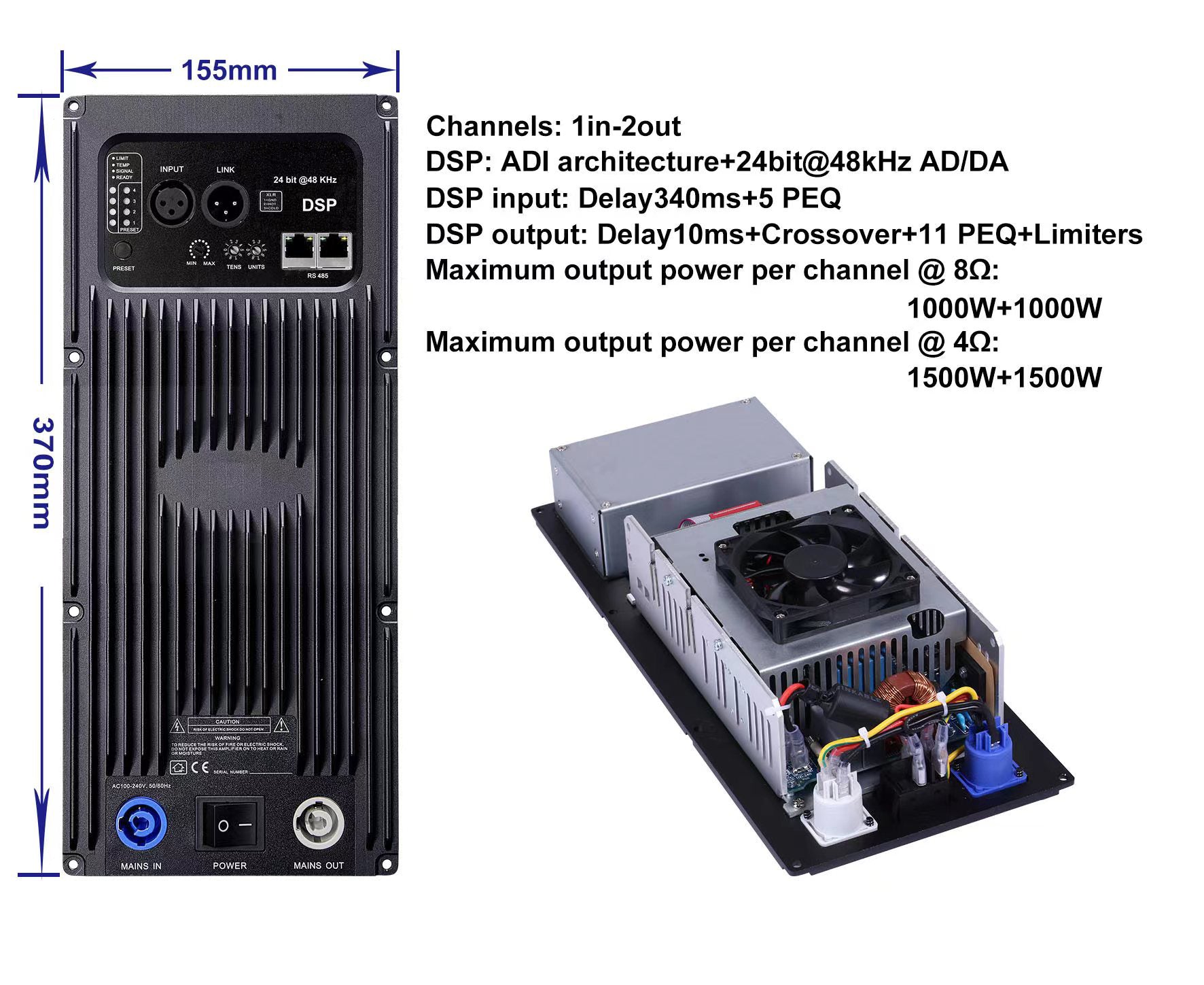

- 1 input and 2 outputs 24bit@48kHz DSP (optional
- Function / configuration
- 6dB/oct to 48dB/oct
- Function / configuration
- limiter, clipping limiter, temperature limiter
- Function / configuration
- 2*1500W/4Ω; bridged 3000W/8Ω
- Function / configuration
- 0.09% from 0.1W to half power (typically <0.05%)
- Function / configuration
- <0.07%)
- Function / configuration
- 2-way active coaxial enclosure
- Function / configuration
- amplified by LA4X / LA12X
- Function / configuration
- Usable bandwidth (-10 dB) 55 Hz – 20 kHz ([X15])
- Function / configuration
- Maximum SPL1 138 dB ([HQ15])
- Function / configuration
- limiting - overheating shutdown) short circuit/overload/clipping limiter/high
- Function / configuration
- 2-way active coaxial enclosure amplified by LA4X / LA12X
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum SPL | 138 dB |
|---|---|
| Bandwidth | 50 Hz – 20 kHz |
| Transducers | • LF: 1 × 15″ • HF: 1 × 3″ compression driver |
| Dimensions | 700 × 430 × 448 mm |
| Weight | ≈ 36 kg / 79 lb |
| Power Factor Correction (PFC) | Universal operation |
| ·Smart Rail Management (SRM) | Reduce heat consumption and |
| ·Comprehensive intelligent protection | overheating (power |
| configuration | 2 inputs and 2 outputs) |
| ·Input EQ | 5 parametric EQs: Peak, High/Low Shelf, All |
| · Output equalizer | Parametric IIR filters: Peak, High/Low |
| ·Crossover filters | Butterworth, Linkwitz-Riley, Bessel |
| ·Limiters | Peak limiter, RMS limiter, frequency offset |
| ·Delay | 340 ms input delay (1in), 10 ms output delay per |
| Maximum output power (EIAJ test standard) | 2*1000W/8Ω |
| ·Working voltage | AC 100-240V±10%, 50-60Hz |
| ·Gain | 32dB |
| ·Input sensitivity | 2.2V/+9dBu |
| ·Frequency response | 20Hz-20kHz (±0.5dB)@1W, 8Ω |
| ·Signal-to-noise ratio | >115dB (20Hz-20kHz, A weighted) |
| ·Crosstalk isolation | 71dB@1kHz |
| ·THD＋N | < |
| ·DIM100 | < 0.09% from 0.1W to half power (typically |
| ·Input impedance | 10kΩ balanced |
| ·Conversion rate | 50V/μs@8Ω, input filter bypassed |
| ·Damping coefficient | >500@100Hz |
| Nominal directivity (-6 dB) Vertical | 60° symmetric |
| horizontal | 40° symmetric |
| Monitor angle Without risers | 35° |
| with risers | 55° |
| Transducers LF | 1 × 15″ cone driver |
| HF | 1 × 3″ diaphragm compression driver, neodymium |
| Nominal impedance LF | 8 Ω |
| HF | 8 Ω |
