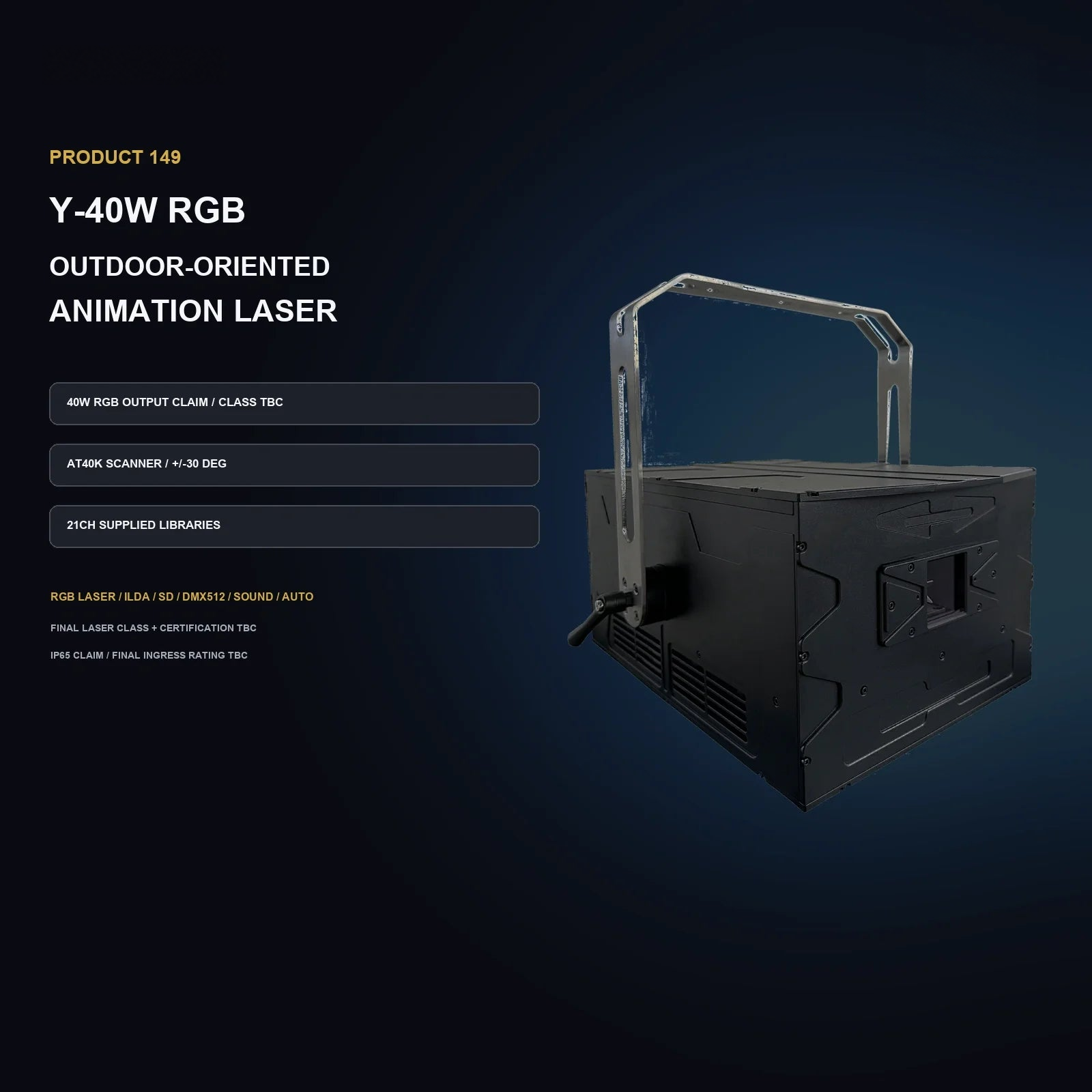

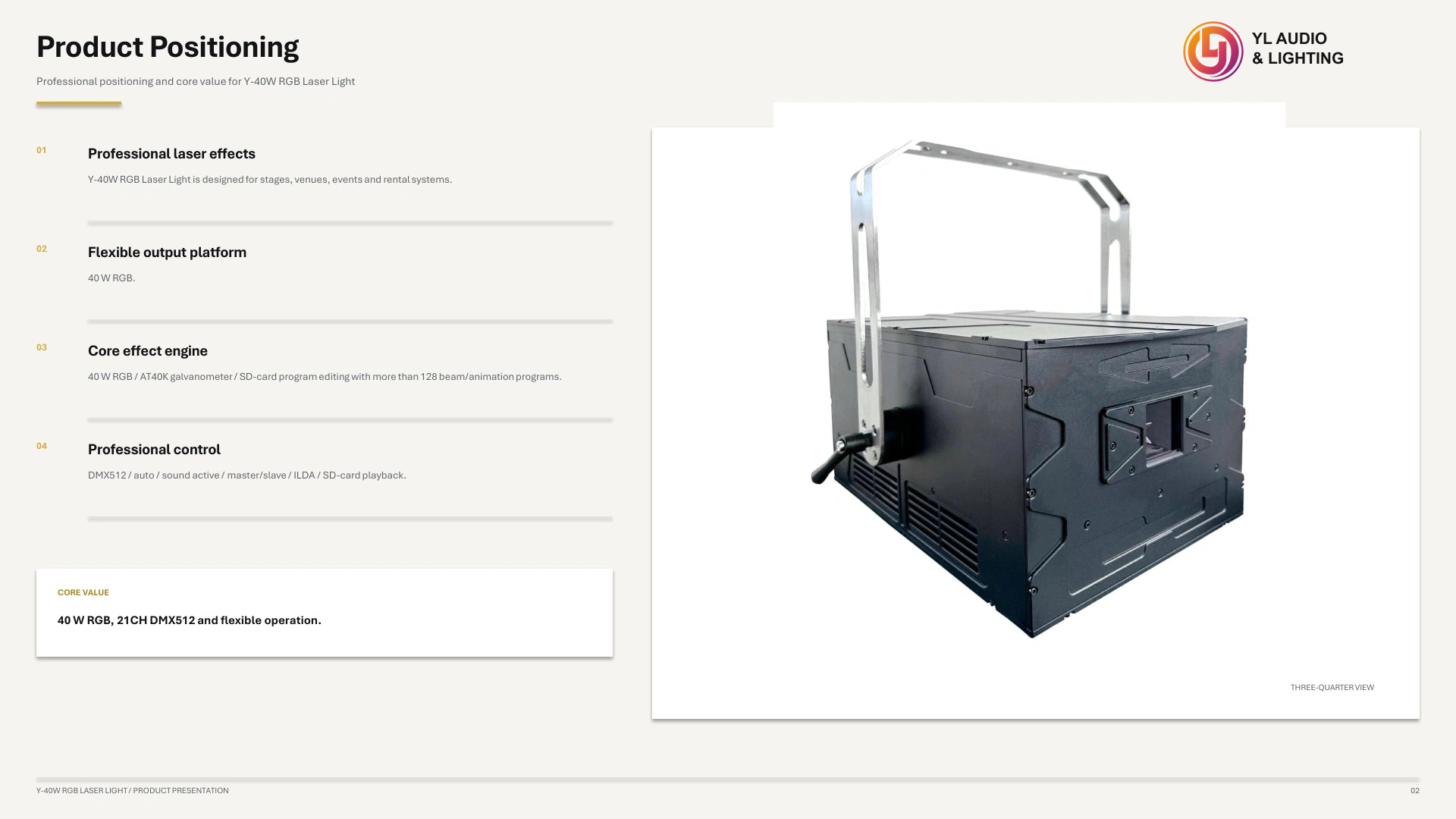

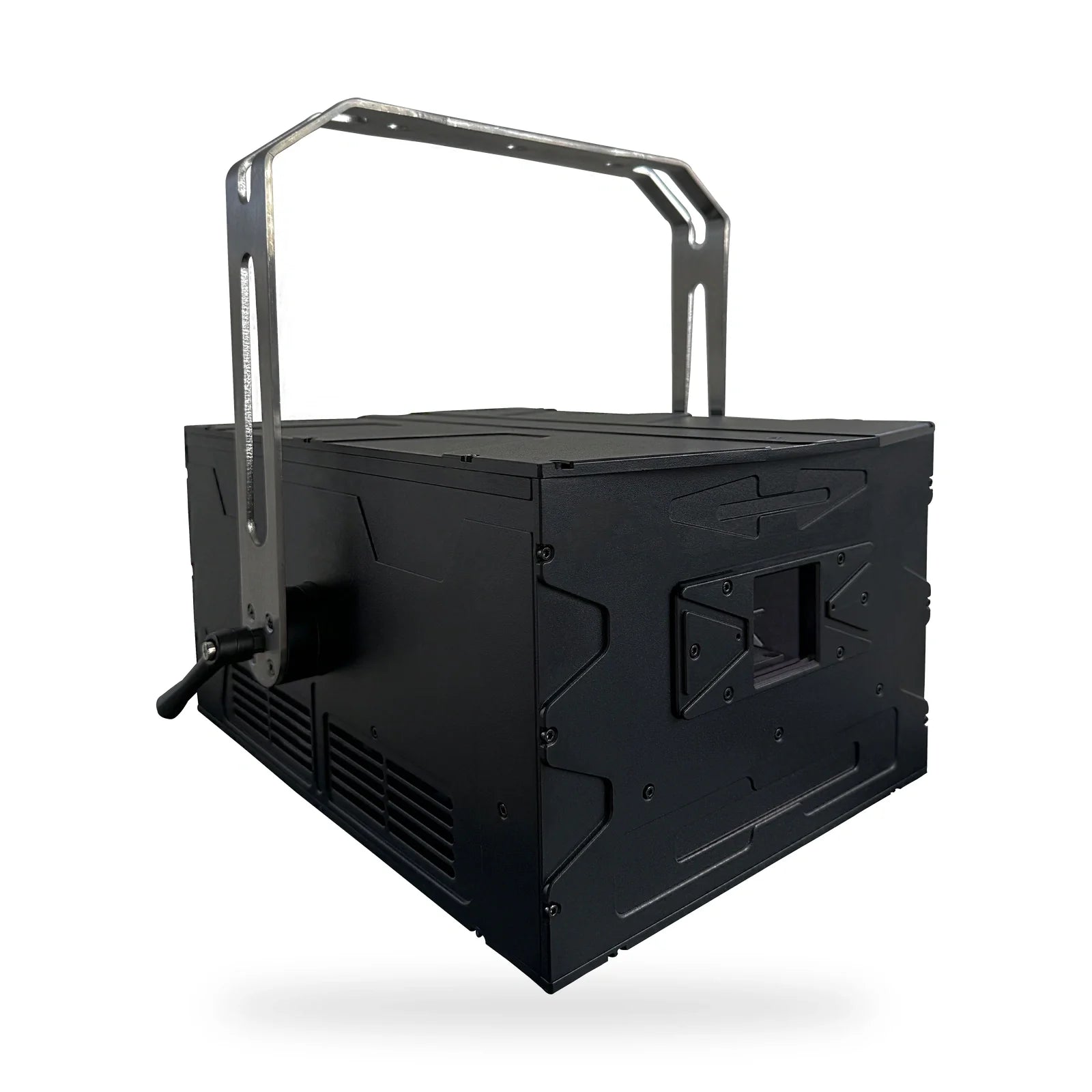

Y 40W RGB Laser Light

Y 40W RGB Laser Light is a stage lighting catalogue item in the professional laser light category. Reference specifications list rated power: <= 800 W; light source: 40 W RGB. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Light source
40 W RGB
Protection
SYSTEM Delayed start, scan-failure protection, adjustable beam mask and key-controlled
Control modes
DMX512 / auto / sound active / master/slave / ILDA / SD-card playback

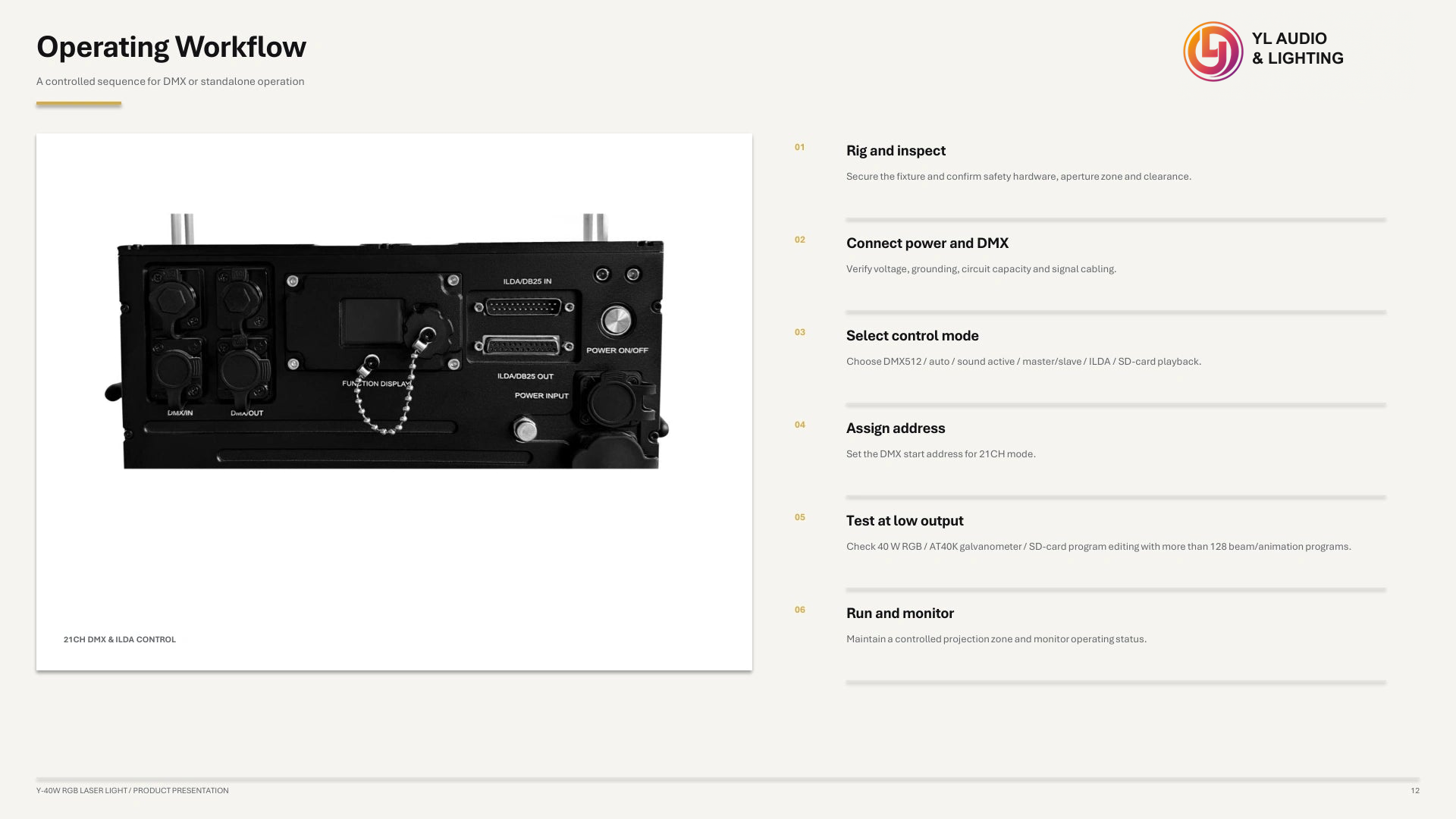

Planning this product into your project

Review the exact laser configuration, control options and intended installation before selecting an effect. Optical output, laser classification and operating restrictions must be established for the supplied model and event location.

Product configuration

Product
Y-40W
Scanner
AT40K galvanometer

Optical performance

Rated power
<= 800 W
Light source
40 W RGB
Scan angle
+/-30 degrees (60-degree total)

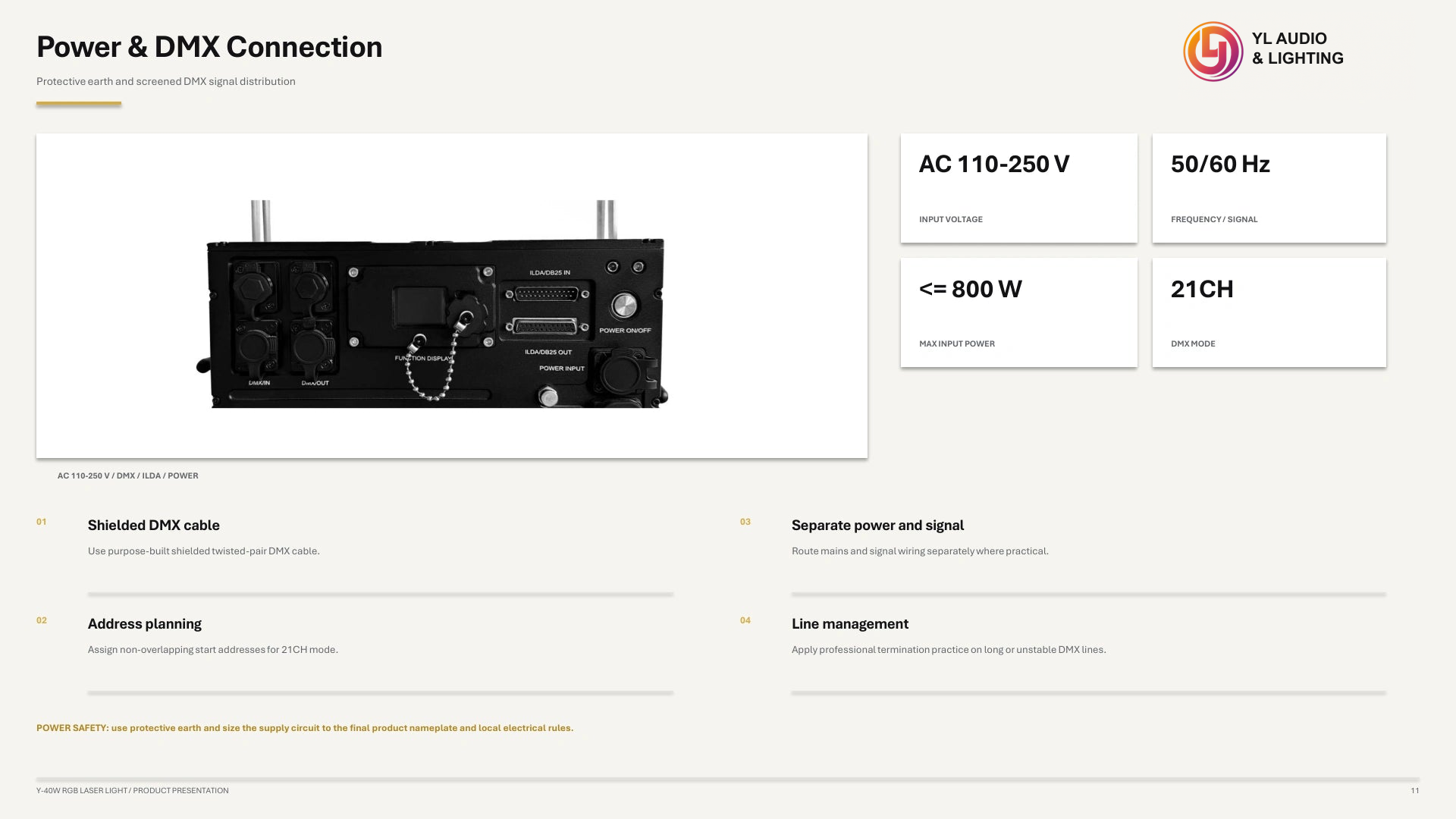

Control and connections

DMX channels
21CH delivered library mode
Input voltage
AC 110-250 V, 50/60 Hz
Control modes
DMX512 / auto / sound active / master/slave / ILDA / SD-card playback

Construction and dimensions

Product size
450 mm chassis dimension; 250 mm body height; 520 mm overall height including
Size / weight
22.5 kg

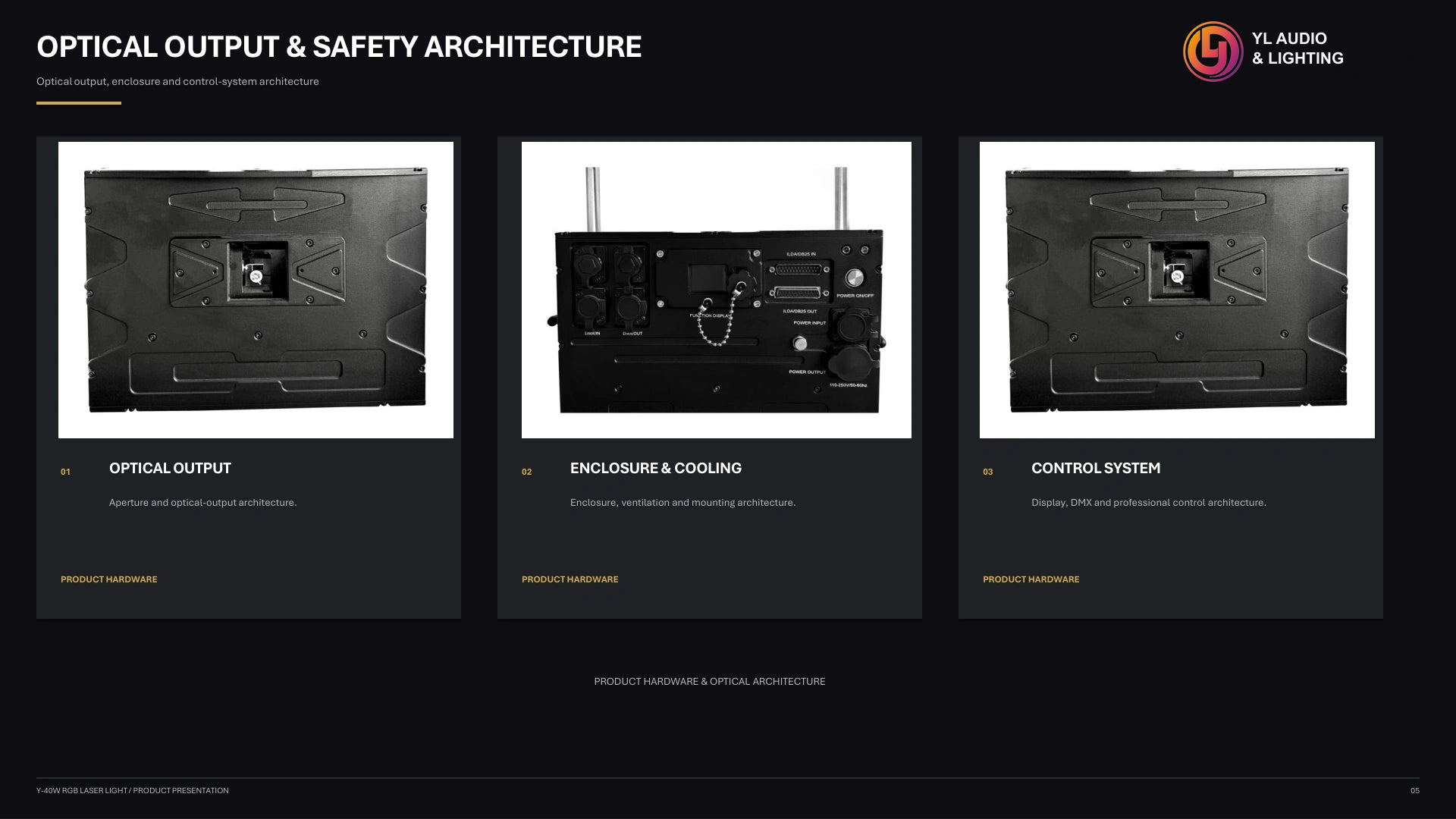

Protection
SYSTEM Delayed start, scan-failure protection, adjustable beam mask and key-controlled

What to confirm for your quotation

  • Request the exact laser class, wavelength and output documentation for the quoted variant.
  • Confirm supported control, interlock, emergency-stop and scan-safety provisions.
  • Provide the installation positions and intended projection area for assessment by a competent laser professional.
  • Check applicable local event requirements and the operating instructions before use.

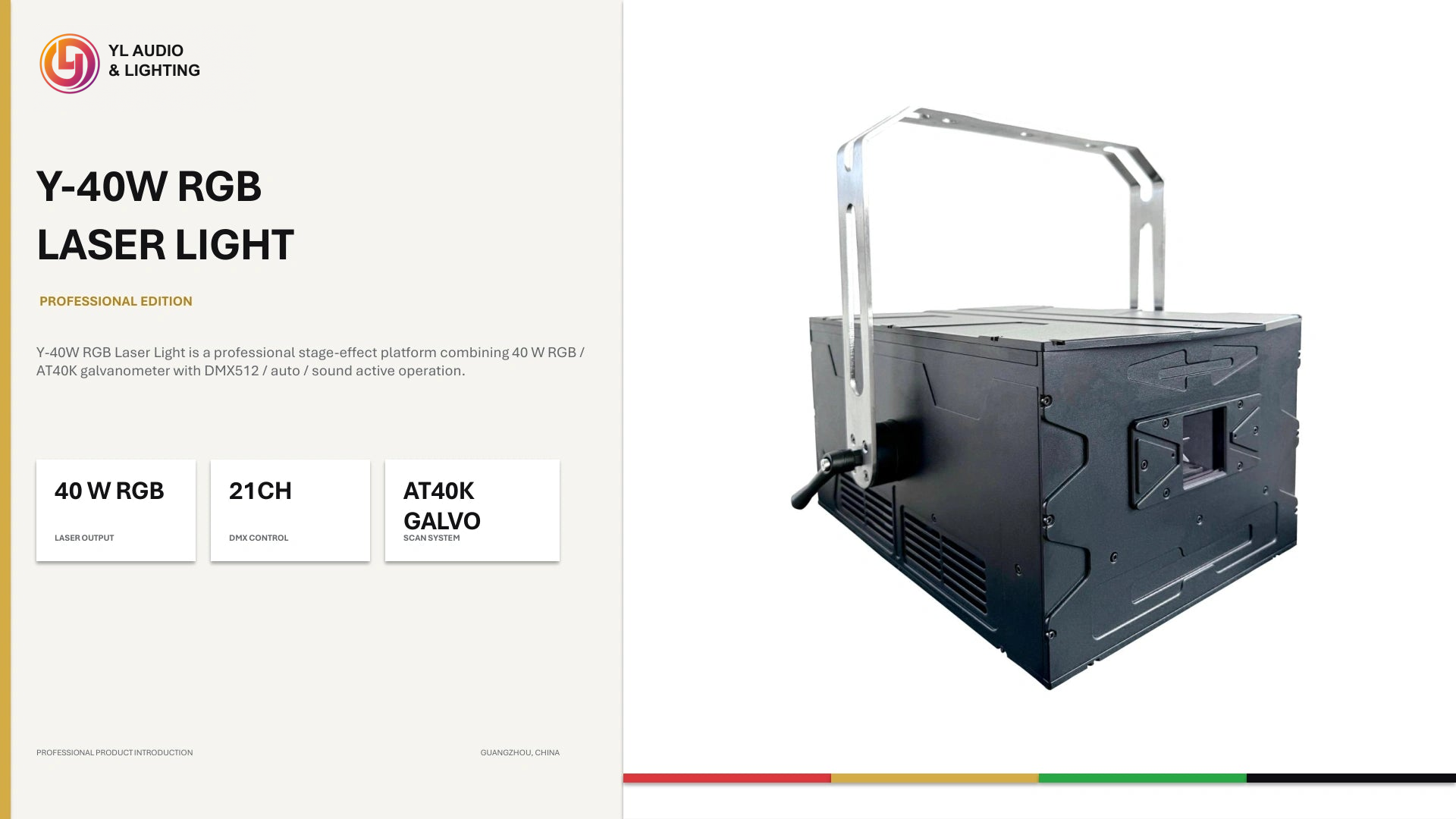

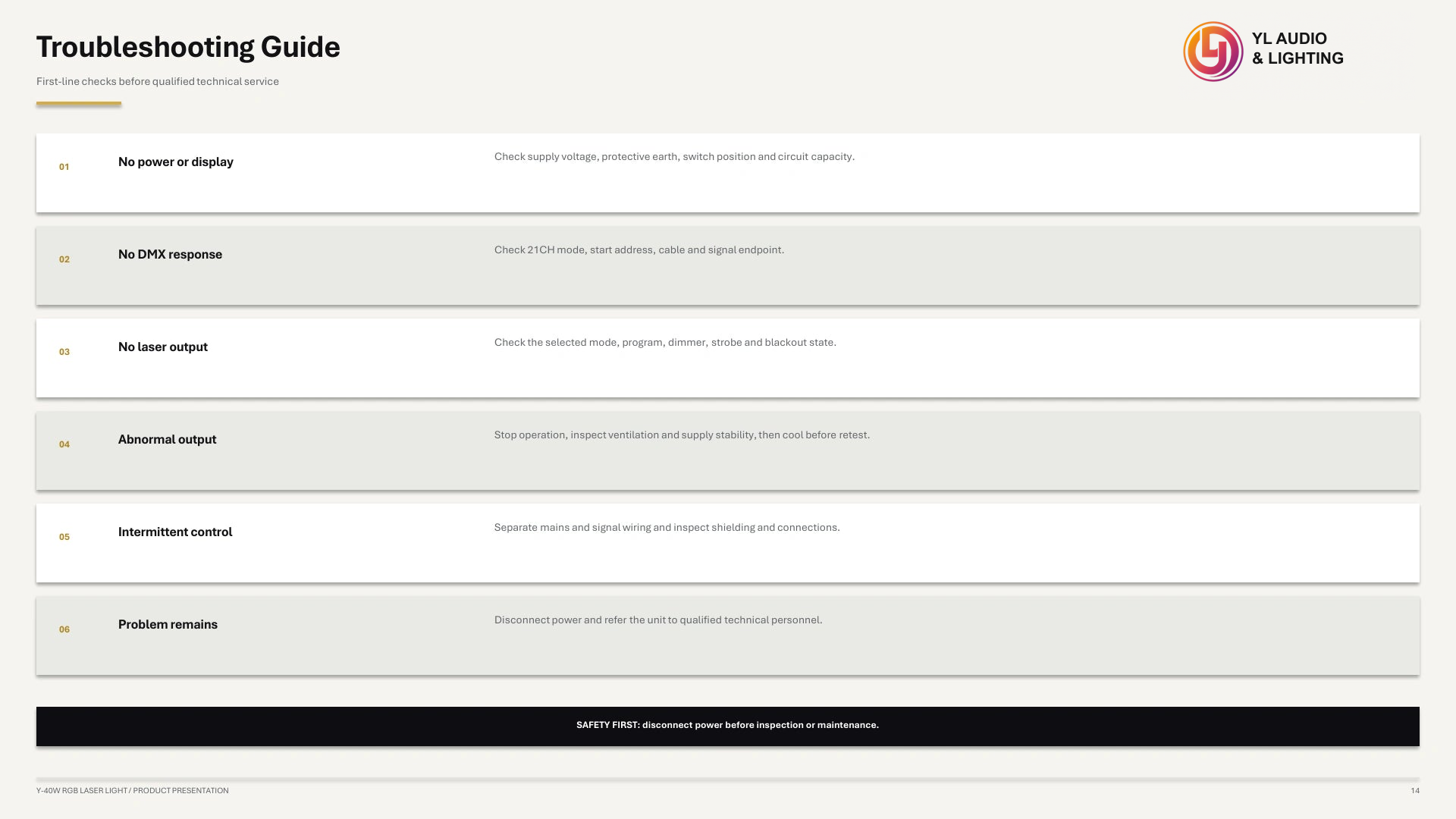

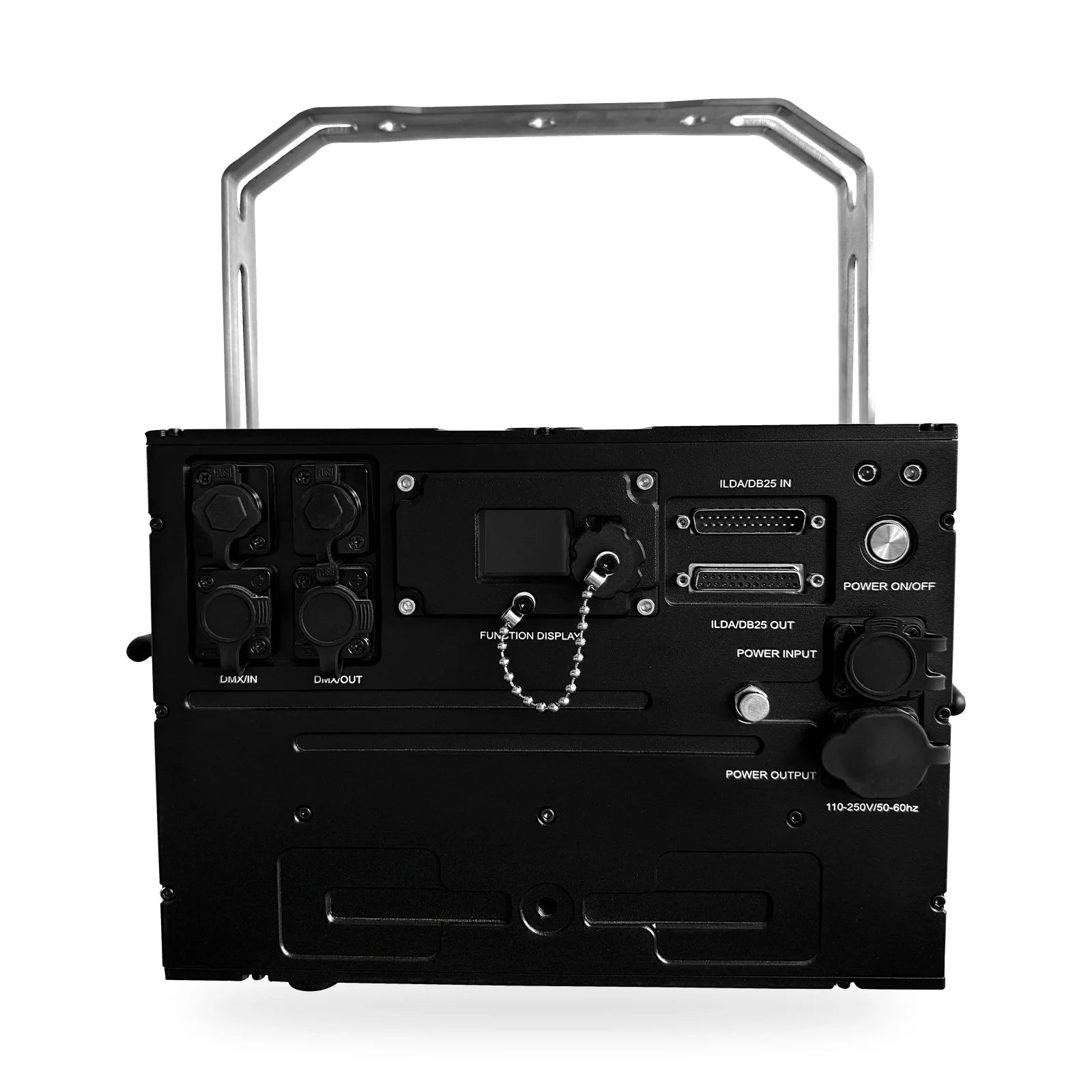

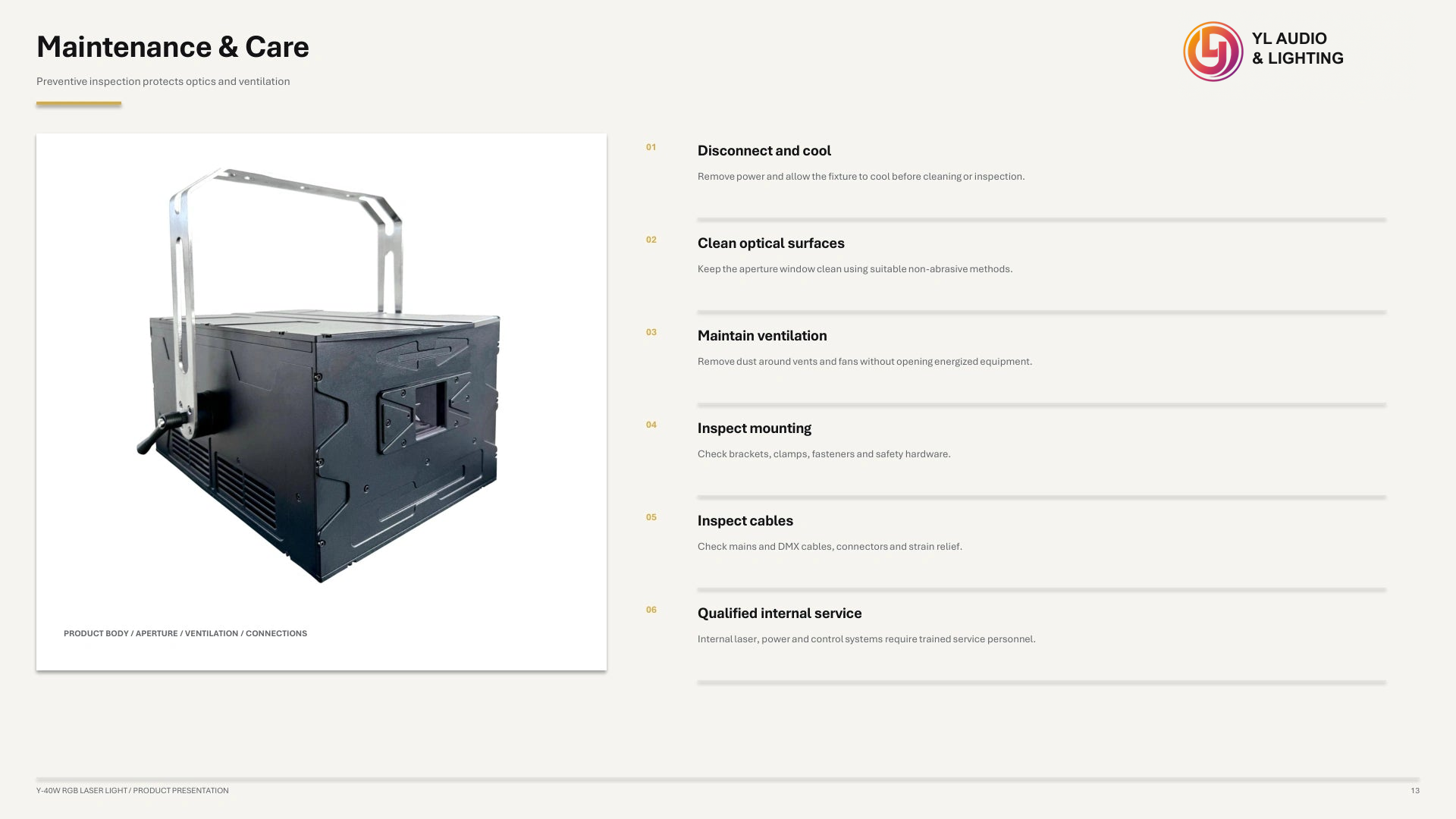

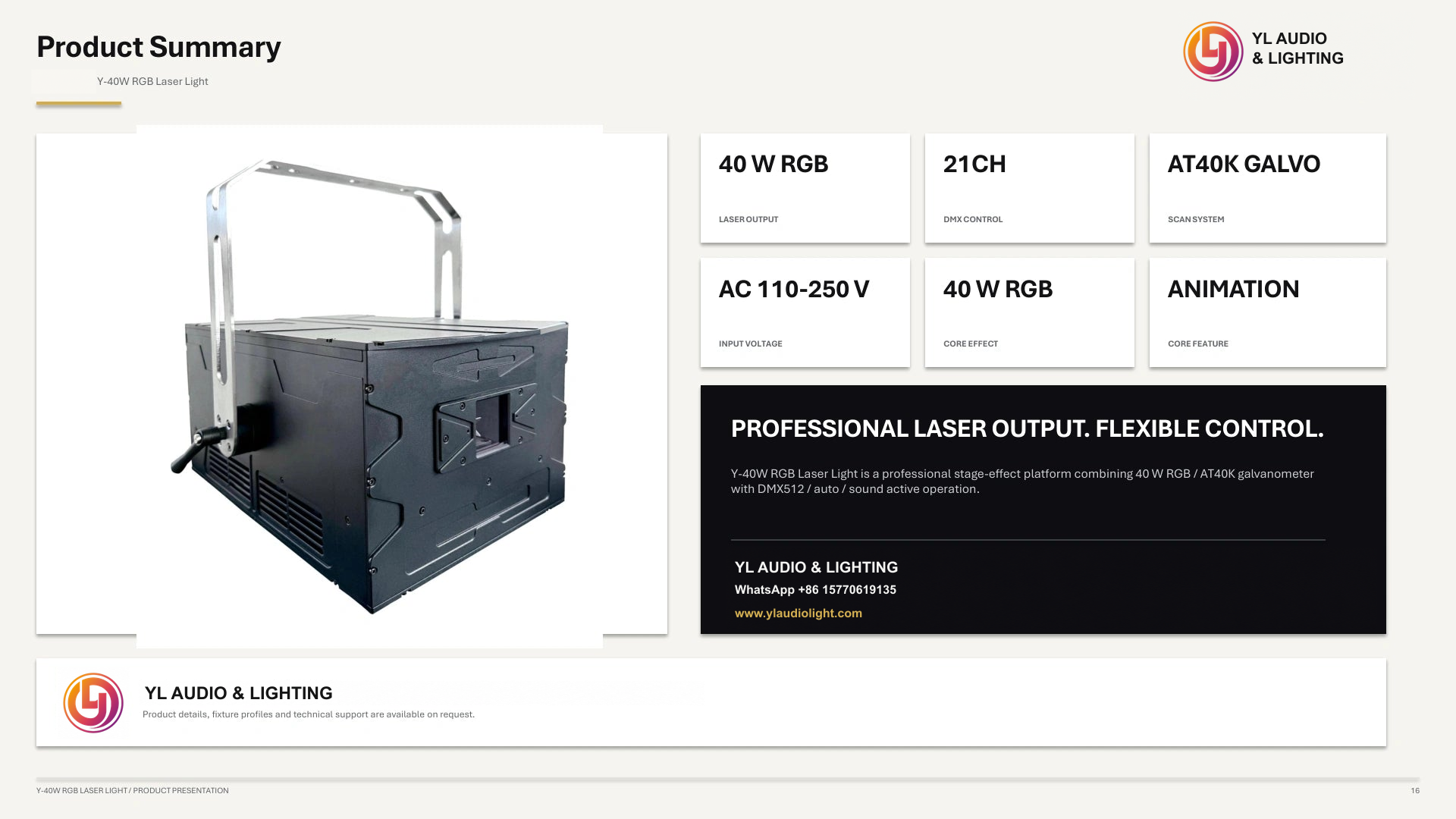

Y 40W RGB Laser Light — product detail 1
Y 40W RGB Laser Light — product detail 2
Y 40W RGB Laser Light — product detail 3
Y 40W RGB Laser Light — product detail 4
Y 40W RGB Laser Light — product detail 5
Y 40W RGB Laser Light — product detail 6
Y 40W RGB Laser Light — product detail 7
Y 40W RGB Laser Light — product detail 8
Y 40W RGB Laser Light — product detail 9
Y 40W RGB Laser Light — product detail 10
Y 40W RGB Laser Light — product detail 11
Y 40W RGB Laser Light — product detail 12
Y 40W RGB Laser Light — product detail 13
Y 40W RGB Laser Light — product detail 14
Y 40W RGB Laser Light — product detail 15
Y 40W RGB Laser Light — product detail 16

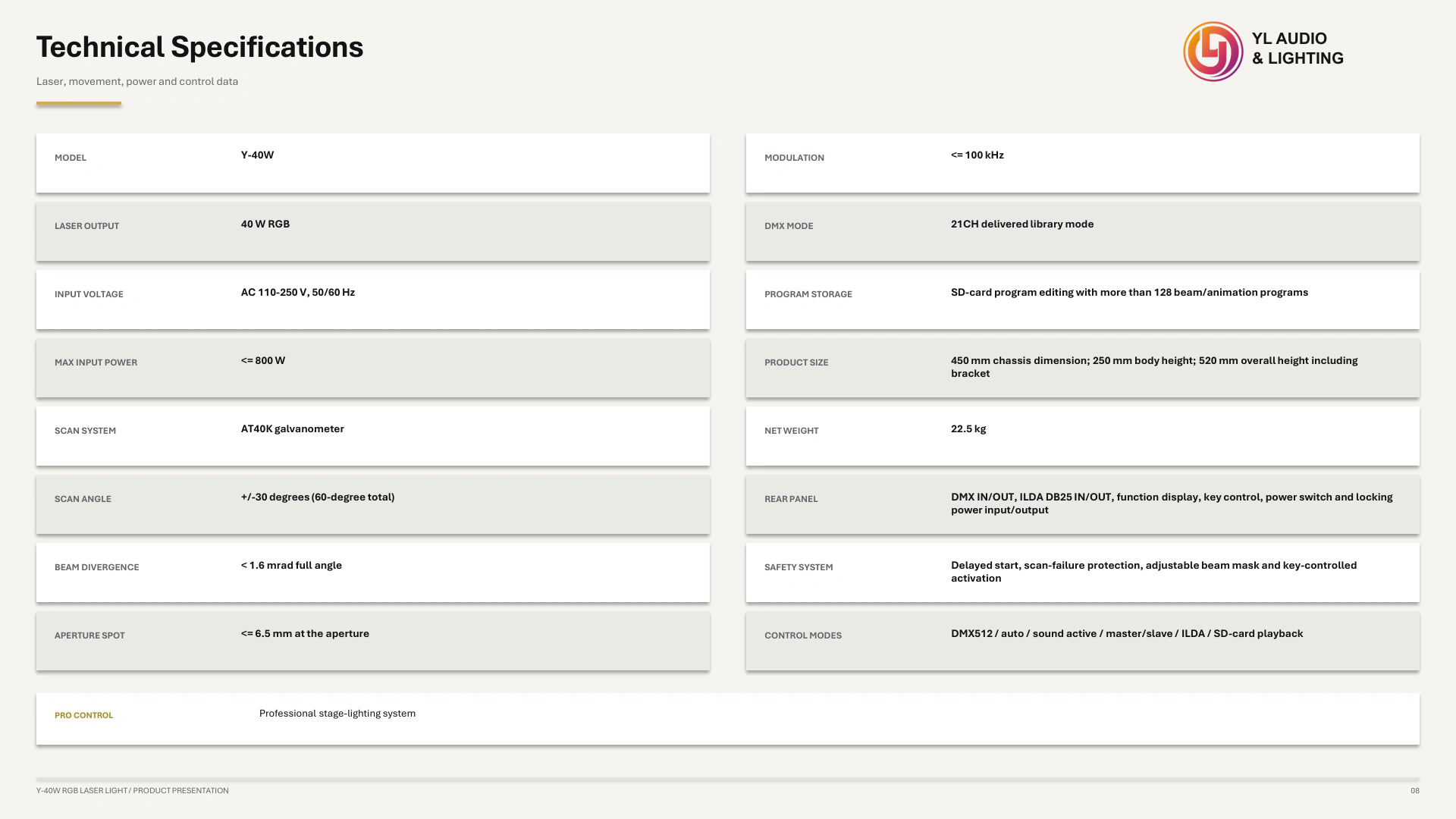

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

Y 40W RGB Laser Light technical specifications
Rated power<= 800 W
Light source40 W RGB
DMX channels21CH delivered library mode

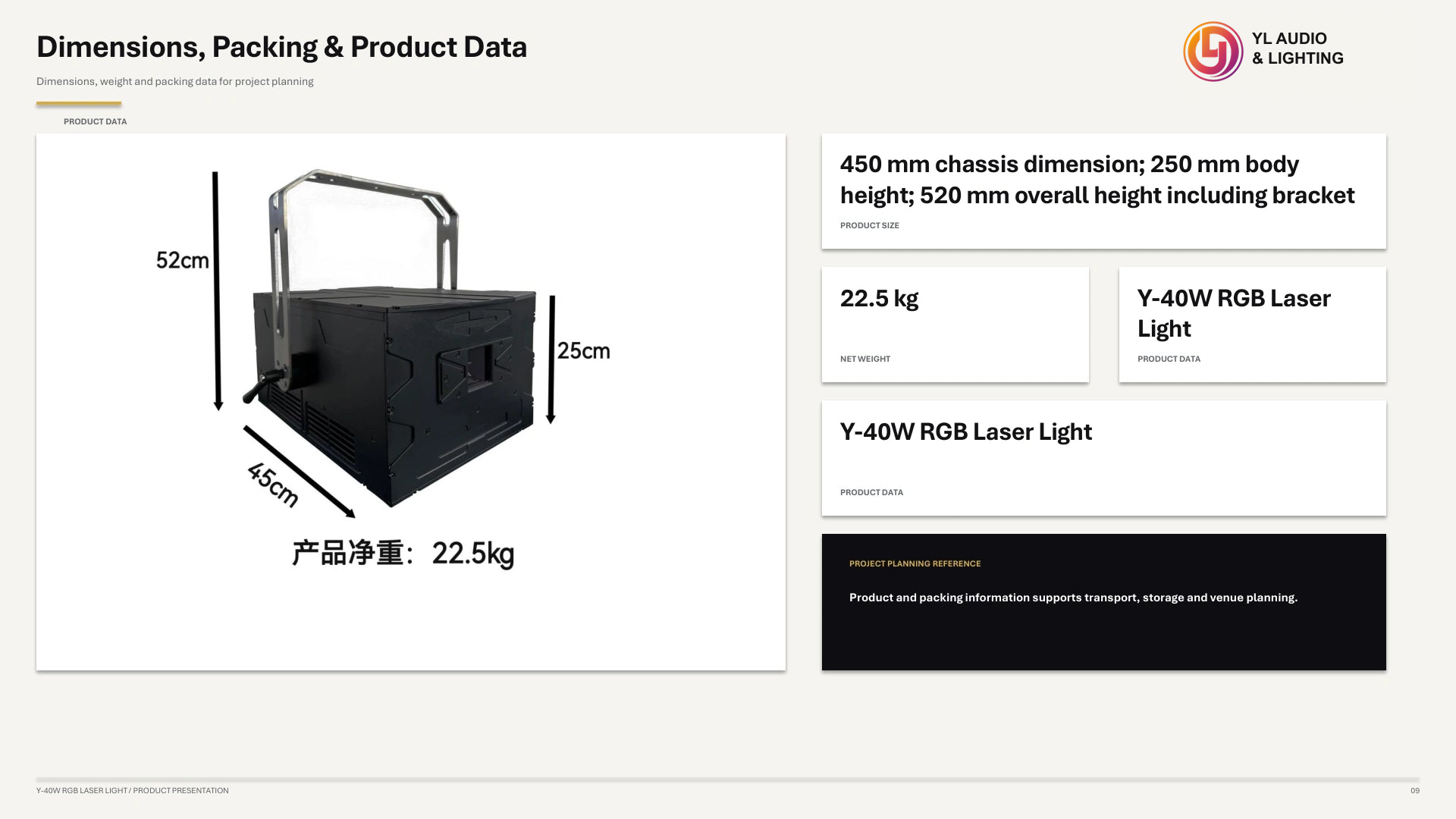

Product size450 mm chassis dimension; 250 mm body height; 520 mm overall height including
ProductY-40W
Input voltageAC 110-250 V, 50/60 Hz
Control modesDMX512 / auto / sound active / master/slave / ILDA / SD-card playback
Size / weight22.5 kg
ProtectionSYSTEM Delayed start, scan-failure protection, adjustable beam mask and key-controlled
ScannerAT40K galvanometer
Scan angle+/-30 degrees (60-degree total)

Downloads

Y 40W RGB Laser Light product documents
TitleFile typeDownload
YL Y-40W Product DetailsEnglishPDF11.0 MB

System accessories

Contact YL to confirm the available accessories and the exact configuration for Y 40W RGB Laser Light.

Ask about compatible accessories

Product videos

Ask for an available demonstration of Y 40W RGB Laser Light and the configuration you need.

Request a product demonstration
