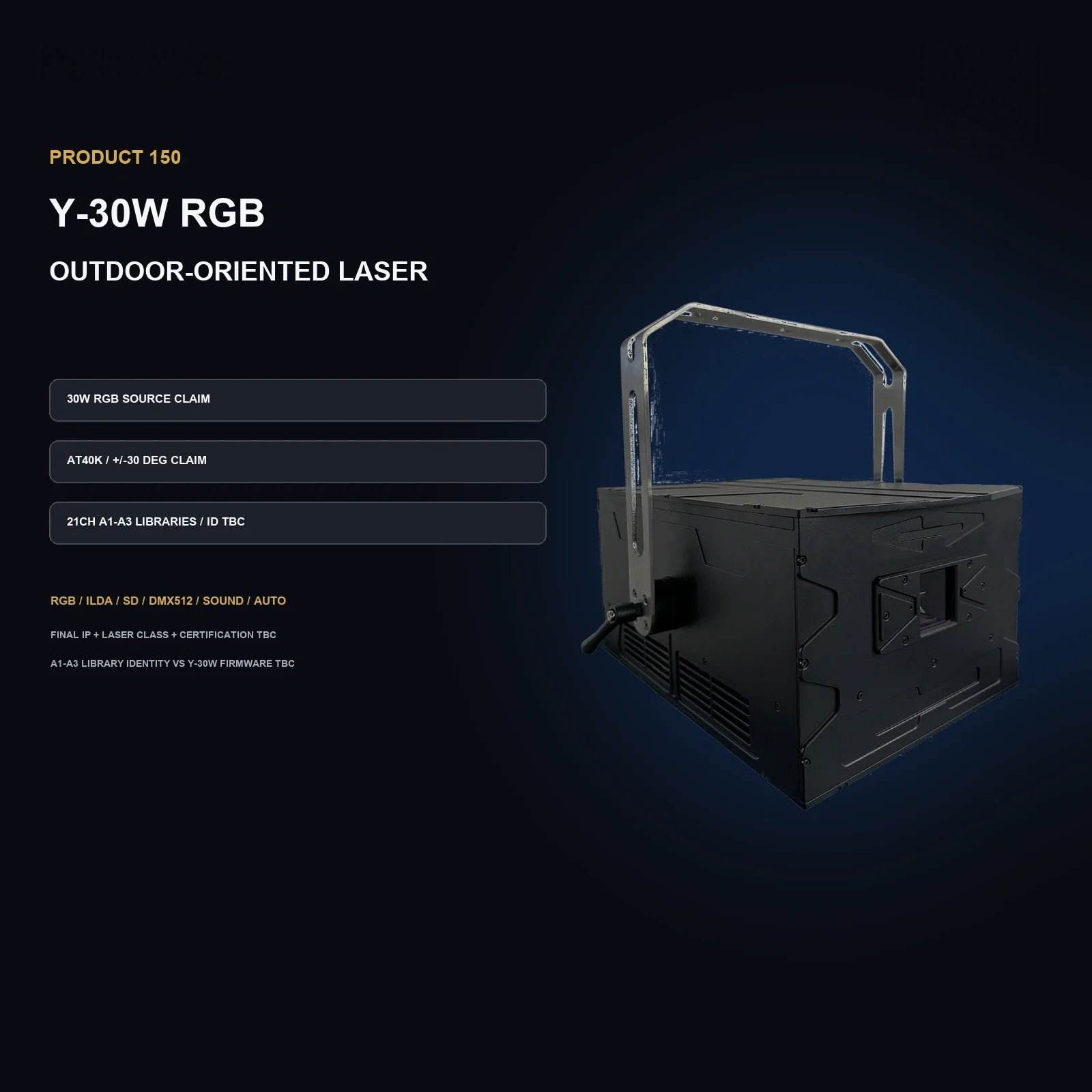

Y 30W RGB Laser Light is a stage lighting catalogue item in the professional laser light category. Reference specifications list rated power: <= 650 W; light source: 30 W RGB. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteReview the exact laser configuration, control options and intended installation before selecting an effect. Optical output, laser classification and operating restrictions must be established for the supplied model and event location.
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Rated power | <= 650 W |
|---|---|
| Light source | 30 W RGB |
| DMX channels | 21CH delivered library mode |
| Product size | 450 mm chassis dimension; 250 mm body height; 520 mm overall height including |
| Product | Y-30W |
| Input voltage | AC 110-250 V, 50/60 Hz |
| Control modes | DMX512 / auto / sound active / master/slave / ILDA / SD-card playback |
| Size / weight | 22.5 kg |
| Protection | SYSTEM Delayed start, scan-failure protection, adjustable beam mask and key-controlled |
| RGB sources | R 638 nm / 10 W; G 520 nm / 10 W; B 445 nm / 10 W |
| Scanner | AT40K galvanometer |
| Scan angle | +/-30 degrees (60-degree total) |
Product documents are being prepared. Contact YL for the current information for Y 30W RGB Laser Light.
Request product documentsContact YL to confirm the available accessories and the exact configuration for Y 30W RGB Laser Light.
Ask about compatible accessoriesAsk for an available demonstration of Y 30W RGB Laser Light and the configuration you need.
Request a product demonstration
