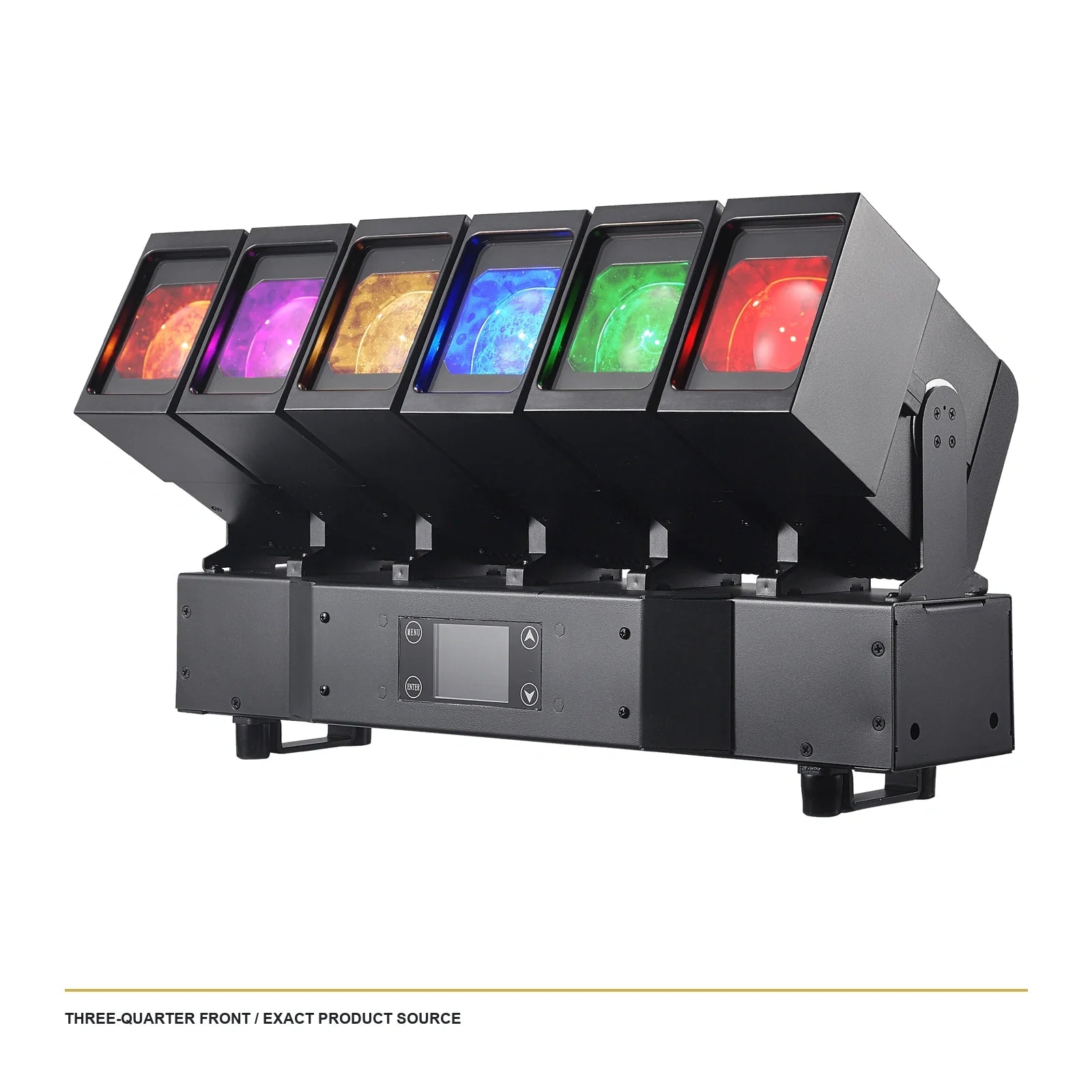

V660 6 x 60W RGBW Moving Beam Bar is a stage lighting catalogue item in the moving beam bar light category. Reference specifications list rated power: 400W; light source: 6 x 60W LED, source notation 6065. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteSelect this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Rated power | 400W |
|---|---|
| Light source | 6 x 60W LED, source notation 6065 |
| DMX channels | 20 / 35 / 59 / 89 / 91 / 101CH - manual-documented only |

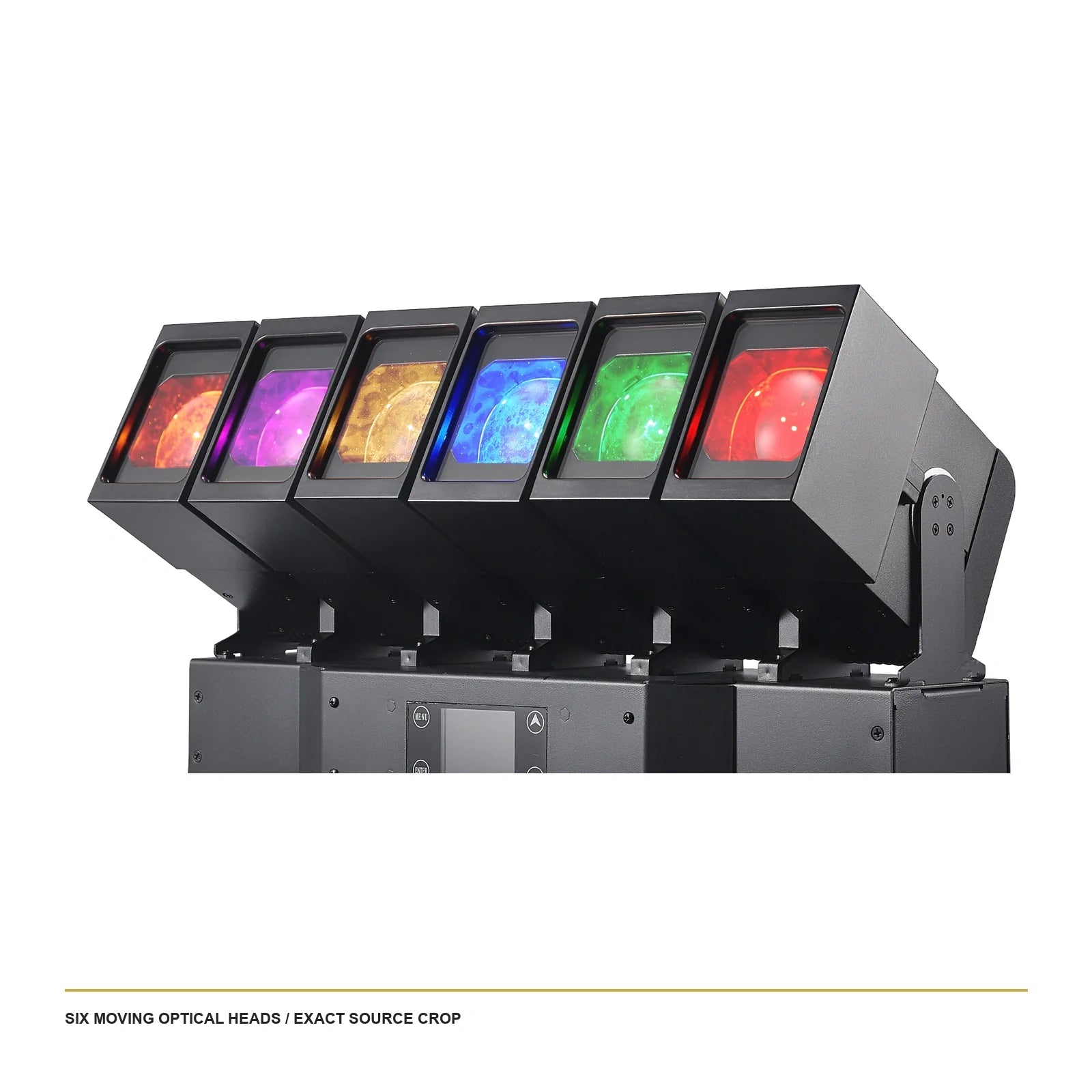

| Movement | 6 independent tilt heads; 220 degrees; 16-bit |
| Product | V660 6 x 60W RGBW Moving Beam Bar |
| Input voltage | AC100-240V, 50/60Hz technical table; safety text separately states 90-240V |
| Beam angle | 2.8-31 degrees |
| Strobe | 1-25Hz |
| Dimming | 0-100%; gamma curves; 1.2-25kHz adjustment |
| Protection | IP22 |
| Size / weight | 500 x 139.76 x 295.5mm excluding feet; 13.05kg net |
| Packing | 51.3 x 34 x 19cm; 15kg gross; one unit |
| Electrical protection | Fuse-holder position shown in manual diagram; rated current and fuse value: TBC. |
Product documents are being prepared. Contact YL for the current information for V660 6 x 60W RGBW Moving Beam Bar.
Request product documentsContact YL to confirm the available accessories and the exact configuration for V660 6 x 60W RGBW Moving Beam Bar.
Ask about compatible accessories
