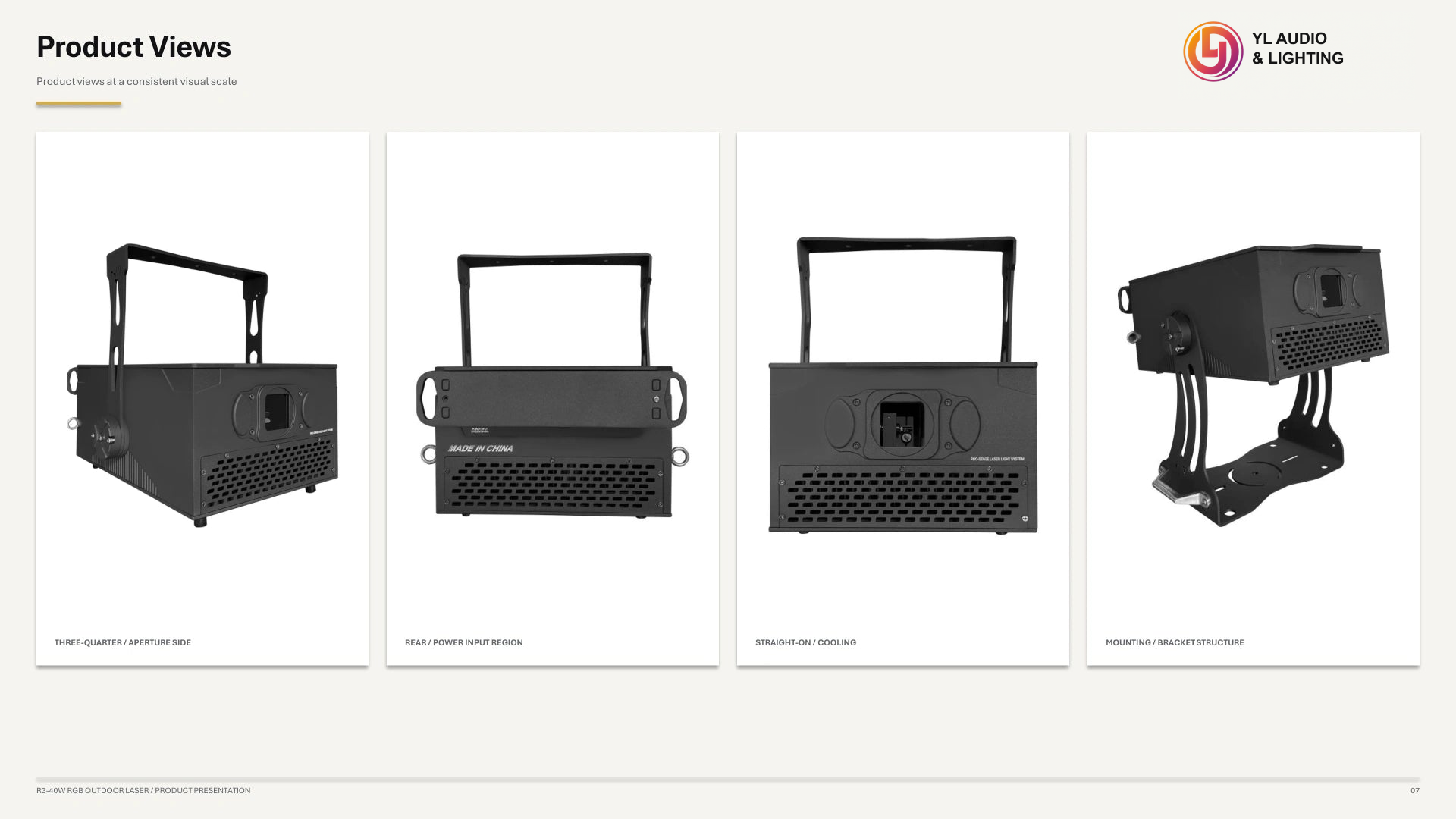

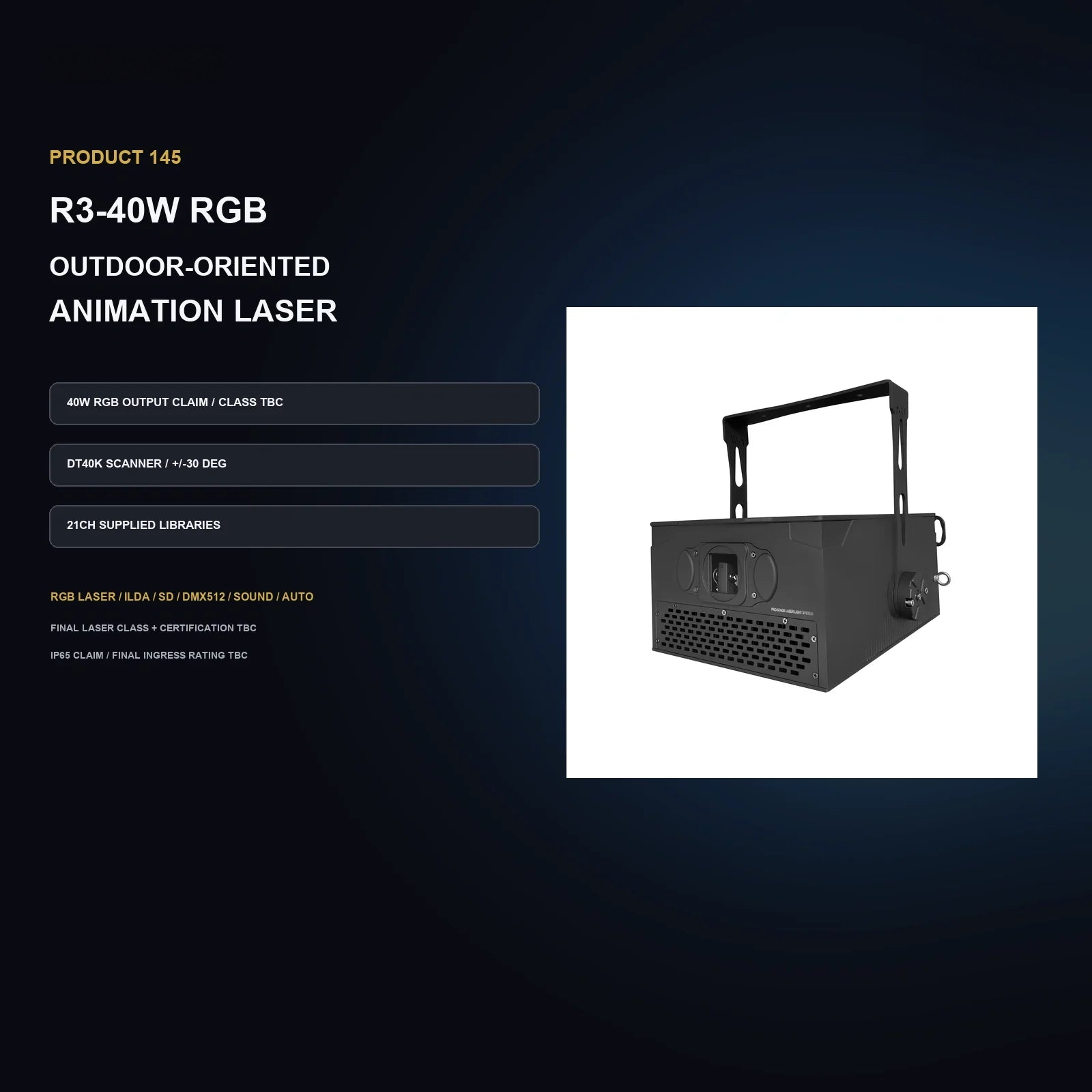

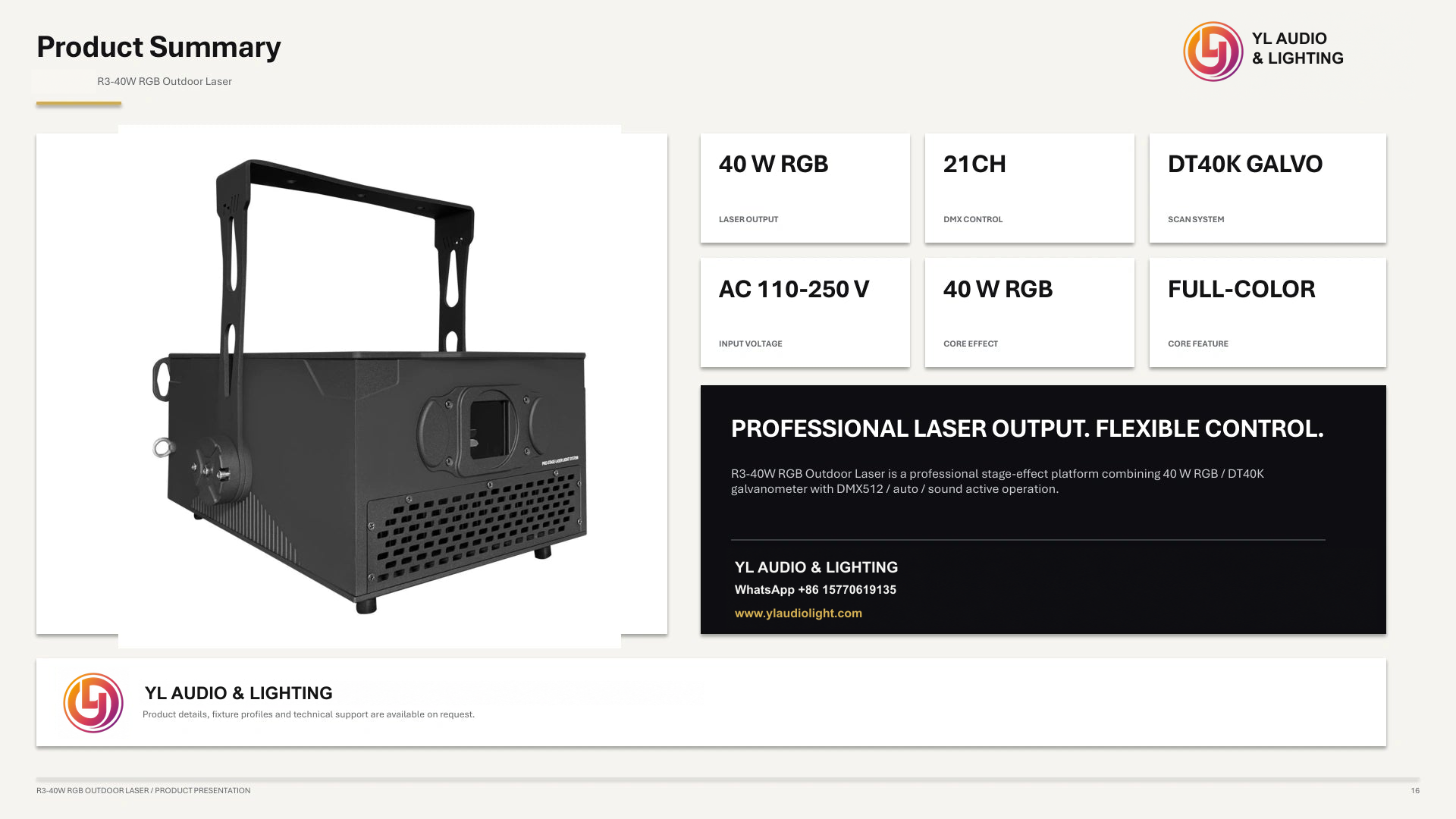

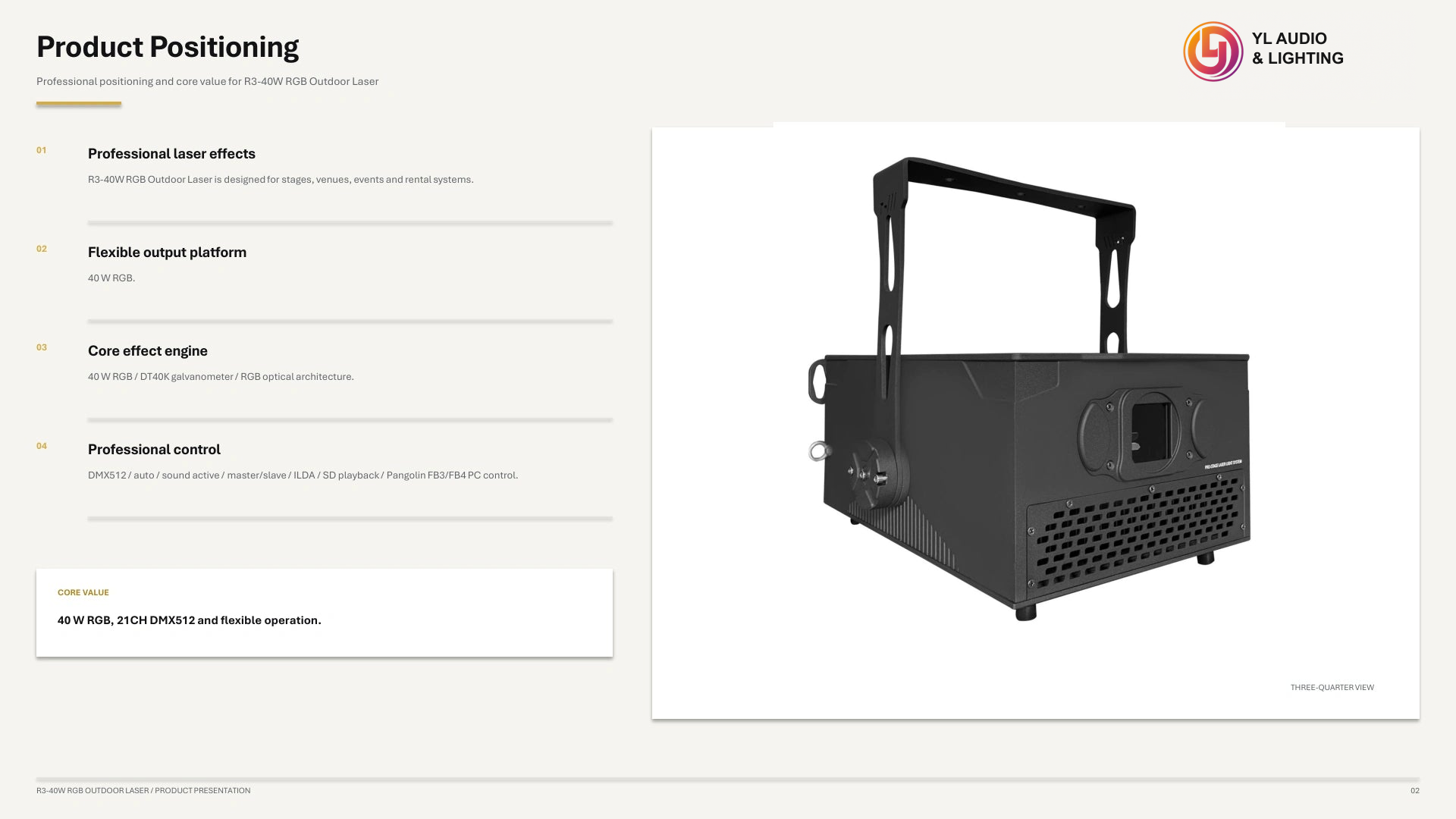

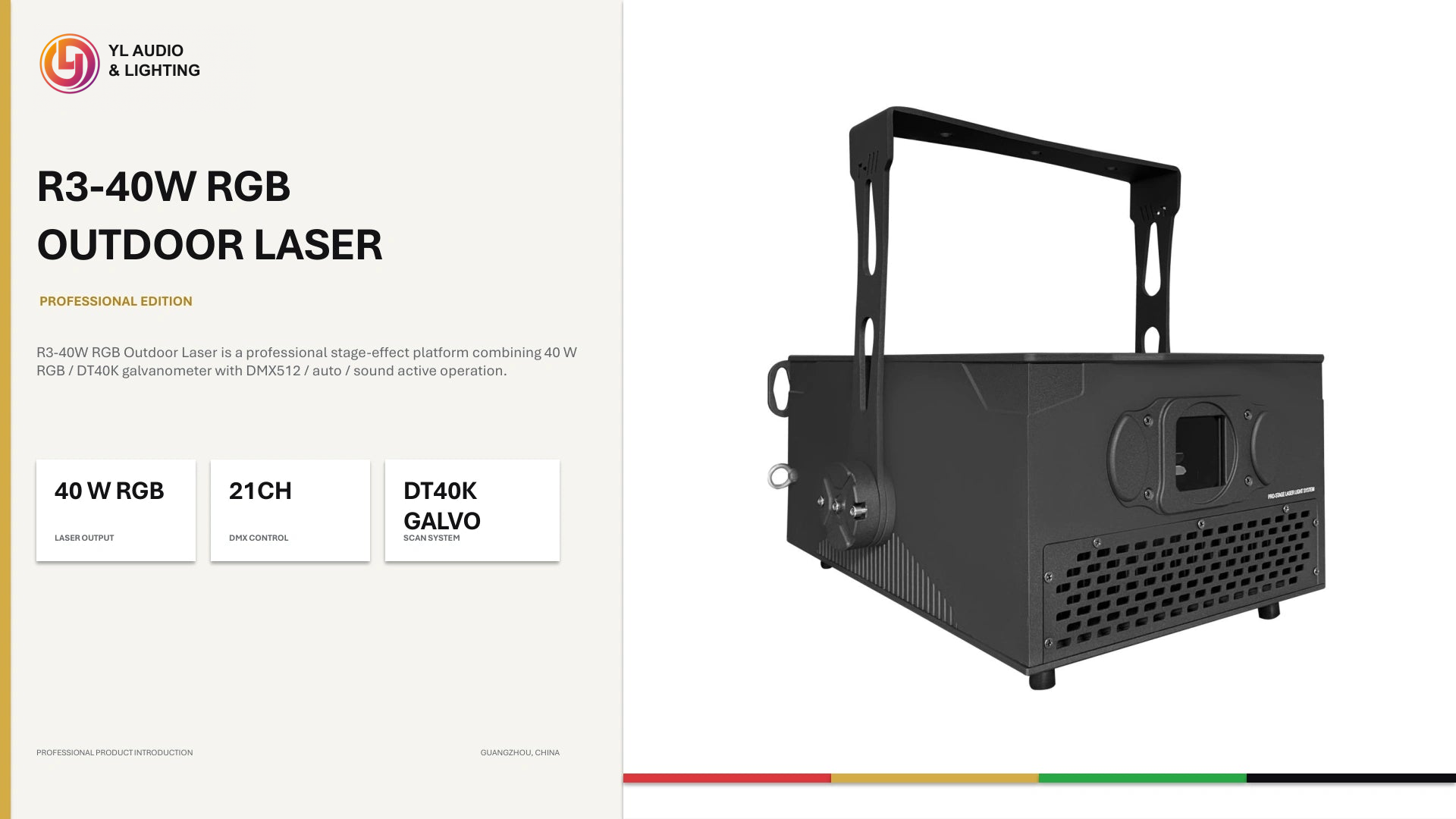

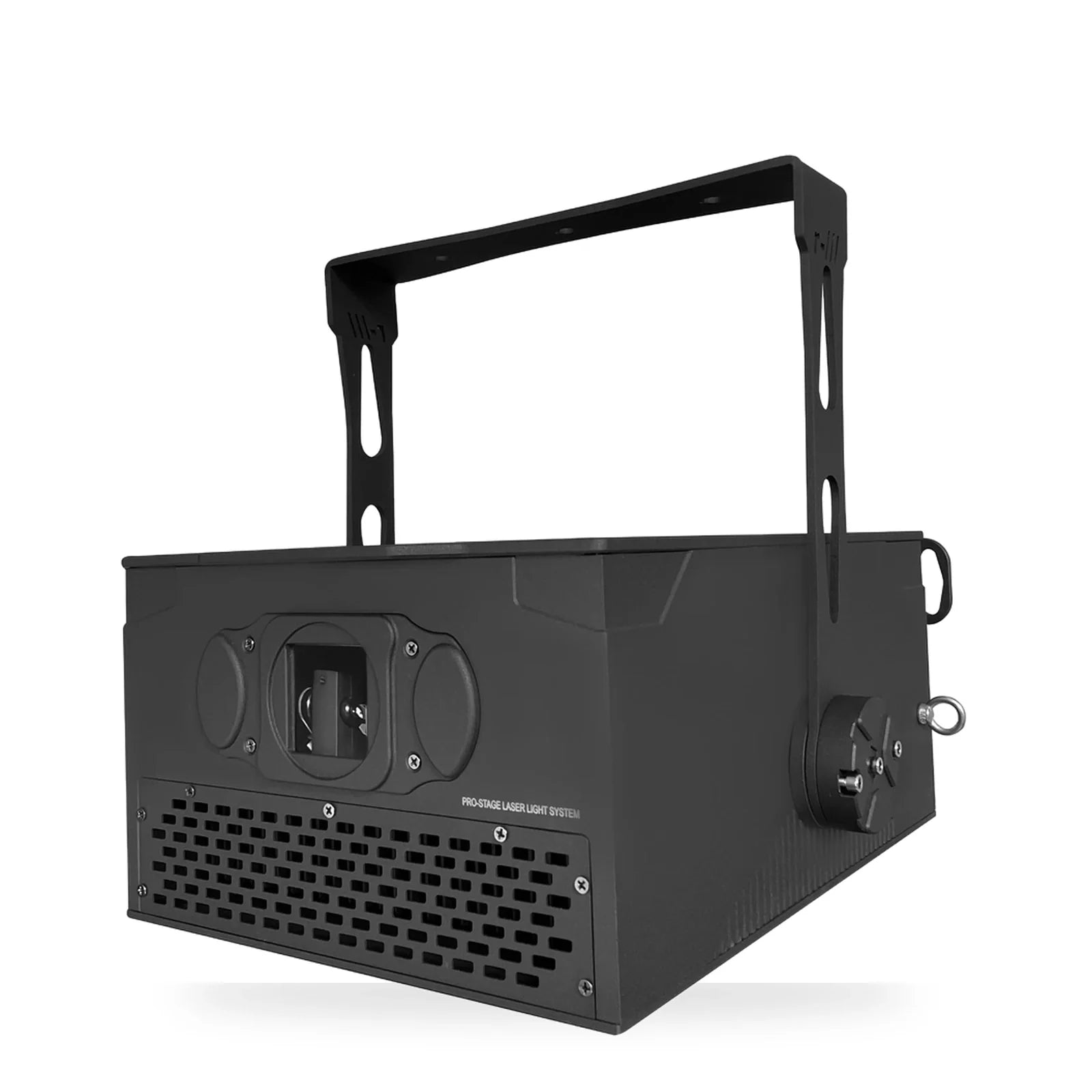

R3 40W RGB Outdoor Laser is a stage lighting catalogue item in the professional laser light category. Reference specifications list rated power: <= 550 W; light source: 40 W RGB. Confirm the exact fixture version, specifications and current supply details before ordering.

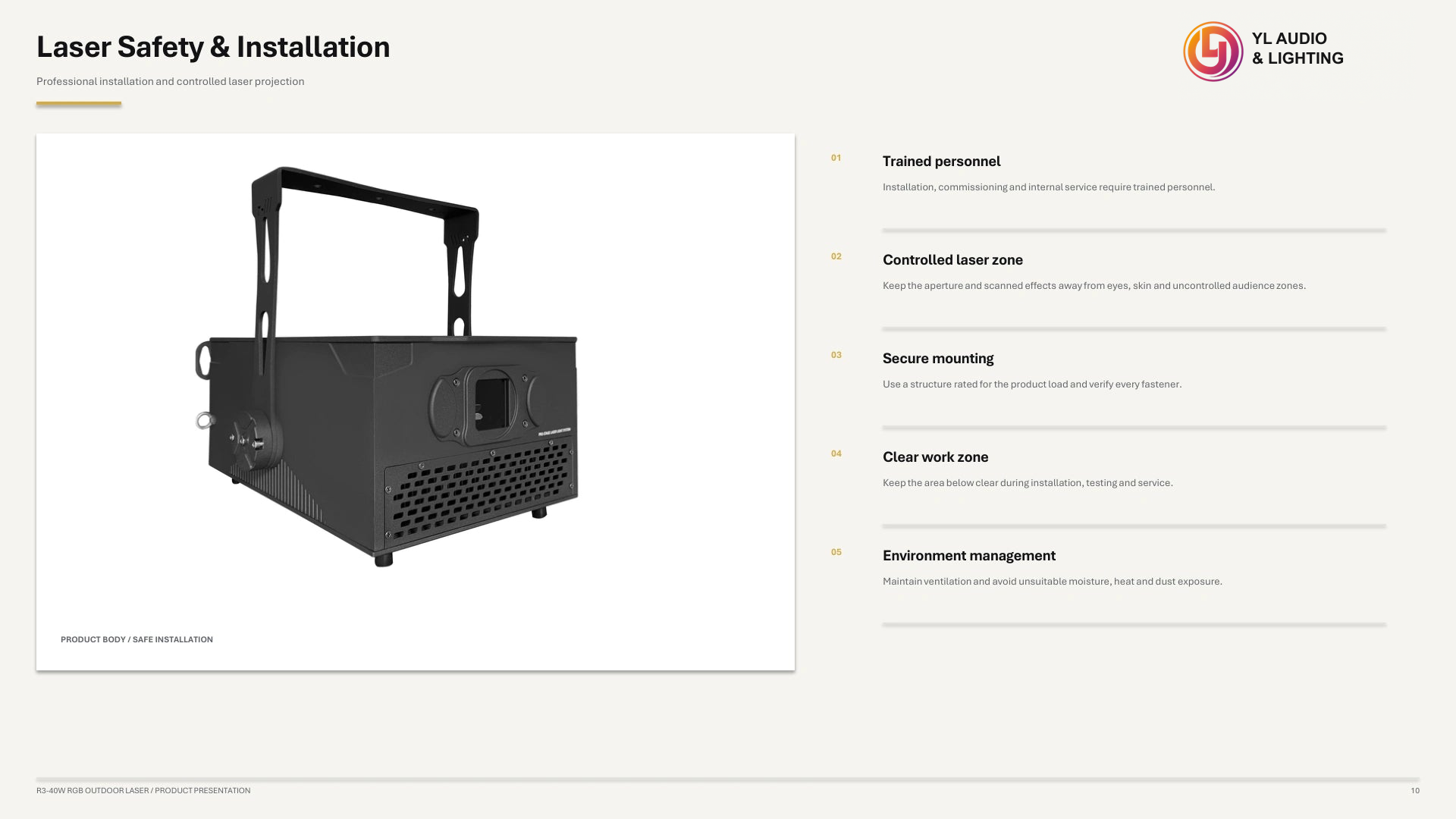

WHATSAPPRequest a QuoteReview the exact laser configuration, control options and intended installation before selecting an effect. Optical output, laser classification and operating restrictions must be established for the supplied model and event location.
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.

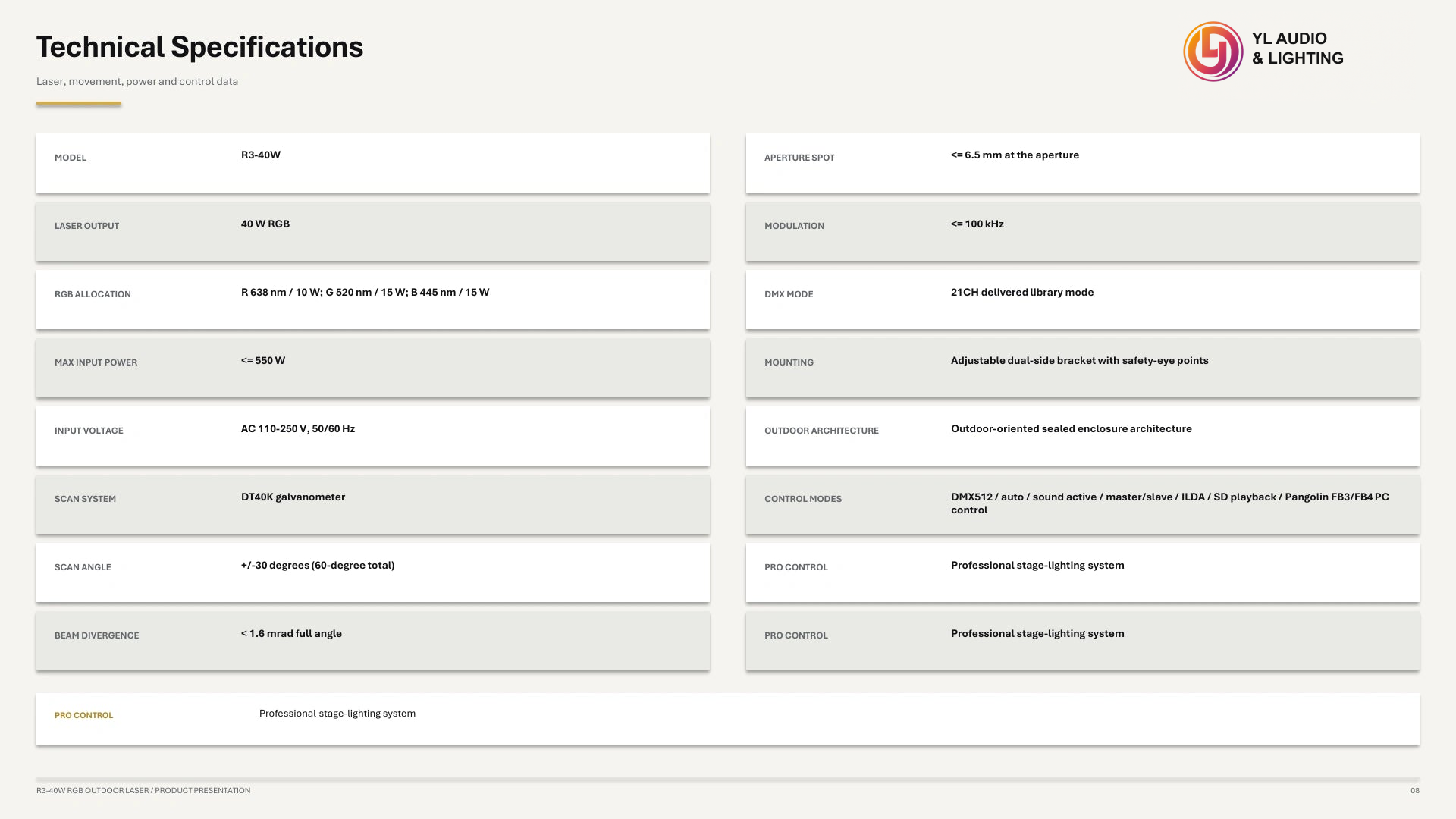

| Rated power | <= 550 W |
|---|---|
| Light source | 40 W RGB |
| DMX channels | 21CH delivered library mode |

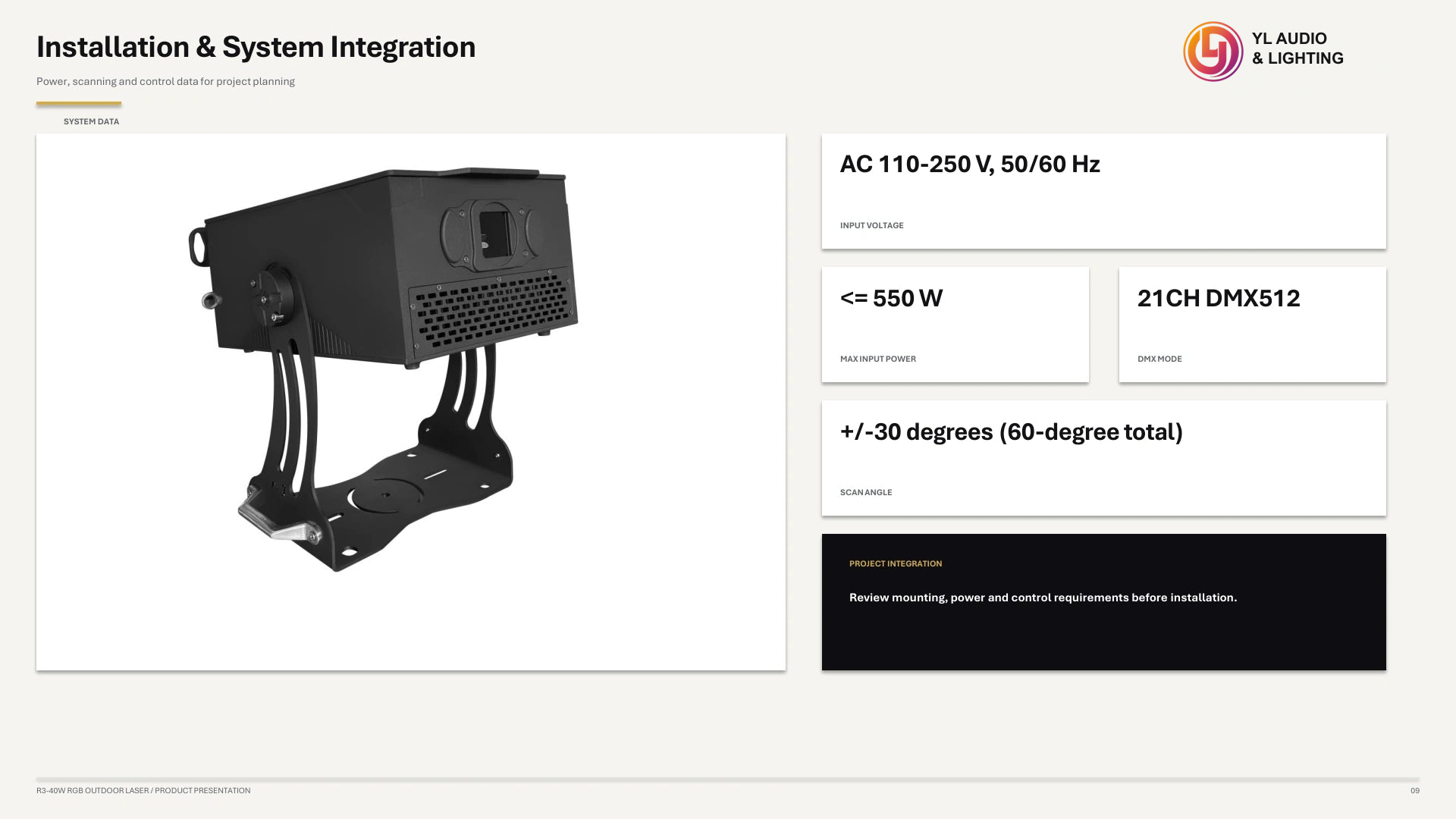

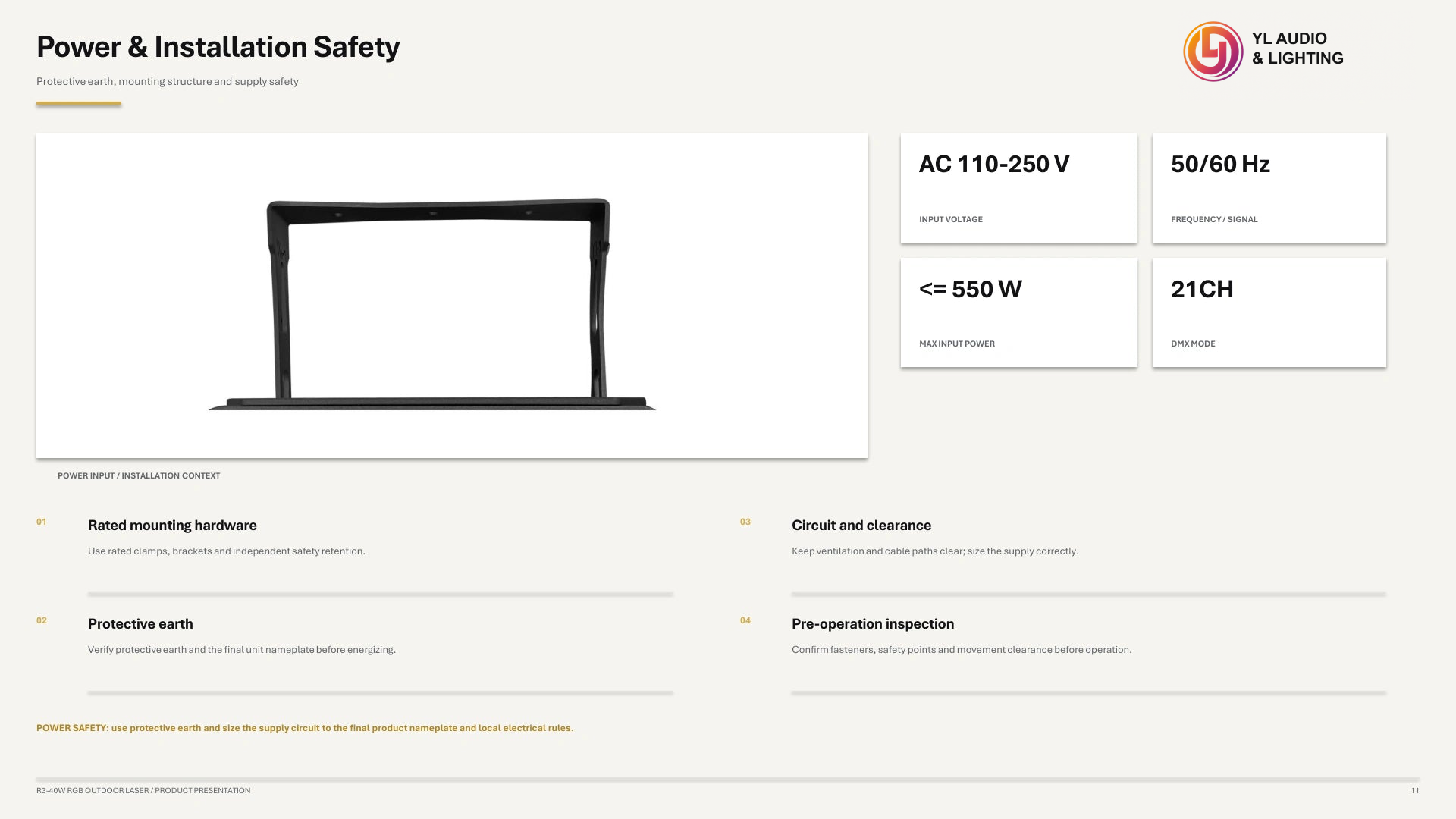

| Input voltage | AC 110-250 V, 50/60 Hz |
| Product | R3-40W |

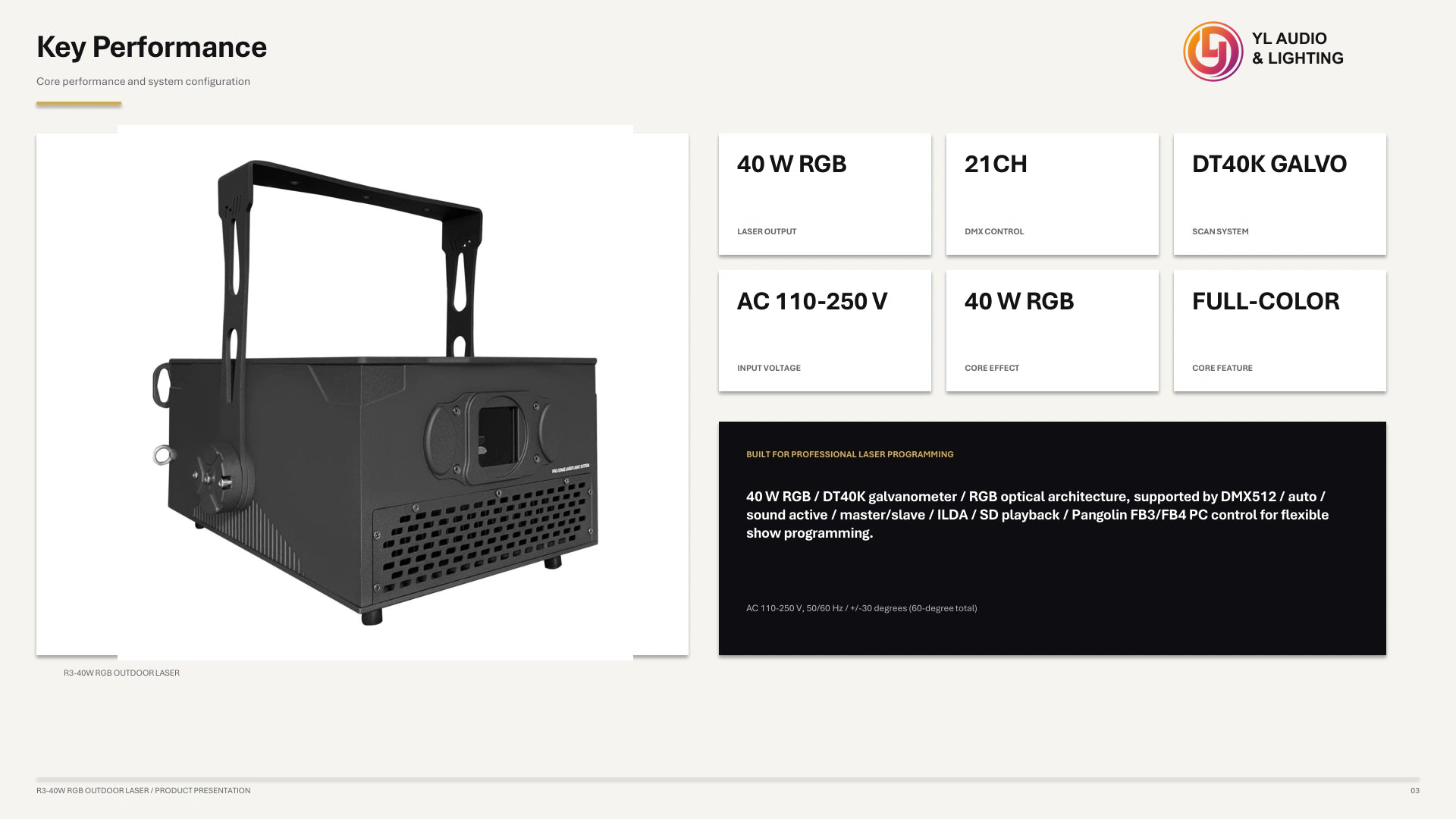

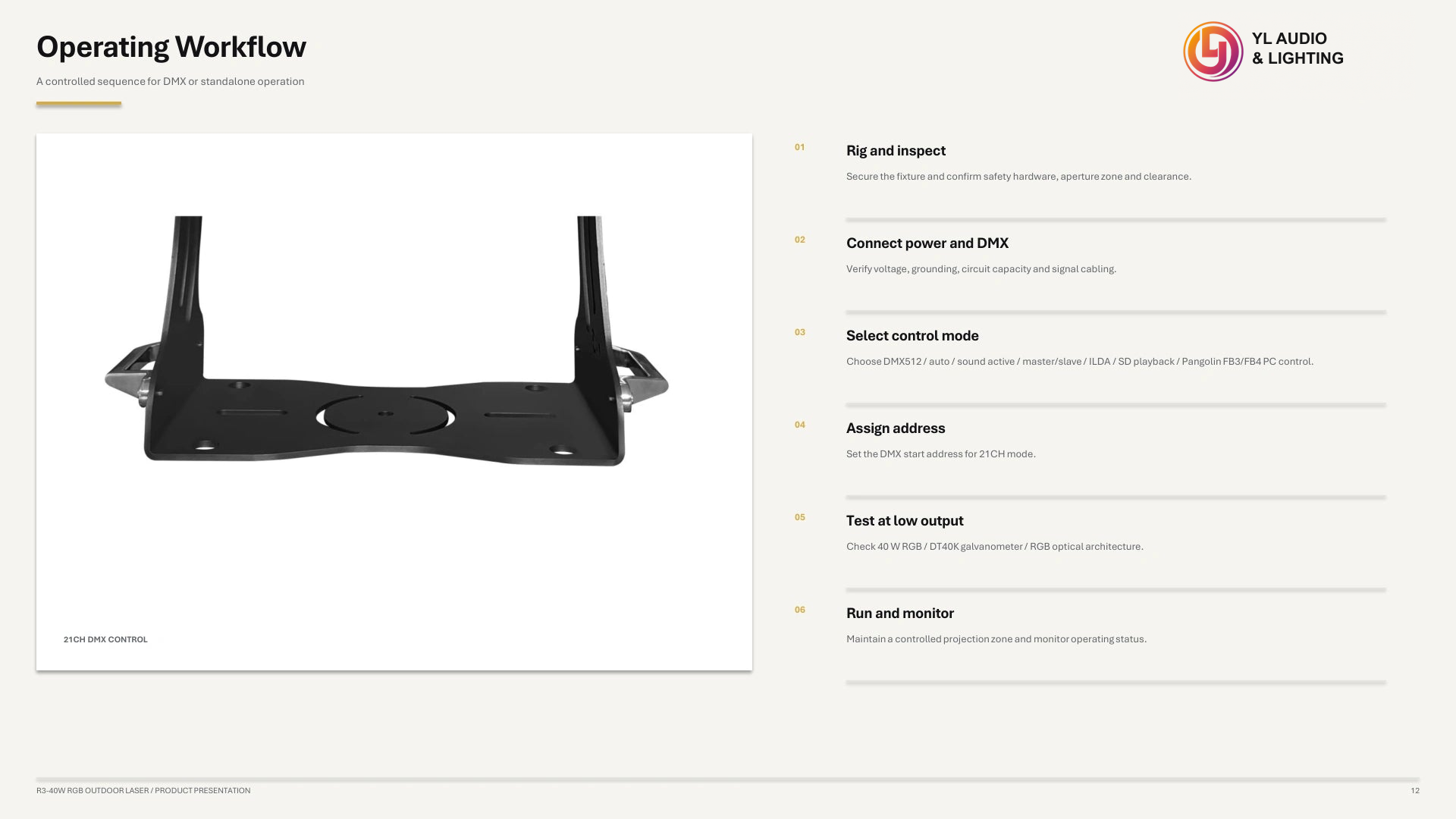

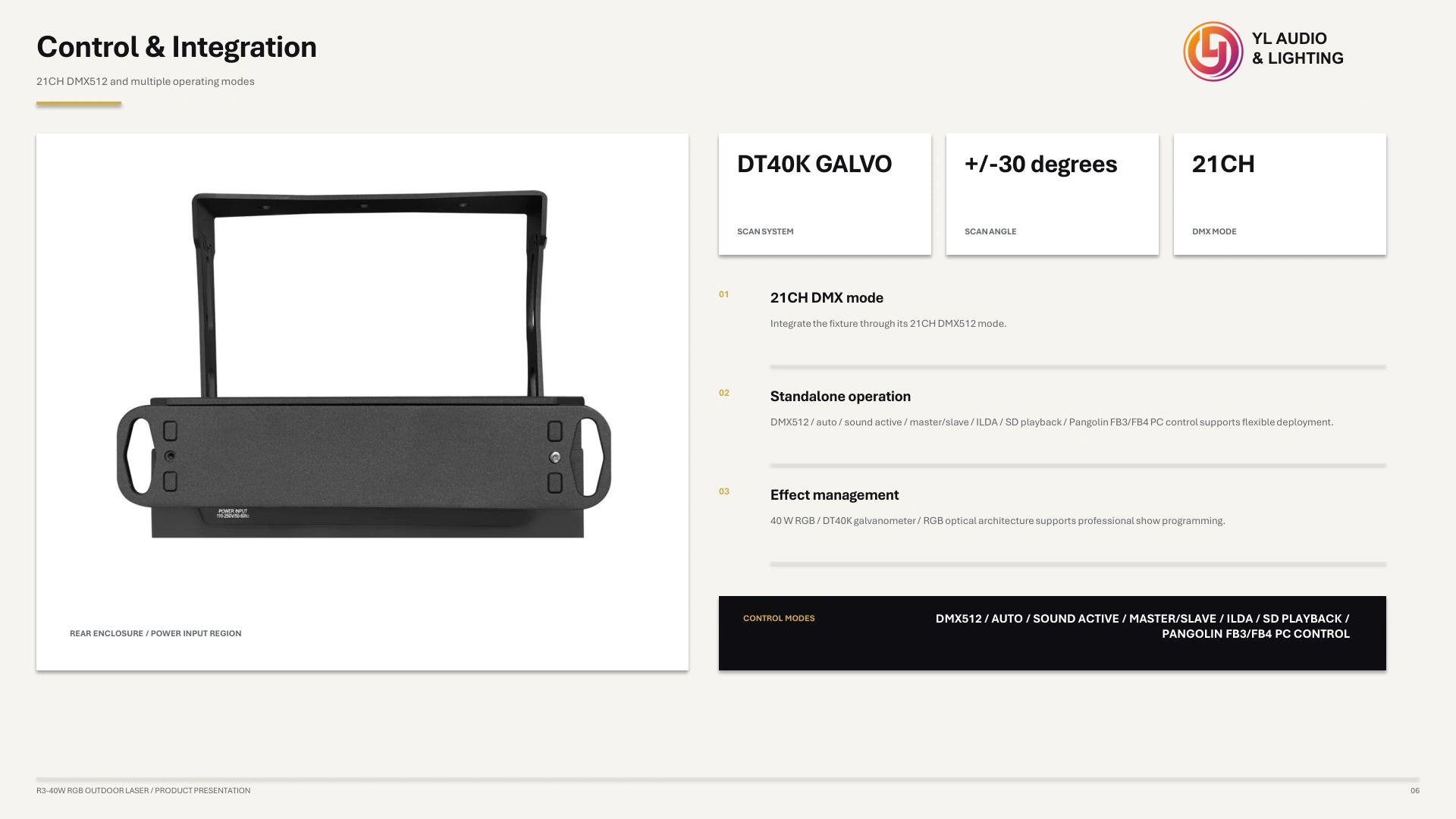

| Control modes | DMX512 / auto / sound active / master/slave / ILDA / SD playback / Pangolin FB3/FB4 PC |
| RGB sources | R 638 nm / 10 W; G 520 nm / 15 W; B 445 nm / 15 W |
| Scanner | DT40K galvanometer |
| Scan angle | +/-30 degrees (60-degree total) |
| Title | File type | Download |
|---|---|---|
| YL R3-40W Product DetailsEnglish | PDF8.3 MB |
Contact YL to confirm the available accessories and the exact configuration for R3 40W RGB Outdoor Laser.
Ask about compatible accessoriesAsk for an available demonstration of R3 40W RGB Outdoor Laser and the configuration you need.
Request a product demonstration
