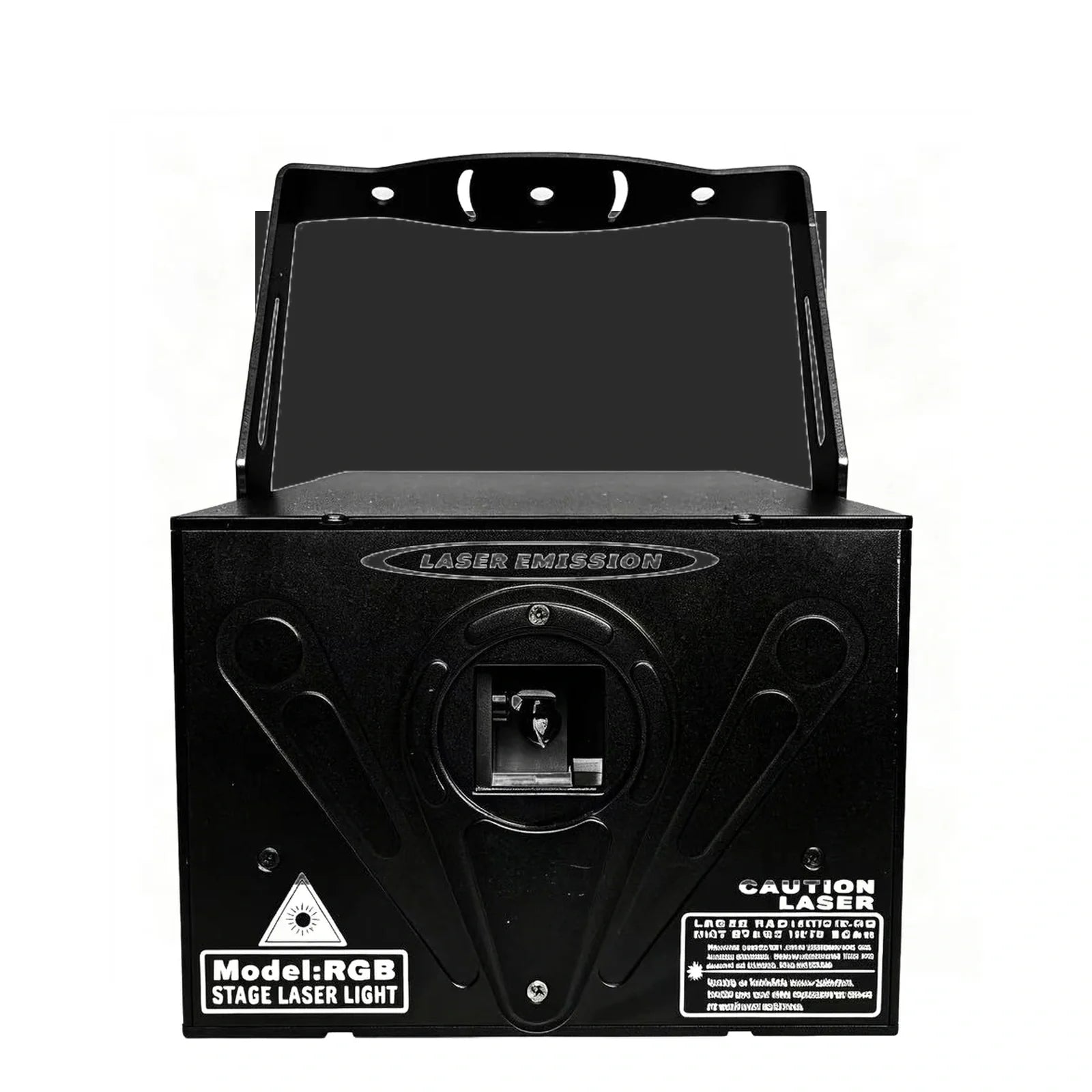

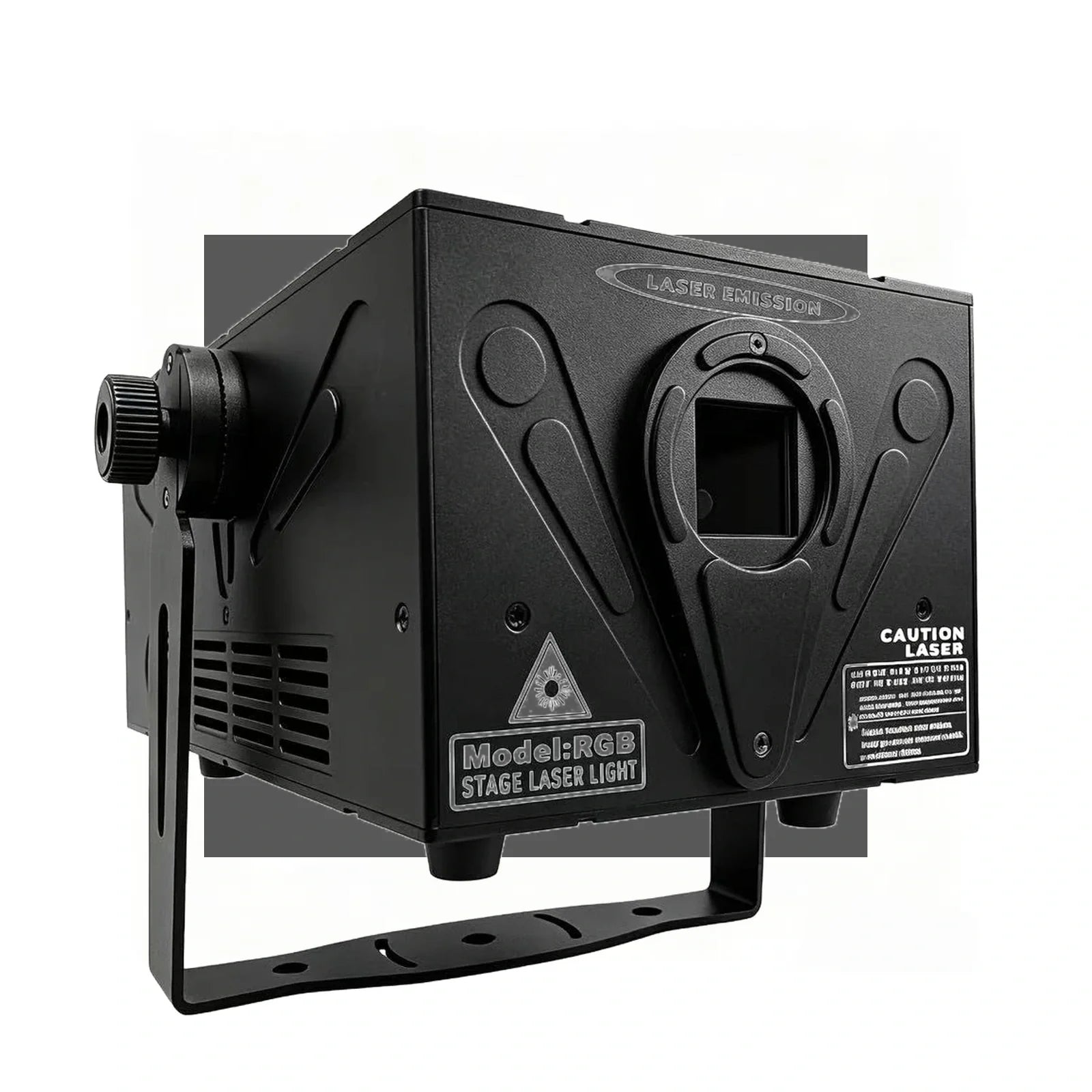

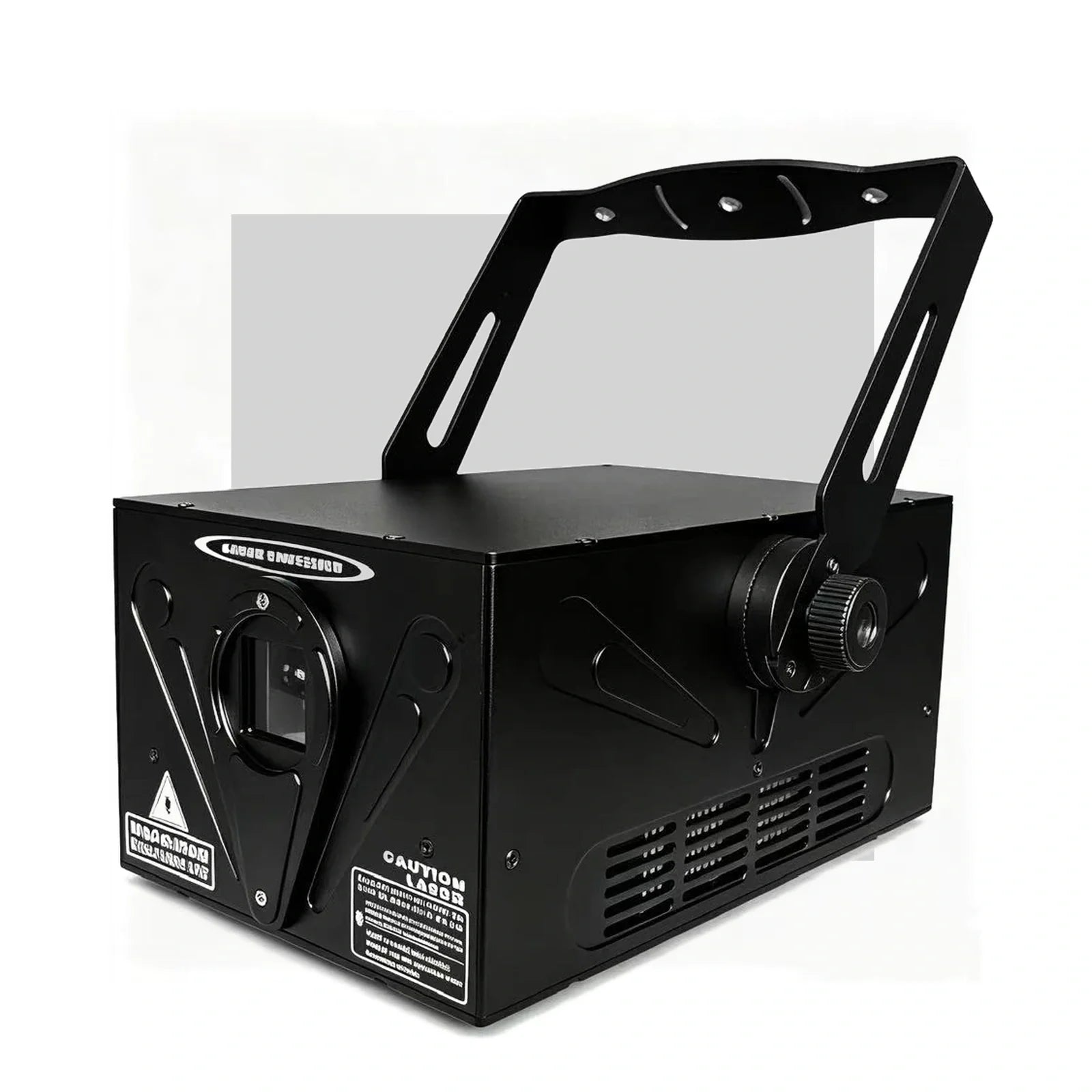

R1 20W Full Color Laser

R1 20W Full Color Laser is a stage lighting catalogue item in the professional laser light category. Reference specifications list dmx channels: PROTOCOL DMX512; input voltage: AC 110-240 V. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Control modes
DMX / AUTO / SOUND / MASTER-SLAVE

Planning this product into your project

Review the exact laser configuration, control options and intended installation before selecting an effect. Optical output, laser classification and operating restrictions must be established for the supplied model and event location.

Product configuration

Product: R1-20W FULL-COLOR ANIMATION LASER

Optical performance

Scan angle: ±30°PER AXIS

Control and connections

DMX channels
PROTOCOL DMX512
Input voltage
AC 110-240 V
DMX channels
21CH
DMX channels

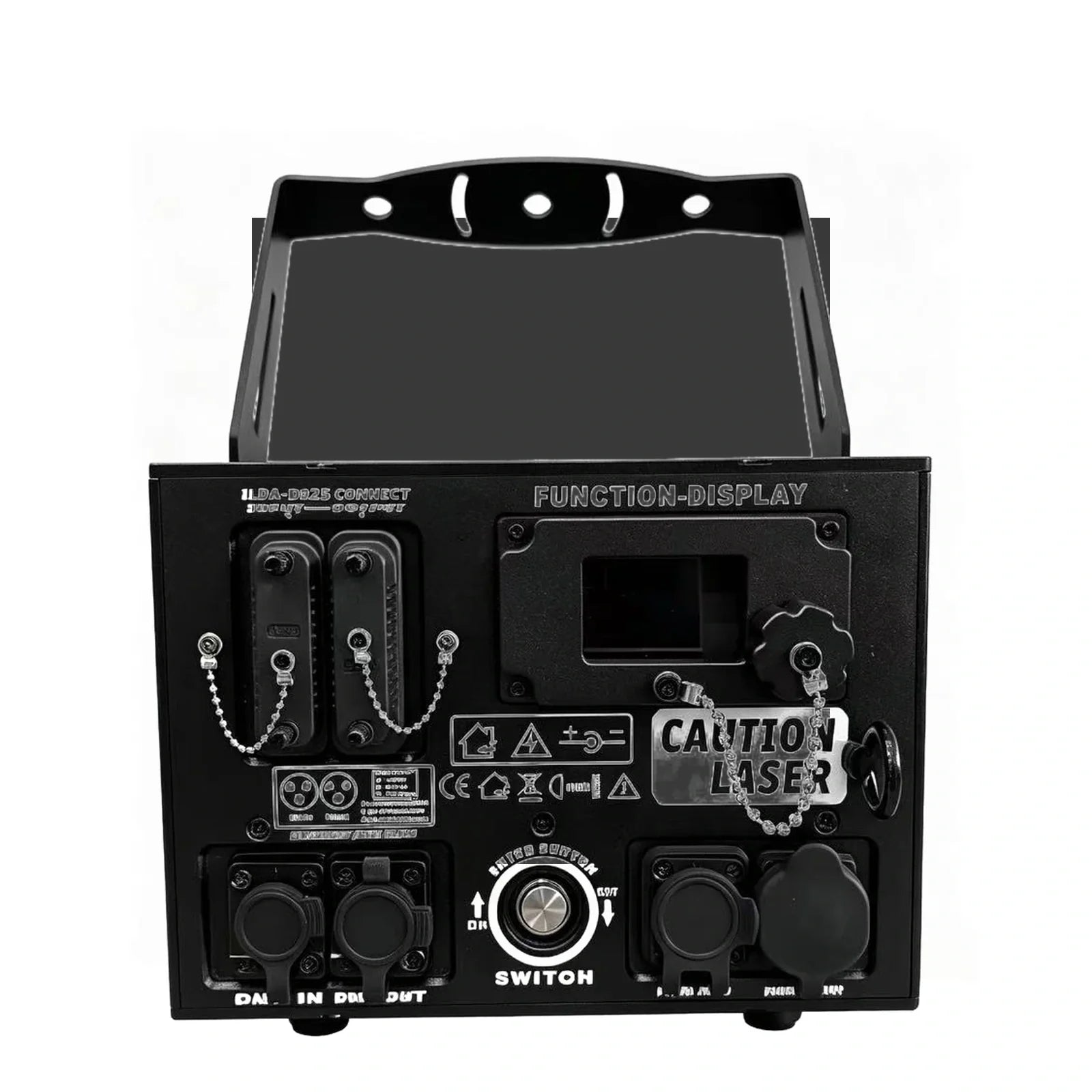

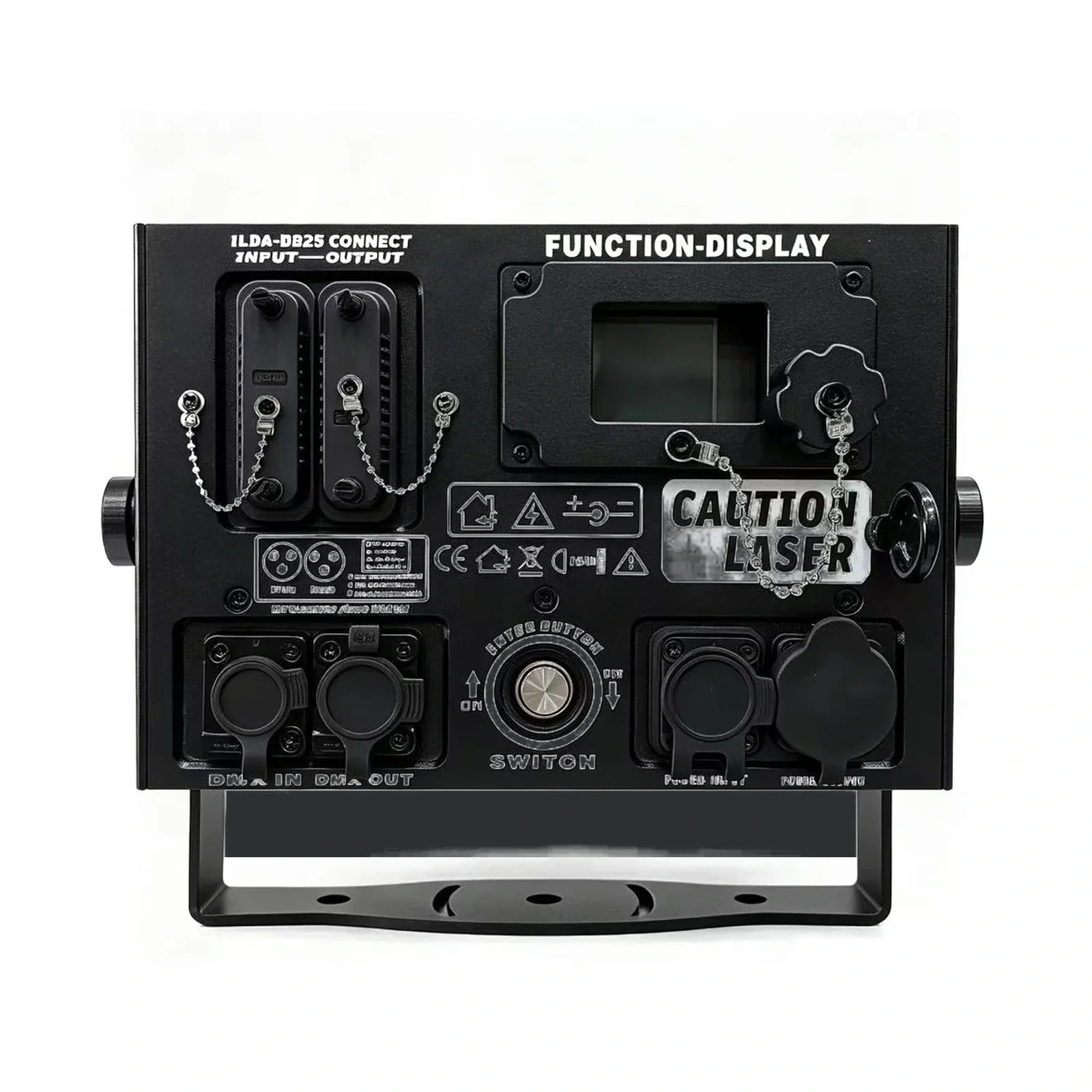

CONNECTION DMX INPUT / OUTPUT
Control modes
DMX / AUTO / SOUND / MASTER-SLAVE

What to confirm for your quotation

  • Request the exact laser class, wavelength and output documentation for the quoted variant.
  • Confirm supported control, interlock, emergency-stop and scan-safety provisions.
  • Provide the installation positions and intended projection area for assessment by a competent laser professional.
  • Check applicable local event requirements and the operating instructions before use.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

R1 20W Full Color Laser technical specifications
DMX channelsPROTOCOL DMX512
Input voltageAC 110-240 V
DMX channels21CH
DMX channelsCONNECTION DMX INPUT / OUTPUT
ProductR1-20W FULL-COLOR ANIMATION LASER
Control modesDMX / AUTO / SOUND / MASTER-SLAVE
Scan angle±30°PER AXIS

Downloads

Product documents are being prepared. Contact YL for the current information for R1 20W Full Color Laser.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for R1 20W Full Color Laser.

Ask about compatible accessories

Product videos

Ask for an available demonstration of R1 20W Full Color Laser and the configuration you need.

Request a product demonstration
