R1 15W Full Color Animation Laser

R1 15W Full Color Animation Laser is a stage lighting catalogue item in the professional laser light category. Reference specifications list rated power: <= 200 W; light source: 15 W RGB. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Light source
15 W RGB
Size / weight
12 kg

Planning this product into your project

Review the exact laser configuration, control options and intended installation before selecting an effect. Optical output, laser classification and operating restrictions must be established for the supplied model and event location.

Product configuration

Product
R1-15W
Connections

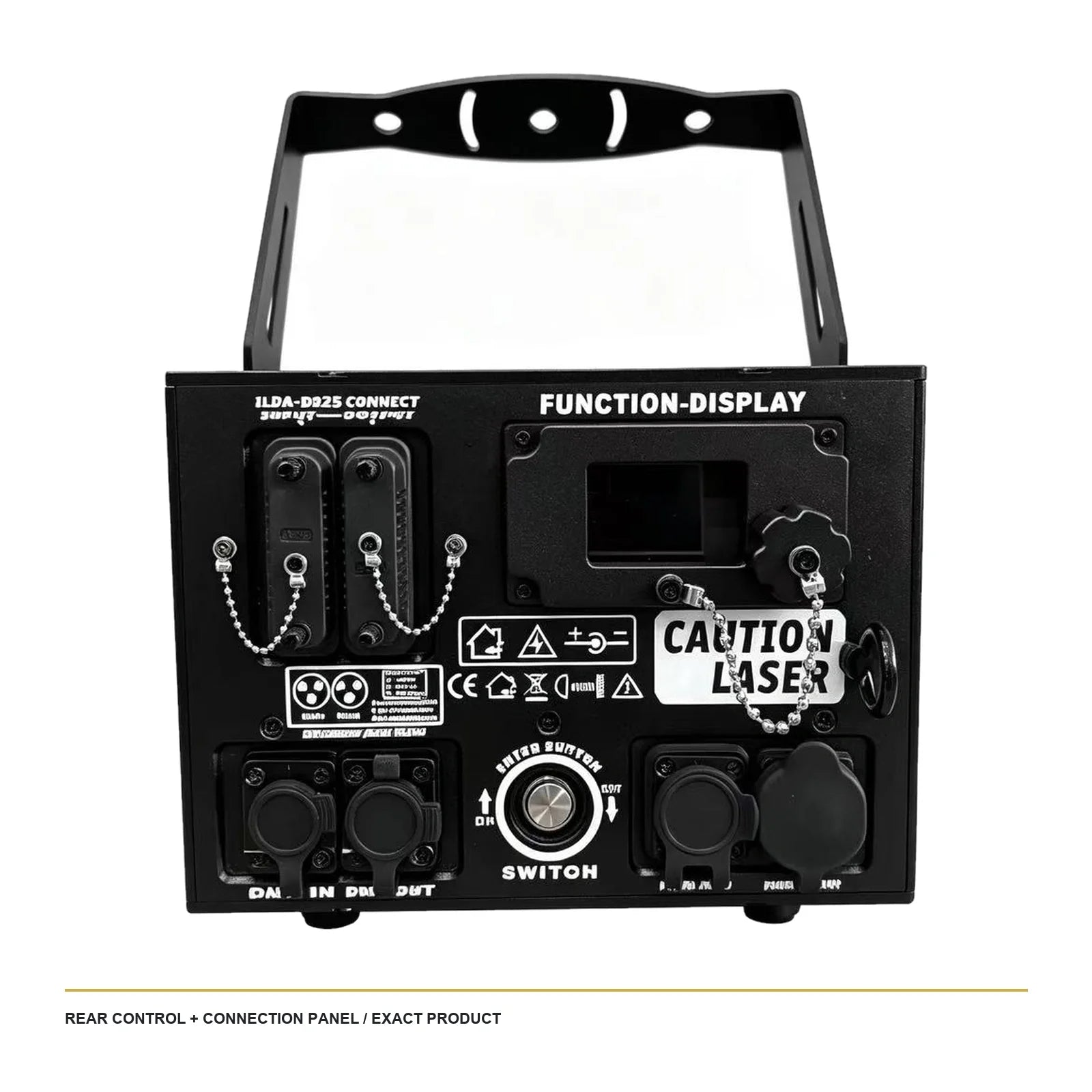

ILDA DB-25 input/output, DMX input/output, function display and keyed controls; covered power connections are visible on the rea r panel
Packing
45 x 38 x 29 cm
Packing
16.5 kg; 55 x 36 x 29 cm

Optical performance

Rated power
<= 200 W
Light source
15 W RGB
Scan angle
+/-30 degrees

Control and connections

DMX channels
21CH
Input voltage
AC 90-250 V, 50/60 Hz

Construction and dimensions

Size / weight: 12 kg

What to confirm for your quotation

  • Request the exact laser class, wavelength and output documentation for the quoted variant.
  • Confirm supported control, interlock, emergency-stop and scan-safety provisions.
  • Provide the installation positions and intended projection area for assessment by a competent laser professional.
  • Check applicable local event requirements and the operating instructions before use.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

R1 15W Full Color Animation Laser technical specifications
Rated power<= 200 W
Light source15 W RGB
DMX channels21CH
Input voltageAC 90-250 V, 50/60 Hz
ProductR1-15W
ConnectionsILDA DB-25 input/output, DMX input/output, function display and keyed controls; covered power connections are visible on the rea r panel
Size / weight12 kg
Packing45 x 38 x 29 cm
Packing16.5 kg; 55 x 36 x 29 cm
Scan angle+/-30 degrees

Downloads

Product documents are being prepared. Contact YL for the current information for R1 15W Full Color Animation Laser.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for R1 15W Full Color Animation Laser.

Ask about compatible accessories

Product videos

Ask for an available demonstration of R1 15W Full Color Animation Laser and the configuration you need.

Request a product demonstration
