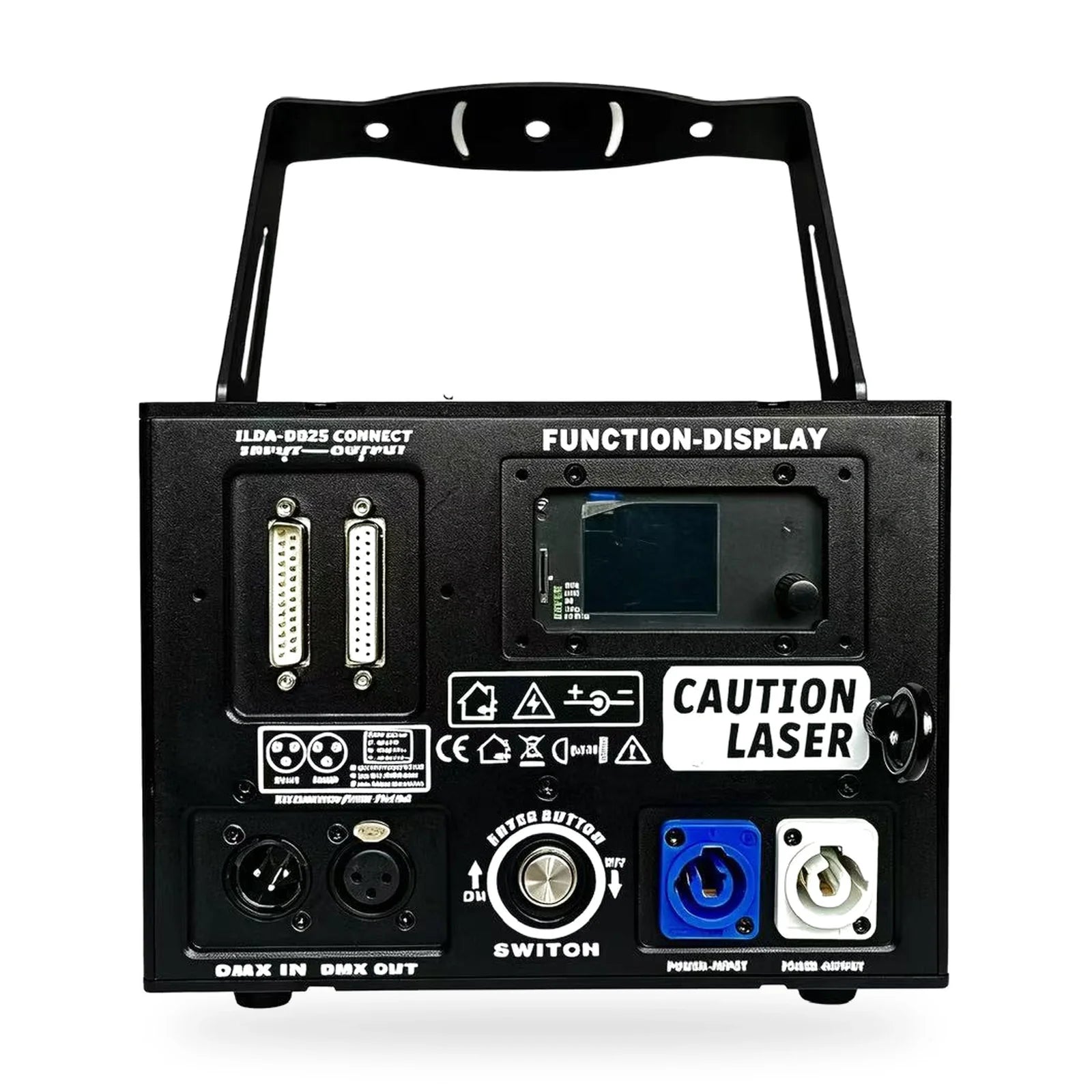

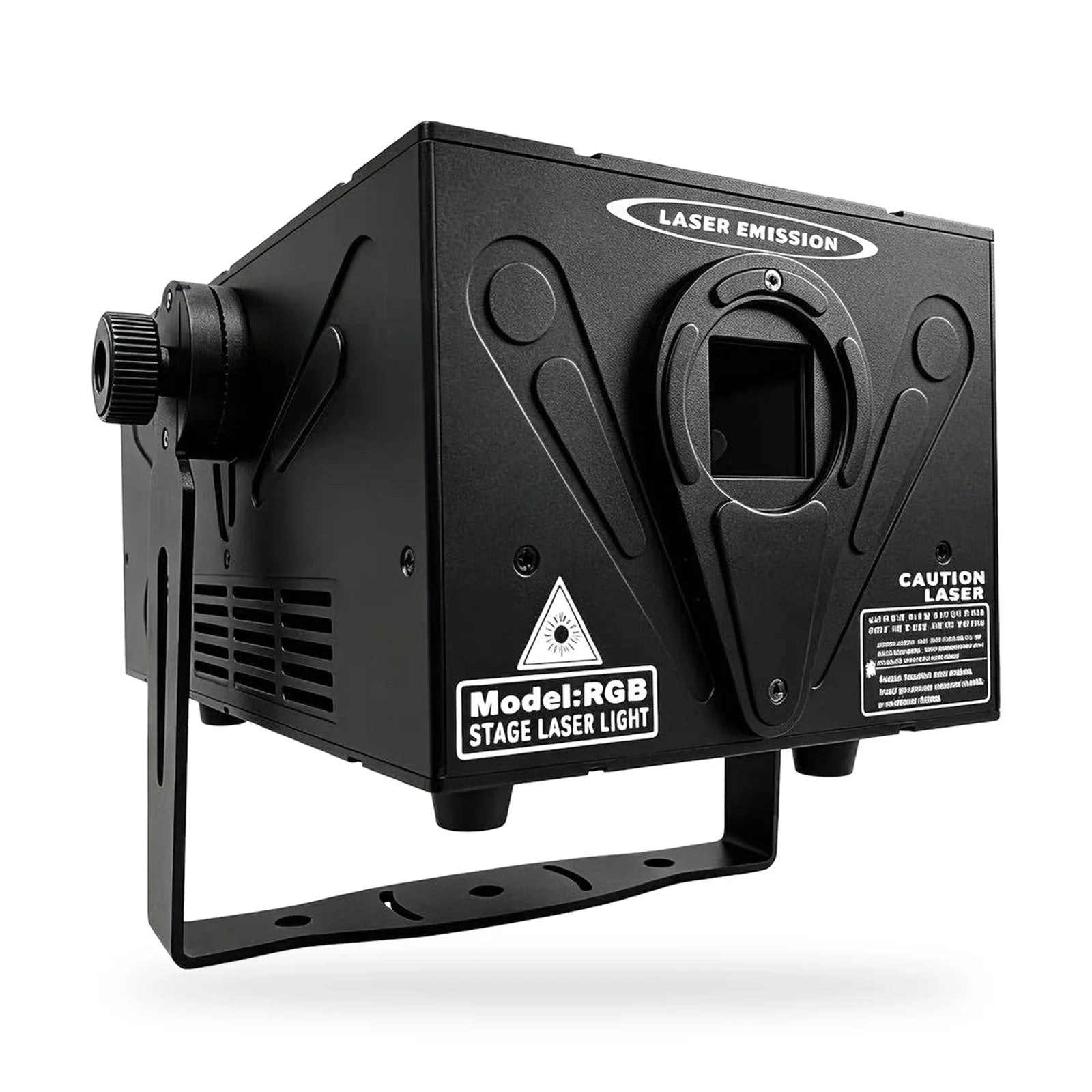

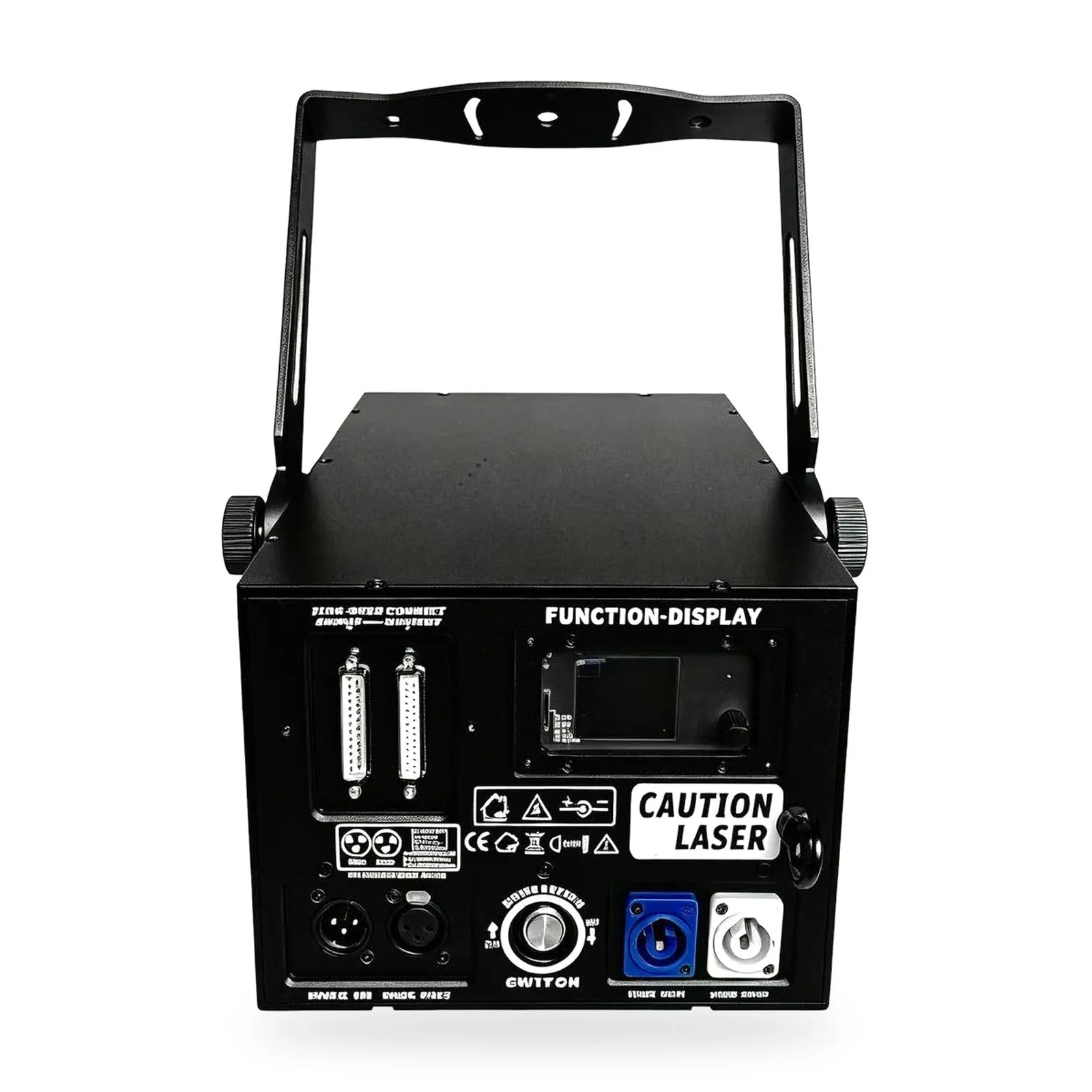

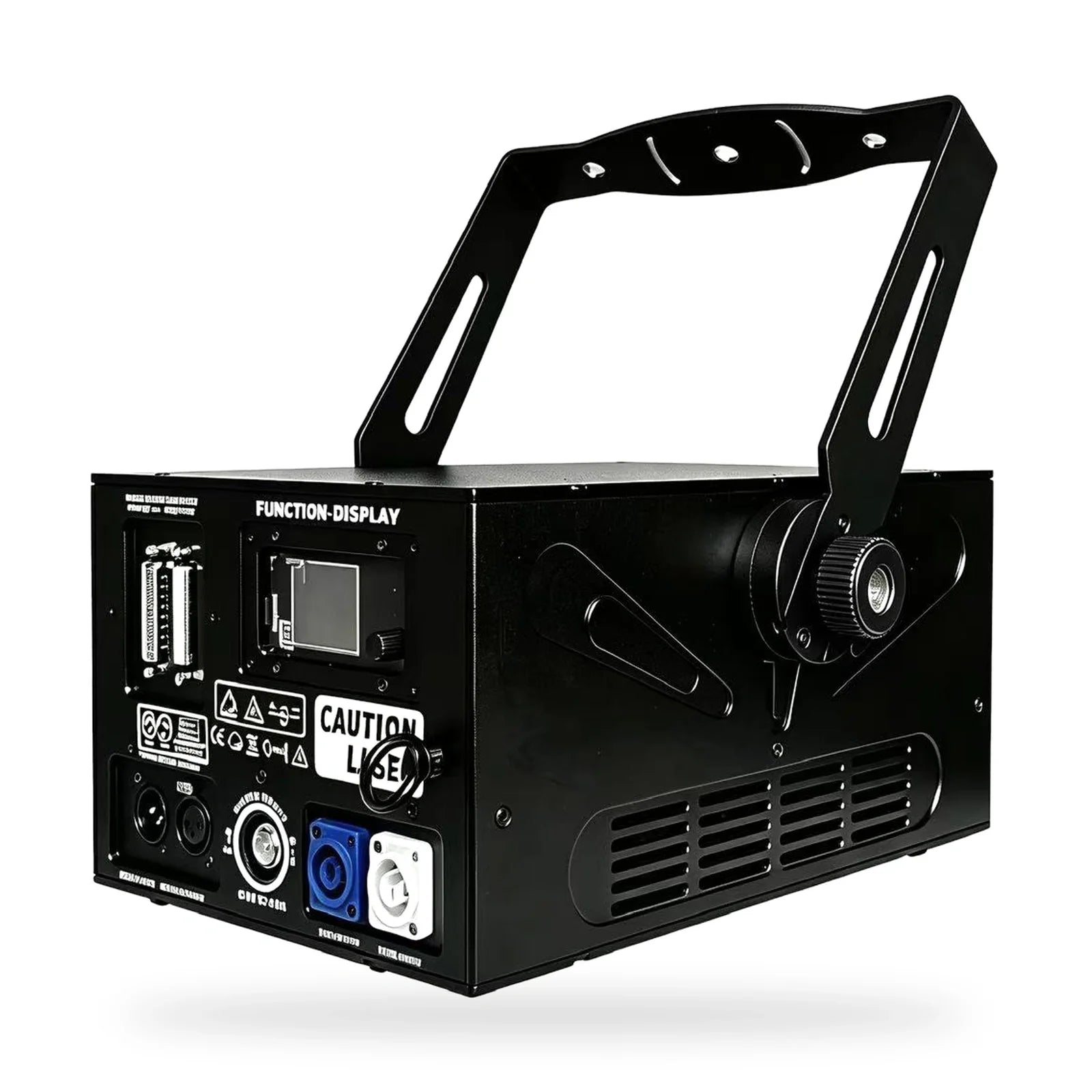

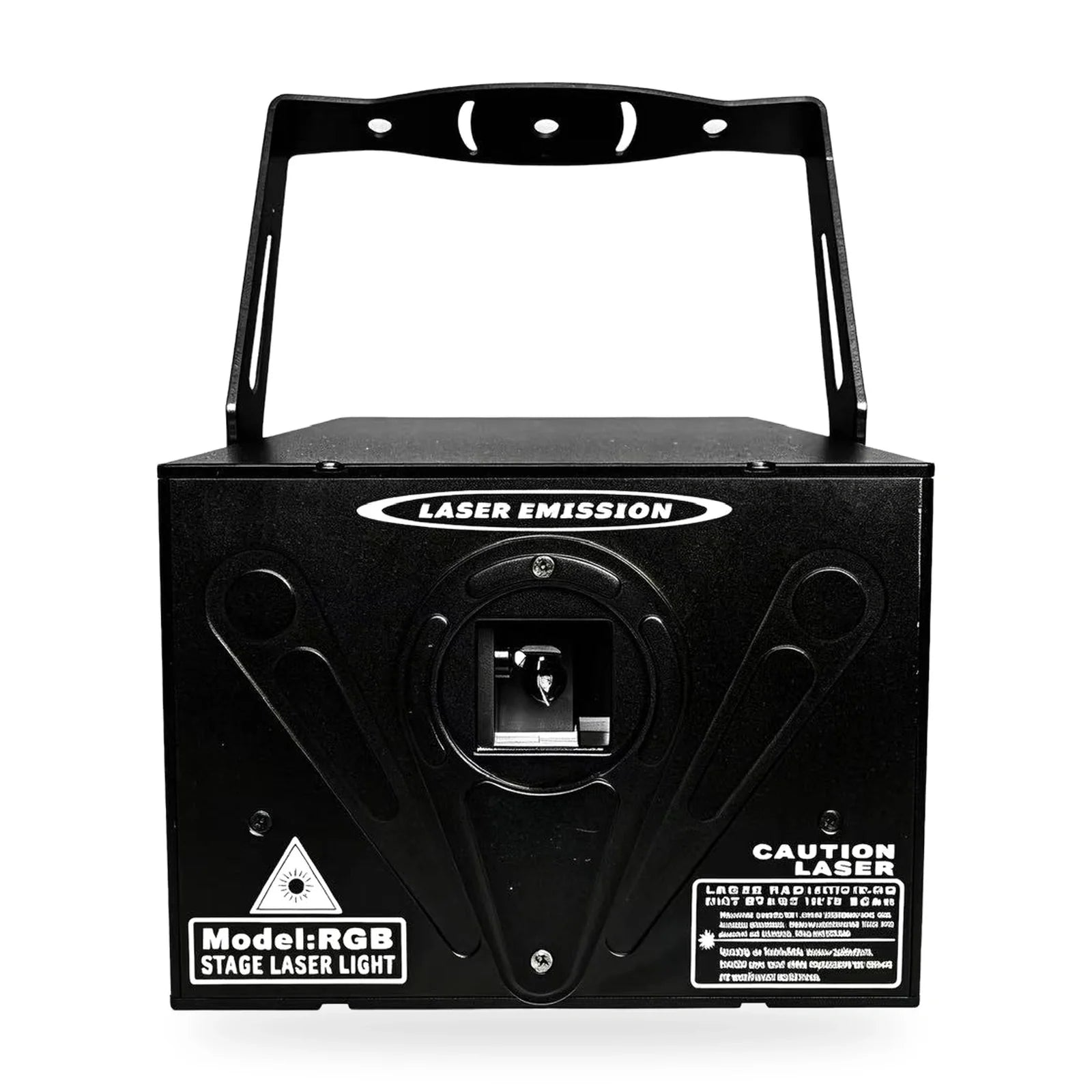

R1 10W RGB Animation Laser is a stage lighting catalogue item in the professional laser light category. Reference specifications list rated power: <= 180 W; light source: 10 W RGB. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteReview the exact laser configuration, control options and intended installation before selecting an effect. Optical output, laser classification and operating restrictions must be established for the supplied model and event location.
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Rated power | <= 180 W |
|---|---|
| Light source | 10 W RGB |
| DMX channels | 21CH |
| Product size | 215 x 330 x 160 mm; 340 mm overall height including handle |
| Product | R1-10W |
| Input voltage | AC 90-250 V, 50/60 Hz |
| Control modes | DMX512, auto, sound active, master/slave, ILDA and SD-card playback |
| Size / weight | 12 kg |
| Packing | 450 x 380 x 290 mm |
| Packing | 550 x 360 x 290 mm; 16.5 kg |
| RGB sources | R 638 nm / 3 W; G 520 nm / 3 W; B 445 nm / 4 W |
| Scanner | DT40K galvanometer |
| Scan angle | +/-30 degrees (60-degree total) |
Product documents are being prepared. Contact YL for the current information for R1 10W RGB Animation Laser.
Request product documentsContact YL to confirm the available accessories and the exact configuration for R1 10W RGB Animation Laser.
Ask about compatible accessoriesAsk for an available demonstration of R1 10W RGB Animation Laser and the configuration you need.
Request a product demonstration
