MOB0560 5 x 60W Double-Sided Blade Moving Head

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Movement

540-degree pan / 270-degree tilt / 16-bit fine positioning

Product

MOB0560 5 x 60W Double-Sided Blade Moving Head

Strobe

0.3-25 flashes/second; synchronized, asynchronous and random modes

Dimming

0-100% linear dimming

Environment

IP20 base fixture; optional rain-cover claim up to IP44

Light source

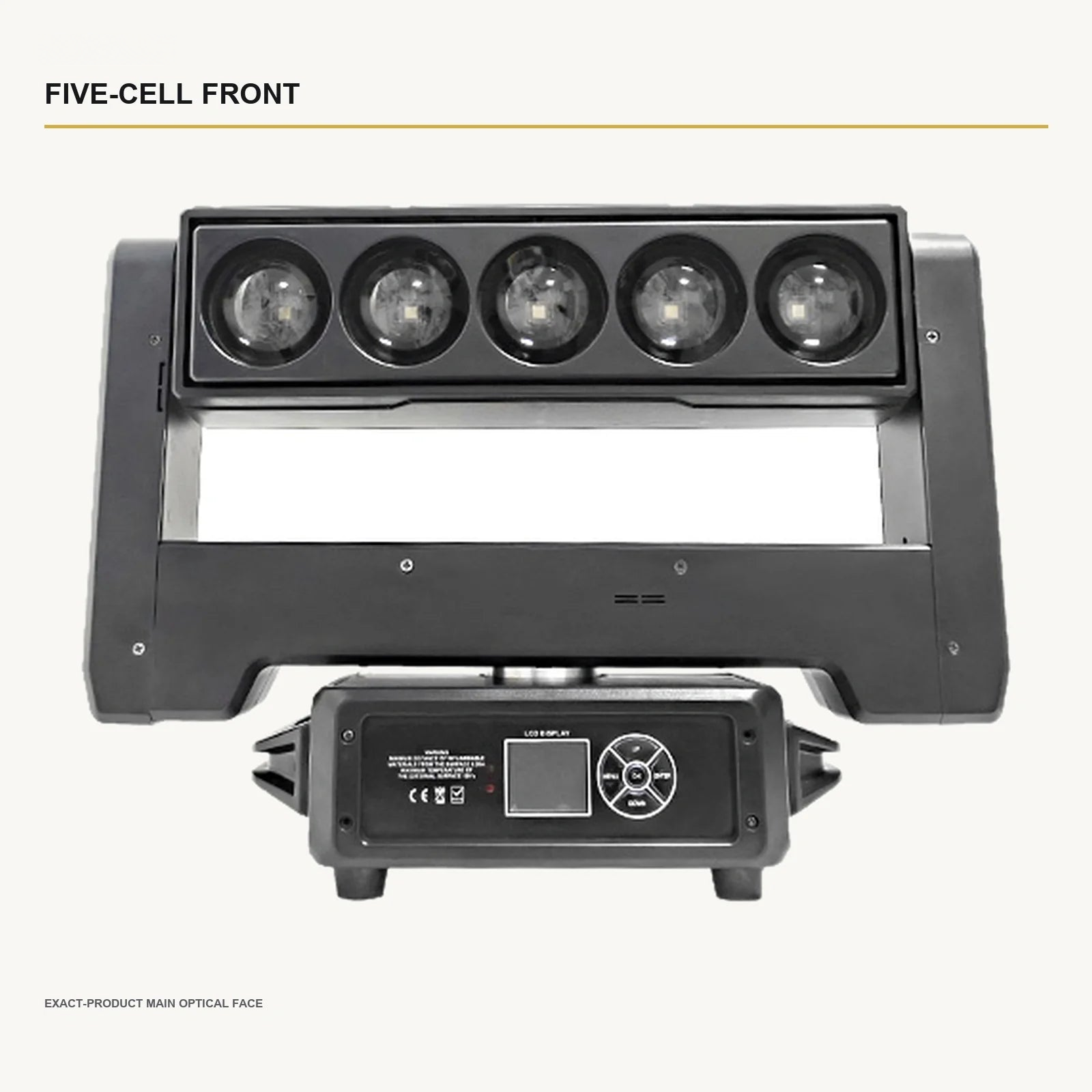

5 x 60W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note

Color system

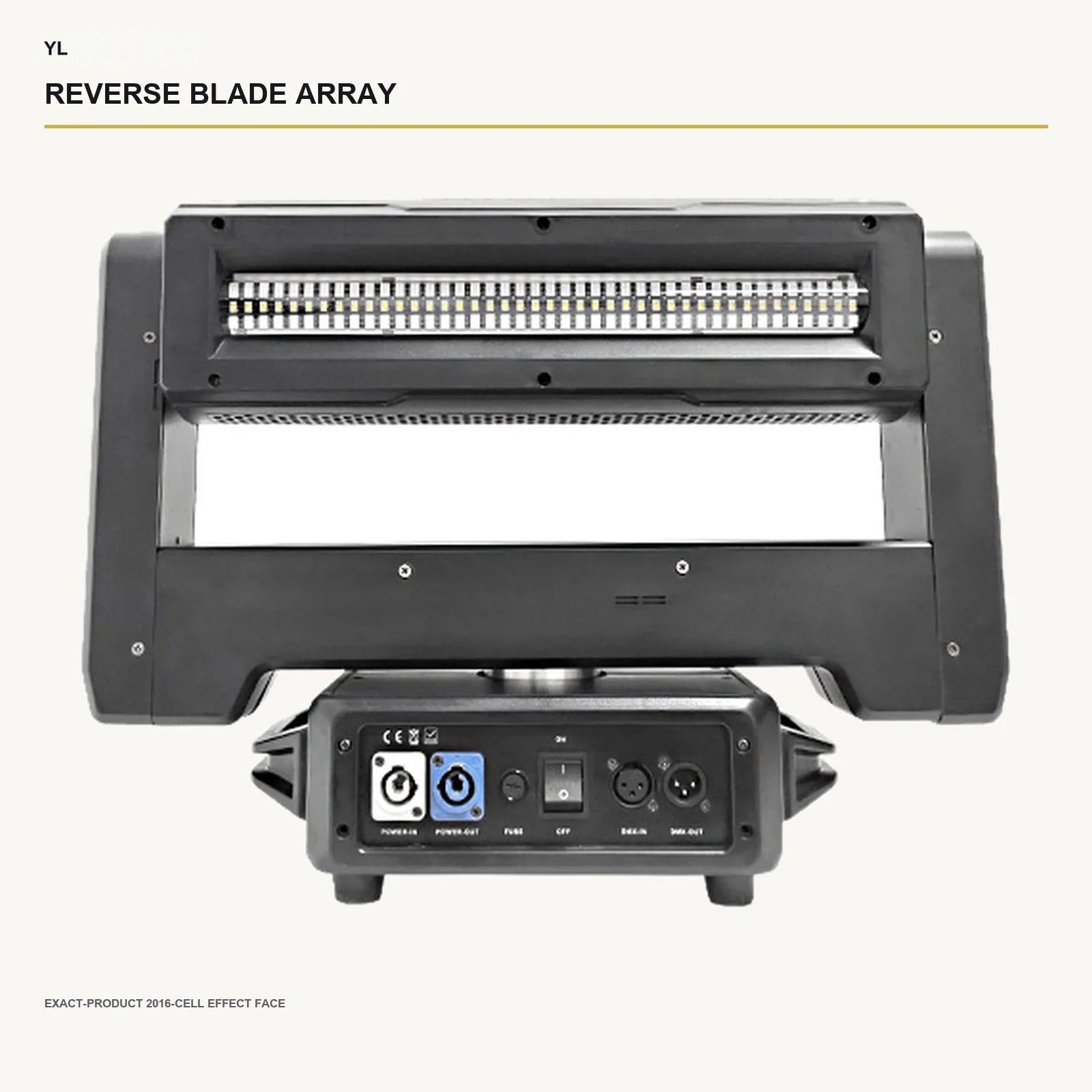

RGBW mixing, CTO control, blade/background colors and scenes

DMX channels

24CH fixture-library verified; 29CH and 105CH manual-documented

Input voltage

AC100-240V, 50/60Hz

Control modes

DMX512 / RDM / standalone / master-slave

Size / weight

51 x 40 x 22 CM; 13.20 KG NET / 15.25 KG GROSS

Electrical protection

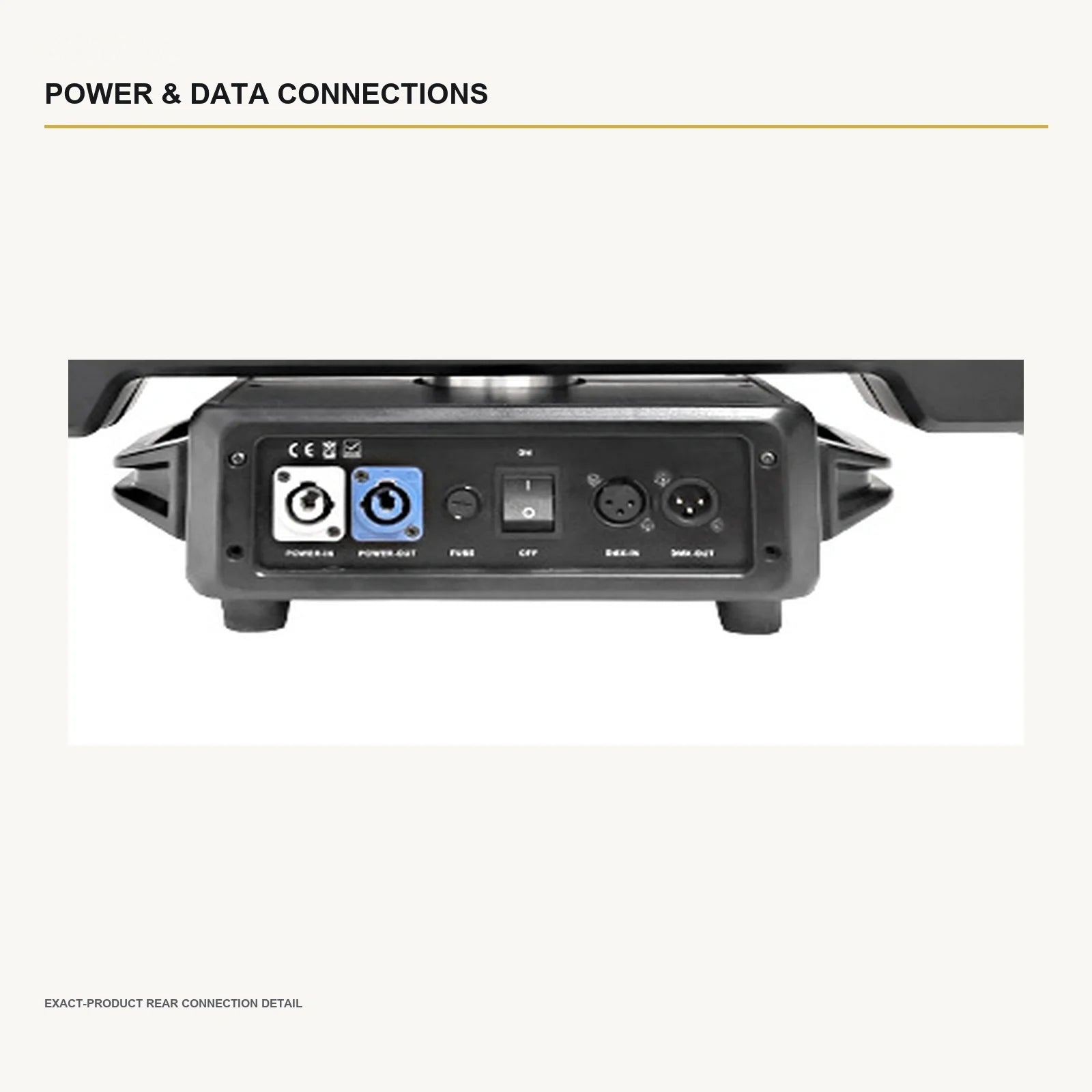

Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.

• Provide the subject dimensions, throw distance, fixture spacing and mounting height.
• Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
• For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
• Verify supply, connectors, weight and environmental requirements for the actual location.
