M1 80W RGB Moving Head Laser

M1 80W RGB Moving Head Laser is a stage lighting catalogue item in the professional laser light category. Reference specifications list rated power: <= 1200 W; light source: 80 W RGB. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Light source
80 W RGB
Control modes
DMX512 / auto / sound active / master/slave / ILDA / SD playback / Pangolin FB3/FB4 PC

Planning this product into your project

Review the exact laser configuration, control options and intended installation before selecting an effect. Optical output, laser classification and operating restrictions must be established for the supplied model and event location.

Product configuration

Movement
Pan 540 degrees / tilt 270 degrees
Product
M1-80W
Packing
110 x 76 x 52 cm, including 14 cm wheels
RGB sources
R 638 nm / 20 W; G 520 nm / 30 W; B 445 nm / 30 W
Scanner
DT40K galvanometer

Optical performance

Rated power
<= 1200 W
Light source
80 W RGB
Scan angle
+/-30 degrees (60-degree total)

Control and connections

DMX channels
26CH delivered library mode
Input voltage
AC 100-240 V, 50/60 Hz; actual unit nameplate governs installation
Control modes
DMX512 / auto / sound active / master/slave / ILDA / SD playback / Pangolin FB3/FB4 PC

Construction and dimensions

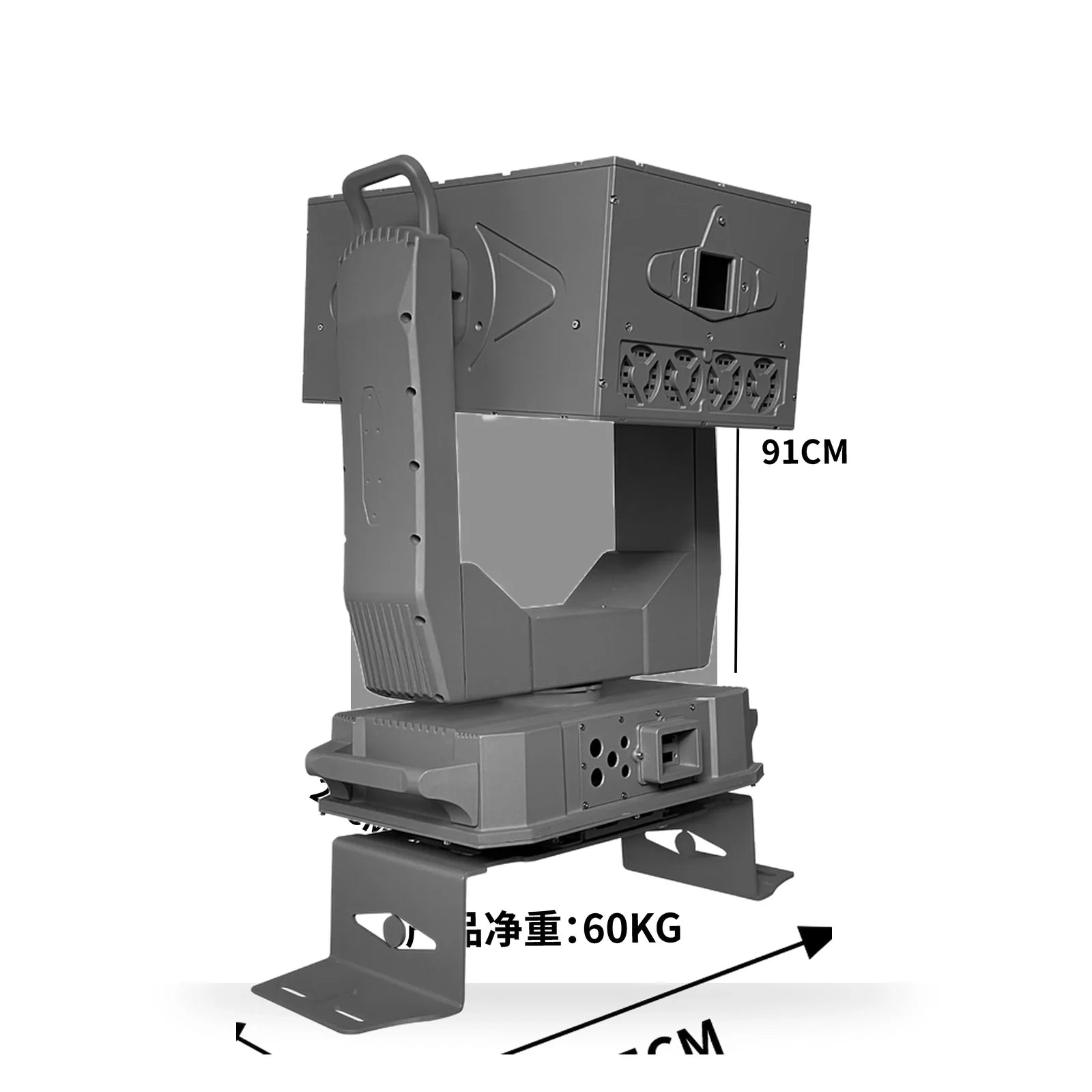

Product size: 550 x 280 x 910 mm

What to confirm for your quotation

  • Request the exact laser class, wavelength and output documentation for the quoted variant.
  • Confirm supported control, interlock, emergency-stop and scan-safety provisions.
  • Provide the installation positions and intended projection area for assessment by a competent laser professional.
  • Check applicable local event requirements and the operating instructions before use.

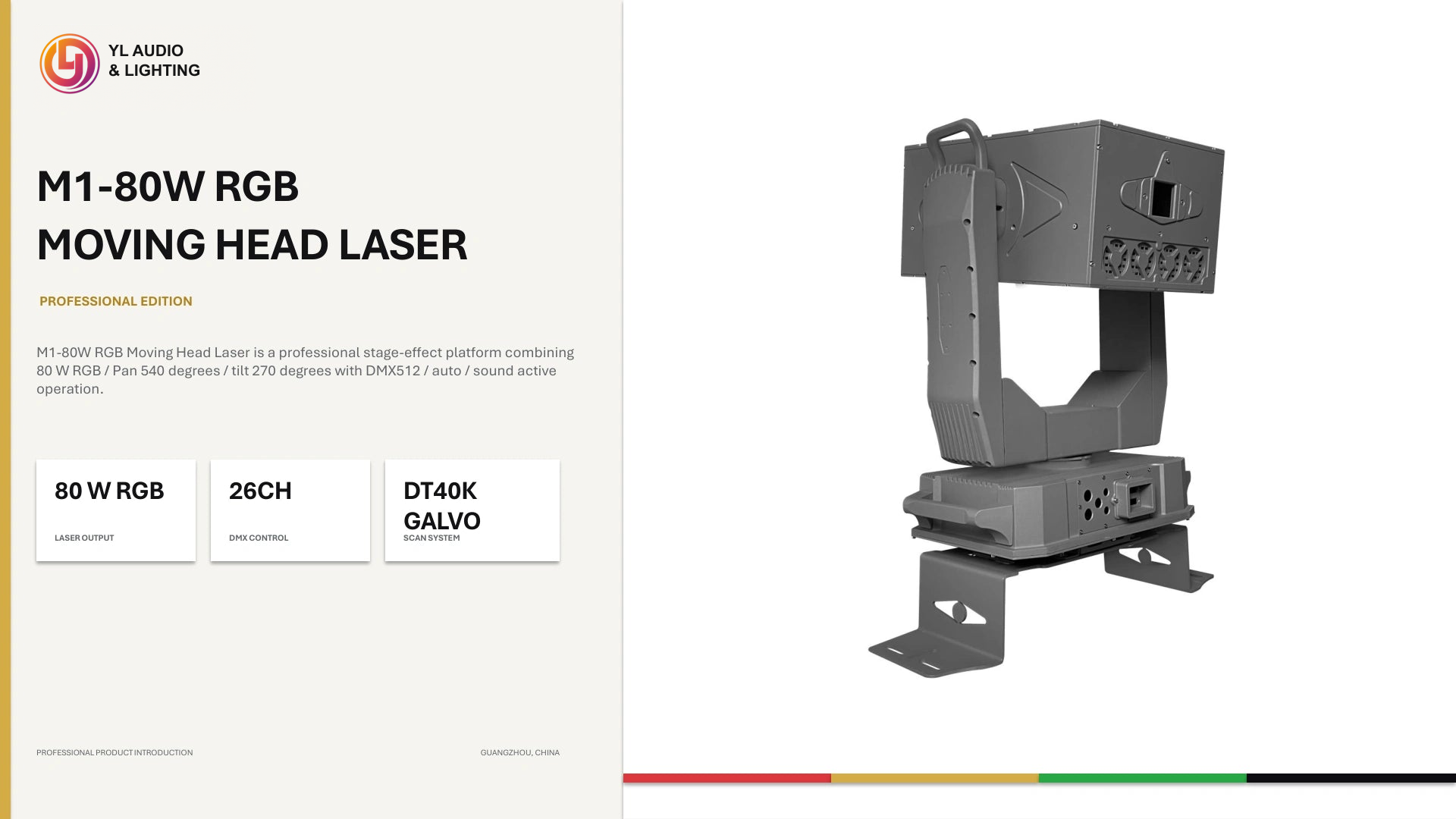

M1 80W RGB Moving Head Laser — product detail 1

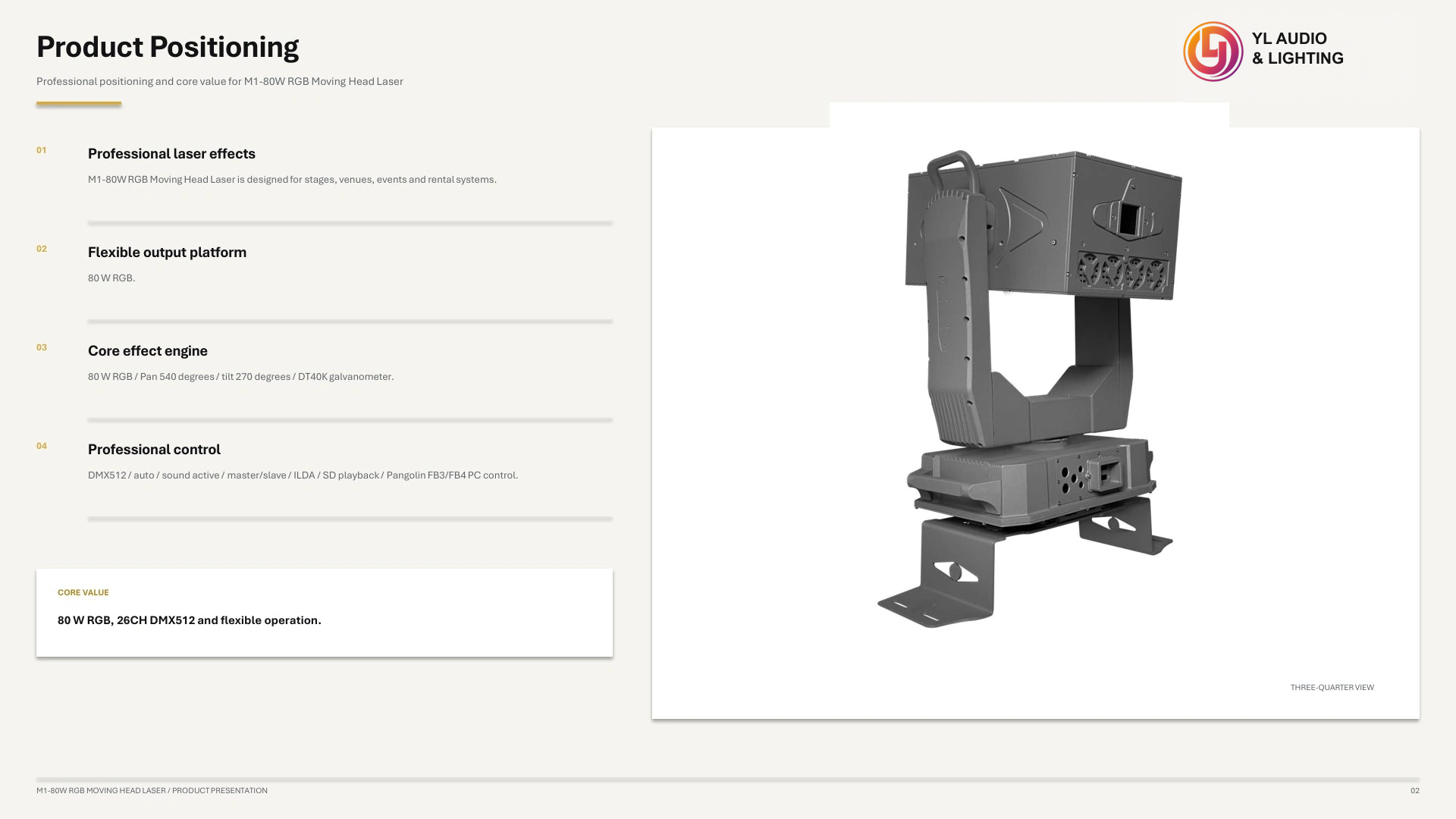

M1 80W RGB Moving Head Laser — product detail 2

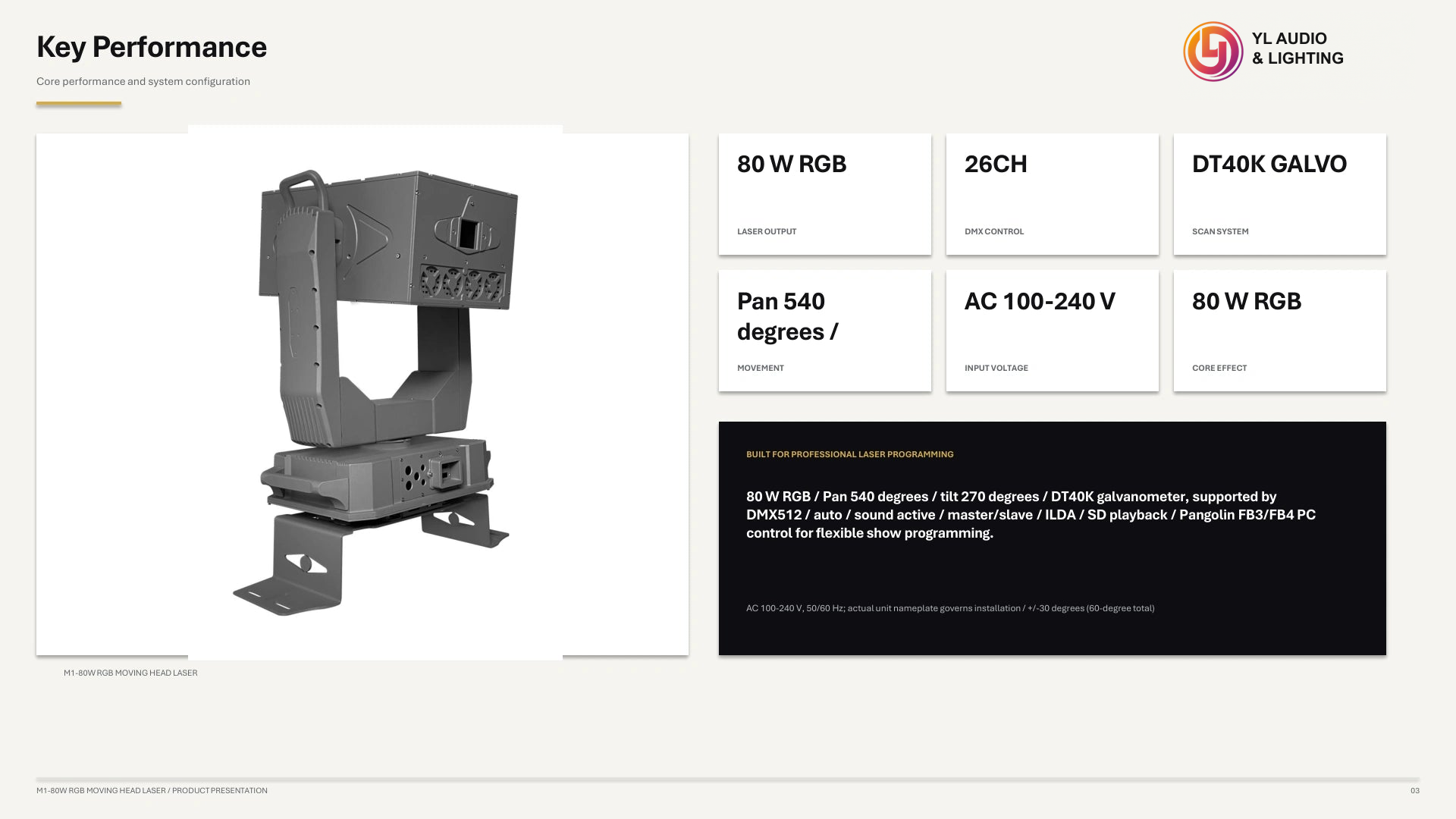

M1 80W RGB Moving Head Laser — product detail 3

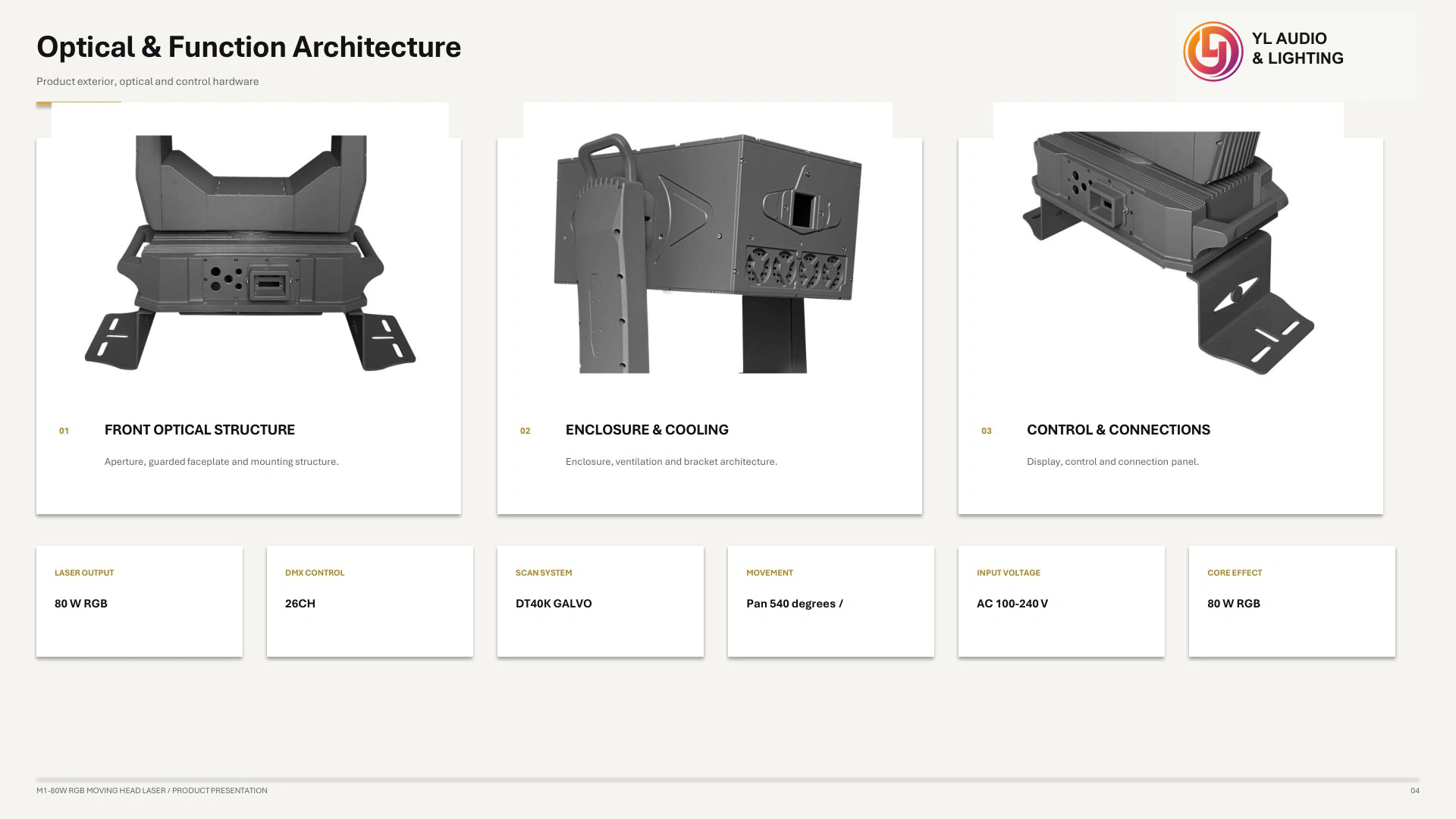

M1 80W RGB Moving Head Laser — product detail 4

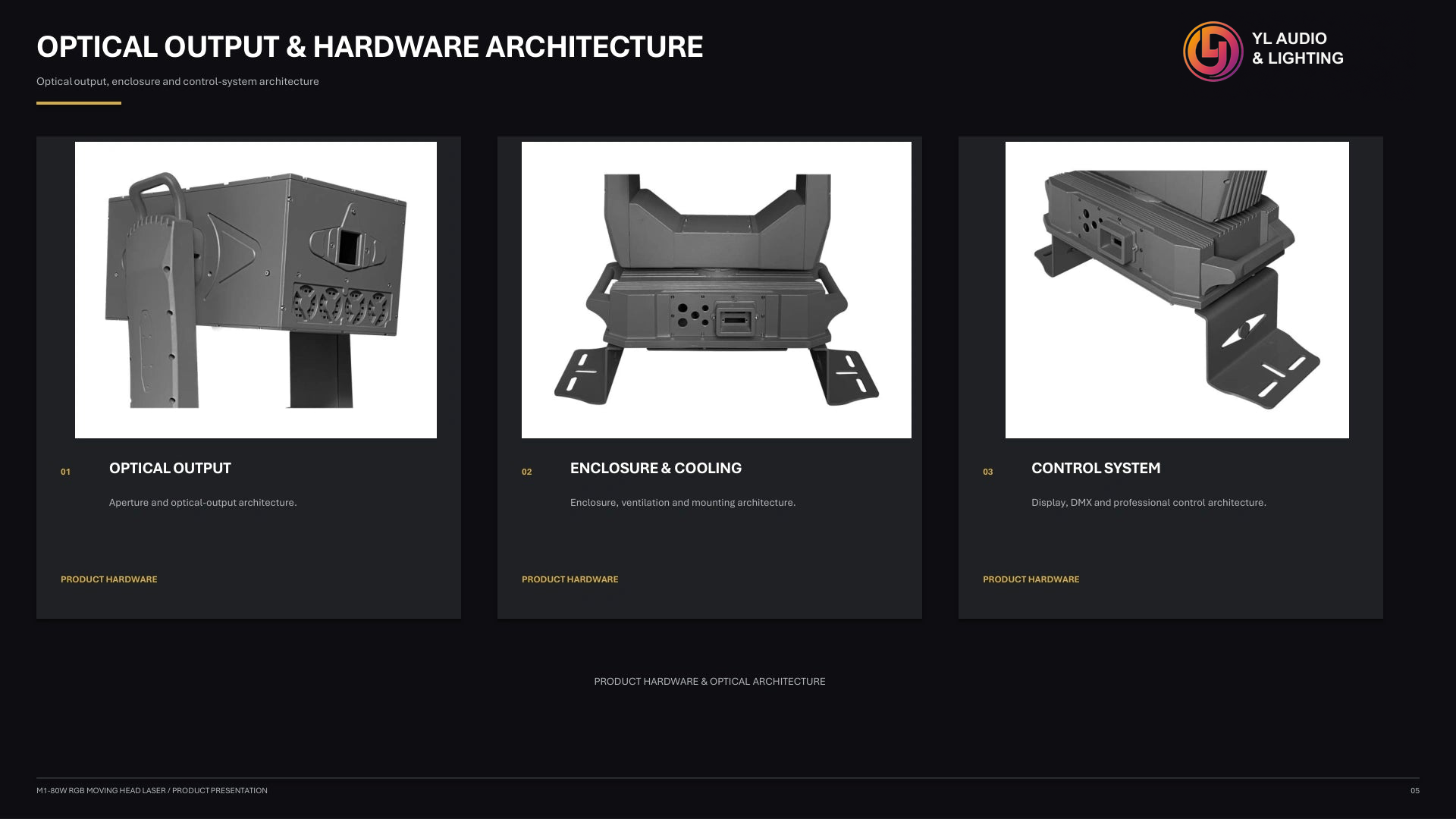

M1 80W RGB Moving Head Laser — product detail 5

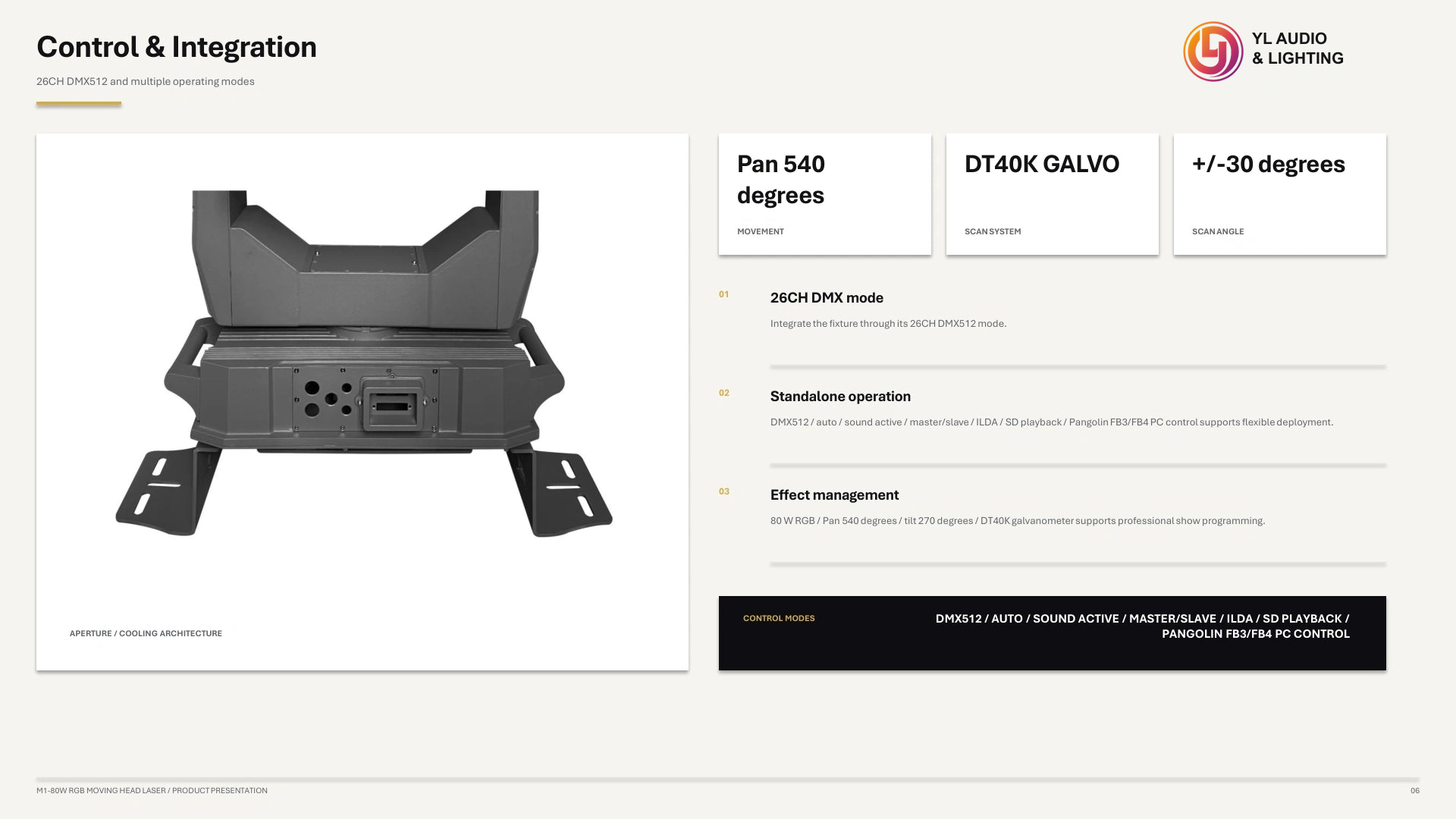

M1 80W RGB Moving Head Laser — product detail 6

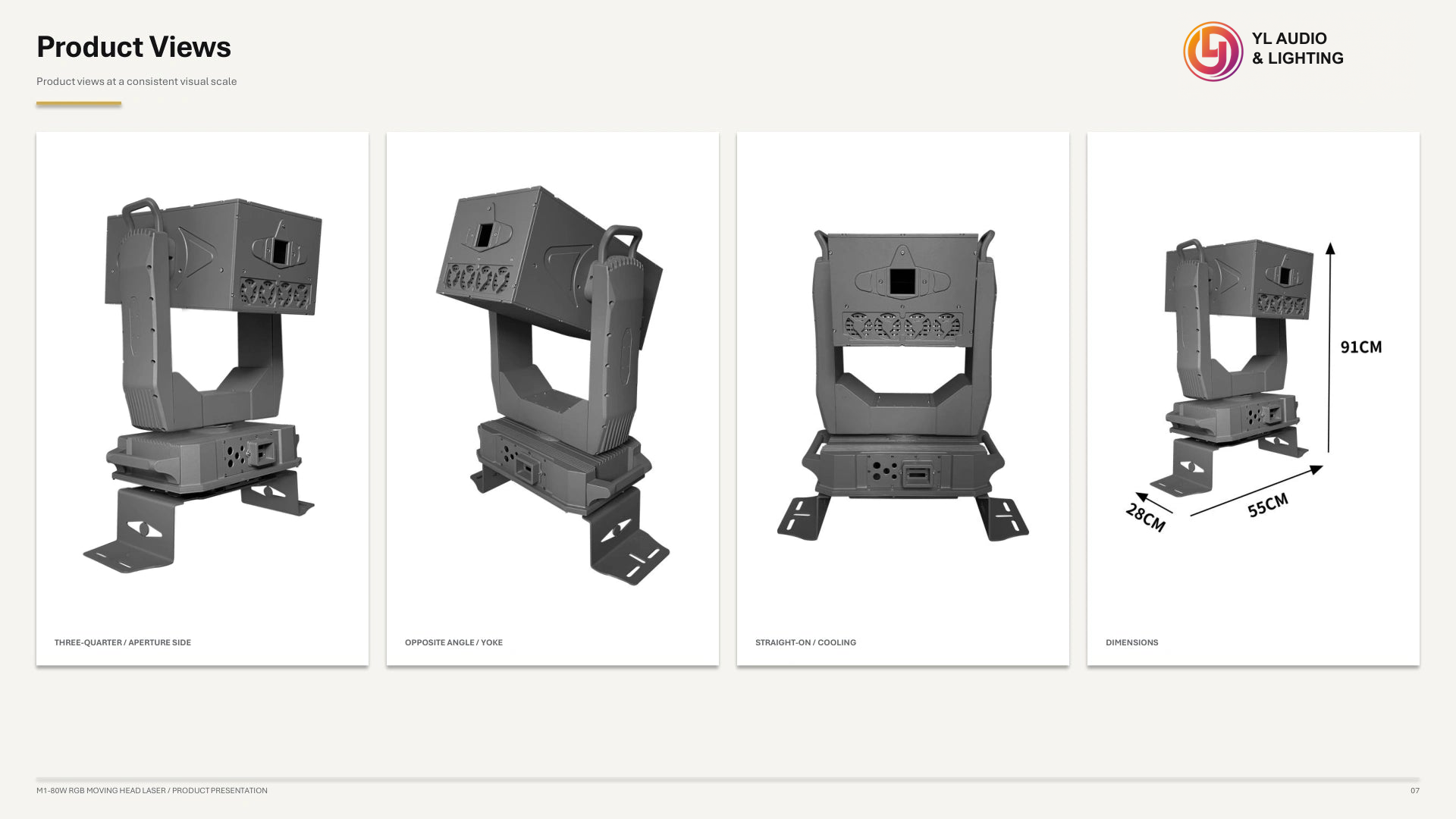

M1 80W RGB Moving Head Laser — product detail 7

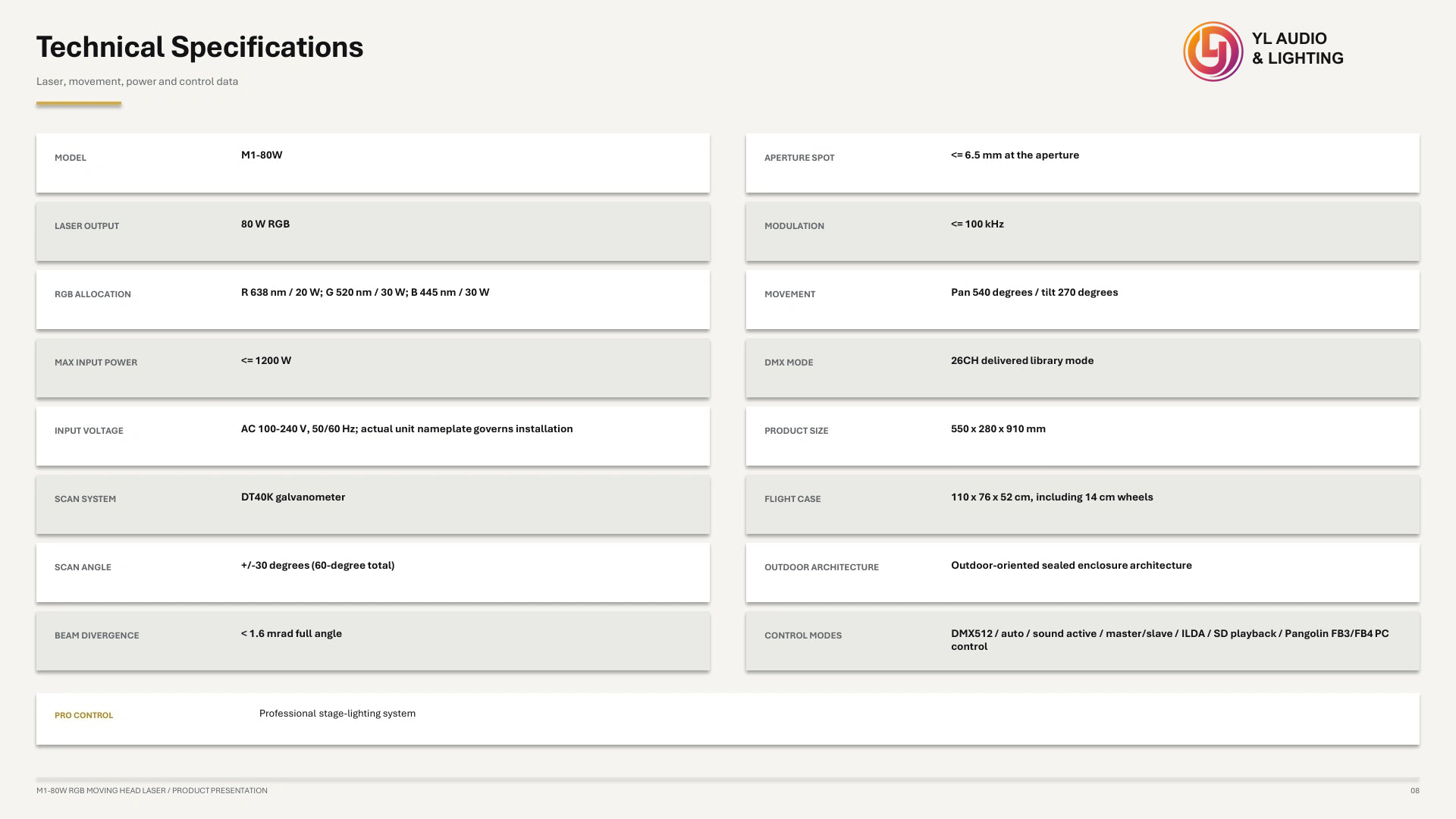

M1 80W RGB Moving Head Laser — product detail 8

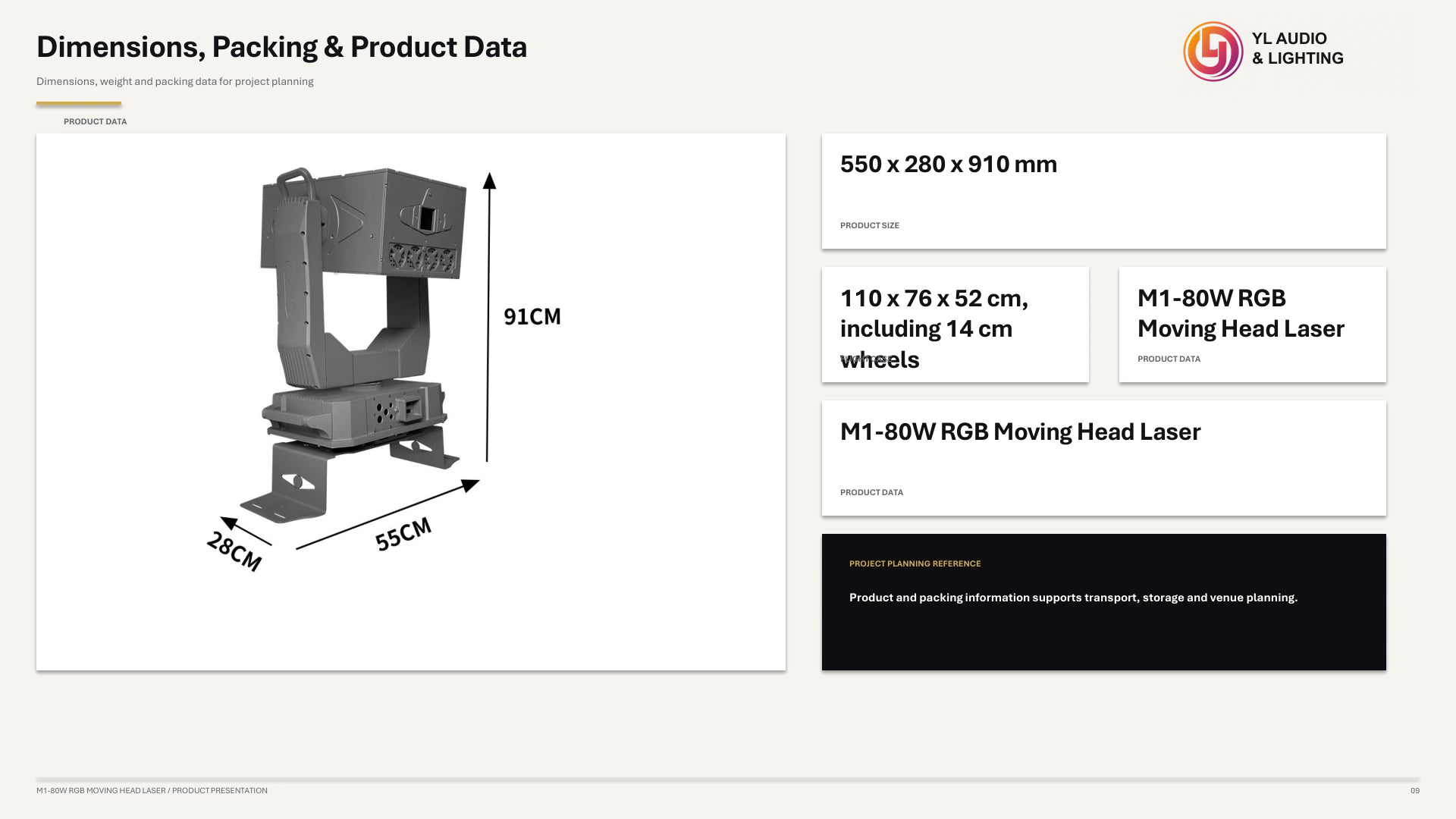

M1 80W RGB Moving Head Laser — product detail 9

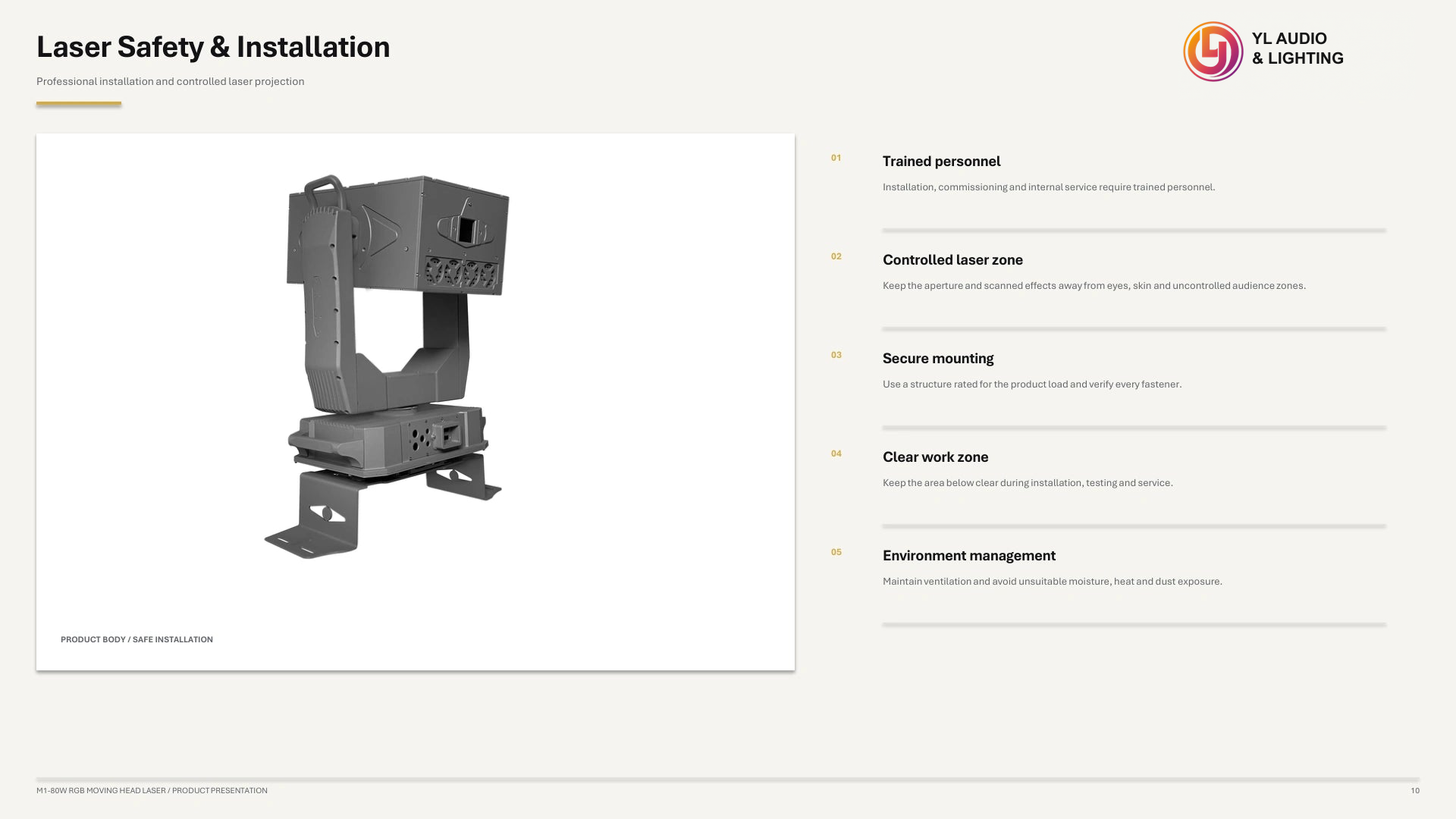

M1 80W RGB Moving Head Laser — product detail 10

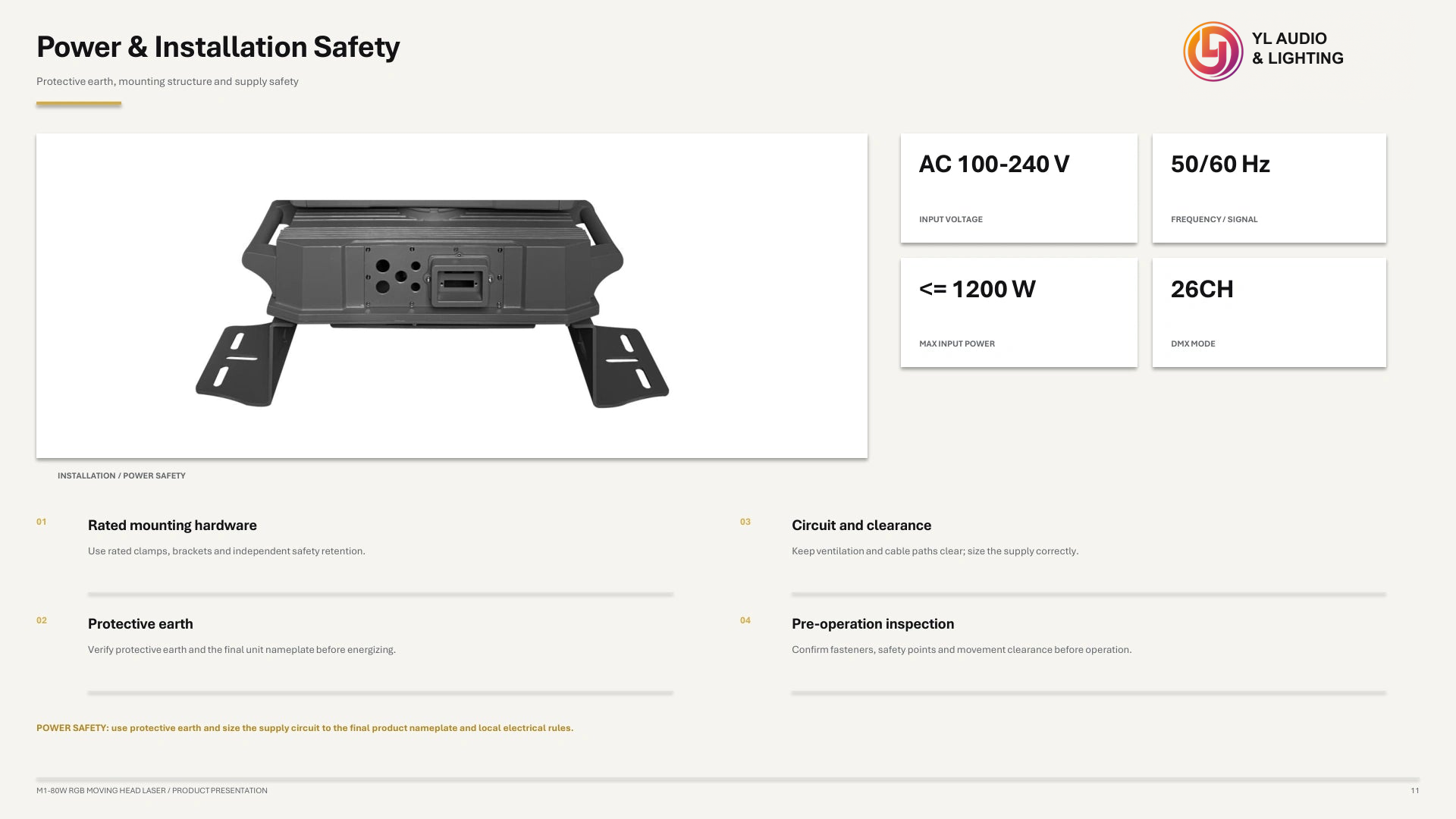

M1 80W RGB Moving Head Laser — product detail 11

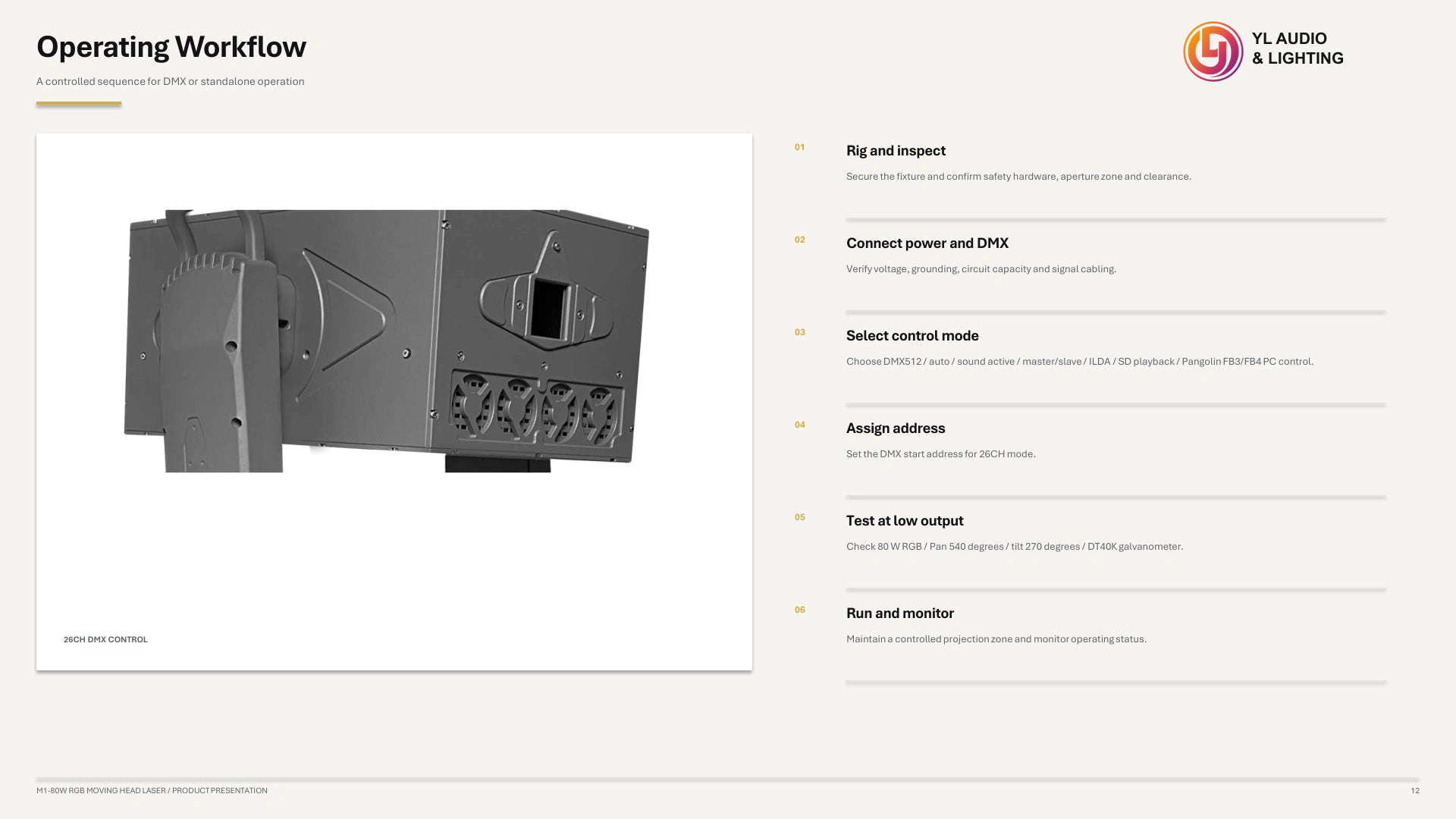

M1 80W RGB Moving Head Laser — product detail 12

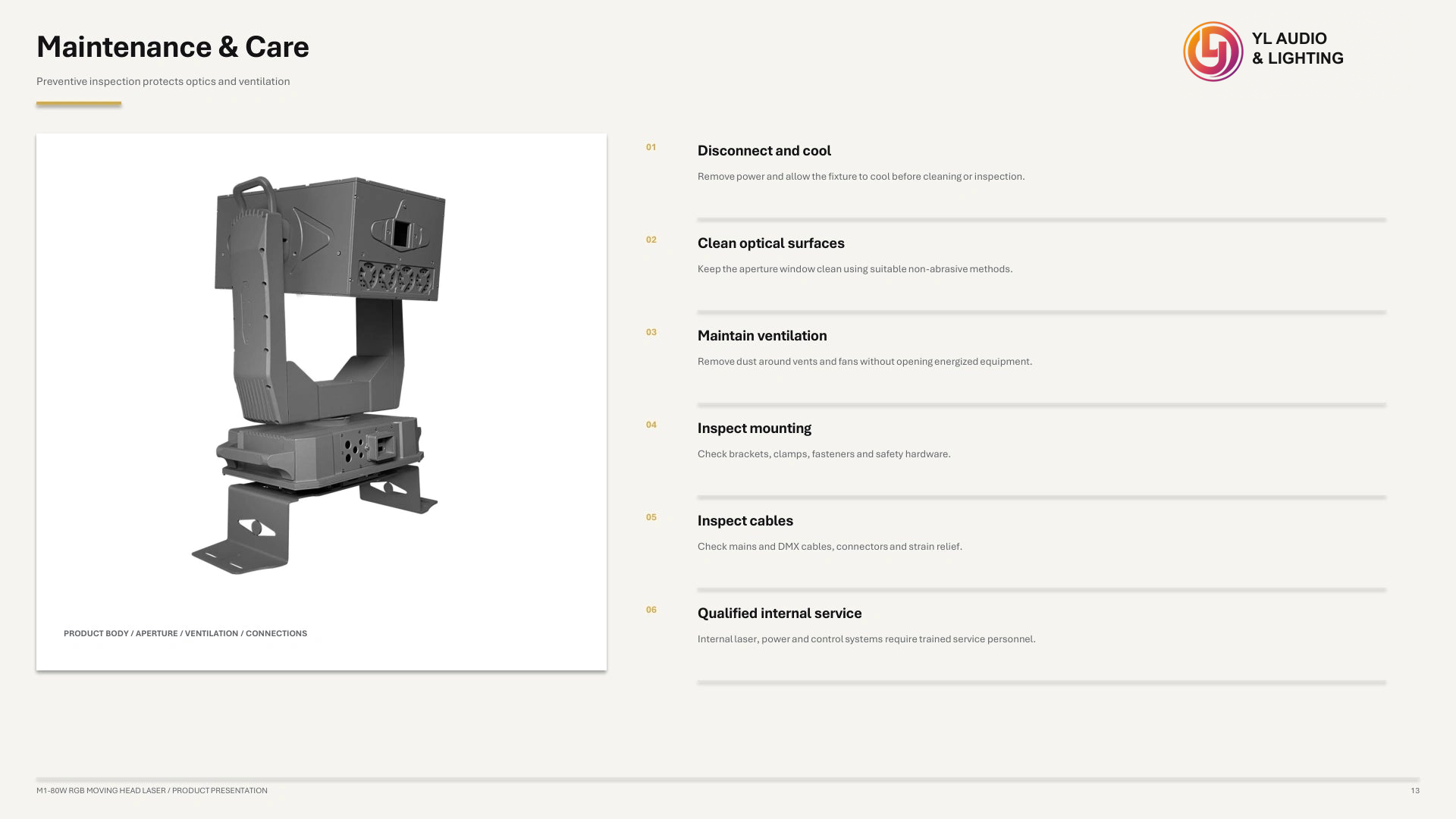

M1 80W RGB Moving Head Laser — product detail 13

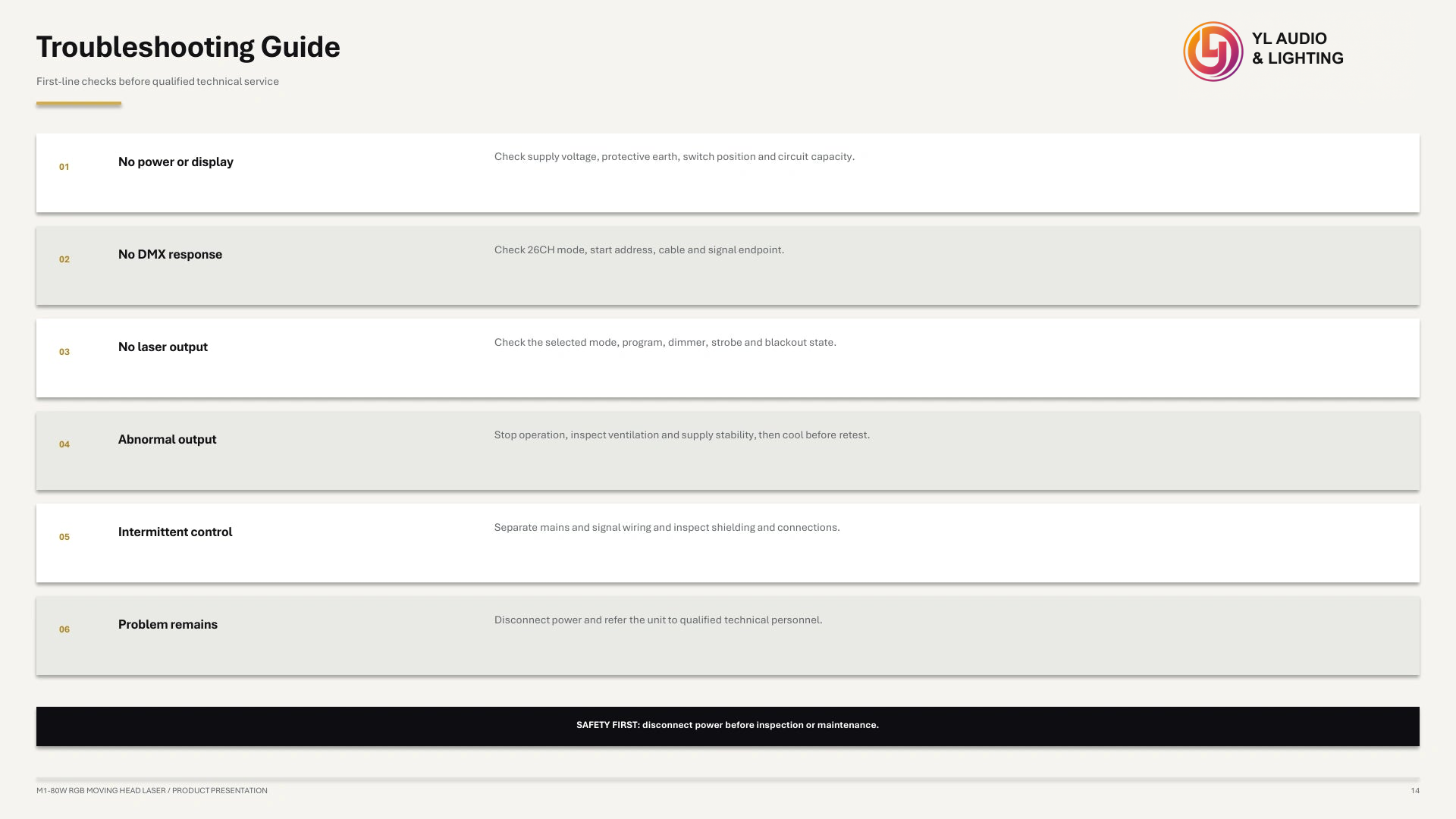

M1 80W RGB Moving Head Laser — product detail 14
M1 80W RGB Moving Head Laser — product detail 15

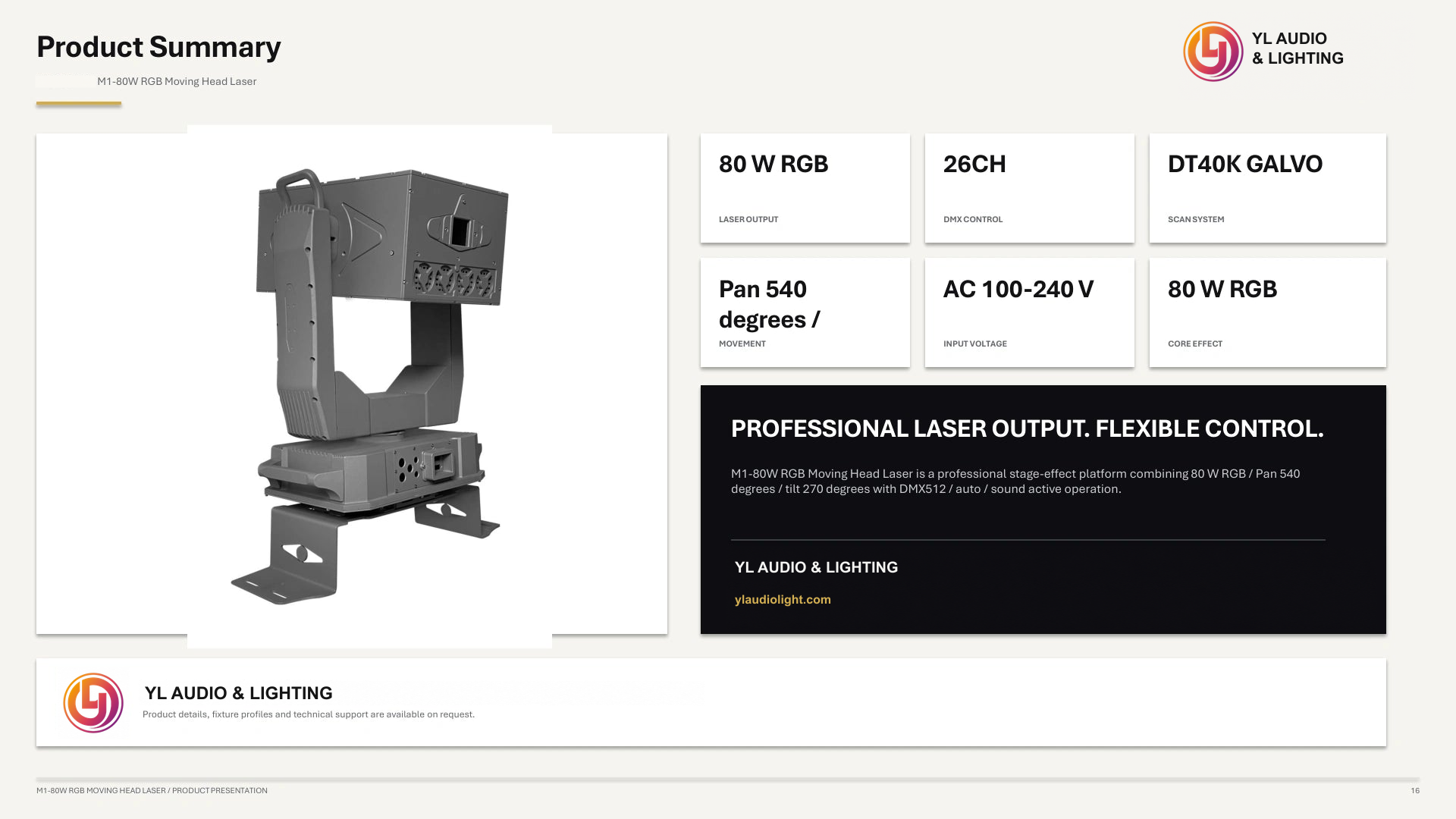

M1 80W RGB Moving Head Laser — product detail 16

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

M1 80W RGB Moving Head Laser technical specifications
Rated power<= 1200 W
Light source80 W RGB
DMX channels26CH delivered library mode
MovementPan 540 degrees / tilt 270 degrees
ProductM1-80W
Input voltageAC 100-240 V, 50/60 Hz; actual unit nameplate governs installation
Control modesDMX512 / auto / sound active / master/slave / ILDA / SD playback / Pangolin FB3/FB4 PC
Product size550 x 280 x 910 mm
Packing110 x 76 x 52 cm, including 14 cm wheels
RGB sourcesR 638 nm / 20 W; G 520 nm / 30 W; B 445 nm / 30 W
ScannerDT40K galvanometer
Scan angle+/-30 degrees (60-degree total)

Downloads

M1 80W RGB Moving Head Laser product documents
TitleFile typeDownload
YL M1-80W Product DetailsEnglishPDF8.5 MB

System accessories

Contact YL to confirm the available accessories and the exact configuration for M1 80W RGB Moving Head Laser.

Ask about compatible accessories

Product videos

Ask for an available demonstration of M1 80W RGB Moving Head Laser and the configuration you need.

Request a product demonstration
