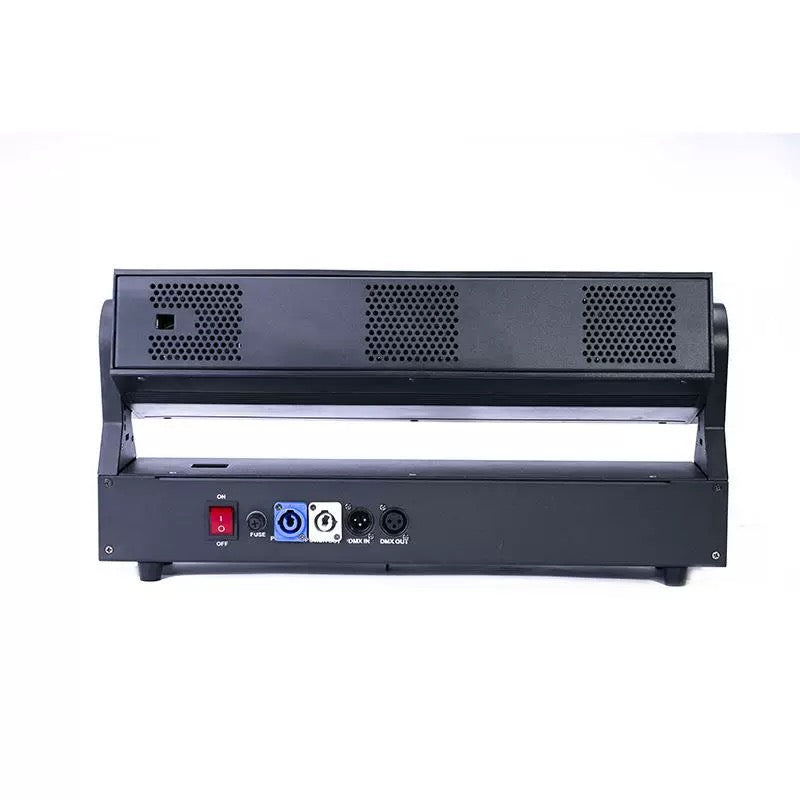

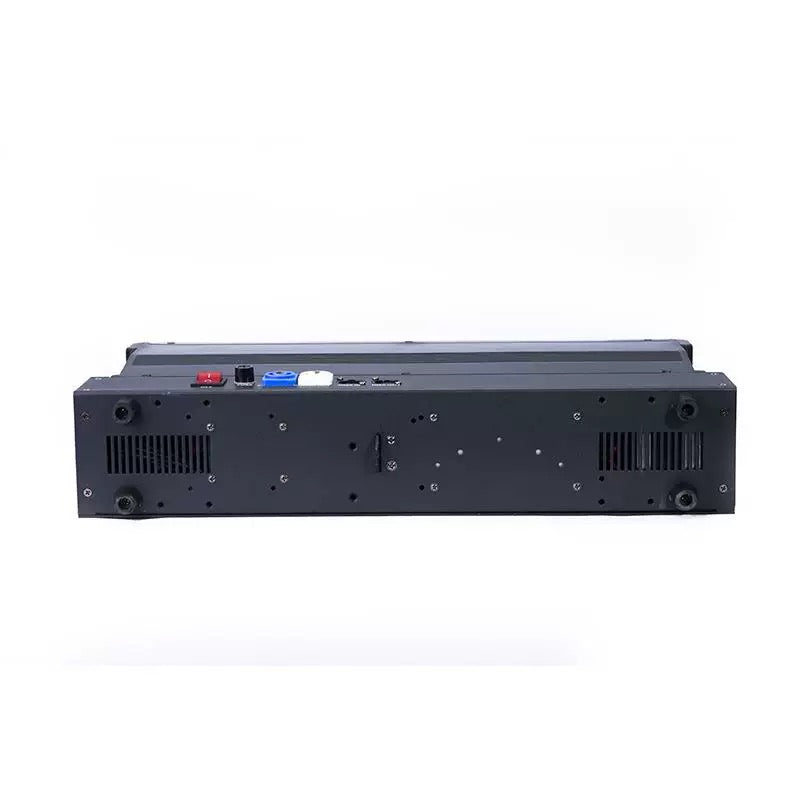

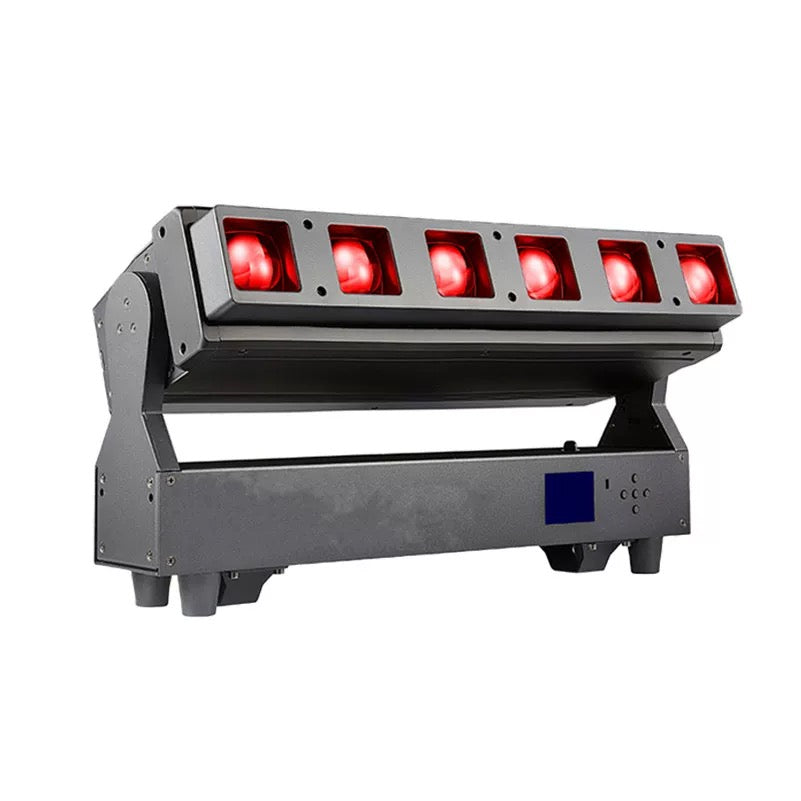

LED T6 Swinging Dot Matrix Light is a stage lighting catalogue item in the matrix / pixel bar / wall washer category. Reference specifications list power supply: AC90-AC240 50-60HZ; number of lamp beads: 6 40w high brightness four-in-one lamp beads. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteFor a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Power supply | AC90-AC240 50-60HZ |
|---|---|
| Number of lamp beads | 6 40w high brightness four-in-one lamp beads |
| Light source life | average 30,000 hours |
| Dimming | 0-100% linear dimming |
| Maximum power | 300W |
| Strobe | 1-25 times/second |
| Zoom angle | 5-45 degrees |
| Focusing system | segmentable and independent single-point single-control control |
| Y-axis angle | 220 degrees |
| Control signal | DMX512, master-slave, voice control or self-propelled program |
| Control channel | 18/32 two DMX channel mode |
| Product size | 51*32*10CM |
| Packing size | 58*37*18CM (one in one) |
| Net weight | 9KG |
| Gross weight | 11.4KG |
Product documents are being prepared. Contact YL for the current information for LED T6 Swinging Dot Matrix Light.
Request product documentsContact YL to confirm the available accessories and the exact configuration for LED T6 Swinging Dot Matrix Light.
Ask about compatible accessoriesAsk for an available demonstration of LED T6 Swinging Dot Matrix Light and the configuration you need.
Request a product demonstration
