YL LightStrobe Wash Effect Light

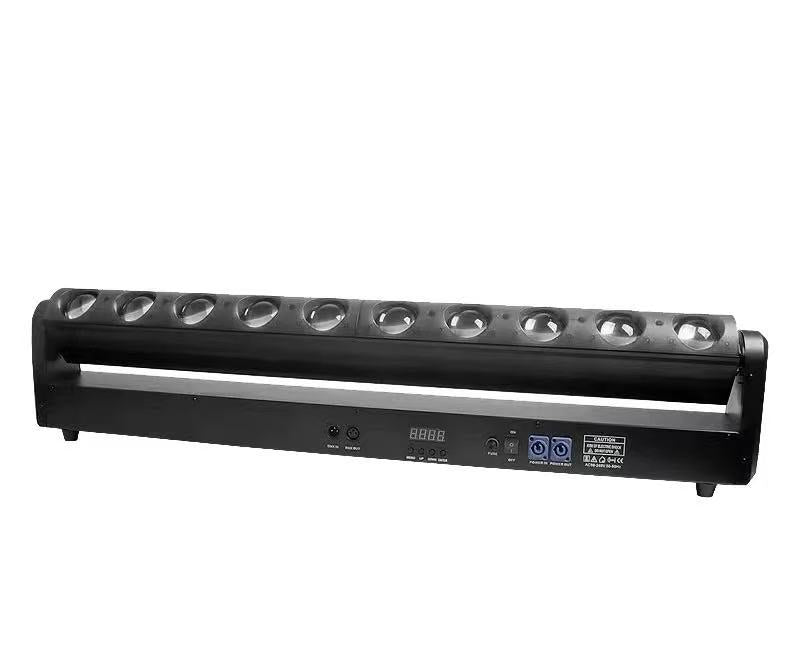

LED T10 Swing Dot Matrix Light

LED T10 Swing Dot Matrix Light is a stage lighting catalogue item in the matrix / pixel bar / wall washer category. Reference specifications list power supply: AC 90-240V, 50/60Hz; maximum power consumption: 500W. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Maximum power consumption
500W
Protection level
IP20
Gross weight
13.6kg

Planning this product into your project

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Product configuration

Lamp beads
10 40W four-in-one
Y-axis travel
0-230°
Heat dissipation
air-cooled heat dissipation system.
Shell
steel body + plastic

Optical performance

Power supply
AC 90-240V, 50/60Hz
Maximum power consumption
500W
Light source life
average 30,000 hours
Lighting angle
2°

Control and connections

Channel
7-11-44-47CH channel selection
Control protocol
DMX, RDM remote operation, voice control, self-propelled, master-slave mode

Construction and dimensions

Protection level
IP20
Gross weight
13.6kg
Net weight
12.8kg
Product size
110*10*22CM
Packing size
115*18*25CM (one in one) 117*38.5*31.5CM (two in one)

What to confirm for your quotation

  • Provide the subject dimensions, throw distance, fixture spacing and mounting height.
  • Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
  • For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
  • Verify supply, connectors, weight and environmental requirements for the actual location.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

LED T10 Swing Dot Matrix Light technical specifications
Power supplyAC 90-240V, 50/60Hz
Maximum power consumption500W
Lamp beads10 40W four-in-one
Light source lifeaverage 30,000 hours
Lighting angle2°
Y-axis travel0-230°
Channel7-11-44-47CH channel selection
Control protocolDMX, RDM remote operation, voice control, self-propelled, master-slave mode
Heat dissipationair-cooled heat dissipation system.
Shellsteel body + plastic
Protection levelIP20
Gross weight13.6kg
Net weight12.8kg
Product size110*10*22CM
Packing size115*18*25CM (one in one) 117*38.5*31.5CM (two in one)

Downloads

Product documents are being prepared. Contact YL for the current information for LED T10 Swing Dot Matrix Light.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for LED T10 Swing Dot Matrix Light.

Ask about compatible accessories

Product videos

Ask for an available demonstration of LED T10 Swing Dot Matrix Light and the configuration you need.

Request a product demonstration
