Planning this product into your project
Plan an effects machine around the specific effect, venue conditions and operating instructions. Confirm the exact consumables, control method and site requirements for the model being quoted.

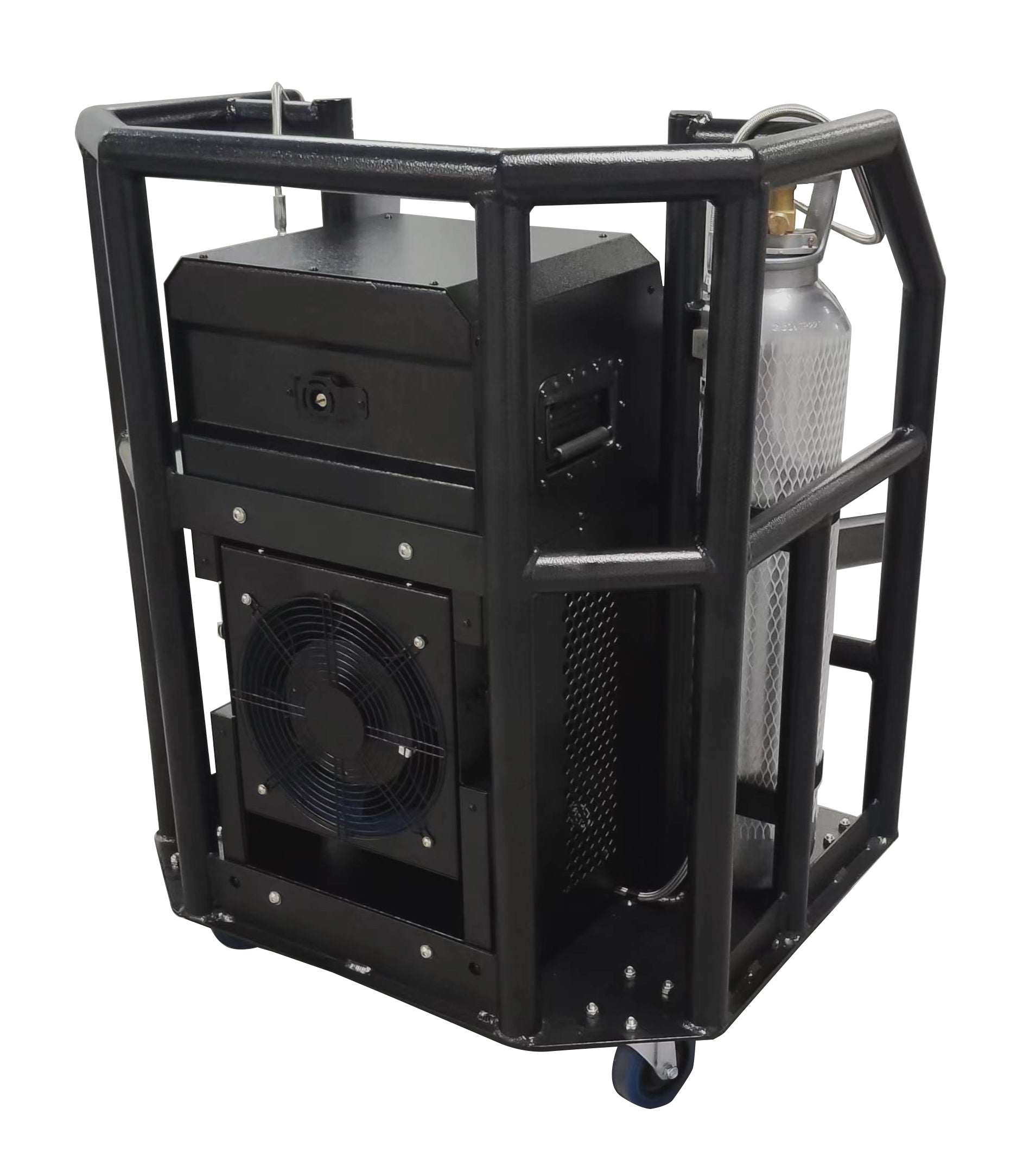

CF-1 CO2 Natural Fog Generator
CF-1 CO2 Natural Fog Generator is a stage lighting catalogue item in the special effects machines category. Reference specifications list operating voltage: AC 220V-240V 50Hz; fuse rating: 15A 250V. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a Quote- Smoke output
- About 1500m³/5min diffuse
- Net weight
- 100KG
- Gross weight
- 145KG
Product configuration
- Operating voltage
- AC 220V-240V 50Hz
- Fuse rating
- 15A 250V
- Initial preheating time
- About 12 min
- Oil consumption
- 1% output about 2ML/min /100% output about 25ML/min
- Gas consumption
- 1% output about 0.65KG/h /100% output about 1.3KG/h
- Installation direction
- Horizontal or hanging
Optical performance
Power: 2450W
Control and connections
- Number of channels
- 2
- Remote control function
- √
- Smoke output
- About 1500m³/5min diffuse
Construction and dimensions
- Net weight
- 100KG
- Gross weight
- 145KG
- Machine dimensions
- 760 × 605 × 964mm
- Airplane box dimensions
- 840 × 675 × 1190mm
What to confirm for your quotation
- Describe the effect required, indoor or outdoor conditions and available operating space.
- Request the operating manual, permitted consumables and model-specific clearance requirements.
- Confirm control, power, refill or service needs and the parts included in supply.
- Have the proposed use checked against venue rules and local event requirements.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Operating voltage | AC 220V-240V 50Hz |
|---|---|
| Fuse rating | 15A 250V |
| Power | 2450W |
| Initial preheating time | About 12 min |
| Number of channels | 2 |
| Remote control function | √ |
| Smoke output | About 1500m³/5min diffuse |
| Oil consumption | 1% output about 2ML/min /100% output about 25ML/min |
| Gas consumption | 1% output about 0.65KG/h /100% output about 1.3KG/h |
| Installation direction | Horizontal or hanging |
| Net weight | 100KG |
| Gross weight | 145KG |
| Machine dimensions | 760 × 605 × 964mm |
| Airplane box dimensions | 840 × 675 × 1190mm |
Downloads
Product documents are being prepared. Contact YL for the current information for CF-1 CO2 Natural Fog Generator.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for CF-1 CO2 Natural Fog Generator.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of CF-1 CO2 Natural Fog Generator and the configuration you need.
