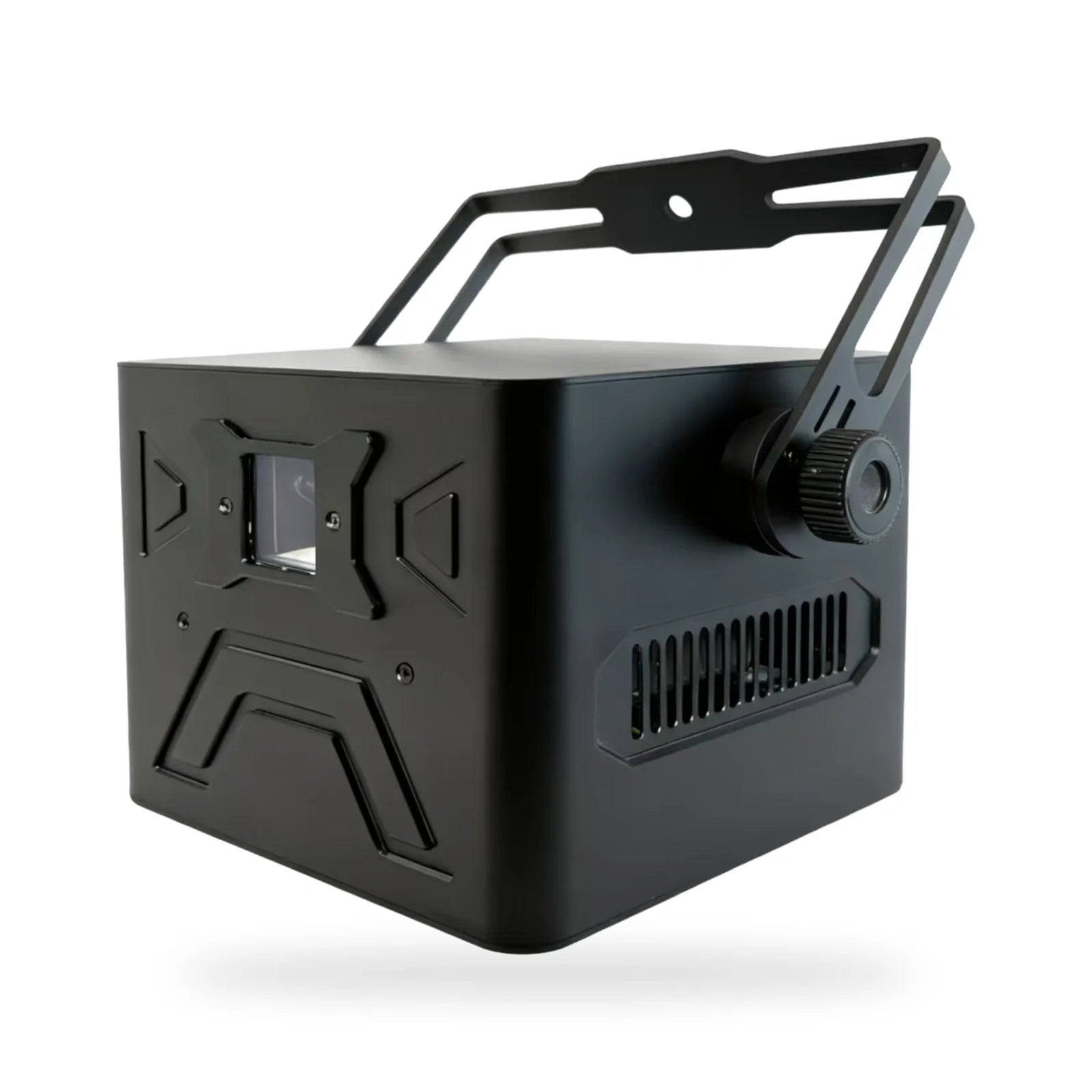

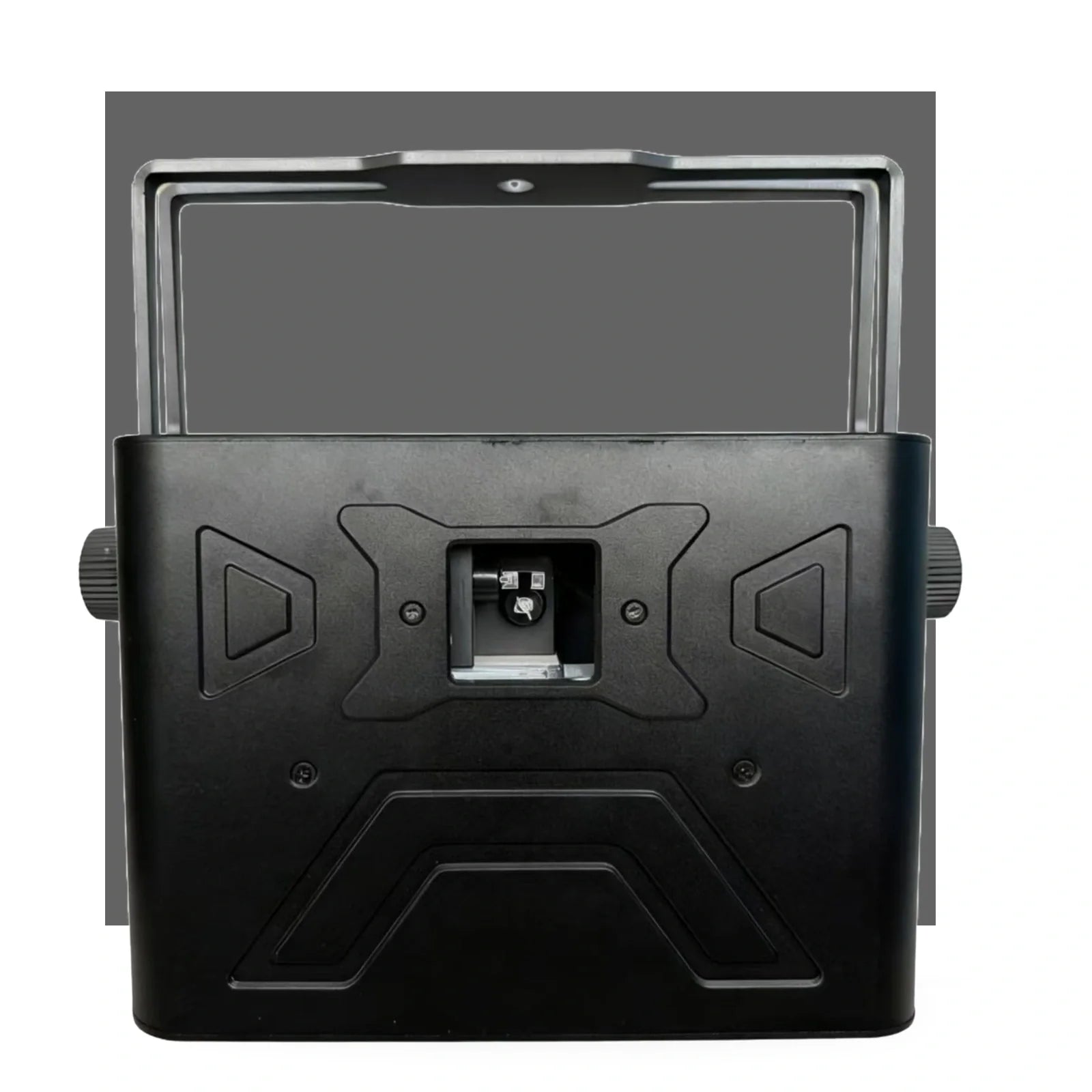

A2 10W RGB Laser is a stage lighting catalogue item in the professional laser light category. Reference specifications list rated power: <= 120 W; light source: 10 W RGB. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteReview the exact laser configuration, control options and intended installation before selecting an effect. Optical output, laser classification and operating restrictions must be established for the supplied model and event location.
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Rated power | <= 120 W |
|---|---|
| Light source | 10 W RGB |
| DMX channels | 21CH delivered library mode |
| Product size | 230 x 230 x 180 mm; 270 mm including handle |
| Product | A2-10W |
| Input voltage | AC 110-240 V, 50/60 Hz |

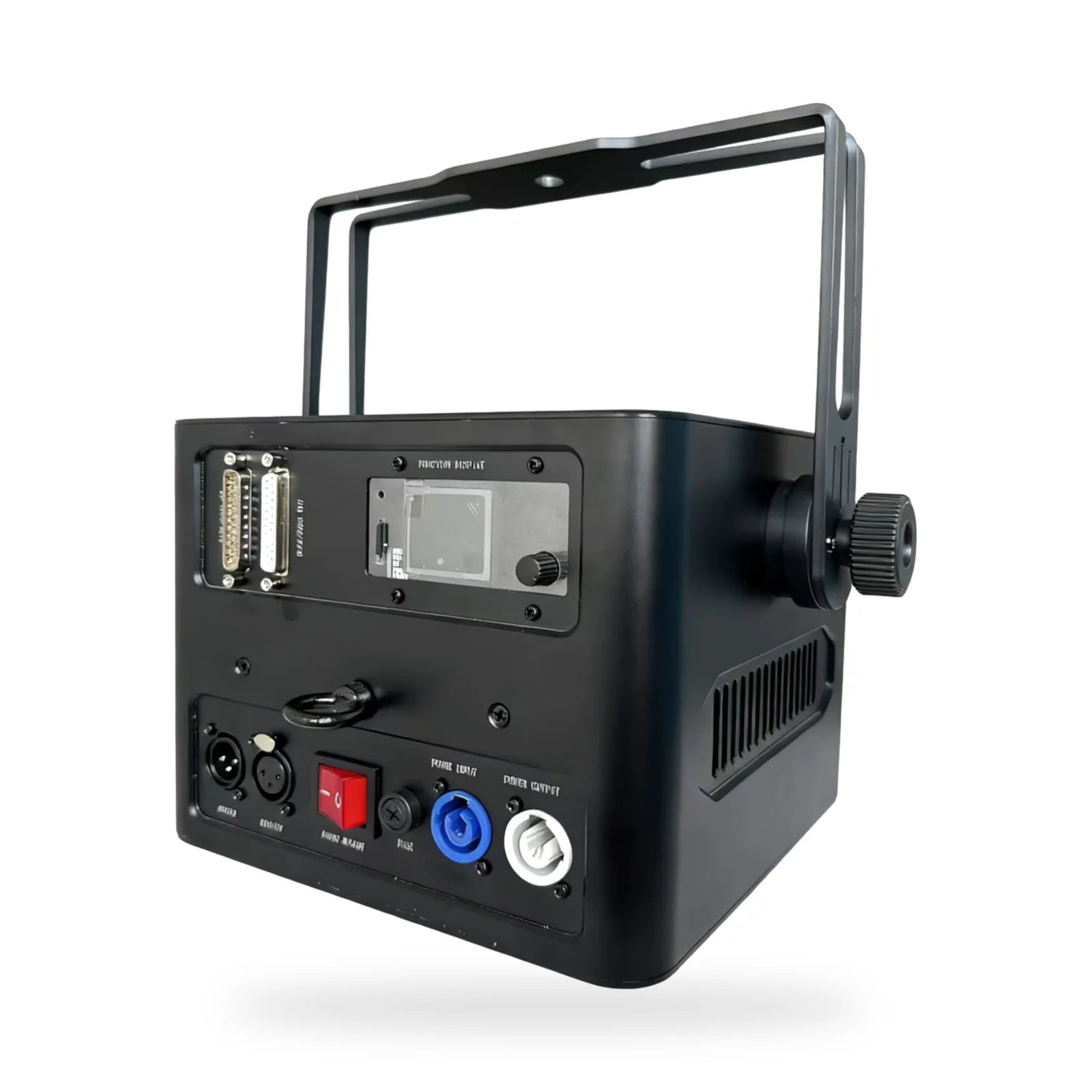

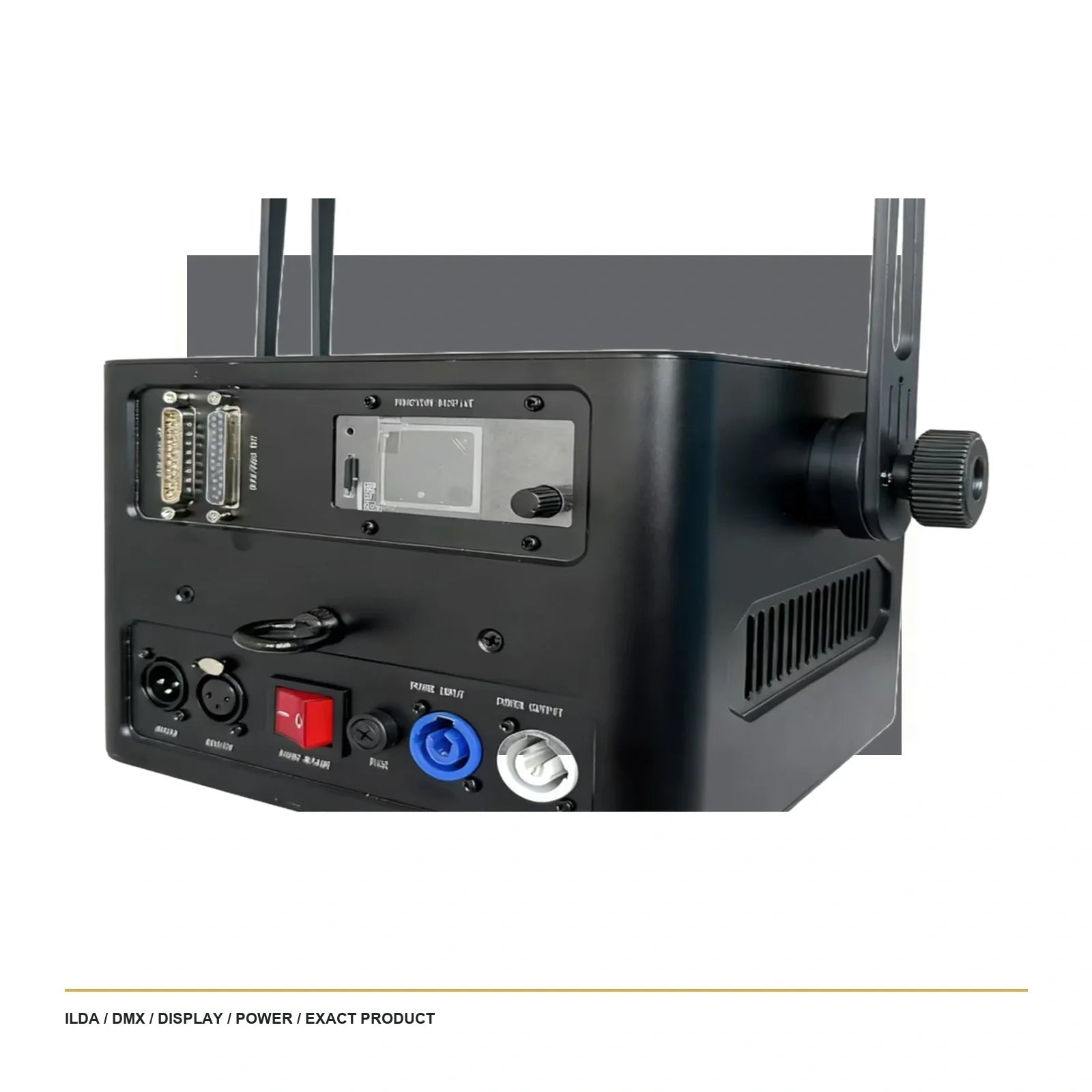

| Control modes | DMX512, auto, sound active, master/slave and ILDA control |
| Size / weight | 7.4 kg |
| Packing | 310 x 310 x 270 mm; 10 kg gross weight |
| RGB sources | R 638 nm / 3 W; G 520 nm / 3 W; B 445 nm / 4 W |
| Scanner | AT30K-40Kpps galvanometer scanner |
| Scan angle | +/-30 degrees (60-degree total) |
Product documents are being prepared. Contact YL for the current information for A2 10W RGB Laser.
Request product documentsContact YL to confirm the available accessories and the exact configuration for A2 10W RGB Laser.
Ask about compatible accessoriesAsk for an available demonstration of A2 10W RGB Laser and the configuration you need.
Request a product demonstration
