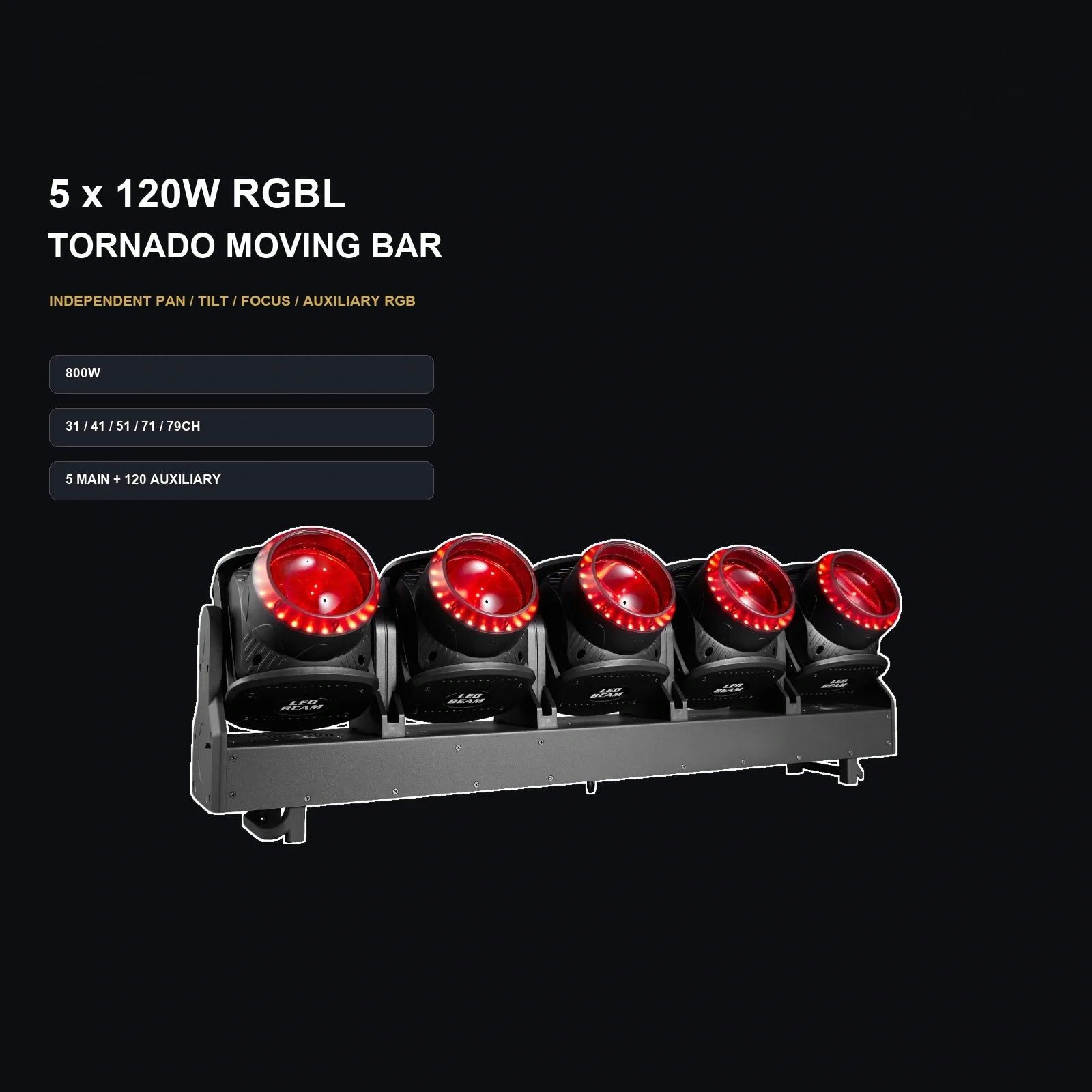

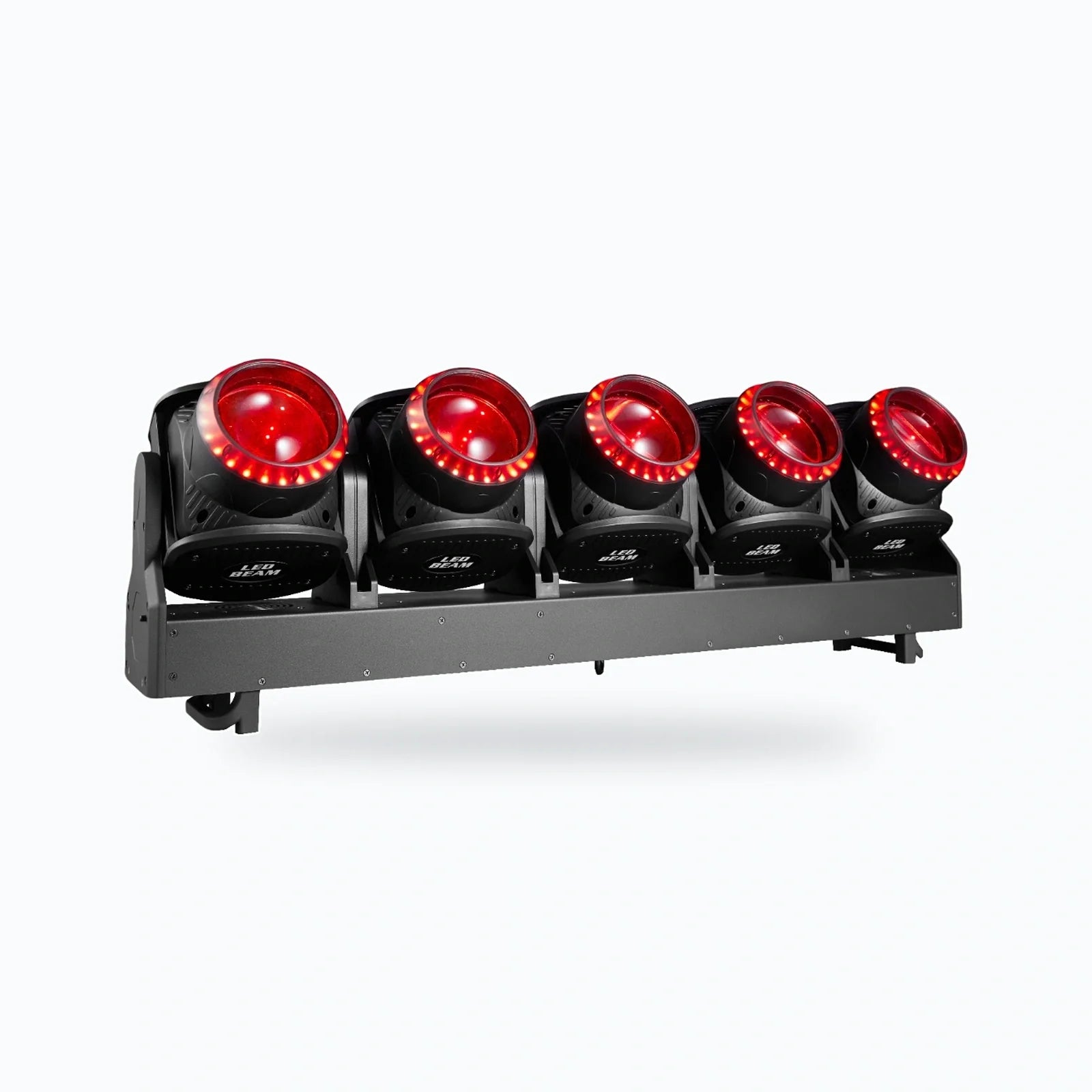

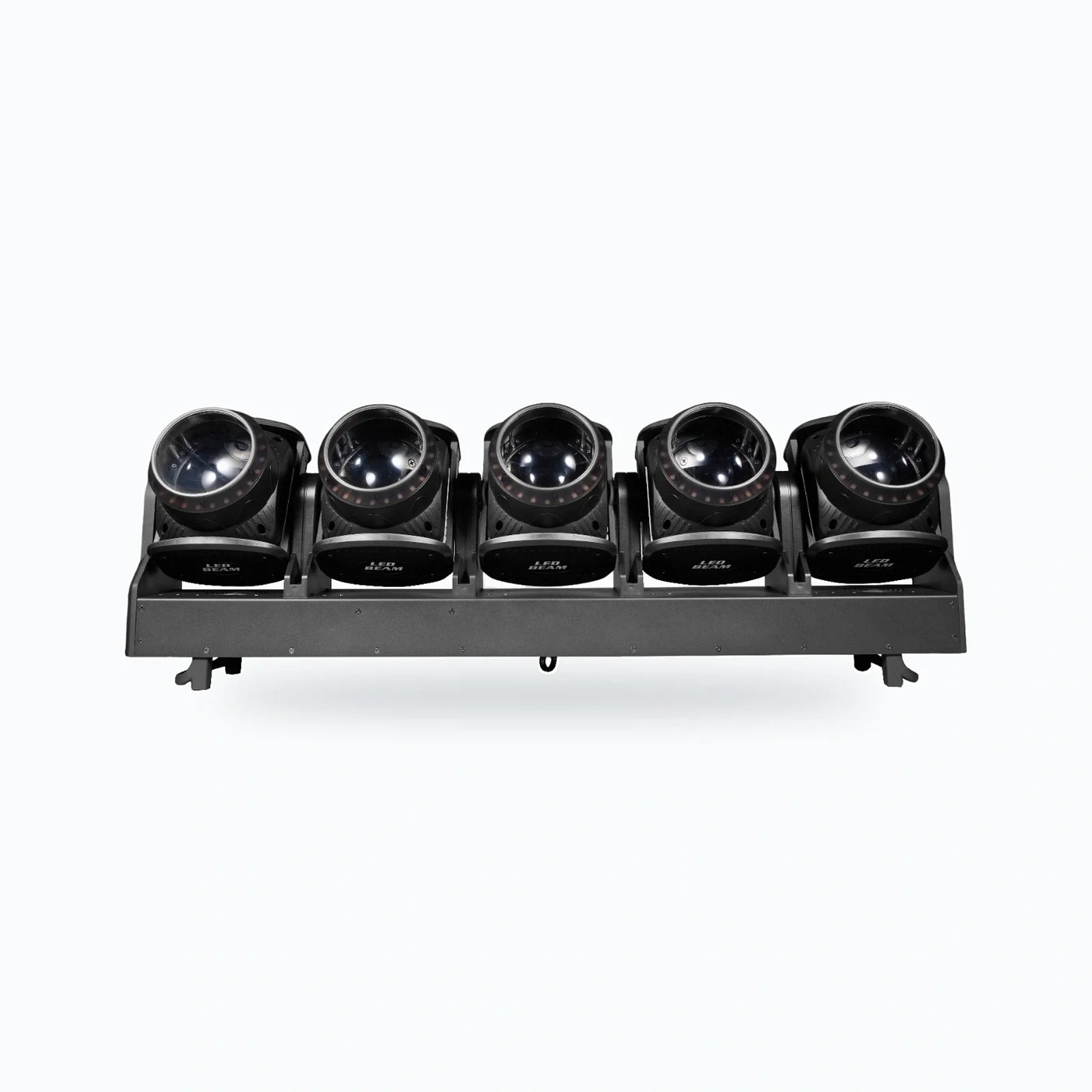

5 x 120W RGBL Tornado Moving Bar - Standard Edition is a stage lighting catalogue item in the tornado moving bar light category. Reference specifications list rated power: 800W; main led source: 5 x 120W RGBL 1212 LED modules. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteSelect this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.
Rated power: 800W
Size / weights: TO BE CONFIRMED
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Rated power | 800W |
|---|---|
| Main LED source | 5 x 120W RGBL 1212 LED modules |
| DMX modes | 31CH / 41CH / 51CH / 71CH / 79CH |
| Movement / focus | Five independently controlled heads; exact ranges TO BE CONFIRMED |
| Product | 5-head 120W RGBL tornado moving bar with auxiliary RGB |
| Input voltage | AC100-240V, 50/60Hz |
| Auxiliary LEDs | 120 x 0.5W RGB LEDs |
| Dimming / strobe | 32-bit 0-100% linear / 1-30Hz |
| Environment | 30 to 50 degrees C / IP20 indoor |

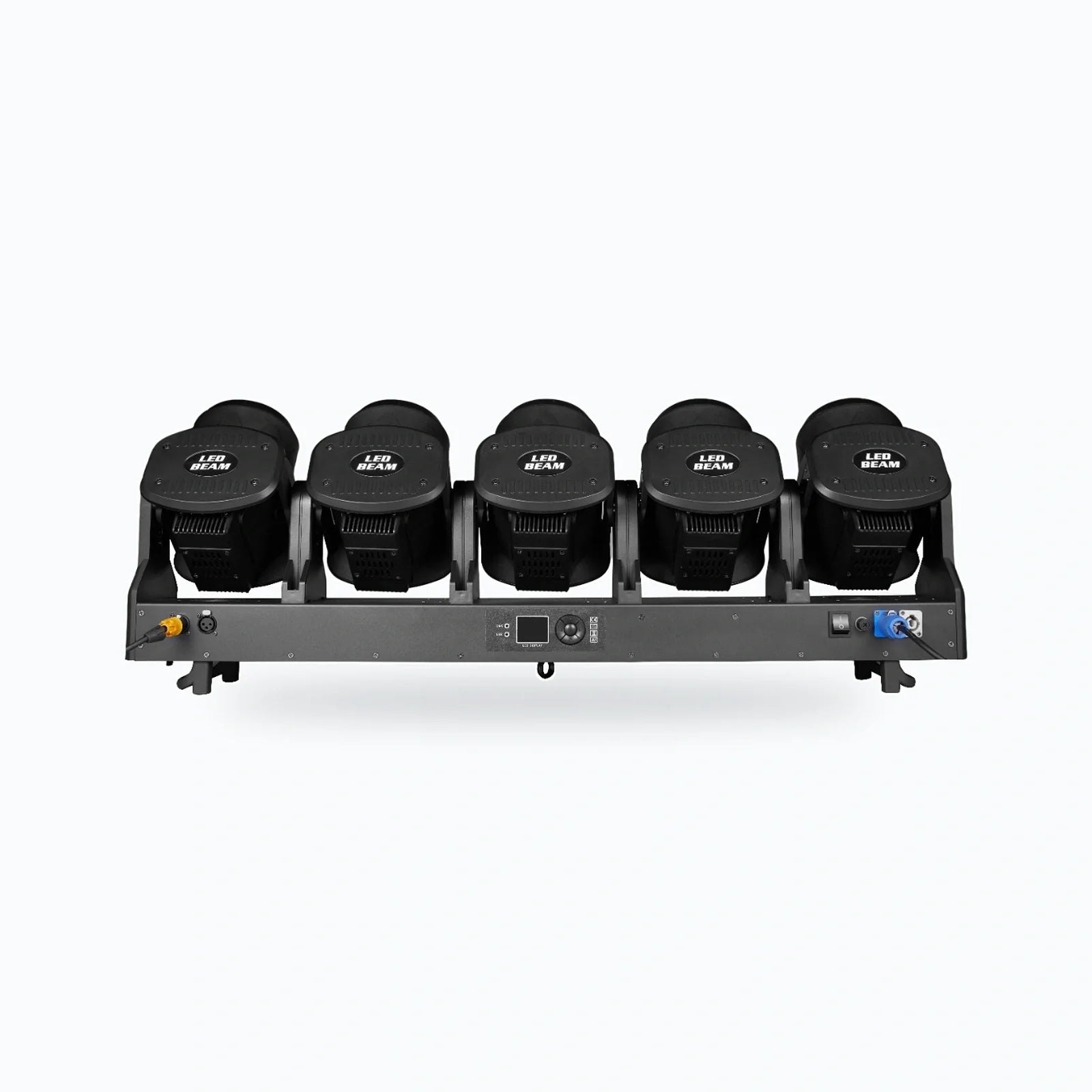

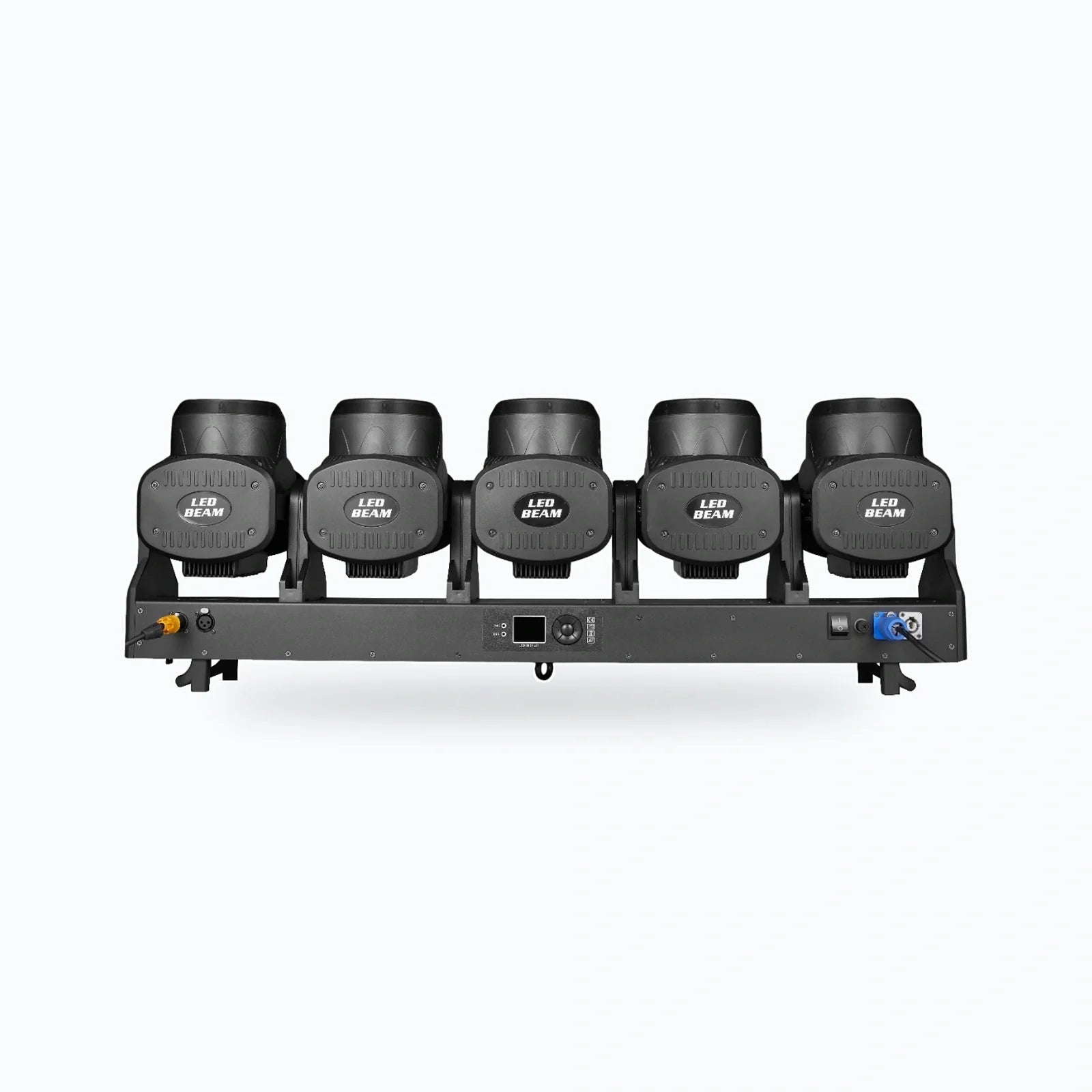

| Connection | DMX input/output and locking power input/output |
| Housing | Metal, black |
| Size / weights | TO BE CONFIRMED |
| Packing | TO BE CONFIRMED |
| Current / fuse | Rated current, fuse value and fuse position TO BE CONFIRMED |
Product documents are being prepared. Contact YL for the current information for 5 x 120W RGBL Tornado Moving Bar - Standard Edition.
Request product documentsContact YL to confirm the available accessories and the exact configuration for 5 x 120W RGBL Tornado Moving Bar - Standard Edition.
Ask about compatible accessories
