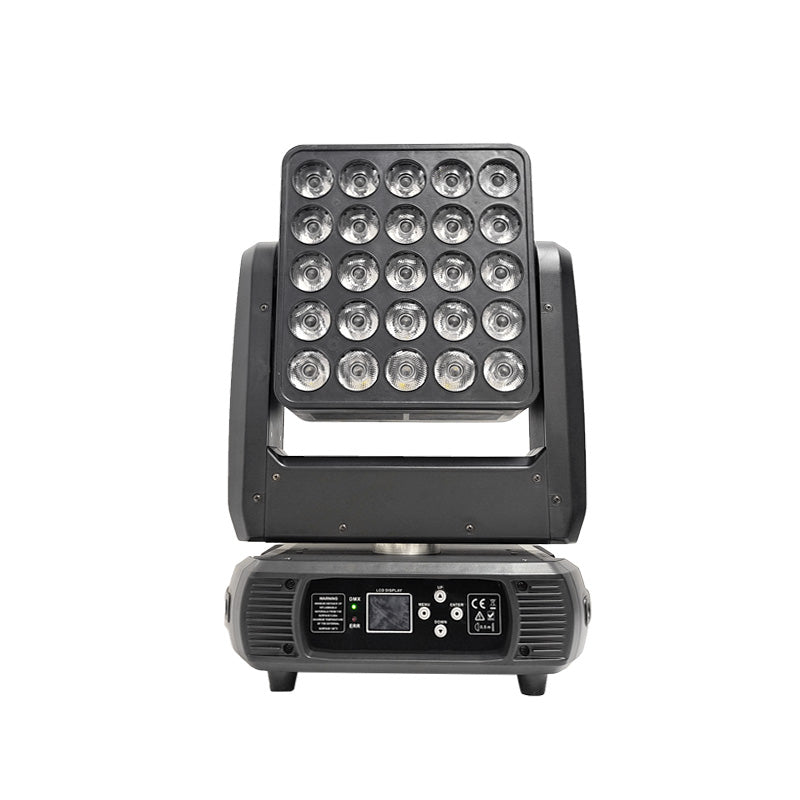

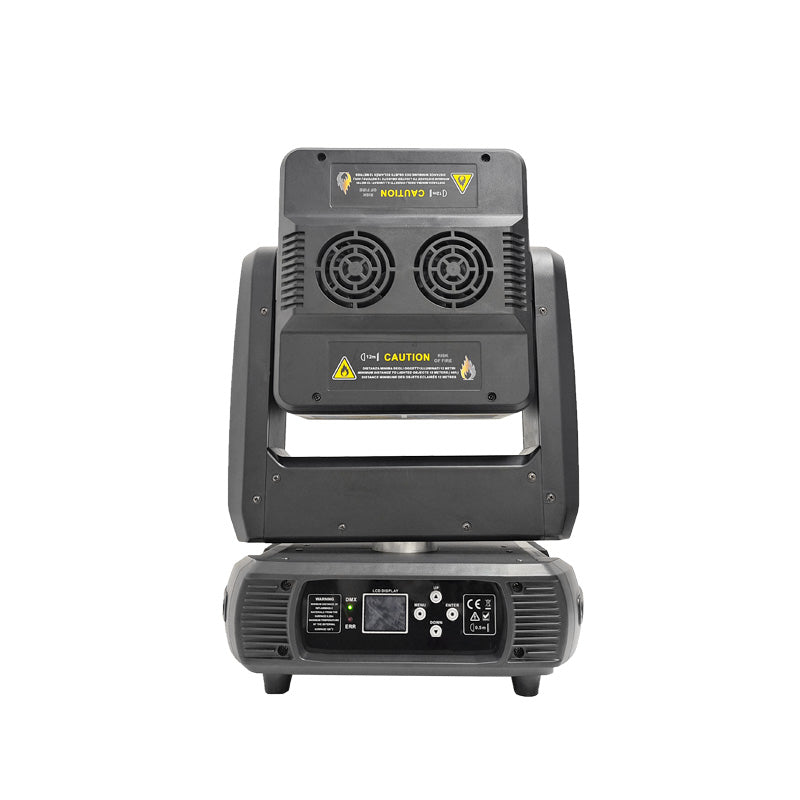

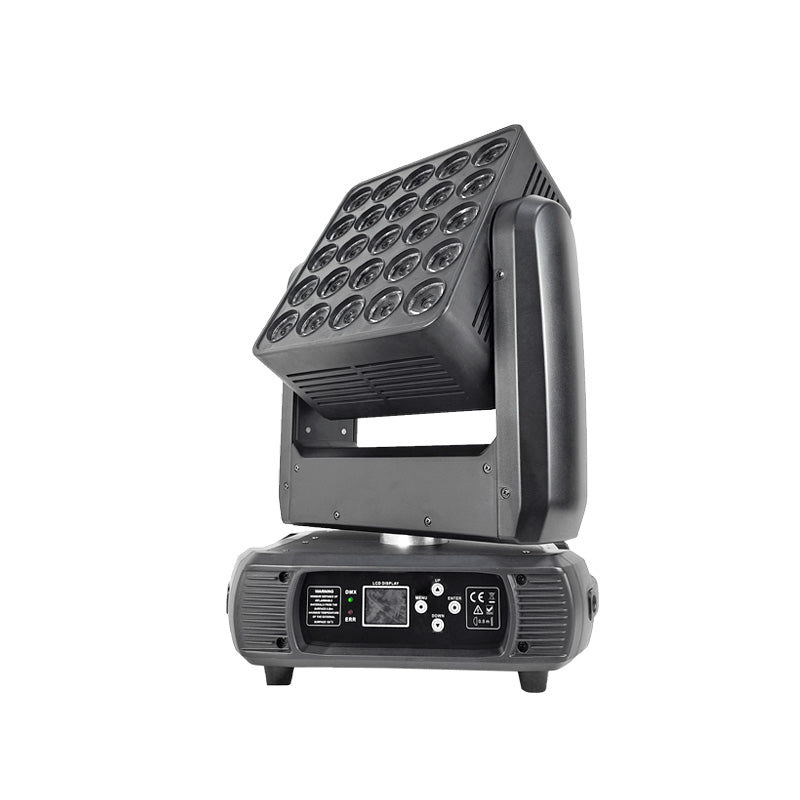

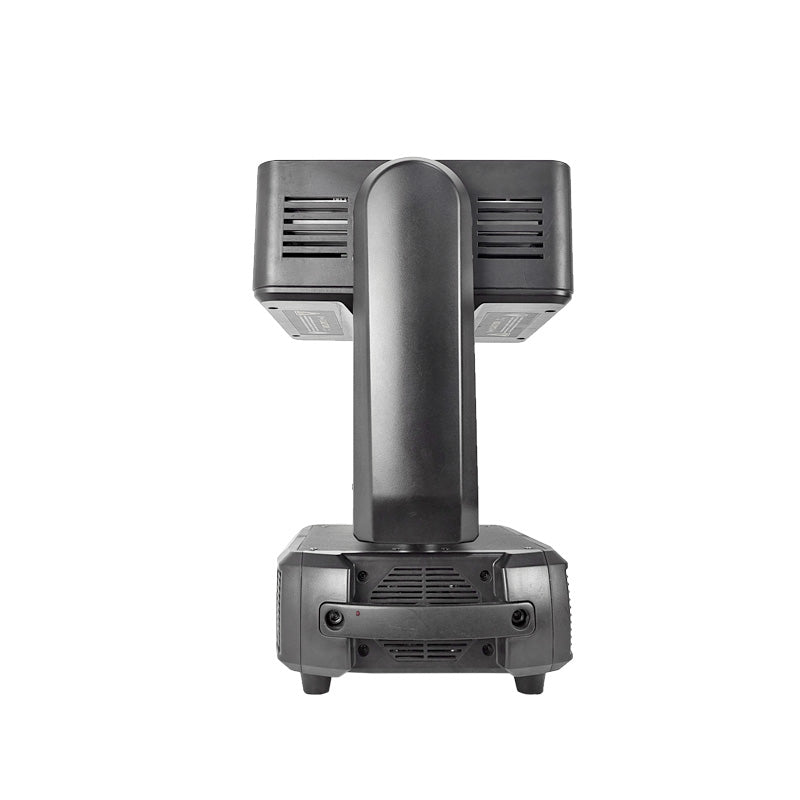

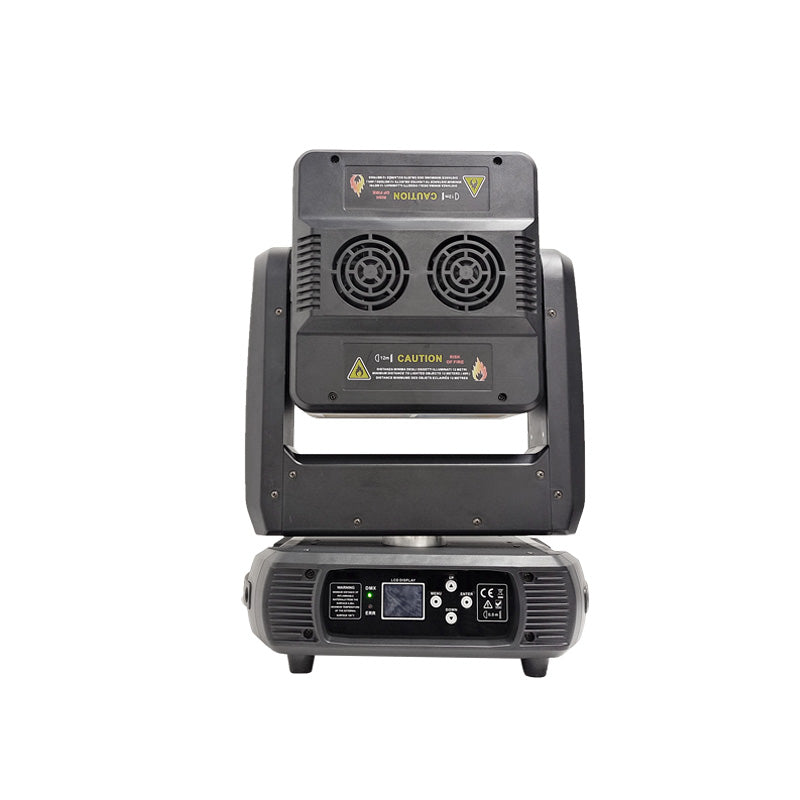

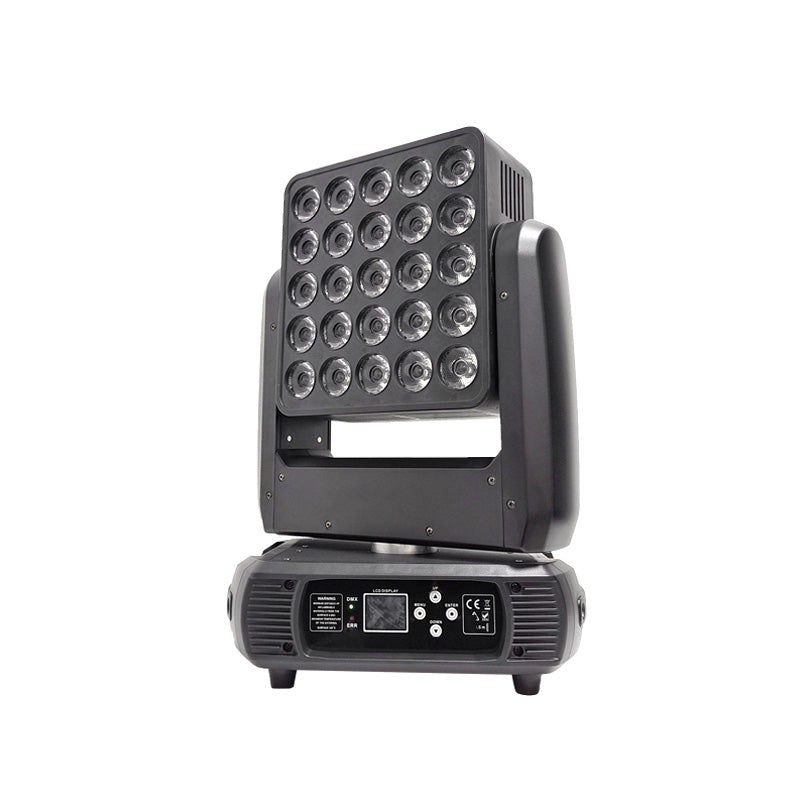

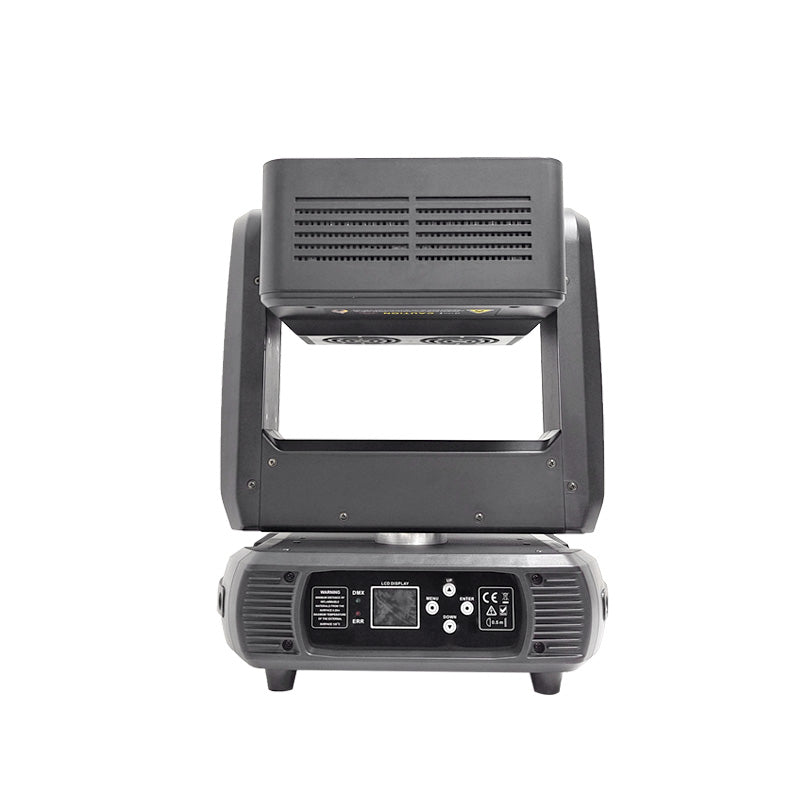

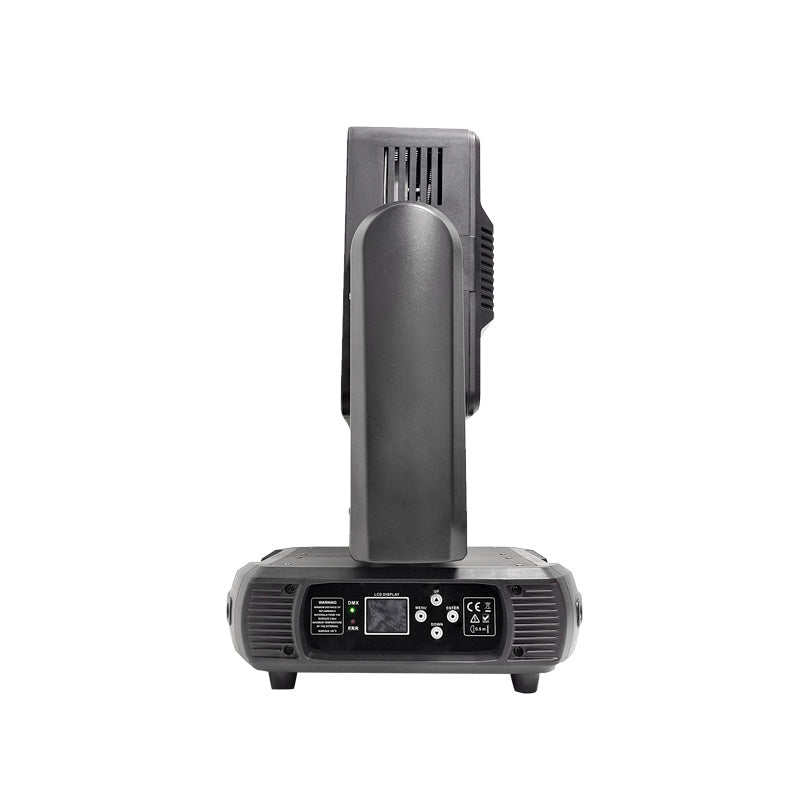

25 pcs 15W shaking head matrix

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Rated voltage

AC100V～240V 50/60Hz

Approved life

30,000 hours

Dimming

electronic dimming 0 ~ 100% linear adjustment, with a gamma curve dimming frequency 1.2K ~ 25K adjustable, with a macro command dimming linear stable and smooth without flickering, using a stable constant current driver and power supply, suitable for video shooting

Hibernation function

the use of advanced technology to achieve remote hibernation function, when the lamps and lanterns disconnect the signal automatically enter the hibernation state, so that the lamps and lanterns are more stable and safer

Heat dissipation system

high conductivity light aluminum radiator, fan intelligent monitoring technology according to the temperature of the lamps and lanterns automatically adjust the fan speed, built-in overheating protection intelligent system/intelligent temperature and noise balance module

Packing

waterproof and shockproof air box or carton box.

Light source specification

25pcs 15W 4-in-1 LED OSRAM light source

Color

red, green, blue and white colors

Rotation angle

XY axis adopts high-speed silent 60 three-phase motor drive, with high-precision imported Hall positioning device, so that the operation of the positioning is more accurate, when the occurrence of misalignment can be automatically returned to the position of the horizontal, vertical speed adjustable; XY axis rotation function and take the opposite function.

Input power

500W

Control mode

20 (lite)/116 (standard) 2 channel control modes, standard DMX512 protocol, RDM protocol

Control interface

DMX512 interface (3-core / optional 5-core), power cord hand socket

Display function

1.77-inch LCD, bilingual menu, sensor failure display, temperature display.

Protection level

IP20, optional rain cover protection level up to IP44

Net weight

12.65KG

Gross weight

14.7KG

Product size

44*36*28CM

Packing size

47*34*52CM (one for one)

• Provide the subject dimensions, throw distance, fixture spacing and mounting height.
• Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
• For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
• Verify supply, connectors, weight and environmental requirements for the actual location.
