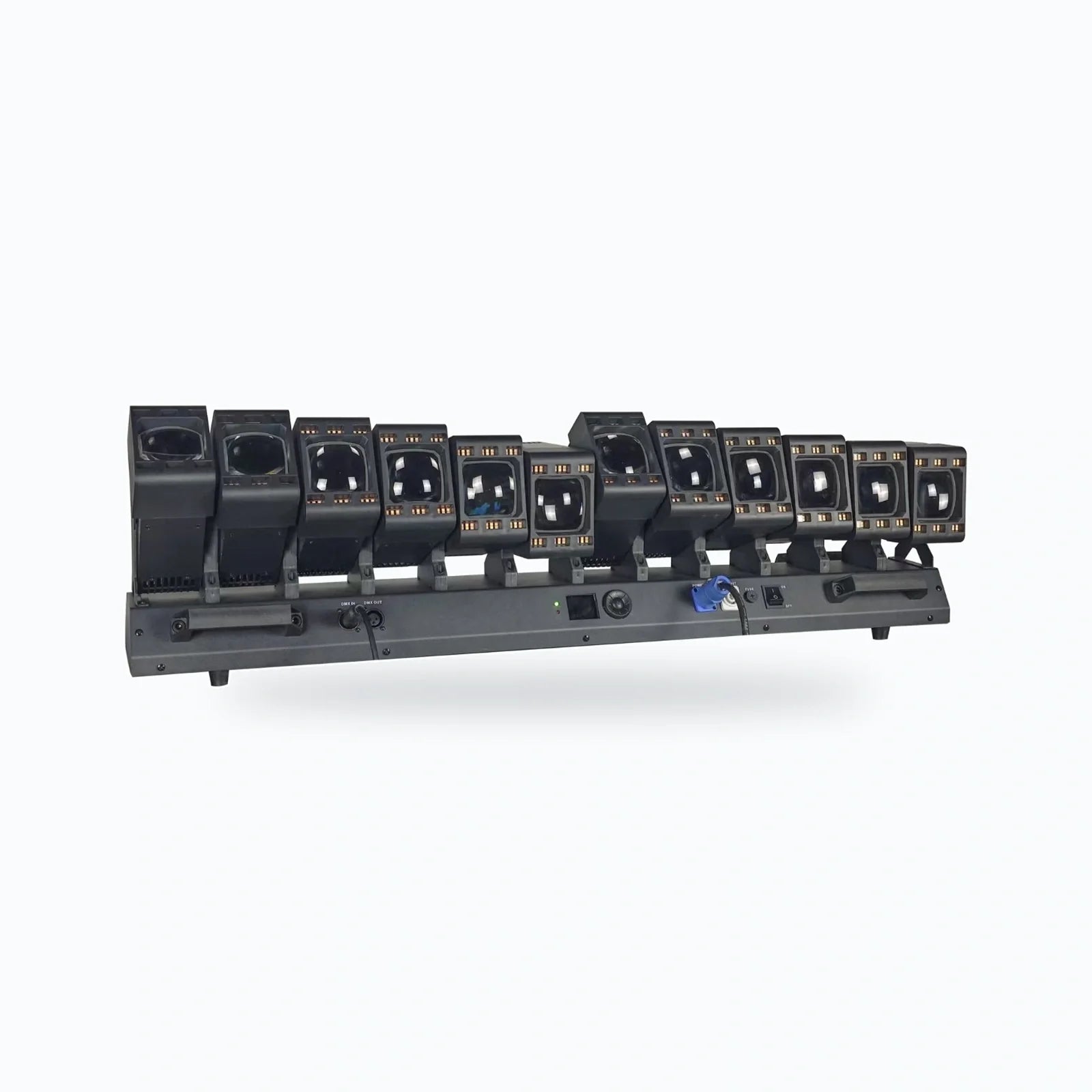

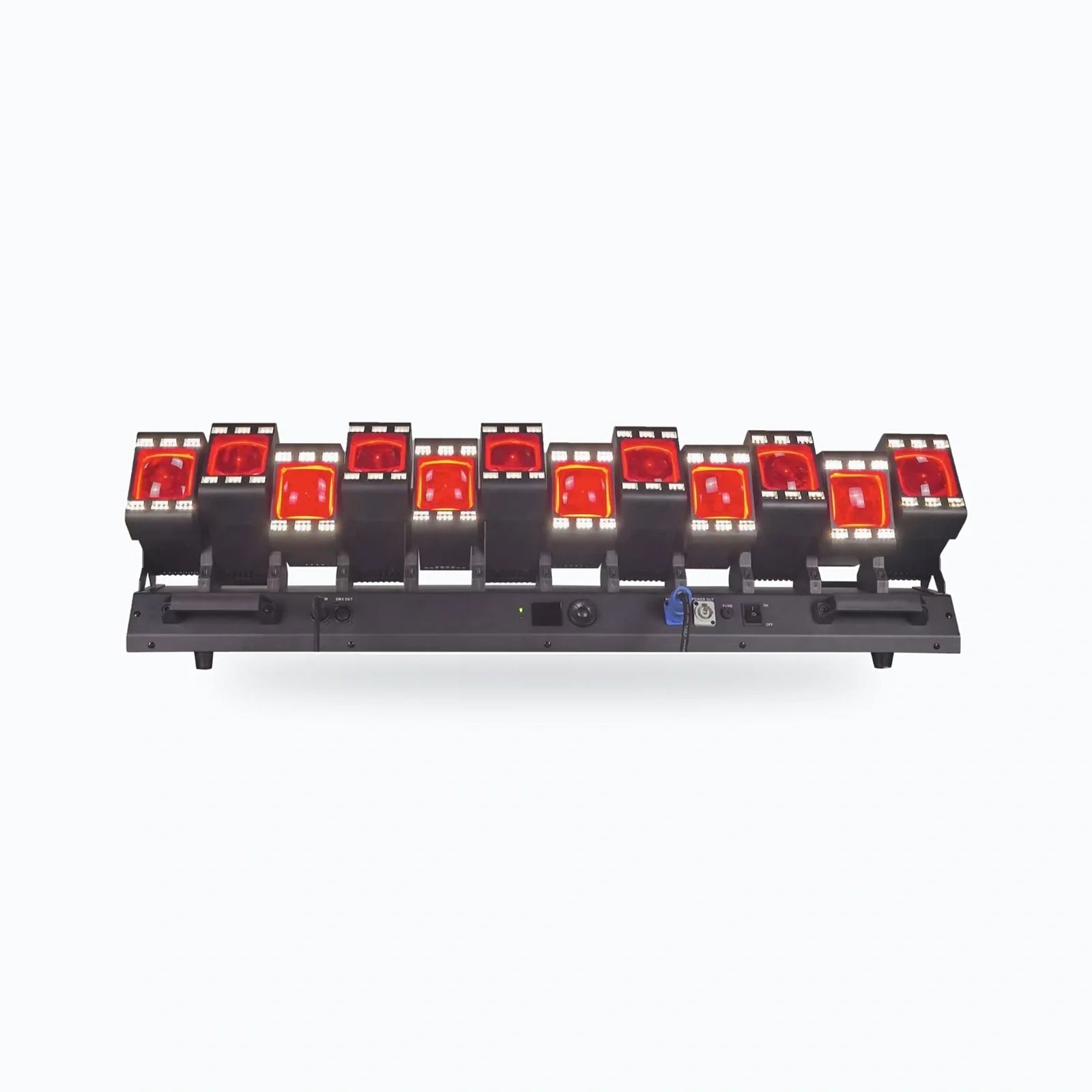

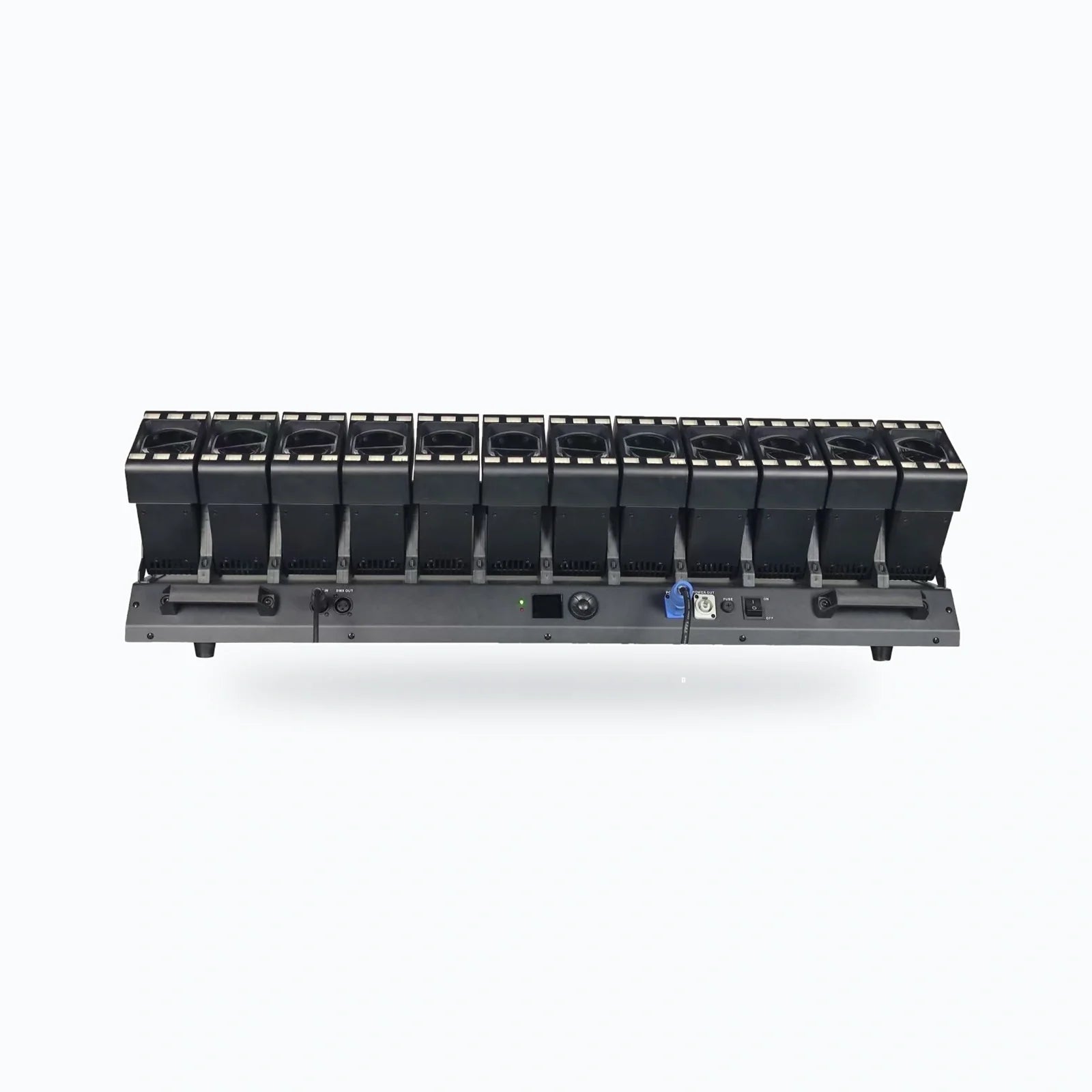

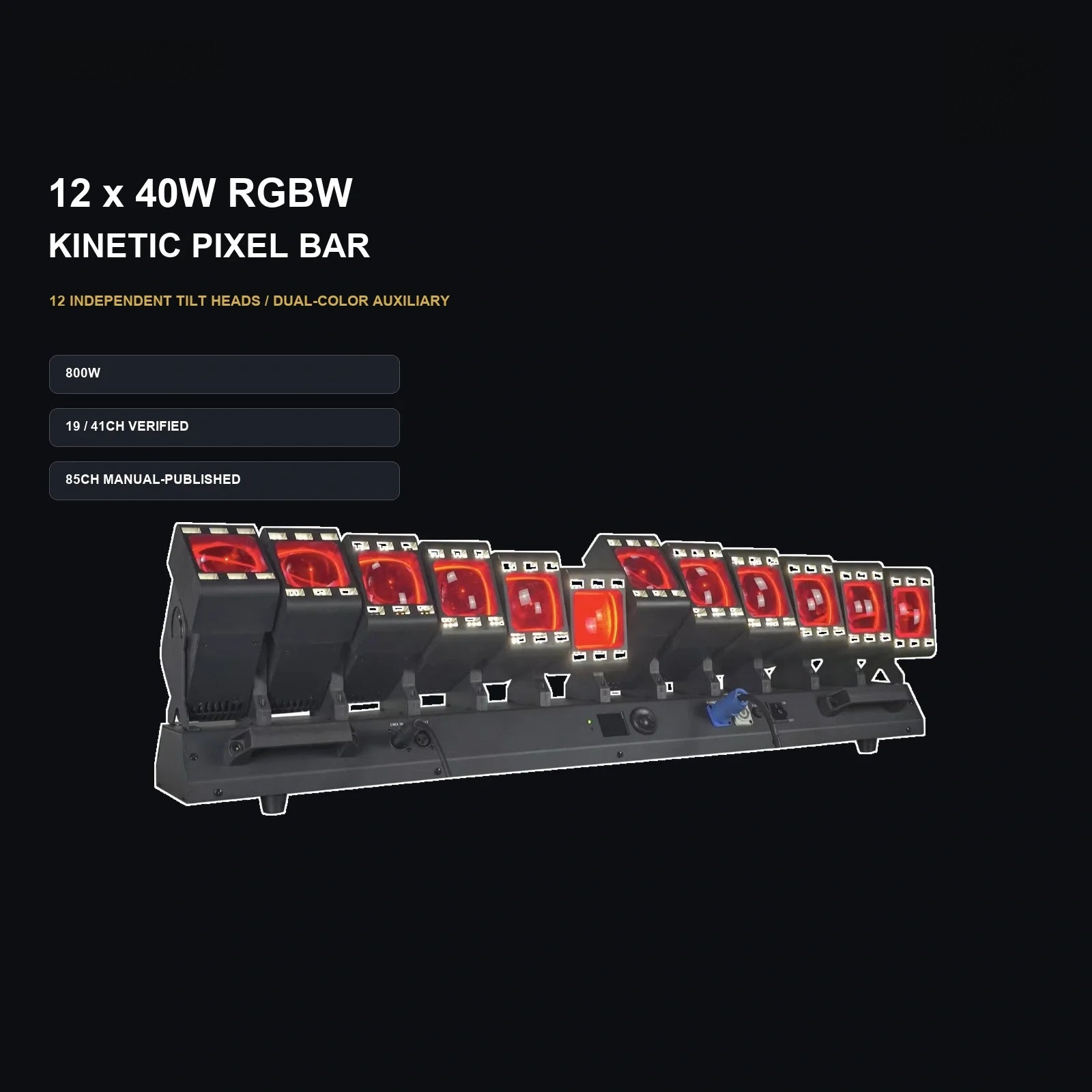

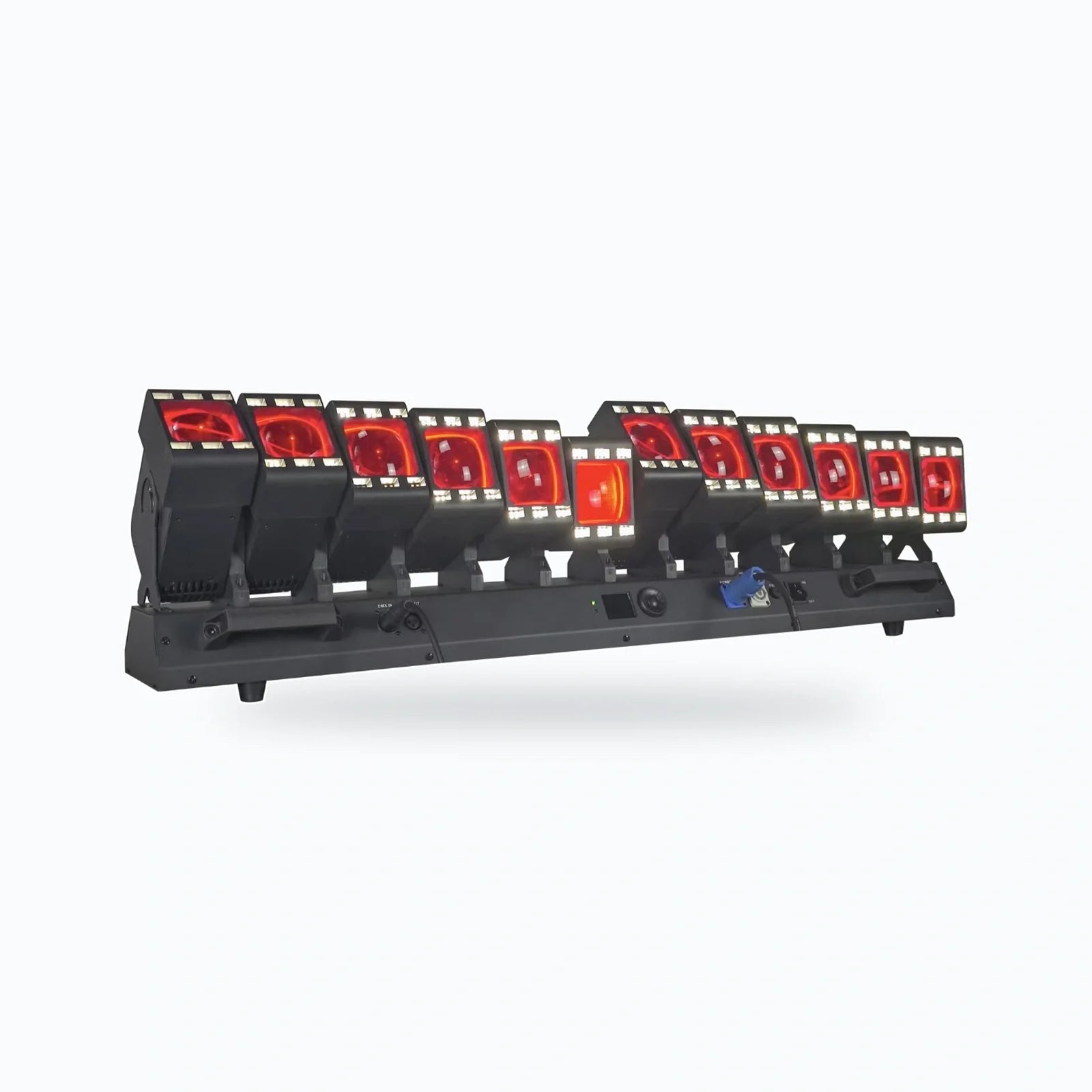

12-head RGBW kinetic pixel bar with auxiliary light

12-head RGBW kinetic pixel bar with auxiliary light is a stage lighting catalogue item in the kinetic pixel moving bar light category. Reference specifications list rated power: 800W; main led source: 12 x 40W RGBW four-in-one LEDs. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Protection
IP20 indoor
Net / gross weight
23 kg / TO BE CONFIRMED

Planning this product into your project

Select this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.

Product configuration

Main LED source
12 x 40W RGBW four-in-one LEDs
Movement
12 independent Y axes, published 270 degrees; R20 movement record also states 540 / 270
Product
12-head RGBW kinetic pixel bar with auxiliary light
Dimming / strobe
0-100% linear / 1-25Hz or random

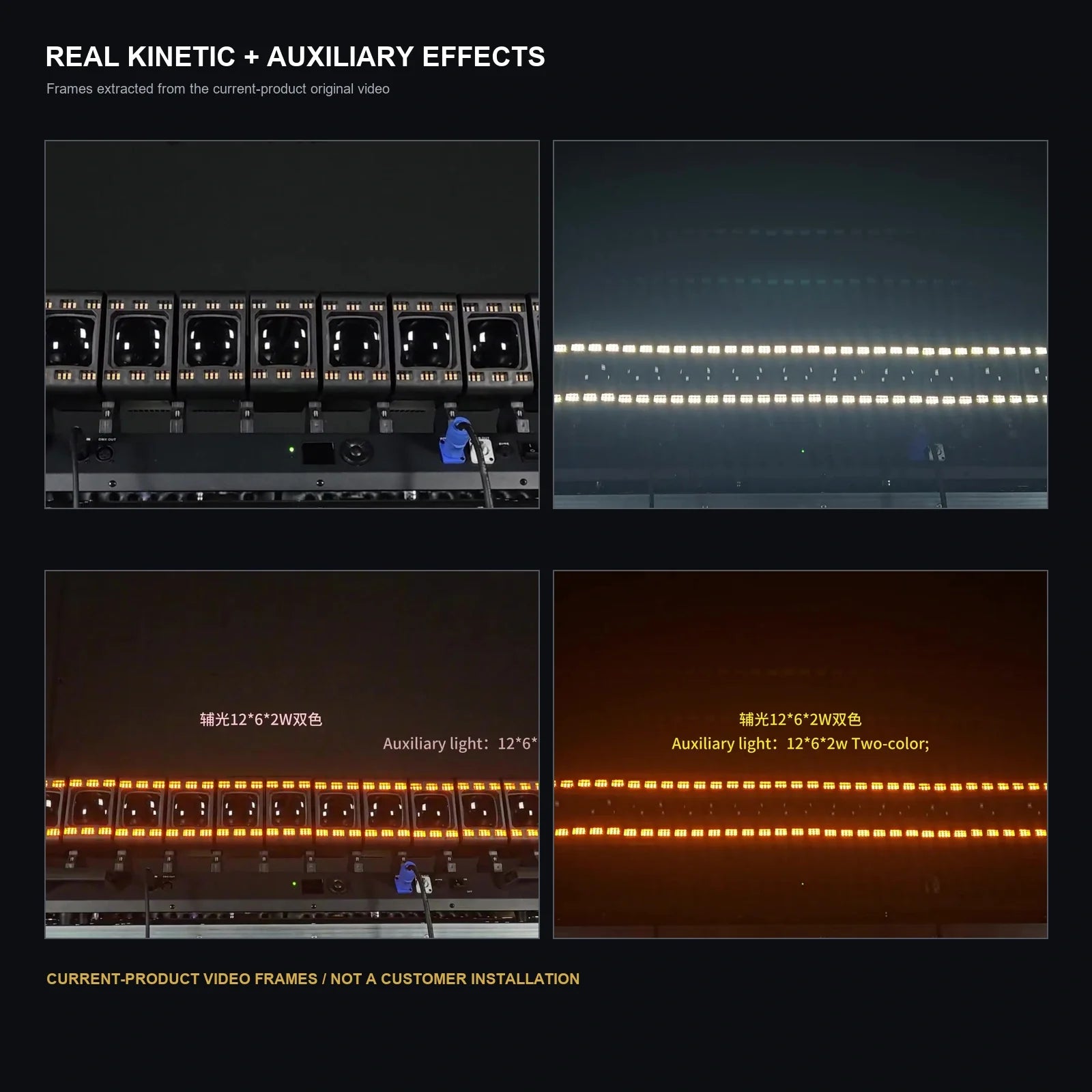

Auxiliary LEDs
12 groups x 6 x 2W yellow-white dual-color
Connection
DMX and power connections; external fuse holder visible
Housing
Metal, black

Optical performance

Rated power: 800W

Control and connections

DMX modes
19CH / 41CH / 85CH
Input voltage
AC90-240V, 50-60Hz

Construction and dimensions

Protection
IP20 indoor
Product size
1020 x 145 x 268 mm
Net / gross weight
23 kg / TO BE CONFIRMED

What to confirm for your quotation

  • Describe the desired effect, viewing distance and fixture positions.
  • Confirm the controllable sections, movement functions and selected channel mode.
  • Check console profiles, addressing, power distribution and cable routing for the planned quantity.
  • Confirm mounting, operating limits and any restrictions in the venue.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

12-head RGBW kinetic pixel bar with auxiliary light technical specifications
Rated power800W
Main LED source12 x 40W RGBW four-in-one LEDs
DMX modes19CH / 41CH / 85CH
Movement12 independent Y axes, published 270 degrees; R20 movement record also states 540 / 270
Product12-head RGBW kinetic pixel bar with auxiliary light
Input voltageAC90-240V, 50-60Hz
Dimming / strobe0-100% linear / 1-25Hz or random
ProtectionIP20 indoor
Auxiliary LEDs12 groups x 6 x 2W yellow-white dual-color
ConnectionDMX and power connections; external fuse holder visible
Product size1020 x 145 x 268 mm
Net / gross weight23 kg / TO BE CONFIRMED
HousingMetal, black

Downloads

Product documents are being prepared. Contact YL for the current information for 12-head RGBW kinetic pixel bar with auxiliary light.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for 12-head RGBW kinetic pixel bar with auxiliary light.

Ask about compatible accessories
