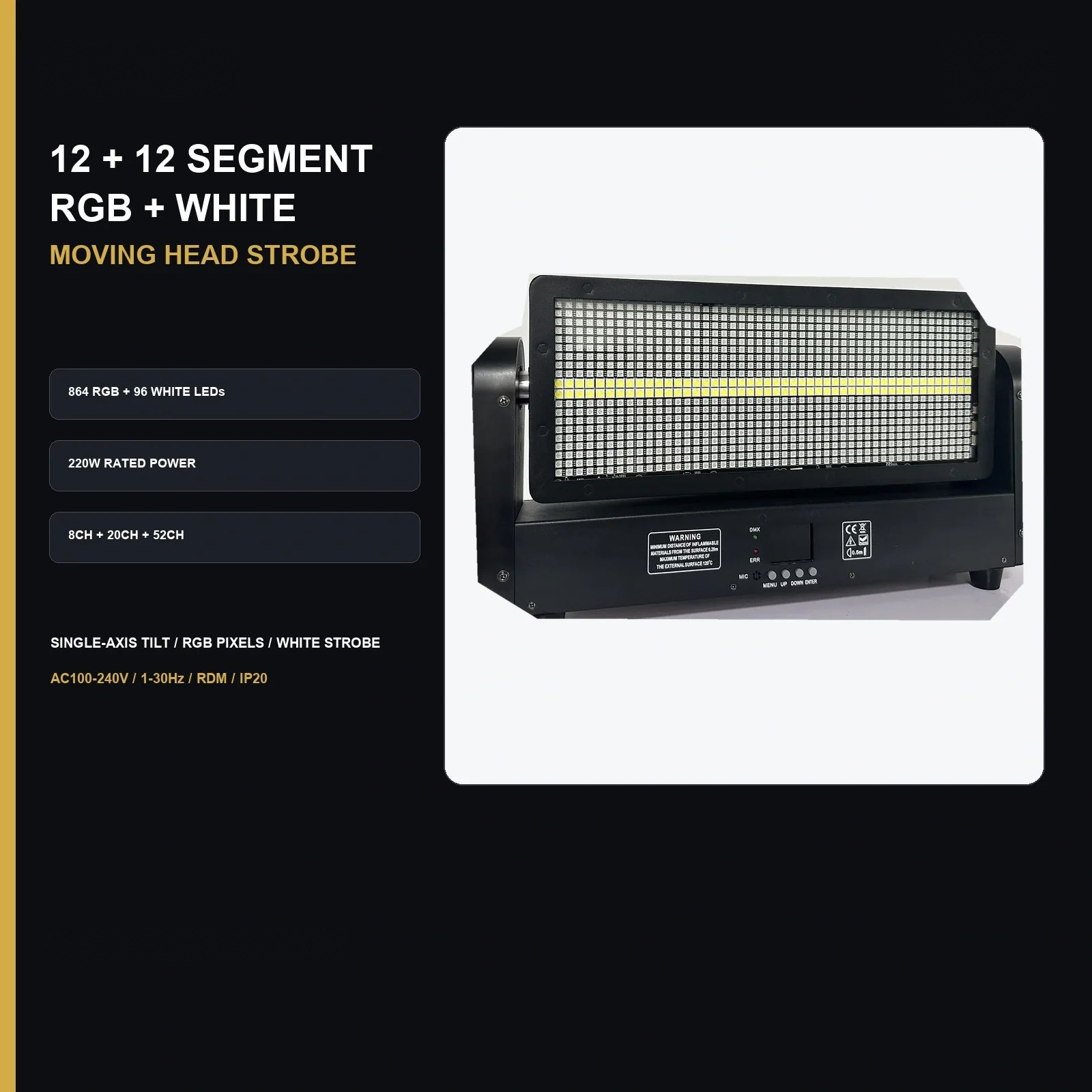

12 + 12 Segment RGB + White Moving Head Strobe

12 + 12 Segment RGB + White Moving Head Strobe is a stage lighting catalogue item in the moving strobe bar light category. Reference specifications list rated power: 220W; led configuration: 864 RGB + 96 white = 960 LEDs. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Protection
IP20
Control modes
DMX512 / Auto / Master-Slave / Sound Active / RDM

Planning this product into your project

Select this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.

Product configuration

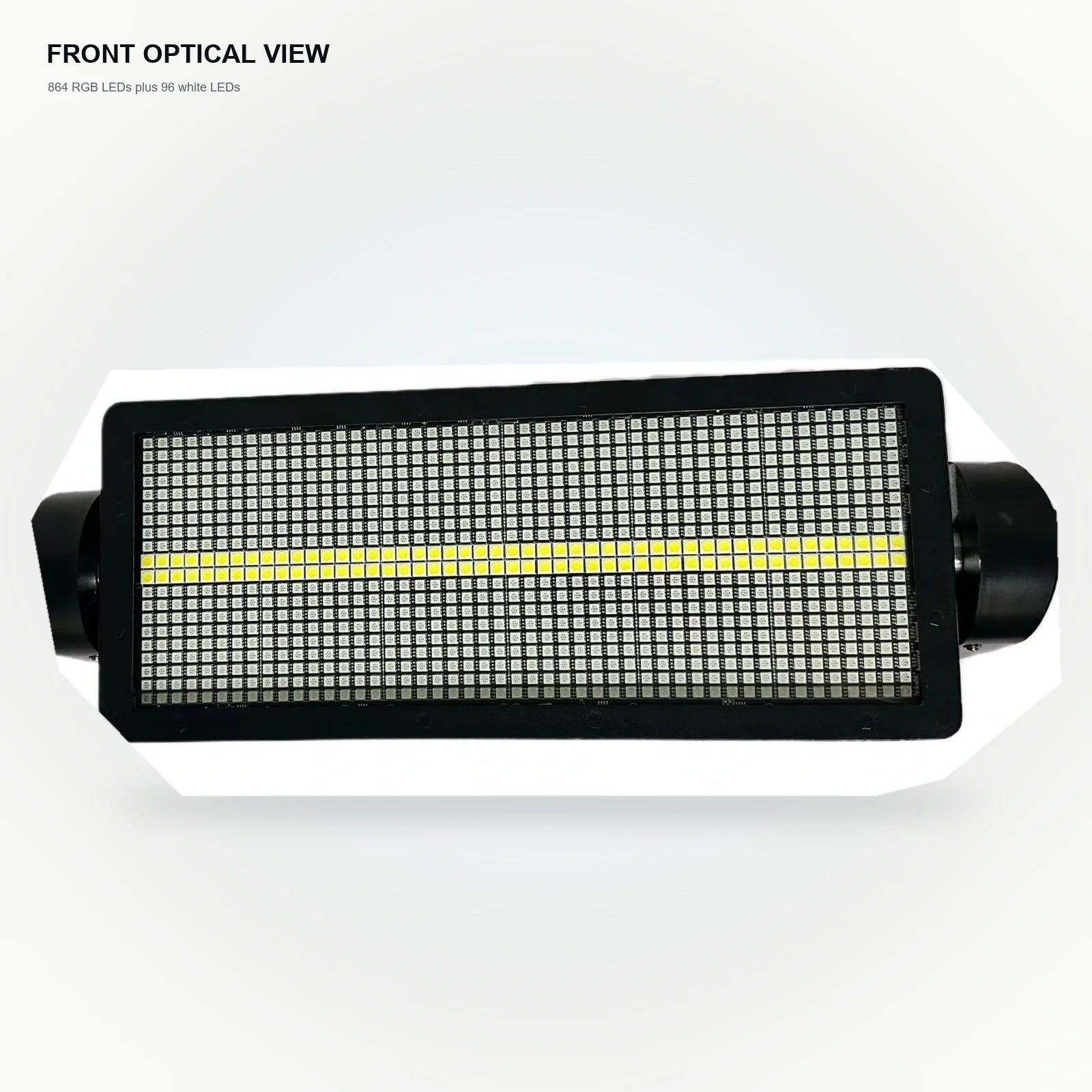

LED configuration
864 RGB + 96 white = 960 LEDs
Product
12 + 12 Segment RGB + White Moving Head Strobe
Strobe
1-30Hz

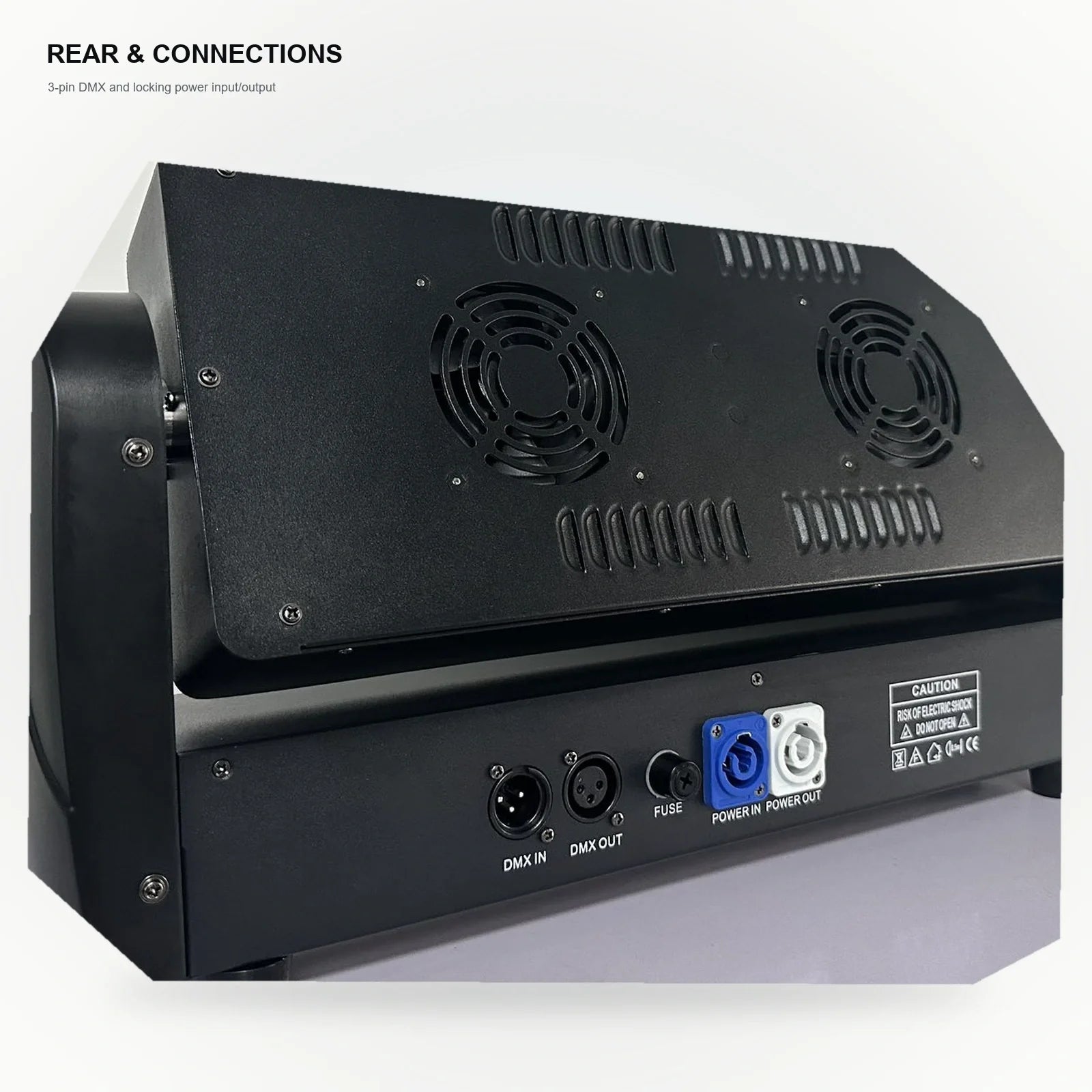

Connections
3-pin DMX in/out + locking power in/out
Packing
TO BE CONFIRMED

Optical performance

Rated power: 220W

Control and connections

Published DMX modes
8CH + 20CH default + 52CH manual-sourced
Input voltage
AC100-240V, 50/60Hz
Control modes
DMX512 / Auto / Master-Slave / Sound Active / RDM

Construction and dimensions

Protection
IP20
Operating temperature
30 to 50°C

What to confirm for your quotation

  • Describe the desired effect, viewing distance and fixture positions.
  • Confirm the controllable sections, movement functions and selected channel mode.
  • Check console profiles, addressing, power distribution and cable routing for the planned quantity.
  • Confirm mounting, operating limits and any restrictions in the venue.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

12 + 12 Segment RGB + White Moving Head Strobe technical specifications
Rated power220W
LED configuration864 RGB + 96 white = 960 LEDs
Published DMX modes8CH + 20CH default + 52CH manual-sourced
ProtectionIP20
Product12 + 12 Segment RGB + White Moving Head Strobe
Input voltageAC100-240V, 50/60Hz
Control modesDMX512 / Auto / Master-Slave / Sound Active / RDM
Strobe1-30Hz
Connections3-pin DMX in/out + locking power in/out
Operating temperature30 to 50°C
PackingTO BE CONFIRMED

Downloads

Product documents are being prepared. Contact YL for the current information for 12 + 12 Segment RGB + White Moving Head Strobe.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for 12 + 12 Segment RGB + White Moving Head Strobe.

Ask about compatible accessories
