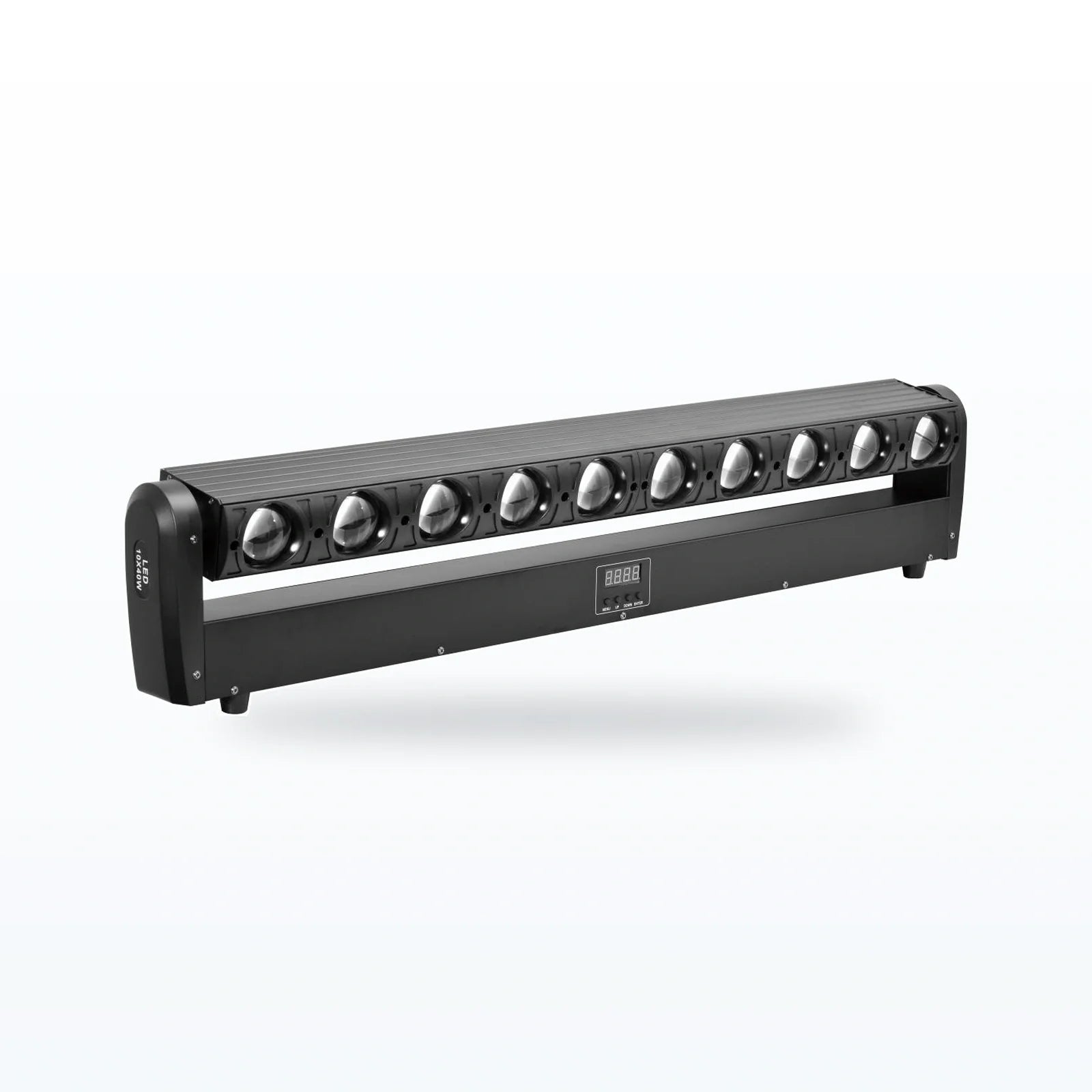

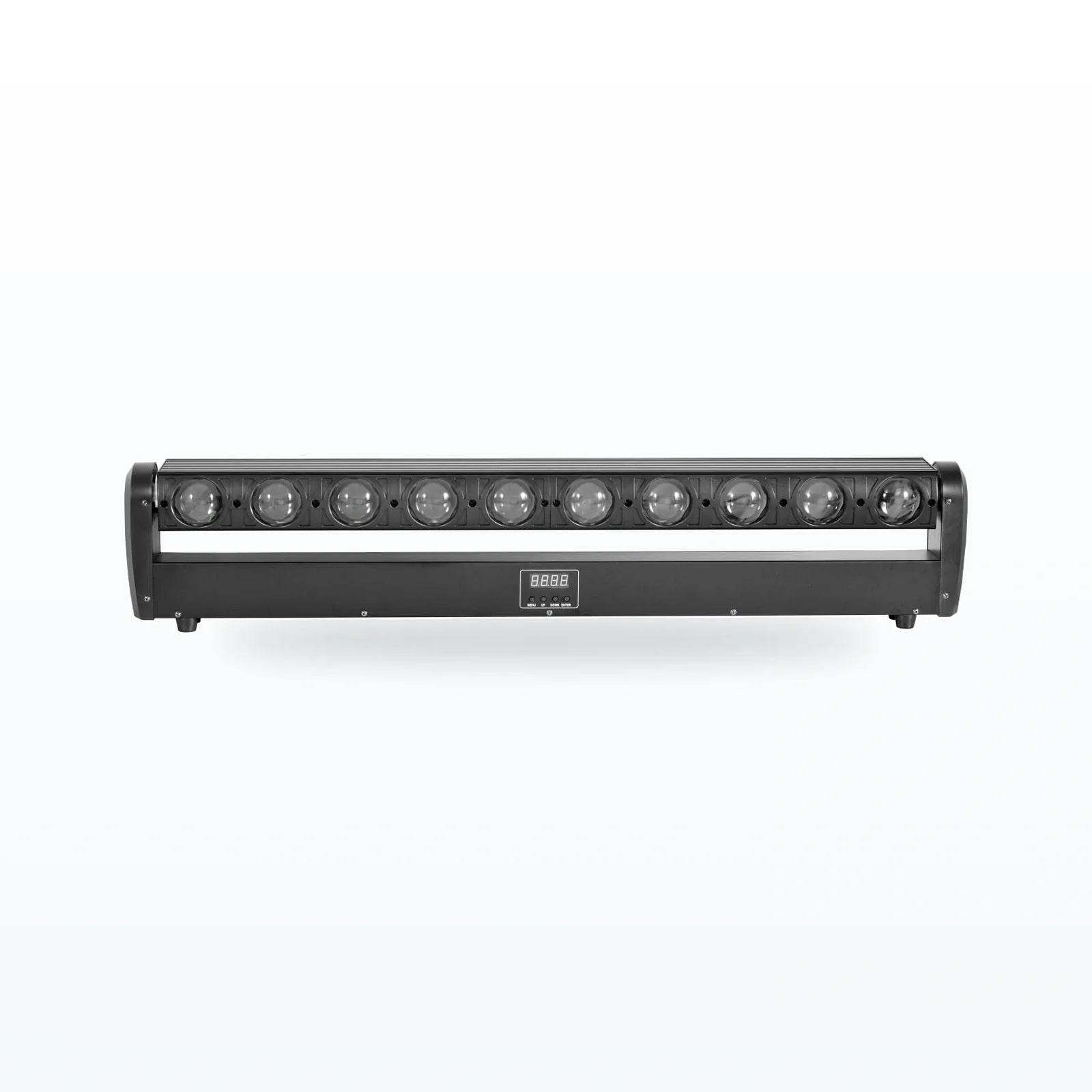

10-cell RGBW tilt matrix bar

10-cell RGBW tilt matrix bar is a stage lighting catalogue item in the moving matrix bar light category. Reference specifications list dmx modes: 7CH / 13CH / 43CH; movement: Y-axis tilt; R20 states 290 degrees, MA XML physical range equals 270 degrees - TO BE CONFIRMED. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Protection
IP20 indoor
Net / gross weight
TO BE CONFIRMED

Planning this product into your project

Select this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.

Product configuration

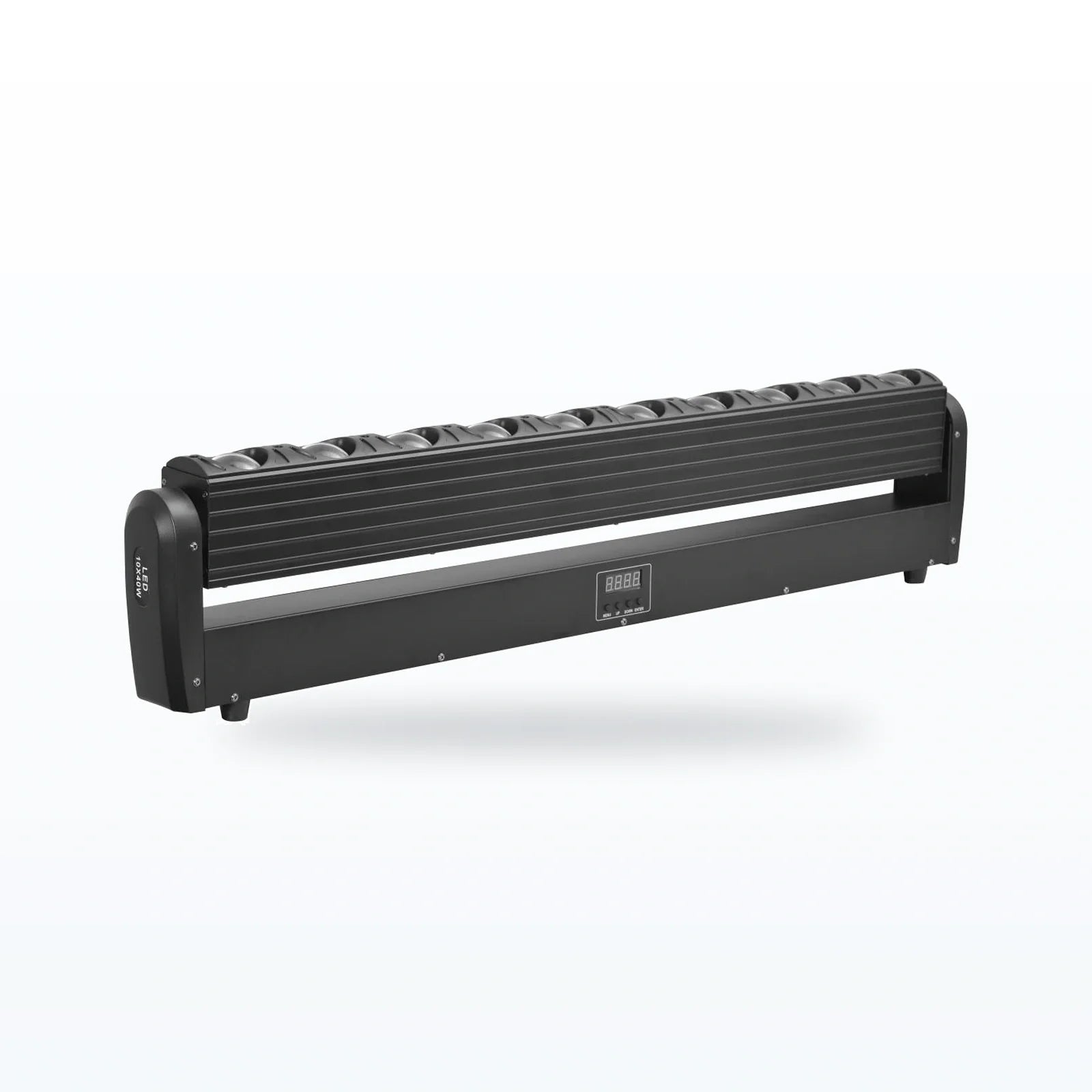

Movement
Y-axis tilt; R20 states 290 degrees, MA XML physical range equals 270 degrees - TO BE CONFIRMED
Product
10-cell RGBW tilt matrix bar
Dimming / strobe
32-bit 0-100% linear / 1-30Hz

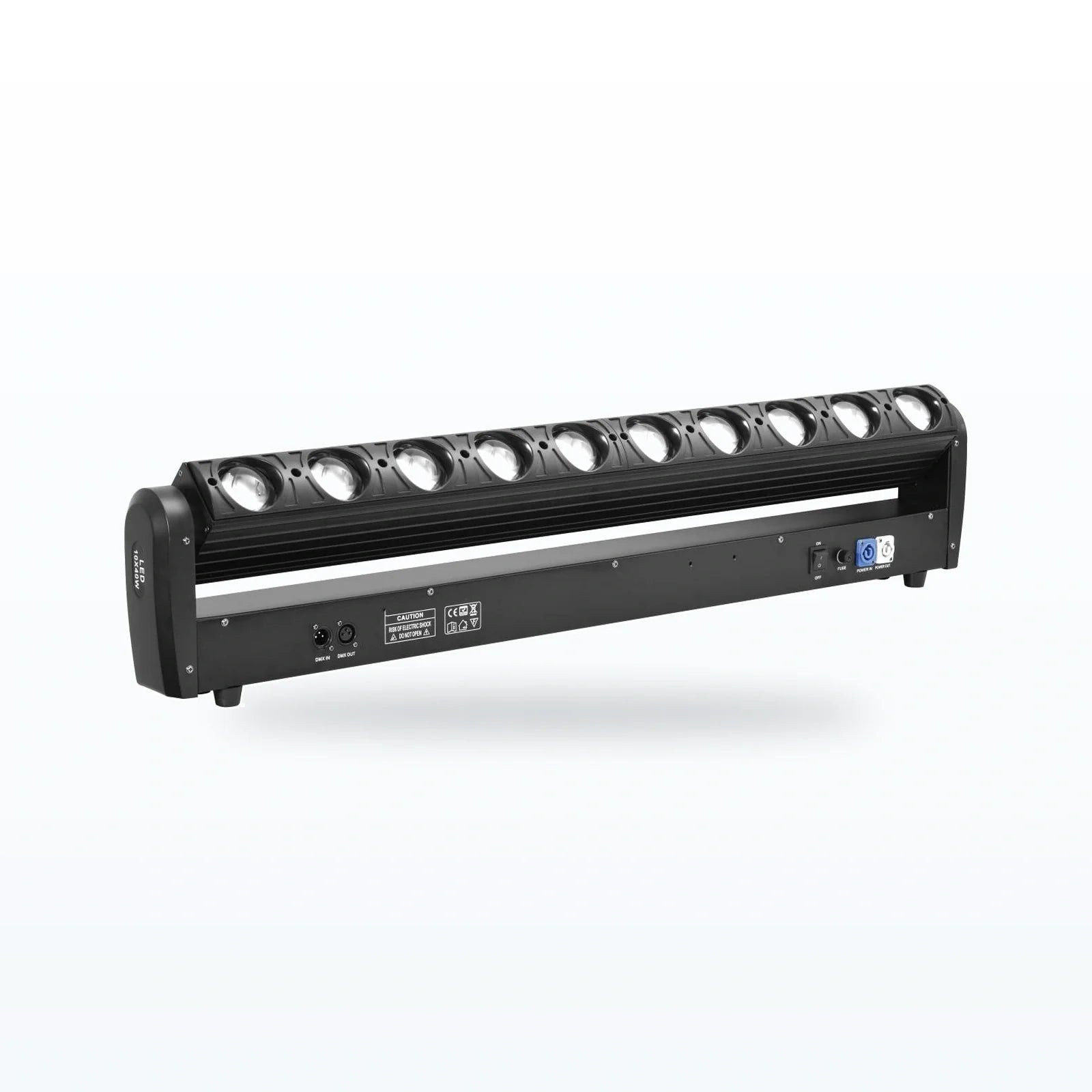

Connection
DMX input/output and power input/output
Housing
Metal, black

Control and connections

DMX modes
7CH / 13CH / 43CH
Input voltage
AC100-240V, 50/60Hz

Construction and dimensions

Protection
IP20 indoor
Product size
TO BE CONFIRMED
Net / gross weight
TO BE CONFIRMED

What to confirm for your quotation

  • Describe the desired effect, viewing distance and fixture positions.
  • Confirm the controllable sections, movement functions and selected channel mode.
  • Check console profiles, addressing, power distribution and cable routing for the planned quantity.
  • Confirm mounting, operating limits and any restrictions in the venue.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

10-cell RGBW tilt matrix bar technical specifications
DMX modes7CH / 13CH / 43CH
MovementY-axis tilt; R20 states 290 degrees, MA XML physical range equals 270 degrees - TO BE CONFIRMED
Input voltageAC100-240V, 50/60Hz
Product10-cell RGBW tilt matrix bar
Dimming / strobe32-bit 0-100% linear / 1-30Hz
ProtectionIP20 indoor
ConnectionDMX input/output and power input/output
Product sizeTO BE CONFIRMED
Net / gross weightTO BE CONFIRMED
HousingMetal, black

Downloads

Product documents are being prepared. Contact YL for the current information for 10-cell RGBW tilt matrix bar.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for 10-cell RGBW tilt matrix bar.

Ask about compatible accessories

Product videos

Ask for an available demonstration of 10-cell RGBW tilt matrix bar and the configuration you need.

Request a product demonstration
