Product identification
- Model
- JSUB Large-Format Flyable Cardioid Subwoofer
- Product category
- Subwoofer Systems

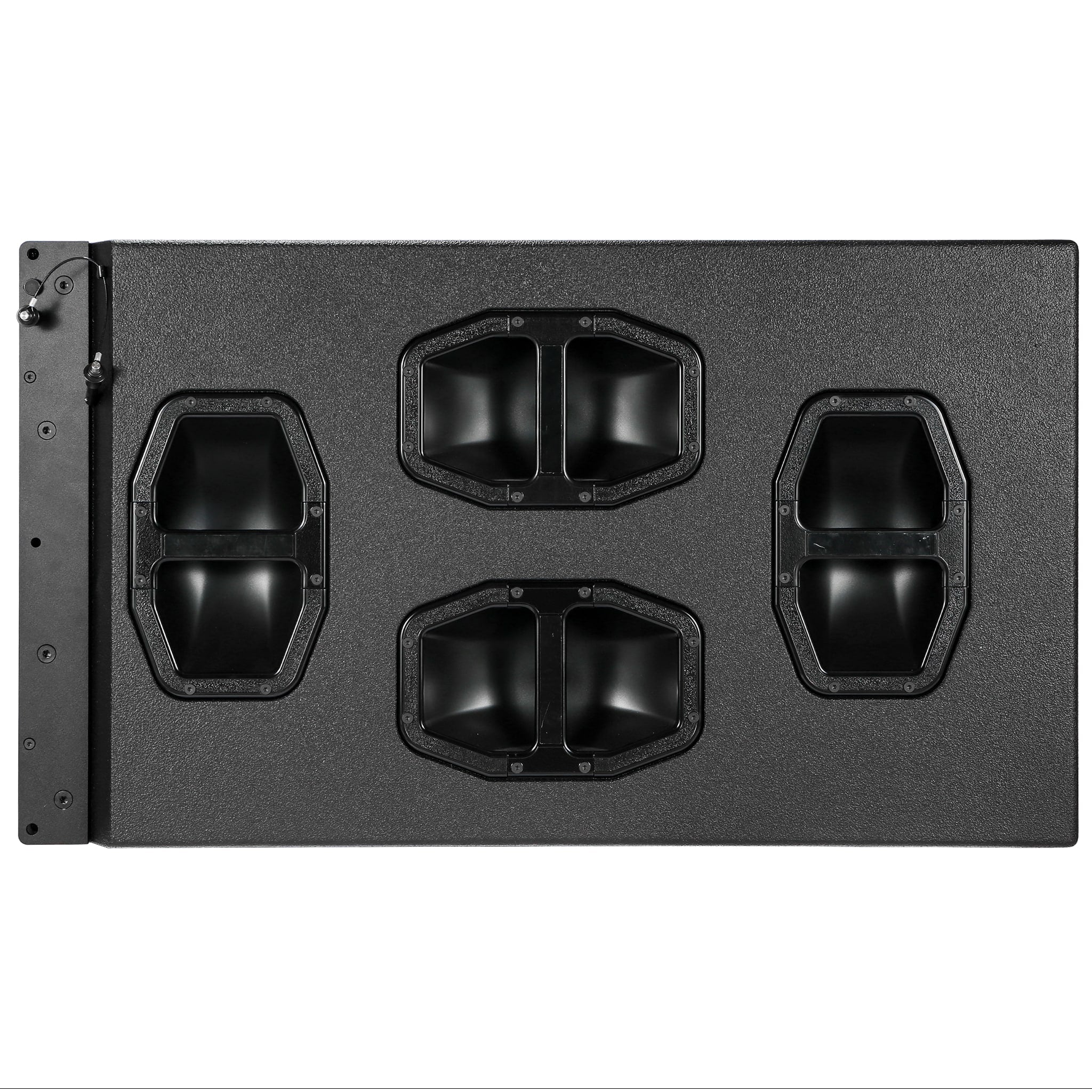

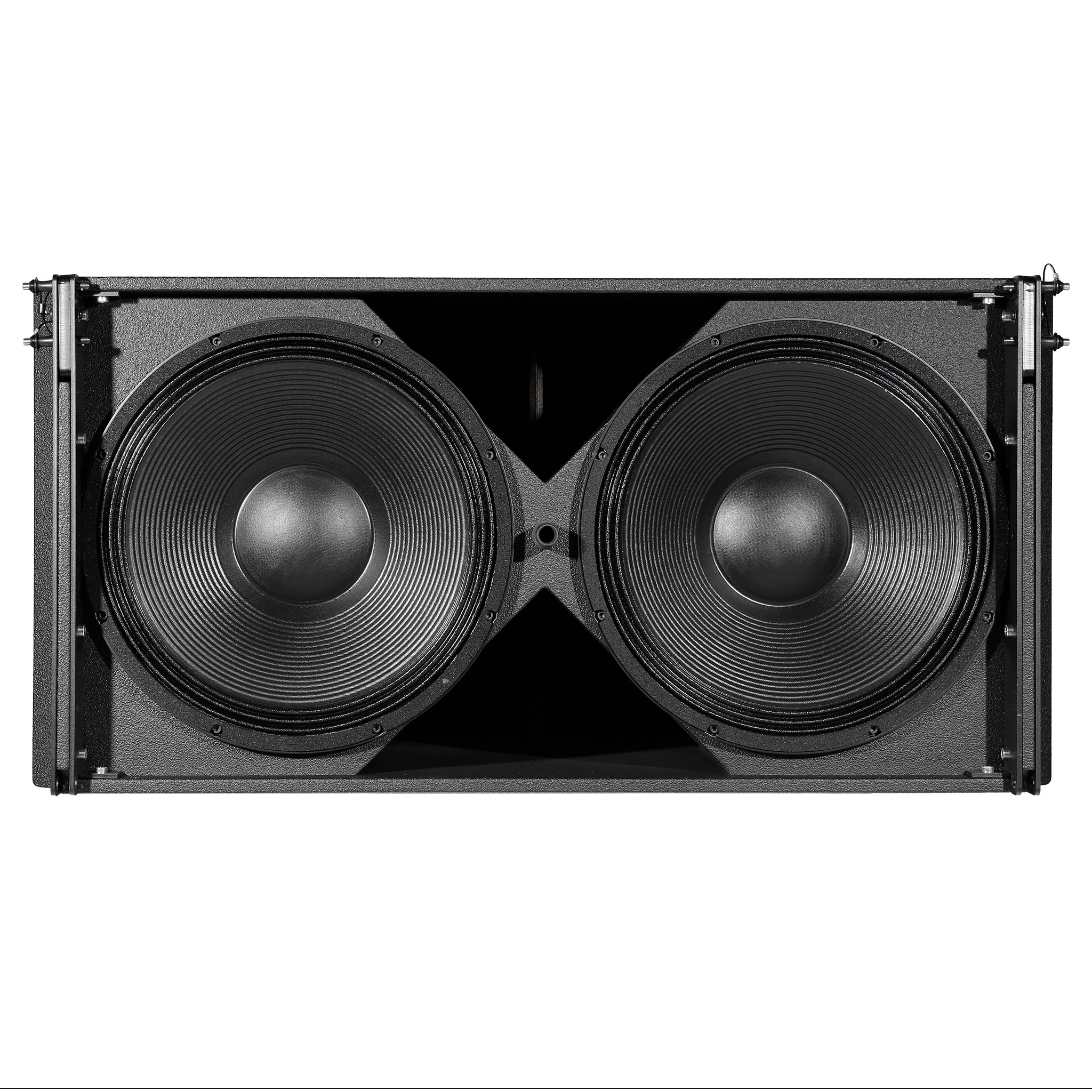

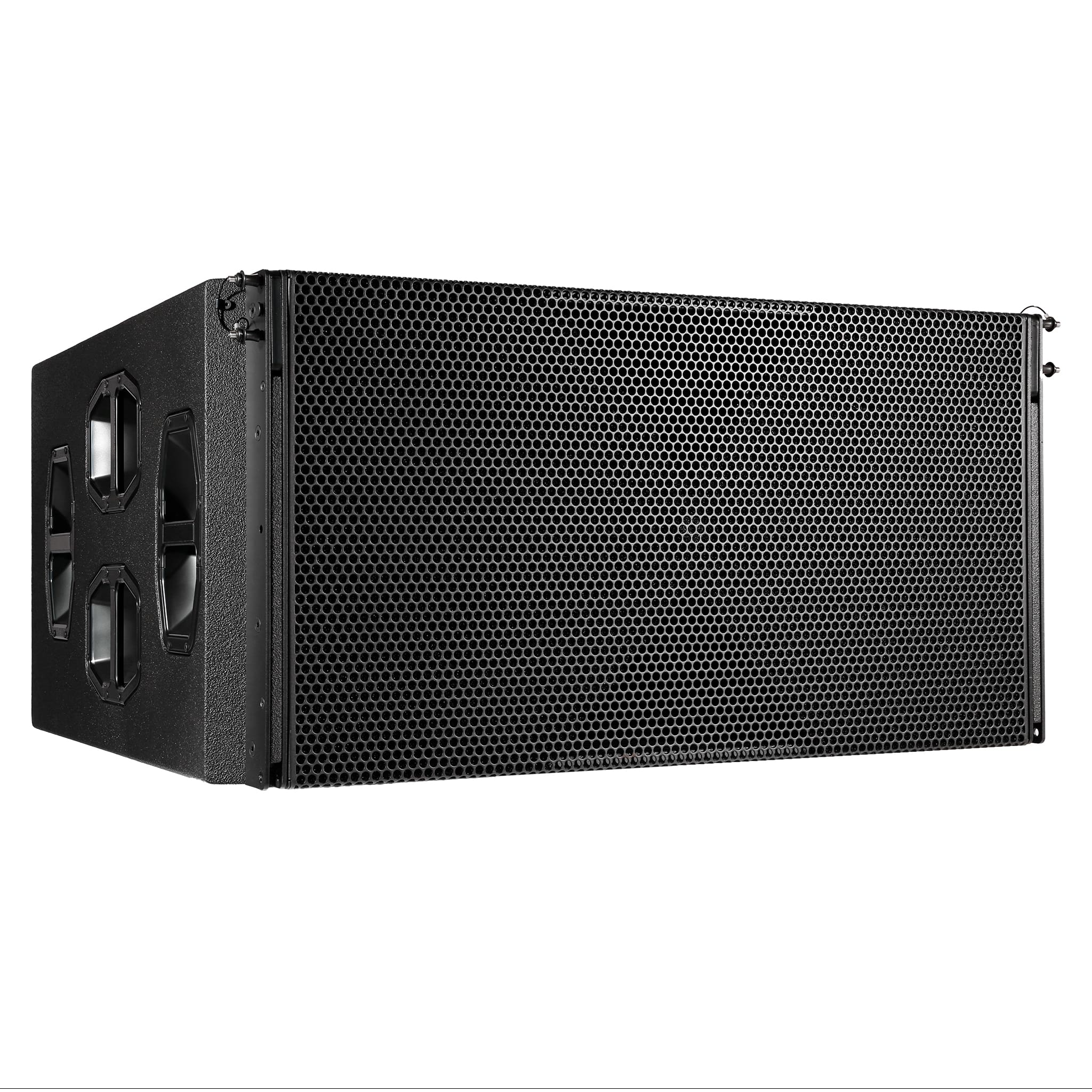

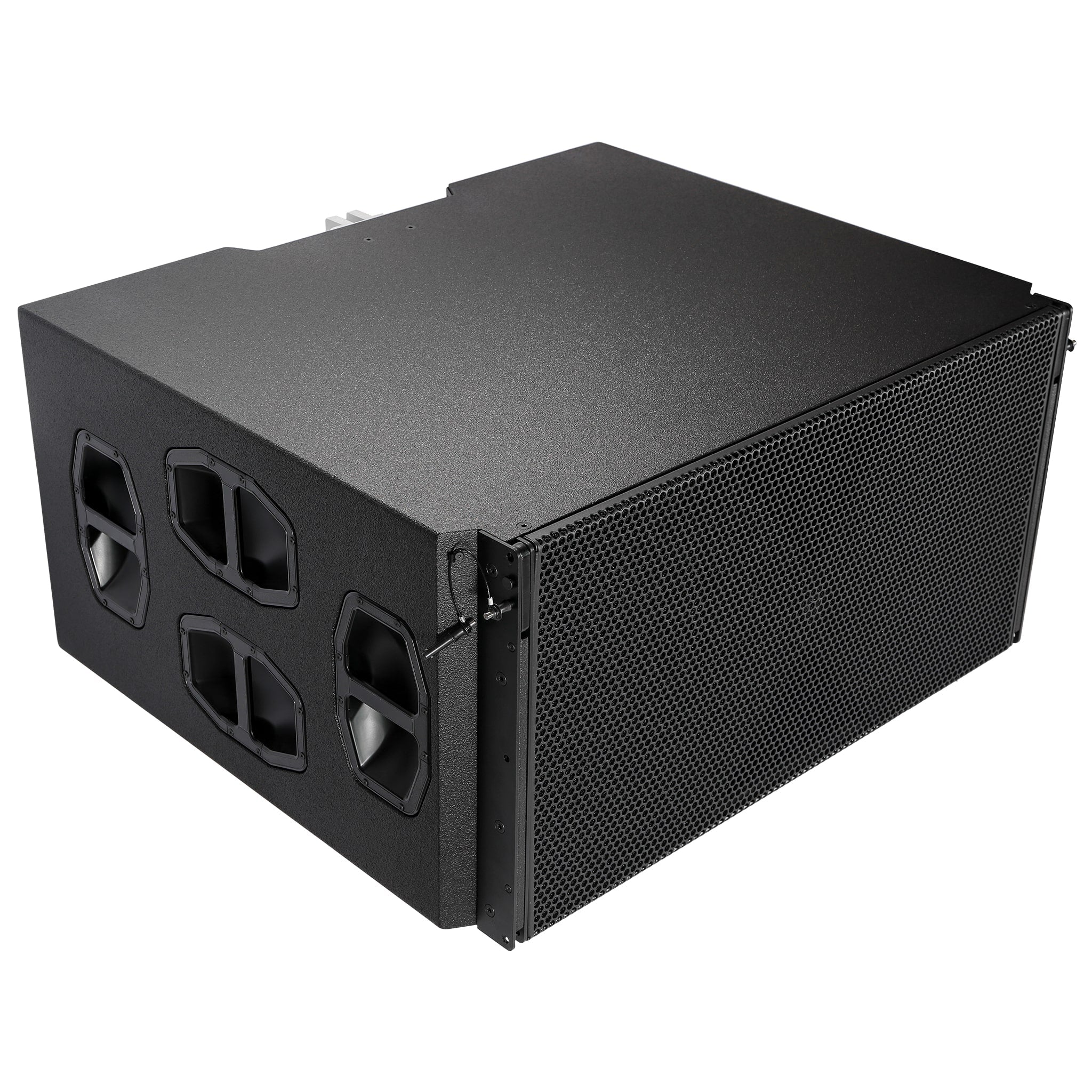

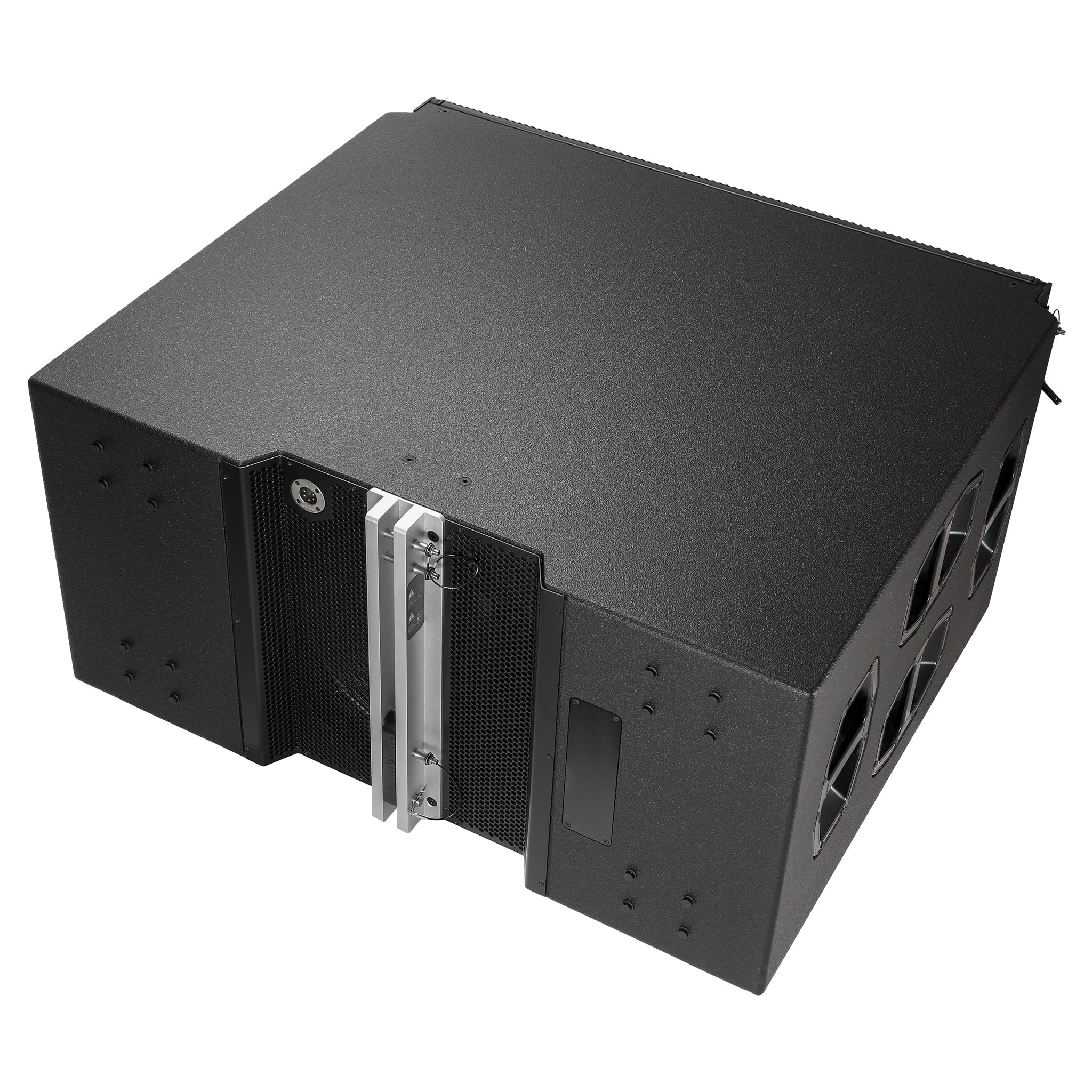

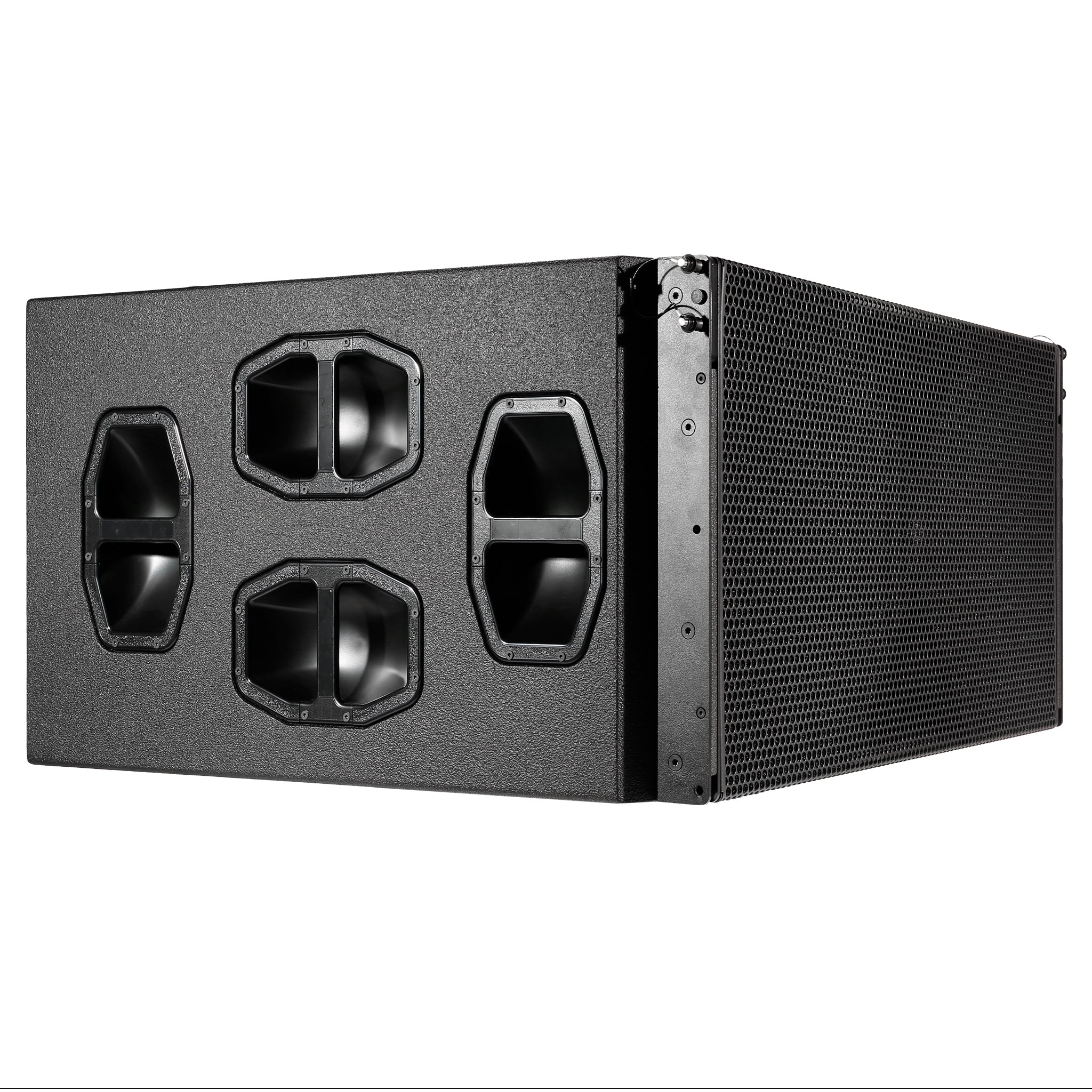

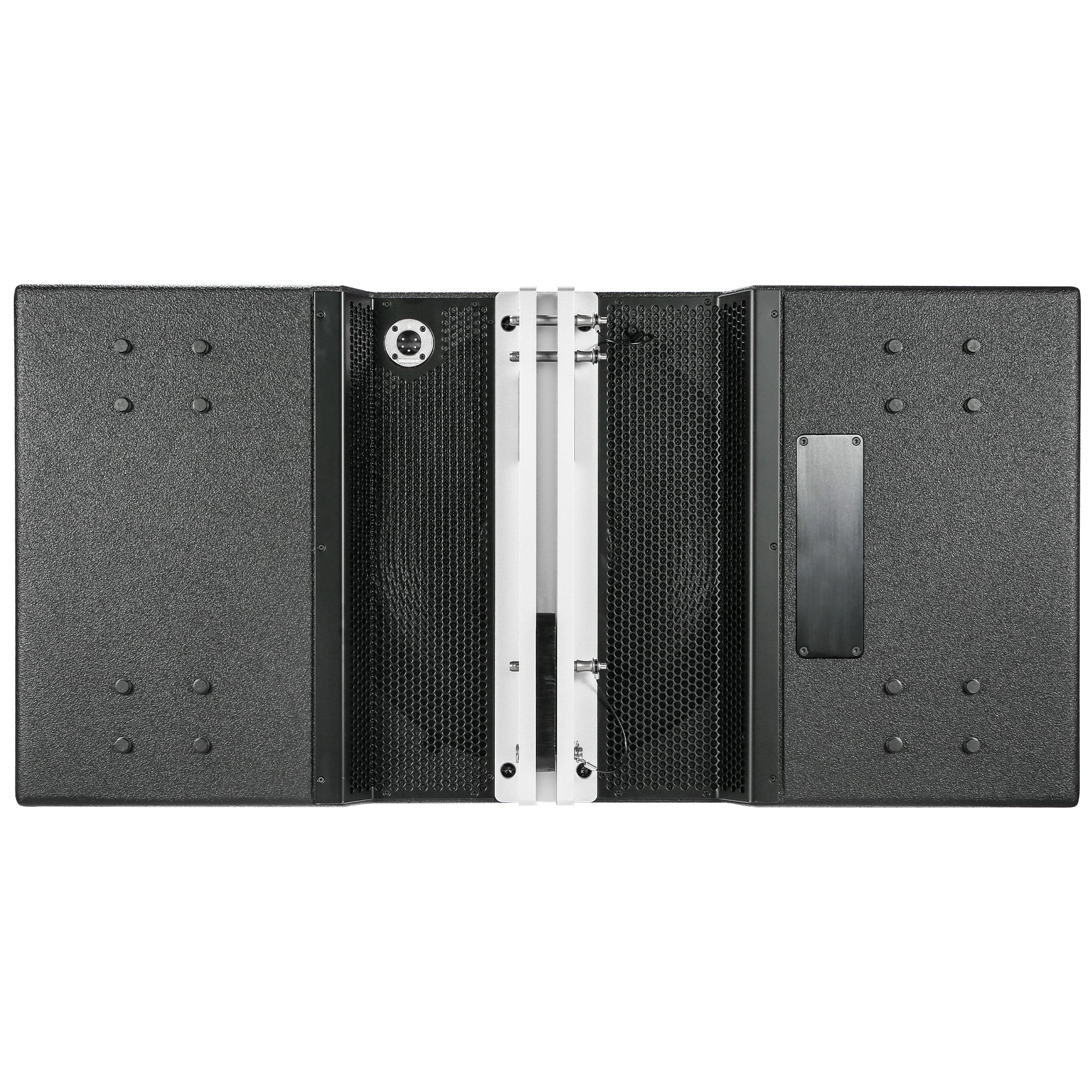

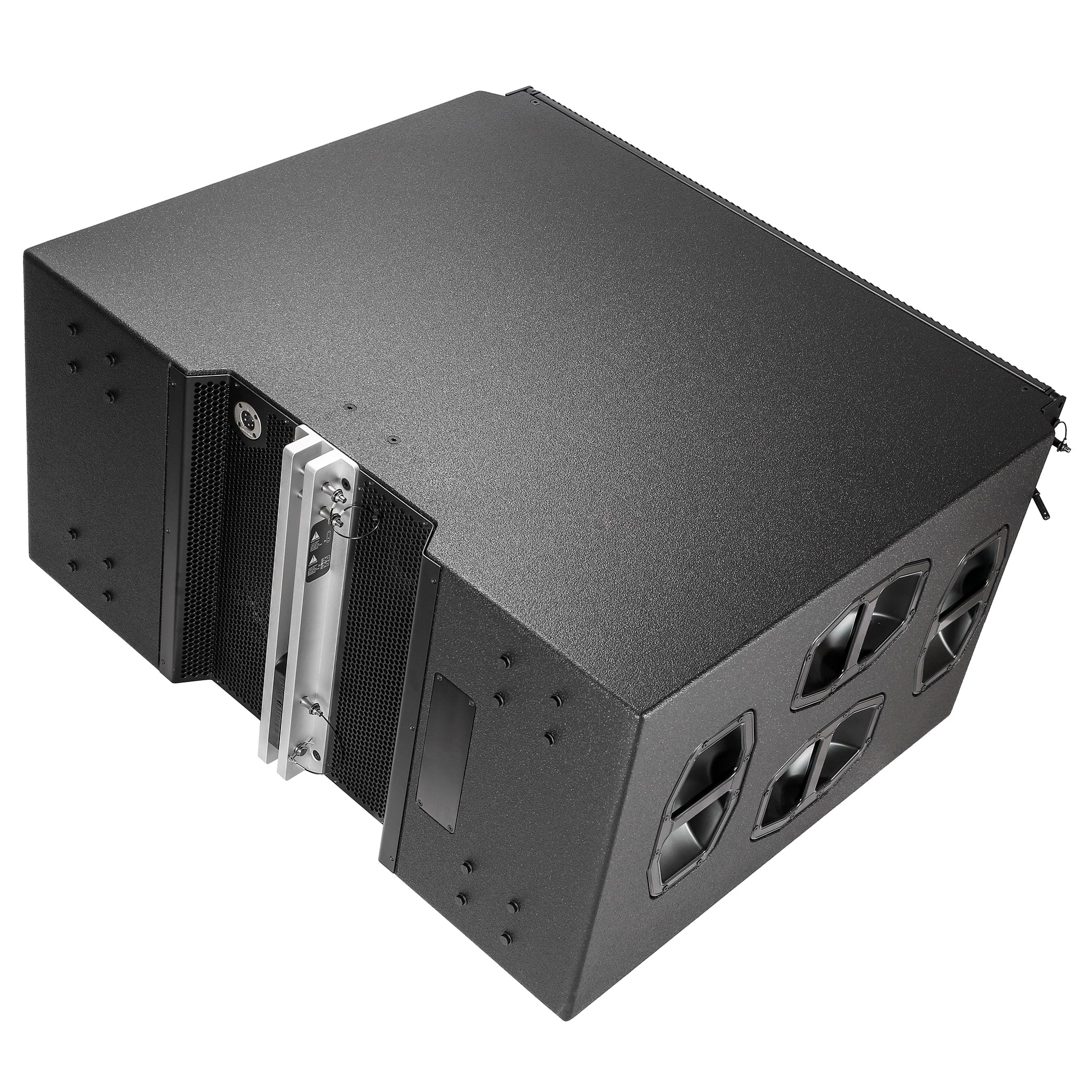

JSUB Large-Format Flyable Cardioid Subwoofer
JSUB Large-Format Flyable Cardioid Subwoofer is listed in the subwoofer systems category as a subwoofer system. The reference lists components: 3 x 18"; dispersion: Cardioid. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Frequency response (-5 dB standard)
- 32 - 100 Hz
- Weight
- 106 kg / 234 lb
- Frequency response (–5 dB INFRA mode)
- 32 - 70 Hz
Technical specifications
- Components
- 3 x 18"
- Dispersion
- Cardioid
- SPLmax
- 139 dB
- Frequency response (-5 dB standard)
- 32 - 100 Hz
- Frequency response (–5 dB INFRA mode)
- 32 - 70 Hz
- with 30D
- 138 dB SPL with D80:139 dB SPL
- Configuration
- Large format flyable cardioid subwoofer
- Nominal impedance
- 4 Ω (front) / 8 Ω (rear)
- Power handling capacity front (RMS/peak 10 ms)
- 800/3200 W
- Power handling capacity rear (RMS/peak 10 ms)
- 400/1600 W
- Components
- 3 x 18" driver
- Connections
- 1 x NLT4 Foptional 1 x NL8
Physical specifications
- Weight
- 106 kg / 234 lb
- Cabinets per D80
- 2
- Dimensions (H x W x D)
- 540 x 1100 x 9452/ 1063 mm21.3 x 43.3 x 37.23 / 41.8"
Compatibility and deployment
Function / configuration: Loudspeaker data
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Components | 3 x 18" |
|---|---|
| Dispersion | Cardioid |
| SPLmax | 139 dB |
| Weight | 106 kg / 234 lb |
| Frequency response (-5 dB standard) | 32 - 100 Hz |
| Frequency response (–5 dB INFRA mode) | 32 - 70 Hz |
| with 30D | 138 dB SPL with D80:139 dB SPL |
| Cabinets per D80 | 2 |
| Configuration | Large format flyable cardioid subwoofer |
| Nominal impedance | 4 Ω (front) / 8 Ω (rear) |
| Power handling capacity front (RMS/peak 10 ms) | 800/3200 W |
| Power handling capacity rear (RMS/peak 10 ms) | 400/1600 W |
| Components | 3 x 18" driver |
| Connections | 1 x NLT4 Foptional 1 x NL8 |
| Dimensions (H x W x D) | 540 x 1100 x 9452/ 1063 mm21.3 x 43.3 x 37.23 / 41.8" |
| Weight106 | kg 234 lb |
Downloads
| Title | File type | Download |
|---|---|---|
| YL JSUB Selected Technical DataEnglish | PDF74 KB |
System accessories
YL LightSystem Accessories
Rigging & Accessories
E7441
E7441 is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightSystem Accessories
Rigging & Accessories
Z5305
Z5305 is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightSystem Accessories
Rigging & Accessories
Z5300
Z5300 is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightSystem Accessories
Rigging & Accessories
E7919
E7919 is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightSystem Accessories
Rigging & Accessories
Z5303
Z5303 is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightSystem Accessories
Rigging & Accessories
J-SUB-CHARIOT - Transport cart for 2 × J-SUB
J-SUB-CHARIOT - Transport cart for 2 × J-SUB is listed in the rigging & accessories category as a audio rigging or accessory product. The reference lists dimensions (l × w × h): approx. 1200 × 850 × 350 mm; weight: ~50 kg. Confirm the exact model, current specifications and supply details before use.
YL LightSystem Accessories
Rigging & Accessories
J-SUB-CHARIOTCOV - Protective cover for 2 × J-SUB on J-SUB-CHARIOT
J-SUB-CHARIOTCOV - Protective cover for 2 × J-SUB on J-SUB-CHARIOT is listed in the rigging & accessories category as a audio rigging or accessory product. The reference lists dimensions: approx. 1200 × 850 × 950 mm; weight: ~10 kg. Confirm the exact model, current specifications and supply details before use.
