Product identification
- Model
- C-Max 4112 Full-Range Nearfield Point Source Loudspeaker
- Product category
- Point Source Loudspeakers

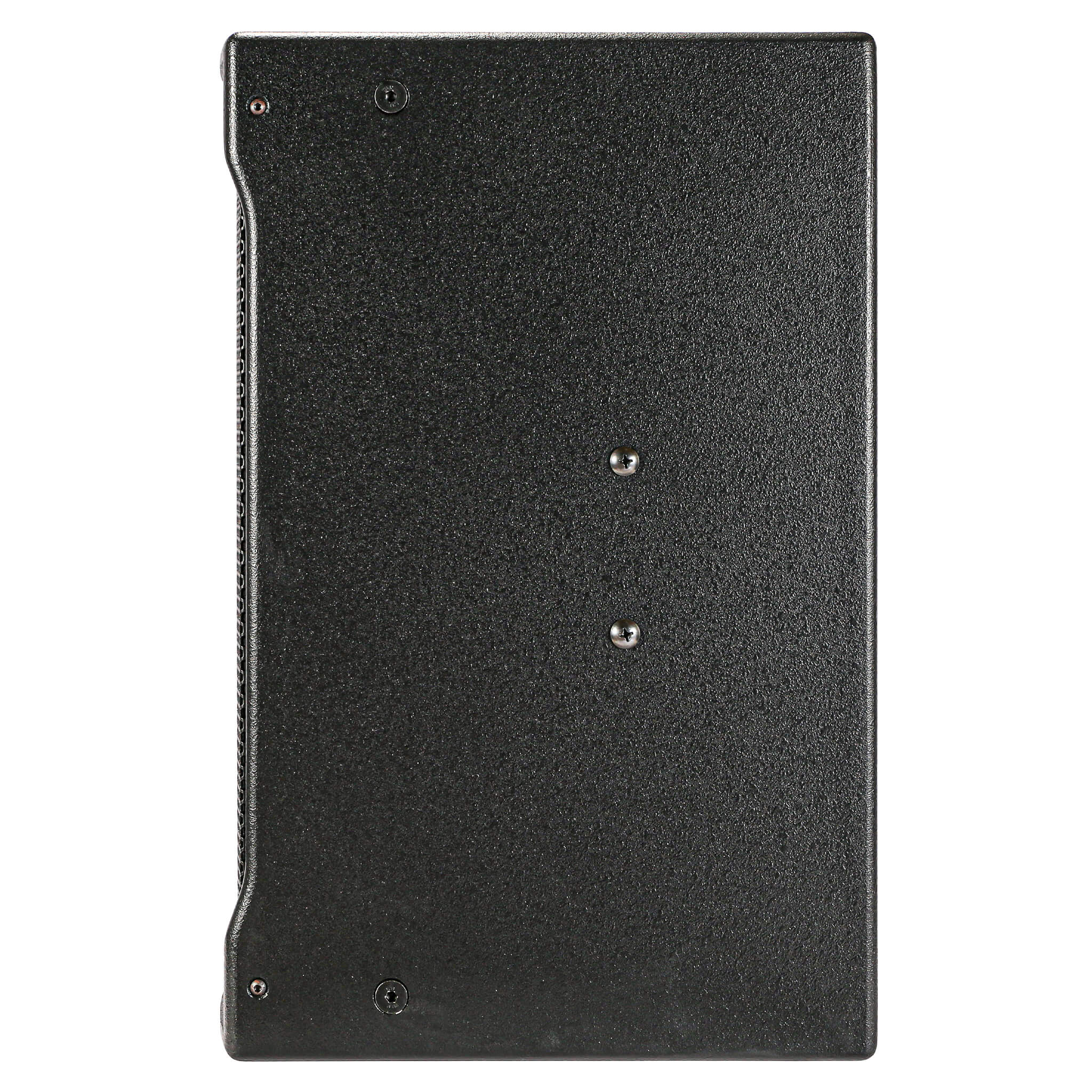

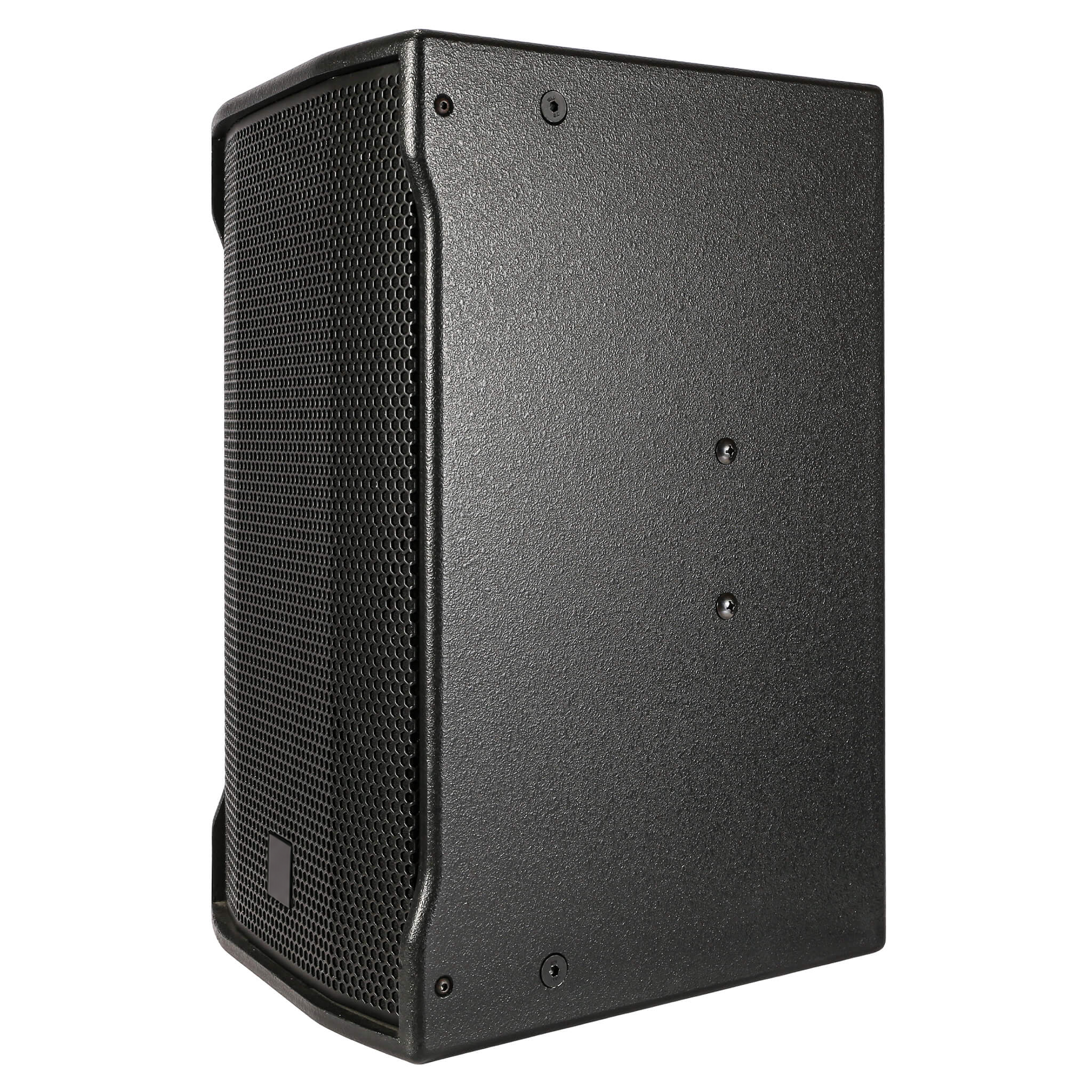

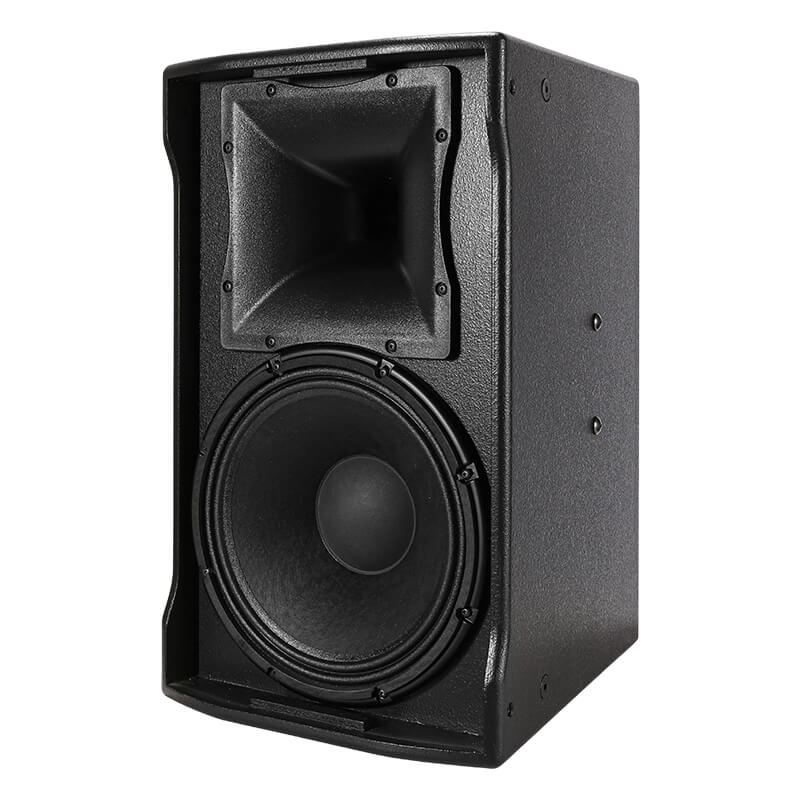

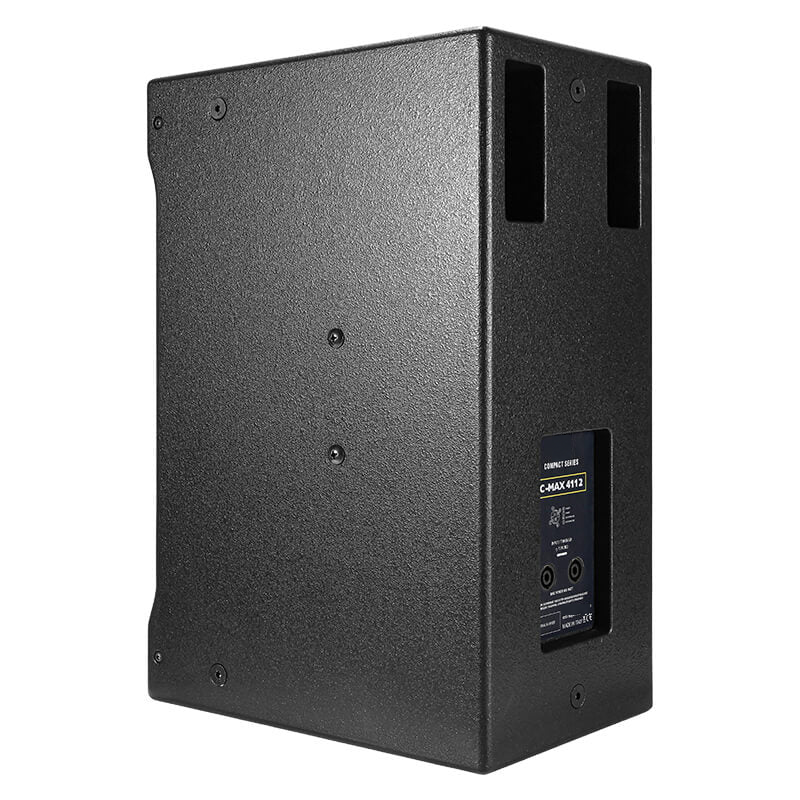

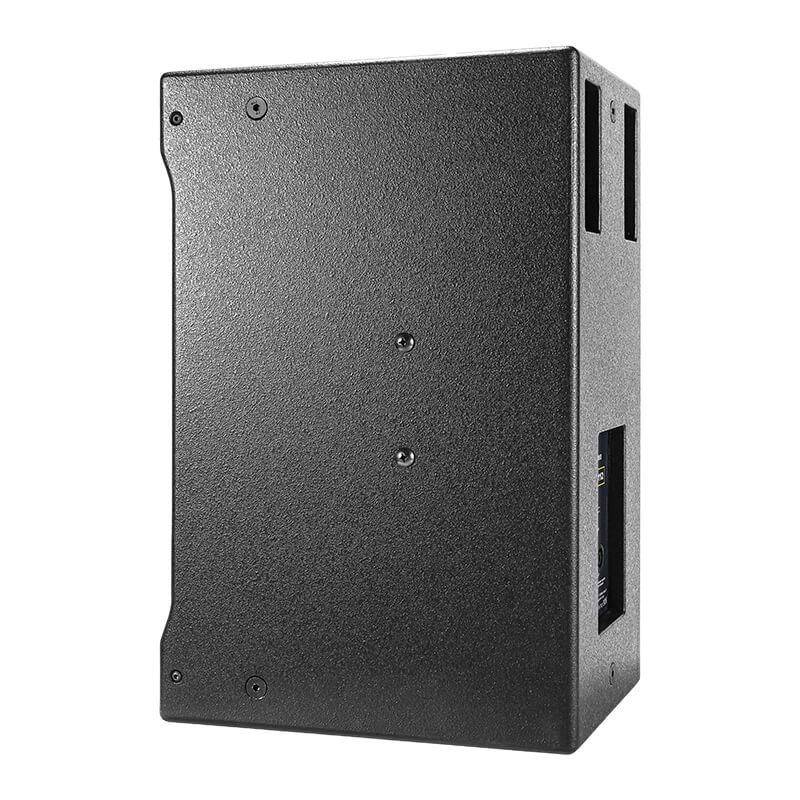

C-Max 4112 Full-Range Nearfield Point Source Loudspeaker
C-Max 4112 Full-Range Nearfield Point Source Loudspeaker is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists max spl: 130 dB; power handling: 800 WATT program. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Max SPL
- 130 dB
- Frequency Range
- 60 – 20000 Hz
- Weight
- 24.5 kg / 54.01 lbs
Technical specifications
- Max SPL
- 130 dB
- Power handling
- 800 WATT program
- Frequency Range
- 60 – 20000 Hz
- Amplification
- Full Range
- Nominal Impedance
- 8 ohm
- Peak Power Handling
- 1600 W PEAK
- Recommended Amplifier
- 800 W
- Protections
- Bulb lamp
- Crossover Frequencies
- 1800 Hz

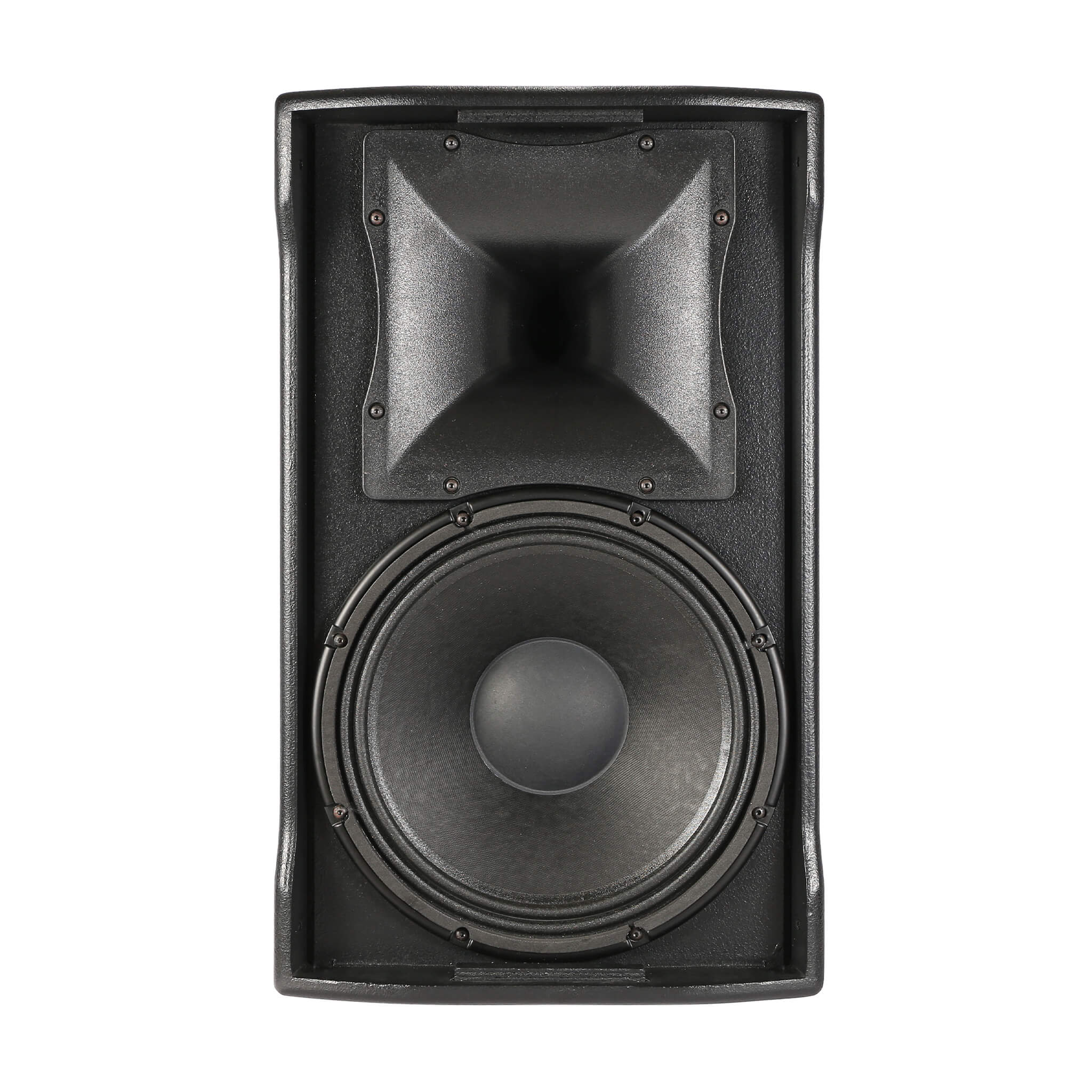

- Compression Driver
- 1 x 1.0'' neo, 1.75'' v.c
- Woofer
- 12'', 3.0'' v.c

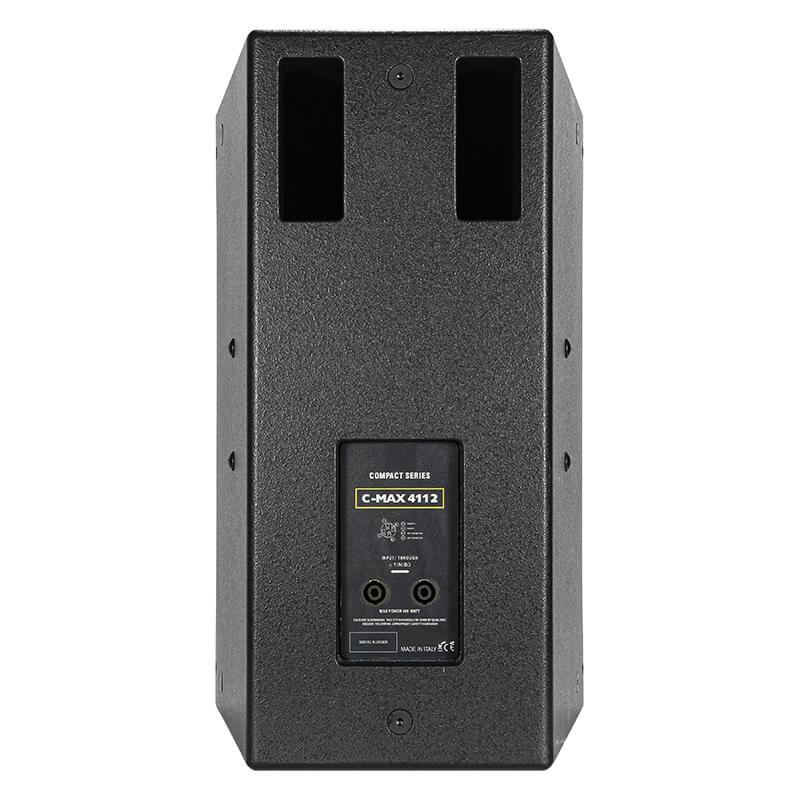

- Input connectors
- Speakon NL4
- Output connectors
- Speakon NL4
- Hardware
- 16 x M10

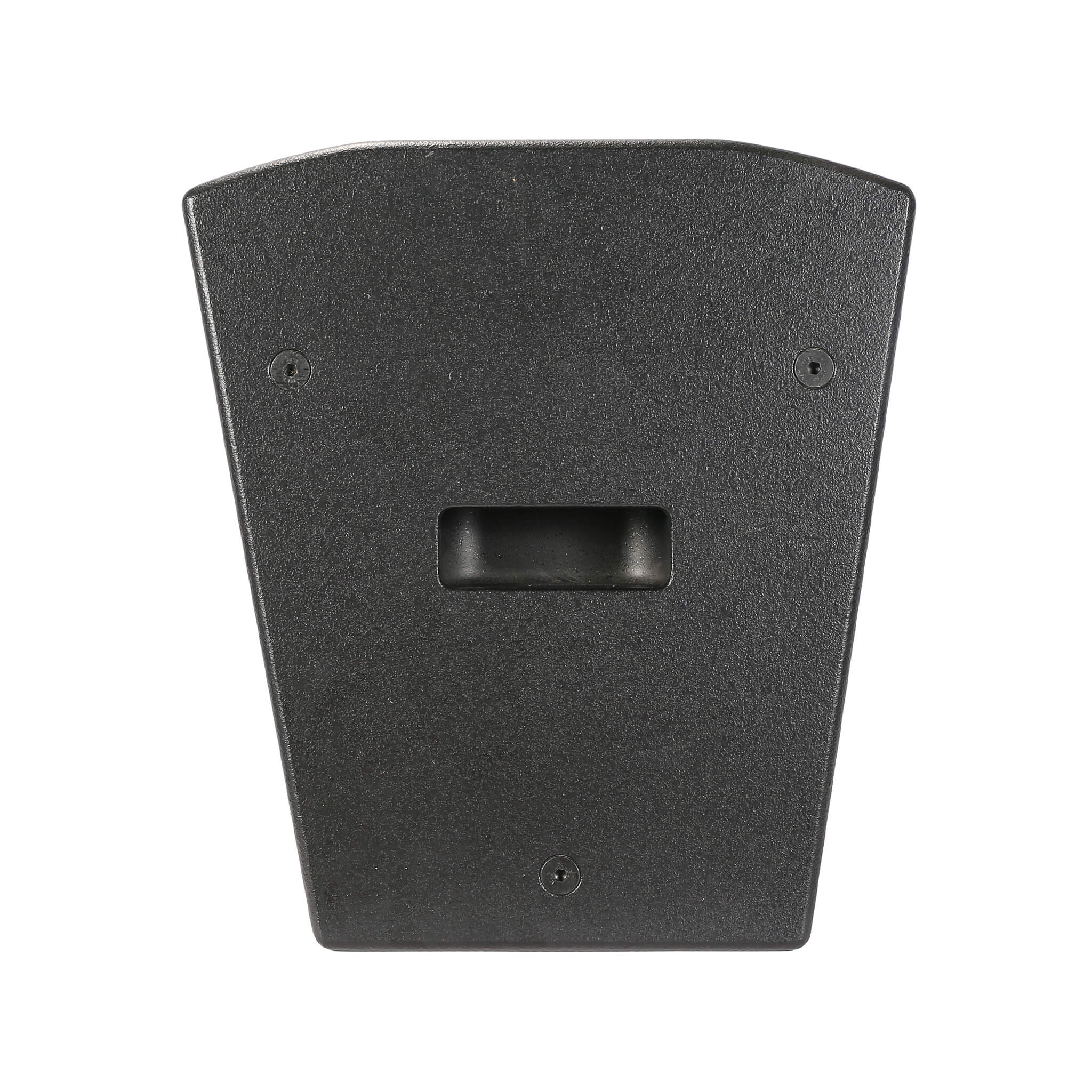

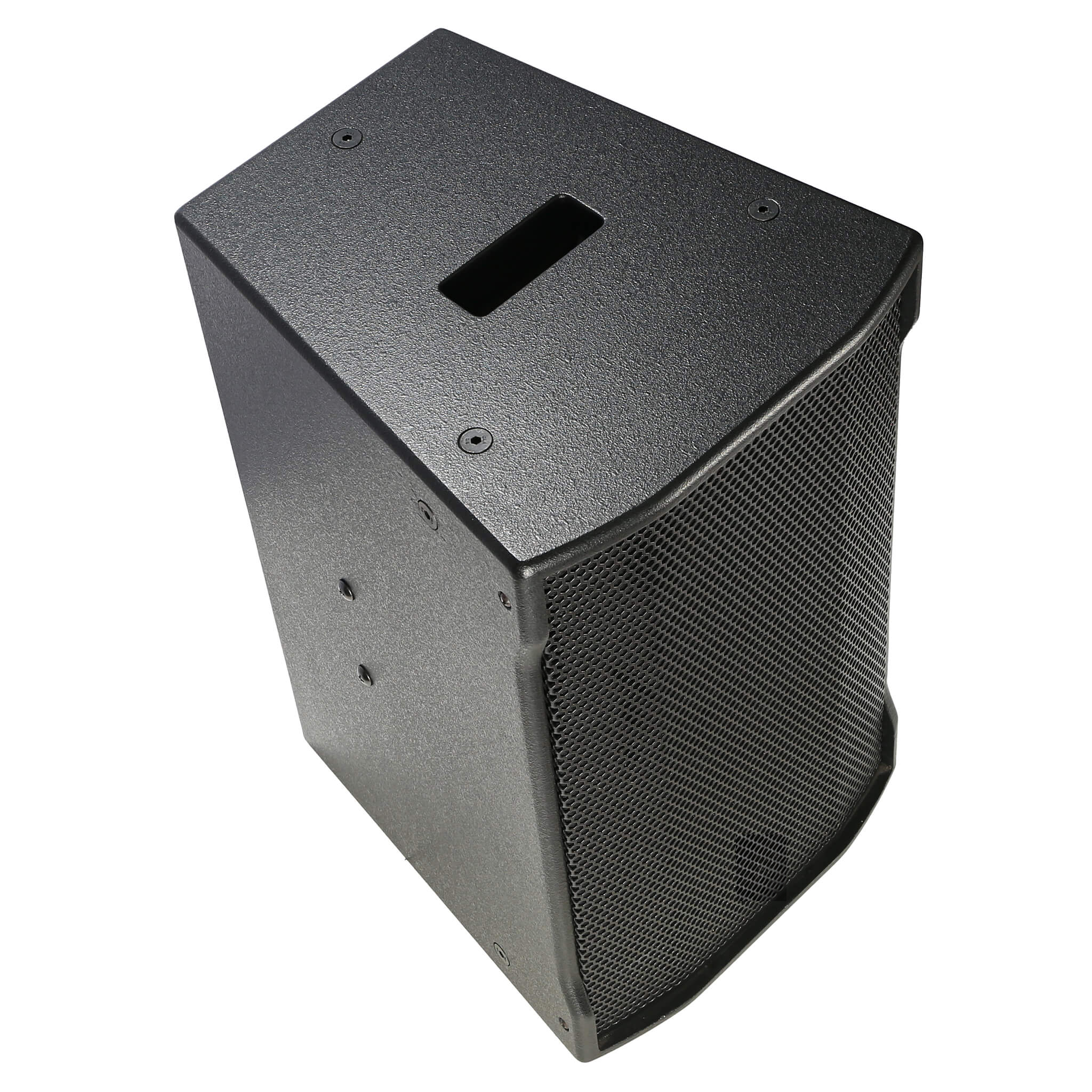

- Handles
- 1 Top
- Compression Driver
- 1 x 1.0'' neo, 1.75''
Physical specifications
- Cabinet/Case Material
- Baltic birch plywood

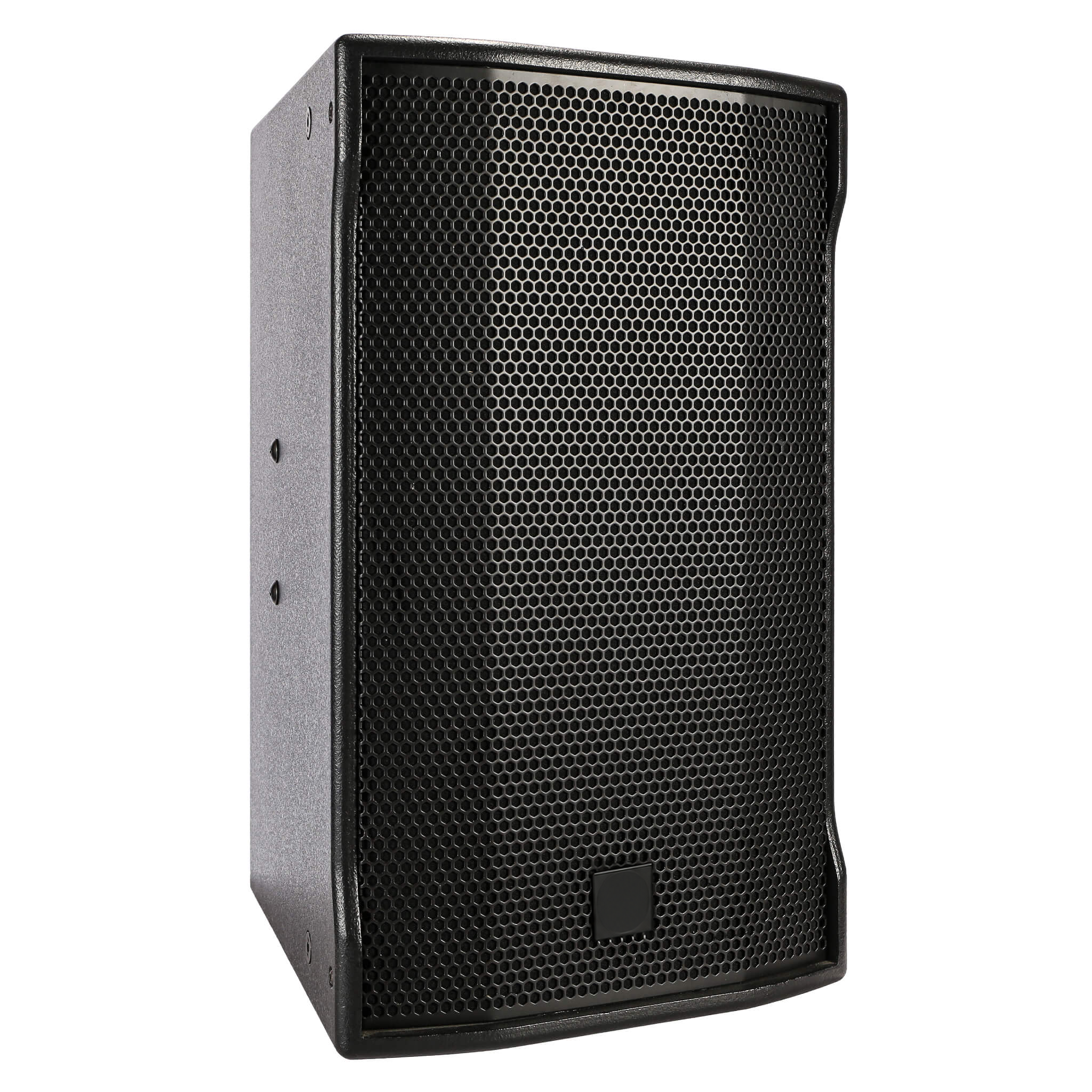

- Grille
- Steel
- Color
- Black
- Height
- 600 mm / 23.62 inches
- Width
- 363 mm / 14.29 inches
- Depth
- 407 mm / 16.02 inches
- Weight
- 24.5 kg / 54.01 lbs
- Package Height
- 675 mm / 26.57 inches
- Package Width
- 465 mm / 18.31 inches
- Package Depth
- 425 mm / 16.73 inches
- Package Weight
- 28 kg / 61.73 lbs
Compatibility and deployment

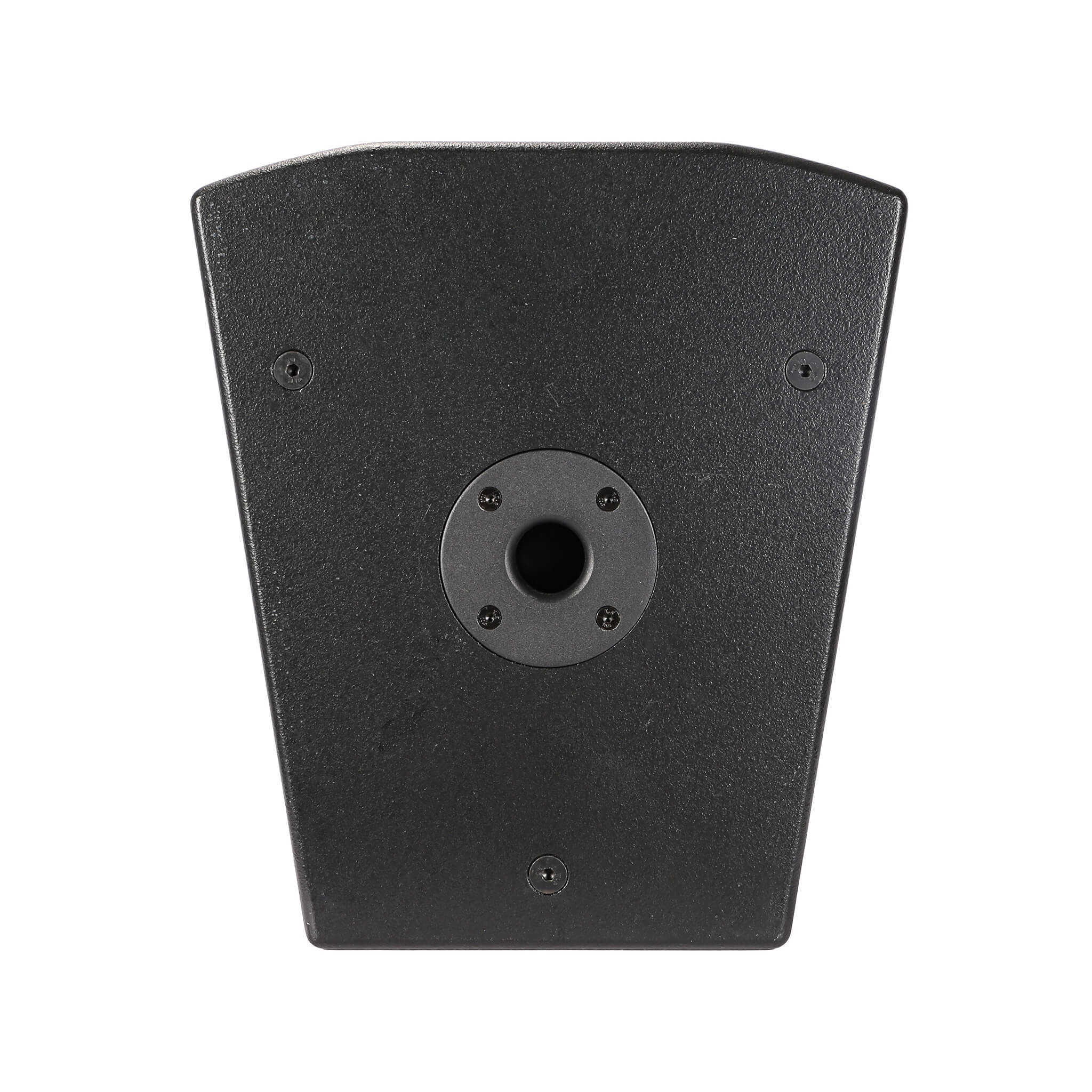

- Pole mount/Cap
- Yes
- Function / configuration
- 130 dB Max SPL
- Function / configuration
- 60 – 20000 Hz Frequency Range
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Max SPL | 130 dB |
|---|---|
| Power handling | 800 WATT program |
| Frequency Range | 60 – 20000 Hz |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 400 W |
| Peak Power Handling | 1600 W PEAK |
| Recommended Amplifier | 800 W |
| Protections | Bulb lamp |
| Crossover Frequencies | 1800 Hz |
| Compression Driver | 1 x 1.0'' neo, 1.75'' v.c |
| Woofer | 12'', 3.0'' v.c |
| Input connectors | Speakon NL4 |
| Output connectors | Speakon NL4 |
| Safety agency | CE compliant |
| Cabinet/Case Material | Baltic birch plywood |
| Hardware | 16 x M10 |
| Handles | 1 Top |
| Pole mount/Cap | Yes |
| Grille | Steel |
| Color | Black |
| Height | 600 mm / 23.62 inches |
| Width | 363 mm / 14.29 inches |
| Depth | 407 mm / 16.02 inches |
| Weight | 24.5 kg / 54.01 lbs |
| Package Height | 675 mm / 26.57 inches |
| Package Width | 465 mm / 18.31 inches |
| Package Depth | 425 mm / 16.73 inches |
| Package Weight | 28 kg / 61.73 lbs |
