Product identification
- Model
- B218SUB Dual 18-Inch High-Output Subwoofer
- Product category
- Subwoofer Systems

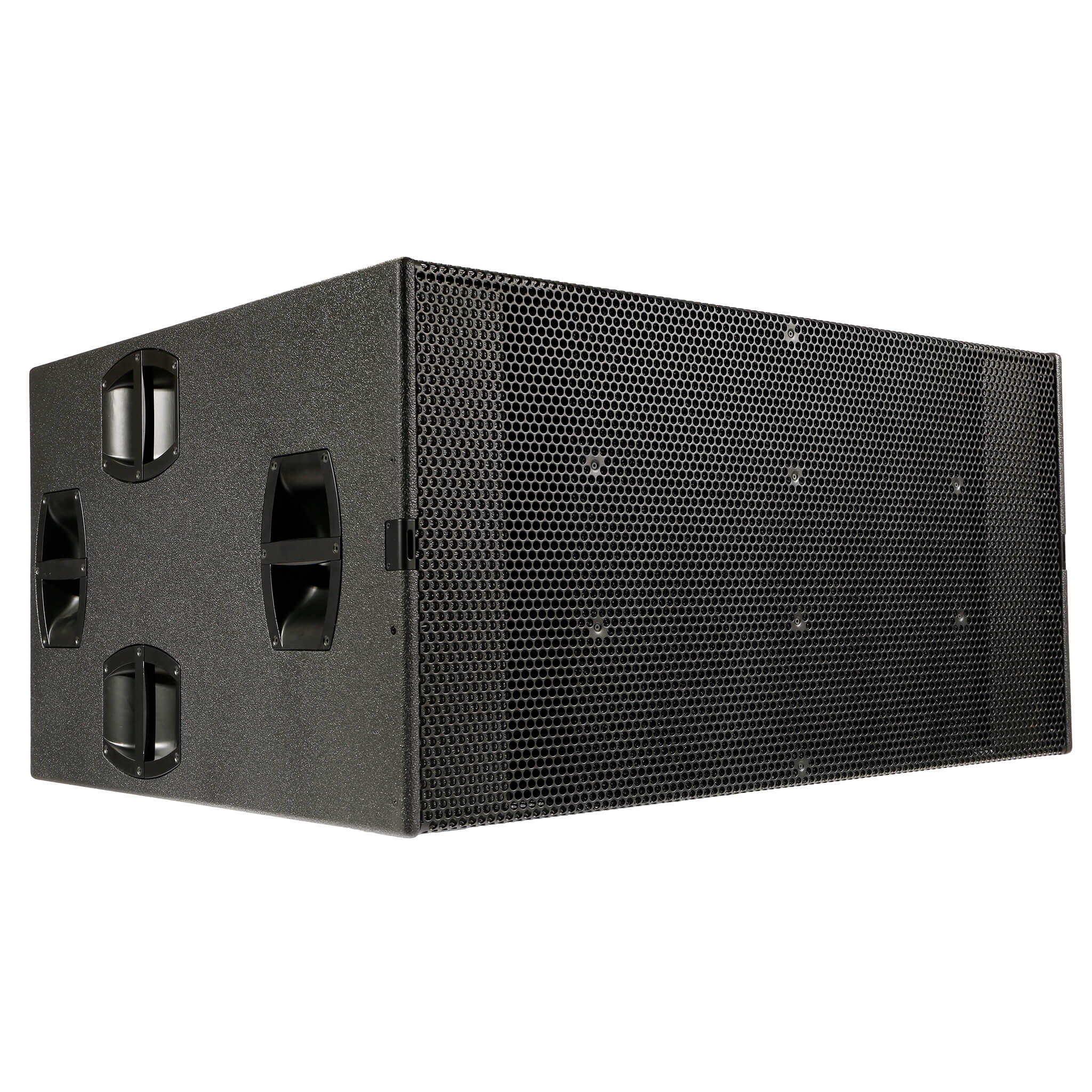

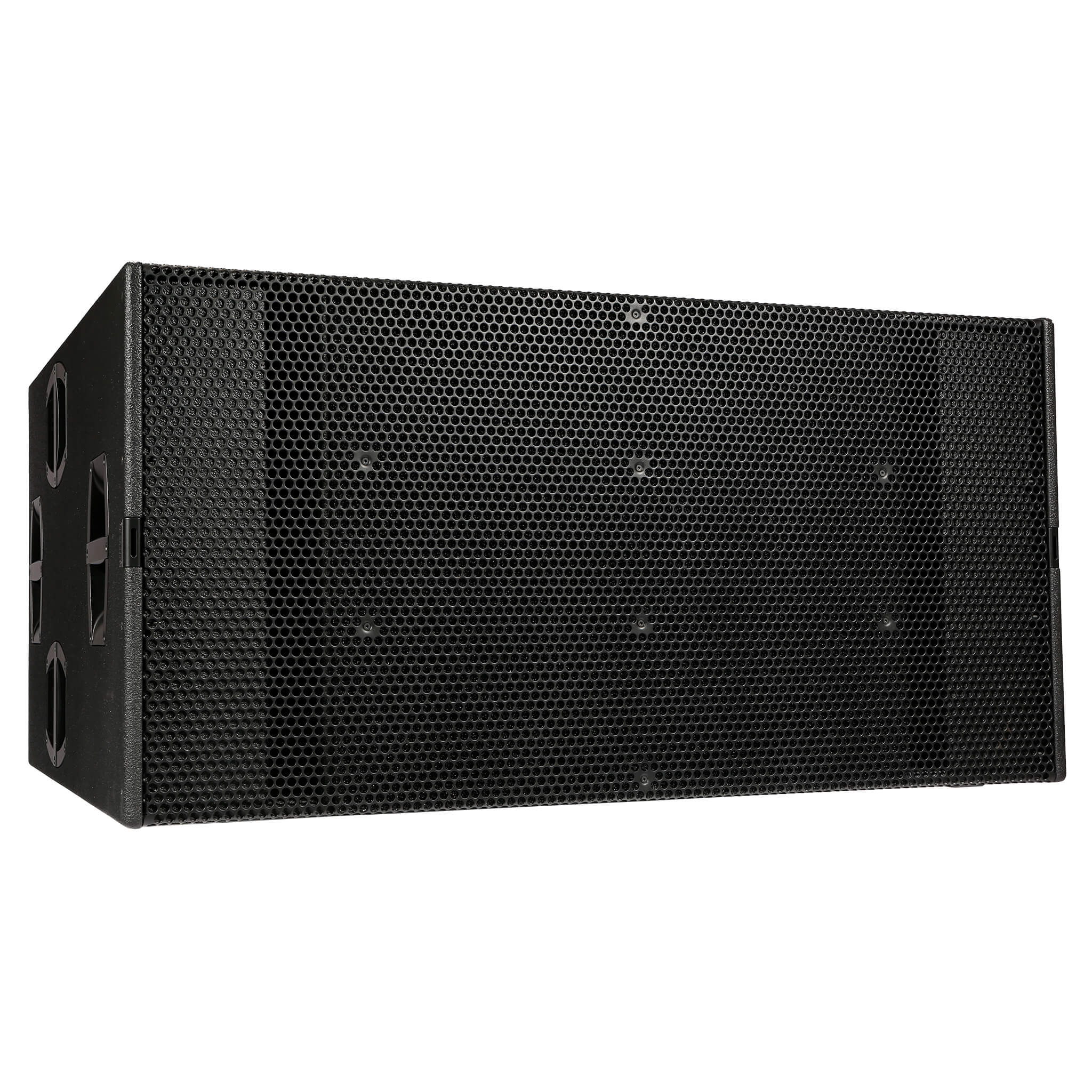

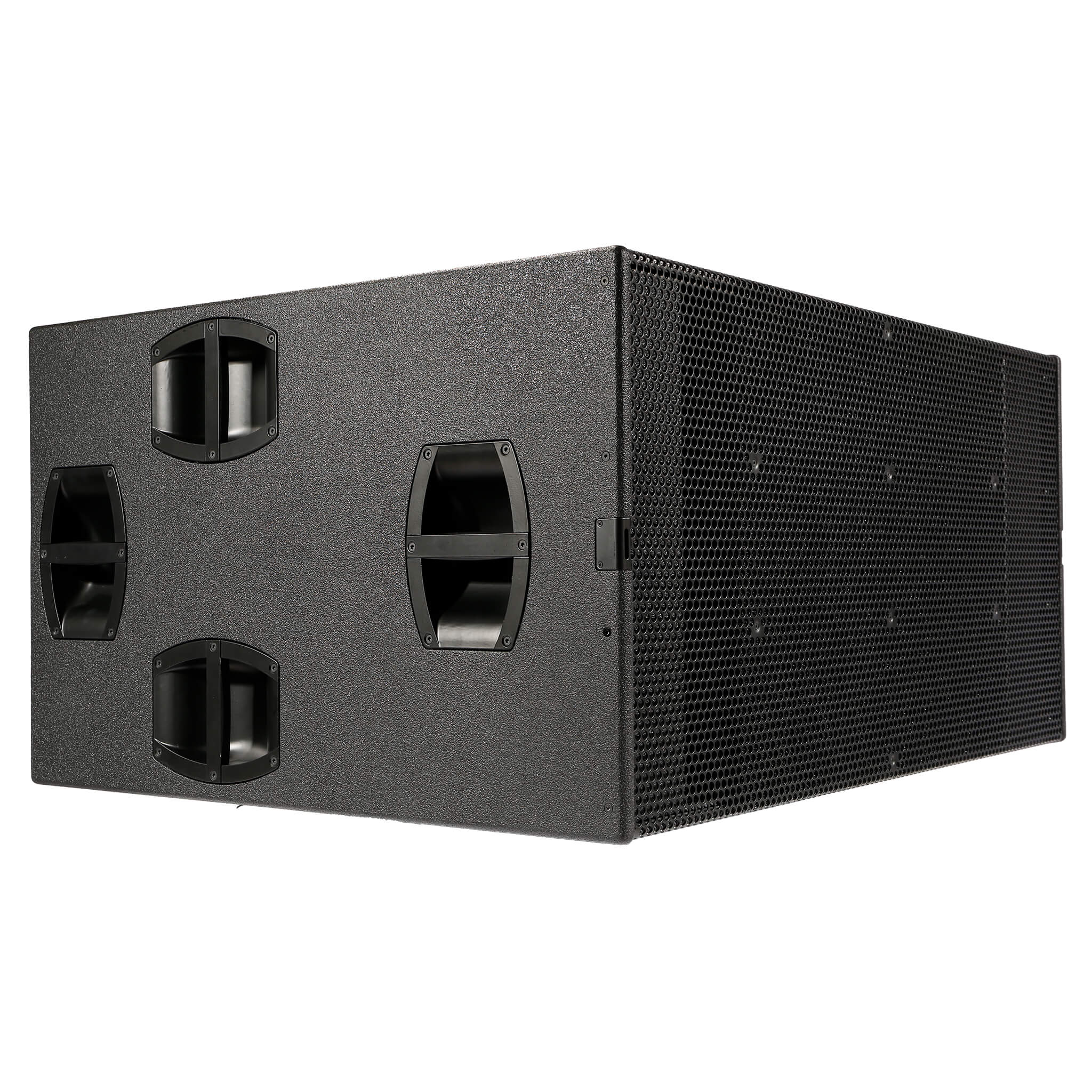

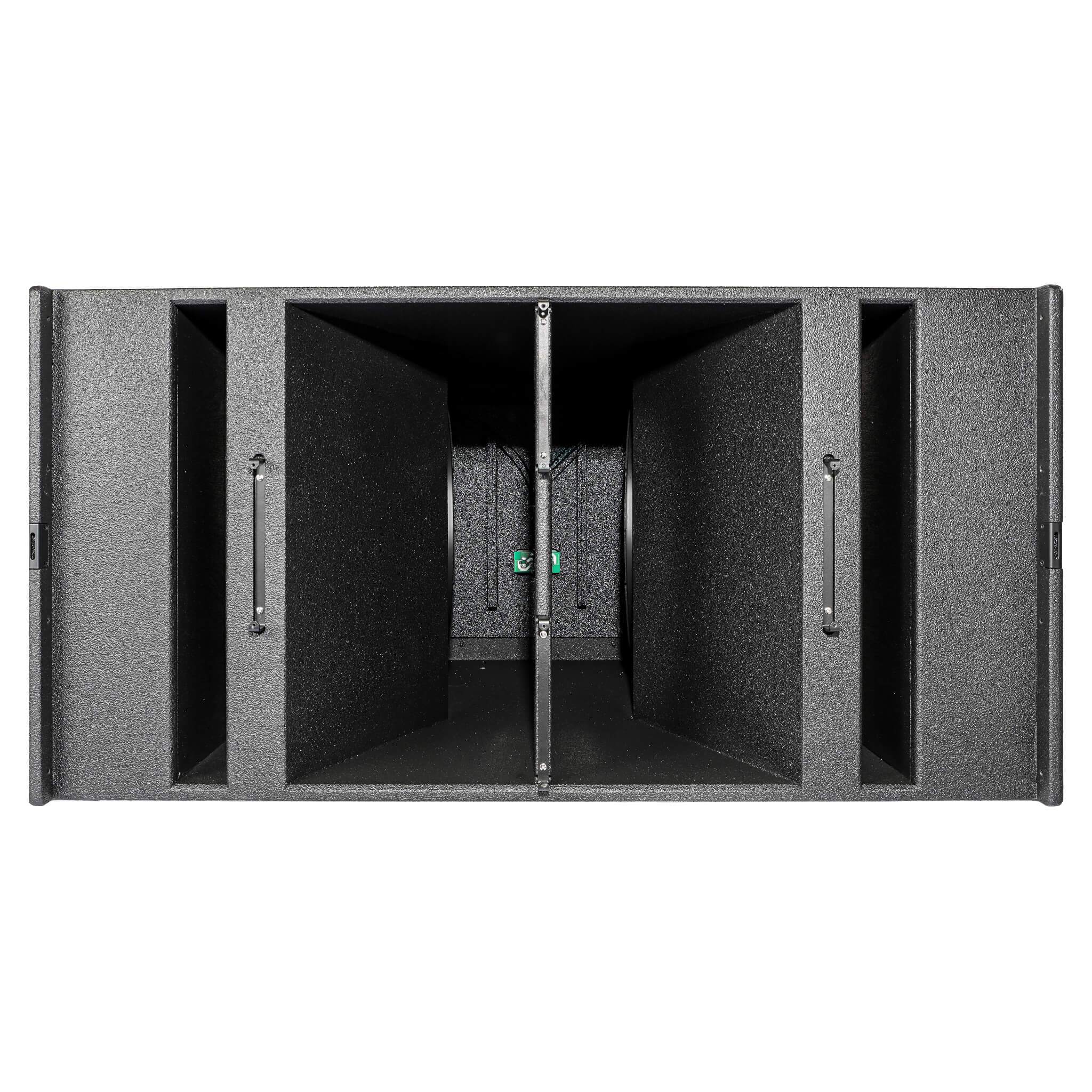

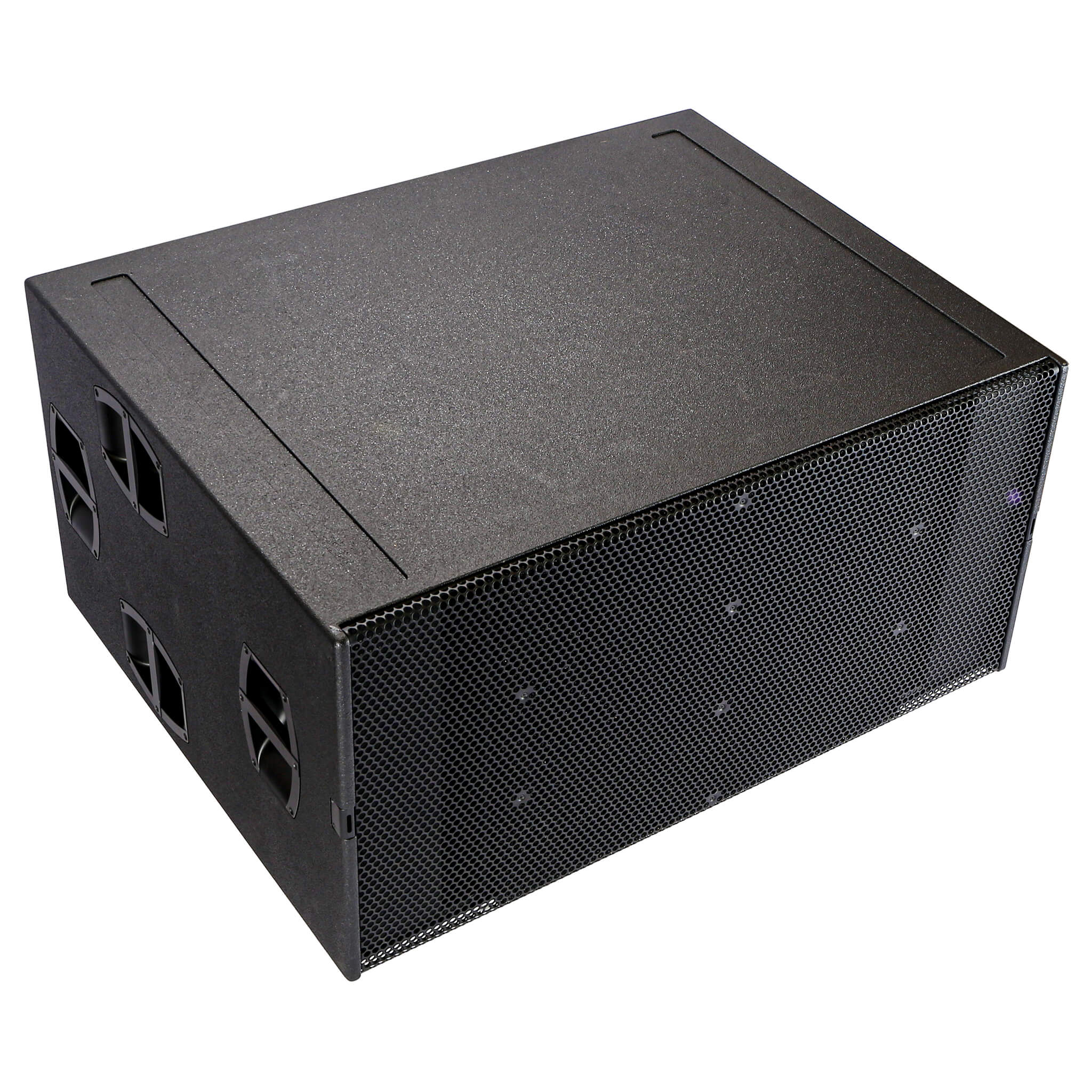

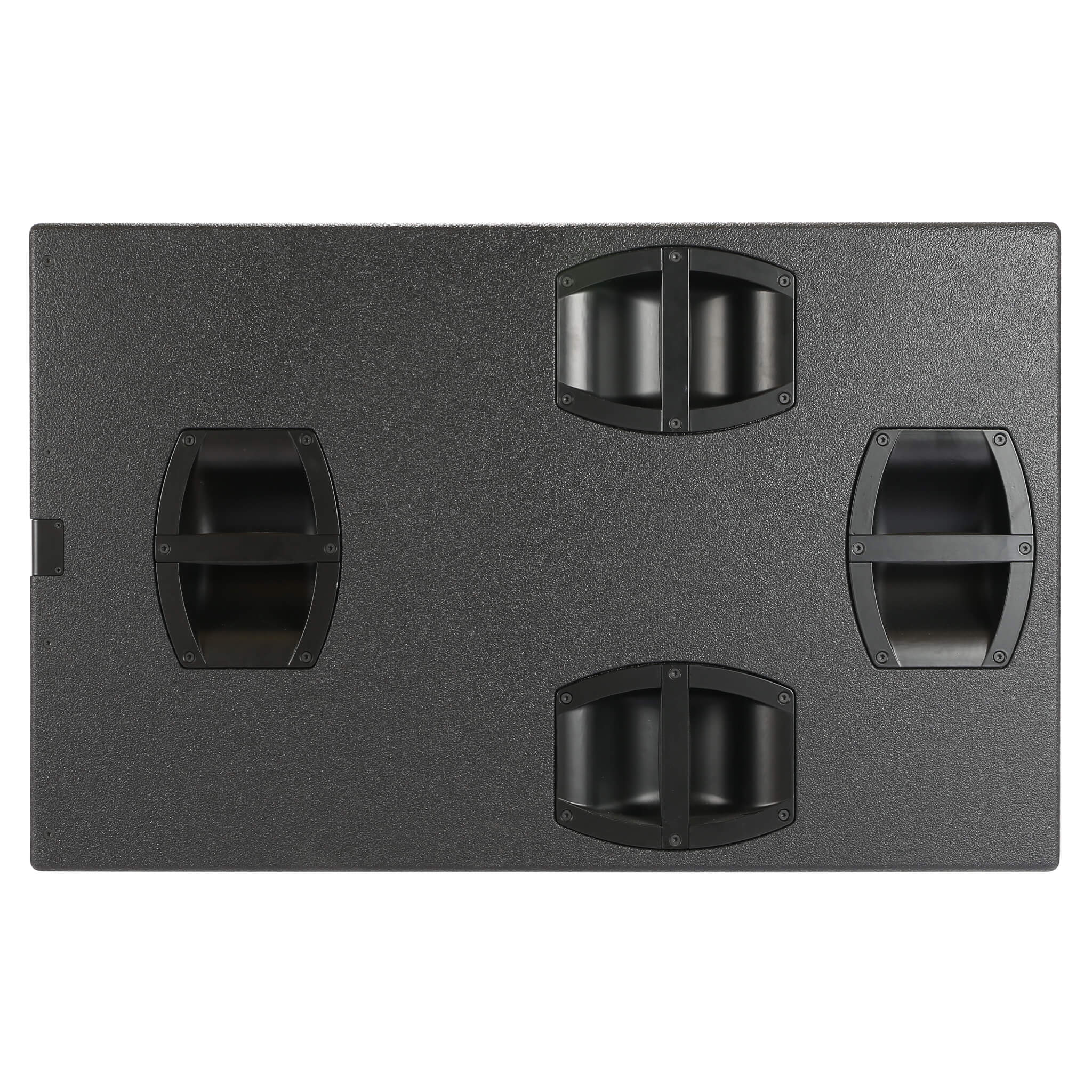

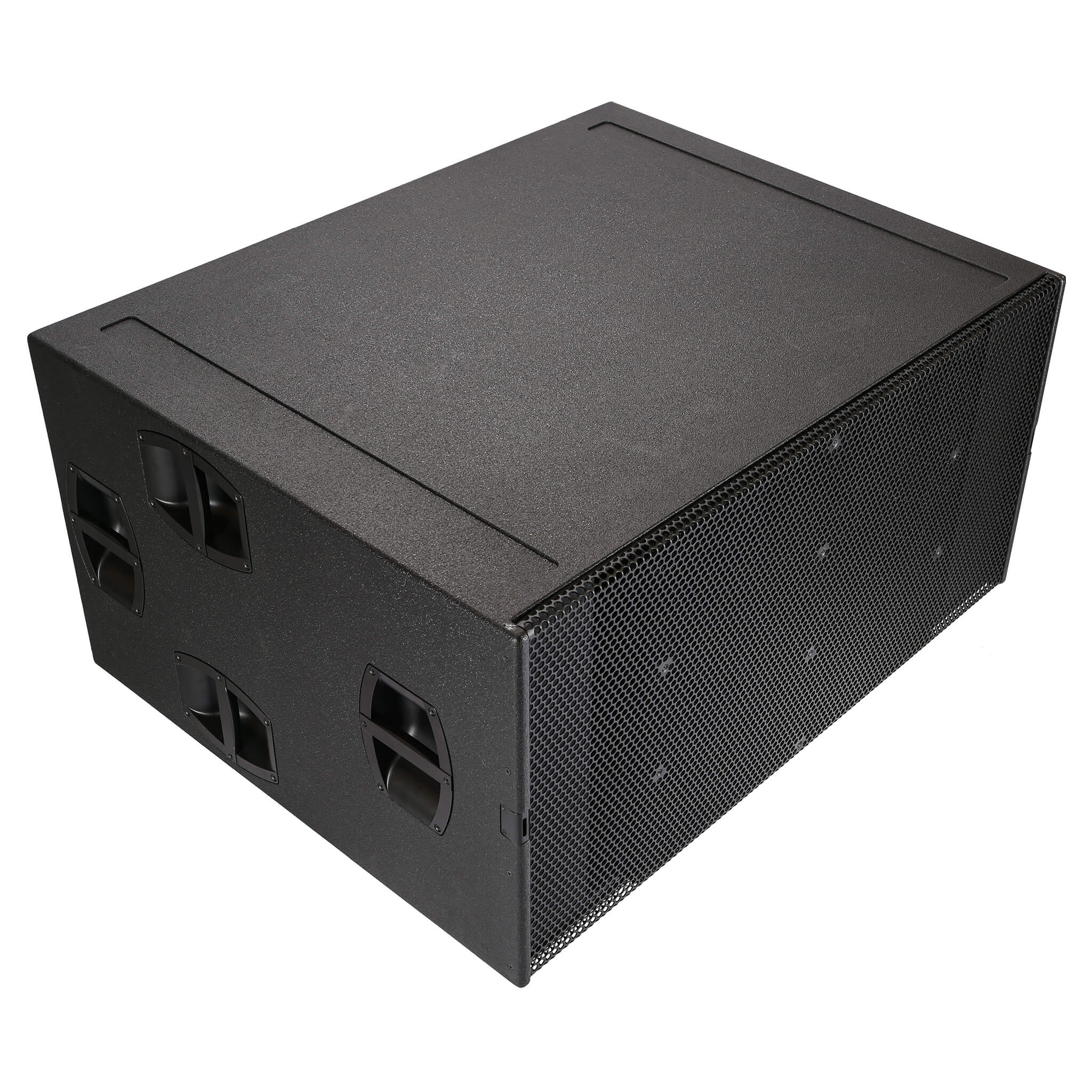

B218SUB Dual 18-Inch High-Output Subwoofer
B218SUB Dual 18-Inch High-Output Subwoofer is listed in the subwoofer systems category as a subwoofer system. The reference lists max spl: 143 dB; bandwidth (-5 db): 37 Hz – 90 Hz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Max SPL
- 143 dB
- Bandwidth (-5 dB)
- 37 Hz – 90 Hz
- Weight
- 106 kg (234 lb)
Technical specifications
- Configuration
- High-output subwoofer, dual 18″ direct-radiating
- Max SPL
- 143 dB
- Bandwidth (-5 dB)
- 37 Hz – 90 Hz
- LF transducers
- 2 × 18″ front-facing woofers
- Directivity
- Omni (direct-radiating, cardioid pattern possible when arrayed)
- Nominal Impedance
- 4 Ω
- Power Handling
- 1600 W AES / 3200 W Program / 6400 W Peak
- Frequency response (-5 dB standard)
- 37 Hz - 90 Hz
- Frequency response (–5 dB INFRA mode)
- 32 Hz - 68 Hz
- Max. sound pressure1 with D20/30D
- 140 dB with D40/D80/40D:143 dB
- Configuration
- High performance subwoofer intended for ground stacked applications
- Power handling capacity (RMS/peak 10 ms)
- 1000/4000 W
- Components
- 2 x 18" driver with neodymium magnet
- Connections
- 2 x NLT4 F/M
- Transducers
- LF: 2 × 18″ front-facing woofers
- Configuration
- High performance subwoofer intended for
Physical specifications
- Weight
- 117 kg / 258 lb
- Dimensions (H × W × D)
- 580 × 1220 × 770 mm
Compatibility and deployment
- Function / configuration
- Loudspeaker data
- Function / configuration
- 23 x 45.7 x 36.2 / 41.2”
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Configuration | High-output subwoofer, dual 18″ direct-radiating |
|---|---|
| Max SPL | 143 dB |
| Bandwidth (-5 dB) | 37 Hz – 90 Hz |
| LF | 2 × 18″ front-facing woofers |
| Weight | 117 kg / 258 lb |
| Directivity | Omni (direct-radiating, cardioid pattern possible when arrayed) |
| Dimensions (H × W × D) | 580 × 1220 × 770 mm |
| Nominal Impedance | 4 Ω |
| Power Handling | 1600 W AES / 3200 W Program / 6400 W Peak |
| Frequency response (-5 dB standard) | 37 Hz - 90 Hz |
| Frequency response (–5 dB INFRA mode) | 32 Hz - 68 Hz |
| Max. sound pressure1 with D20/30D | 140 dB with D40/D80/40D:143 dB |
| Configuration | High performance subwoofer intended for ground stacked applications |
| Power handling capacity (RMS/peak 10 ms) | 1000/4000 W |
| Components | 2 x 18" driver with neodymium magnet |

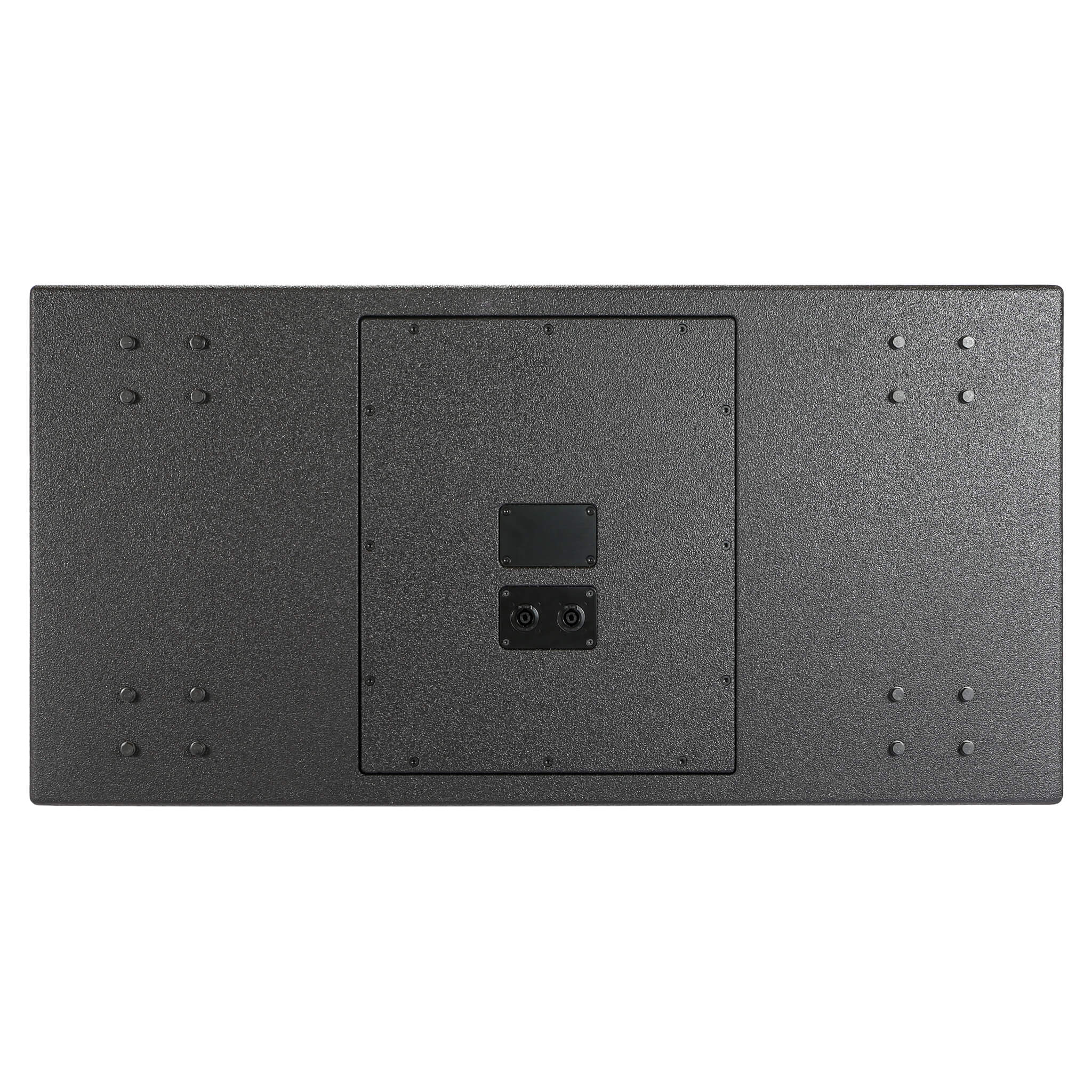

| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 585 x 1160 x 920 / 1046 mm |
| Weight | 106 kg (234 lb) |
Downloads
Product documents are being prepared. Contact YL for the current information for B218SUB Dual 18-Inch High-Output Subwoofer.
