Product identification
- Model
- A215W Medium-Throw Single 15-Inch Point Source Loudspeaker
- Product category
- Point Source Loudspeakers

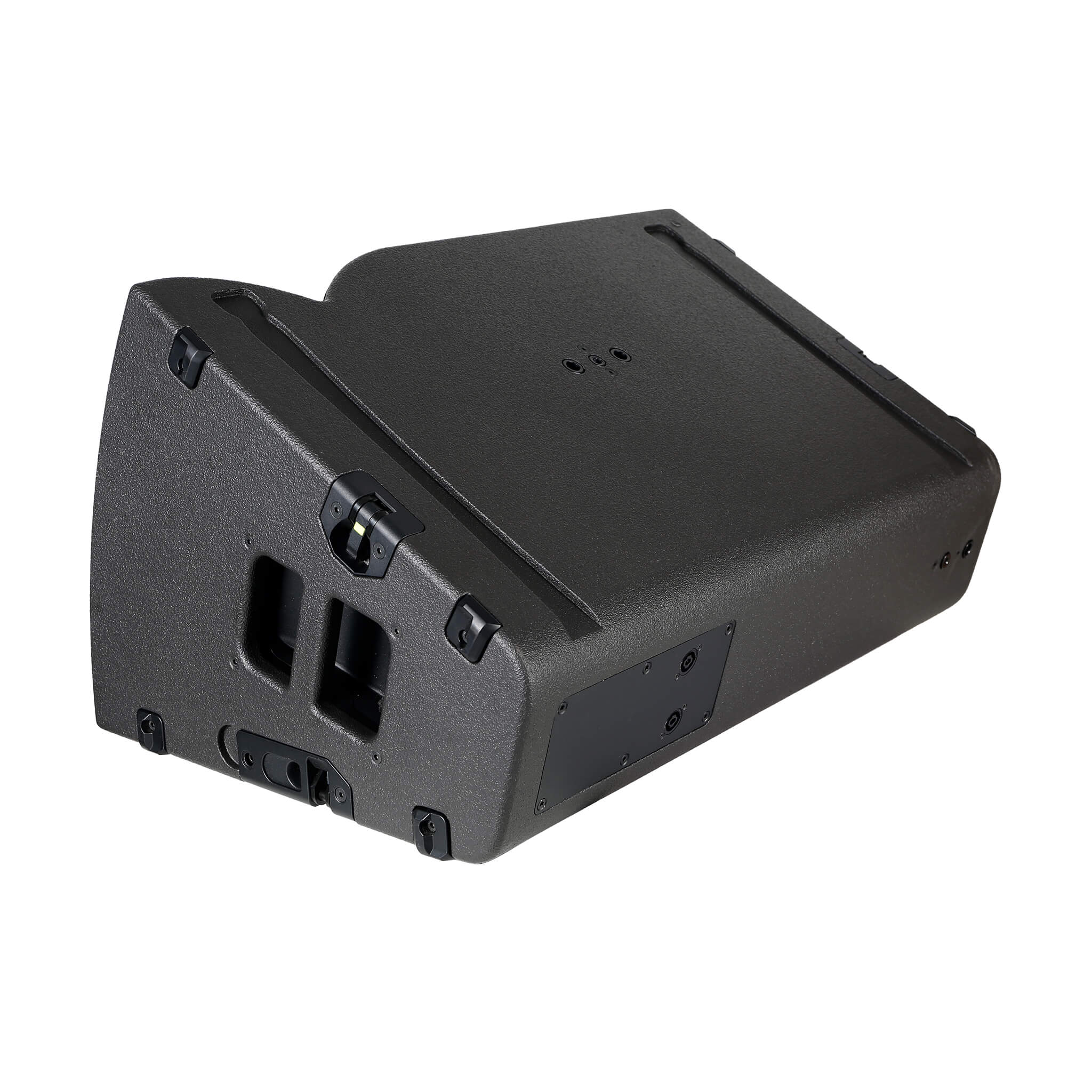

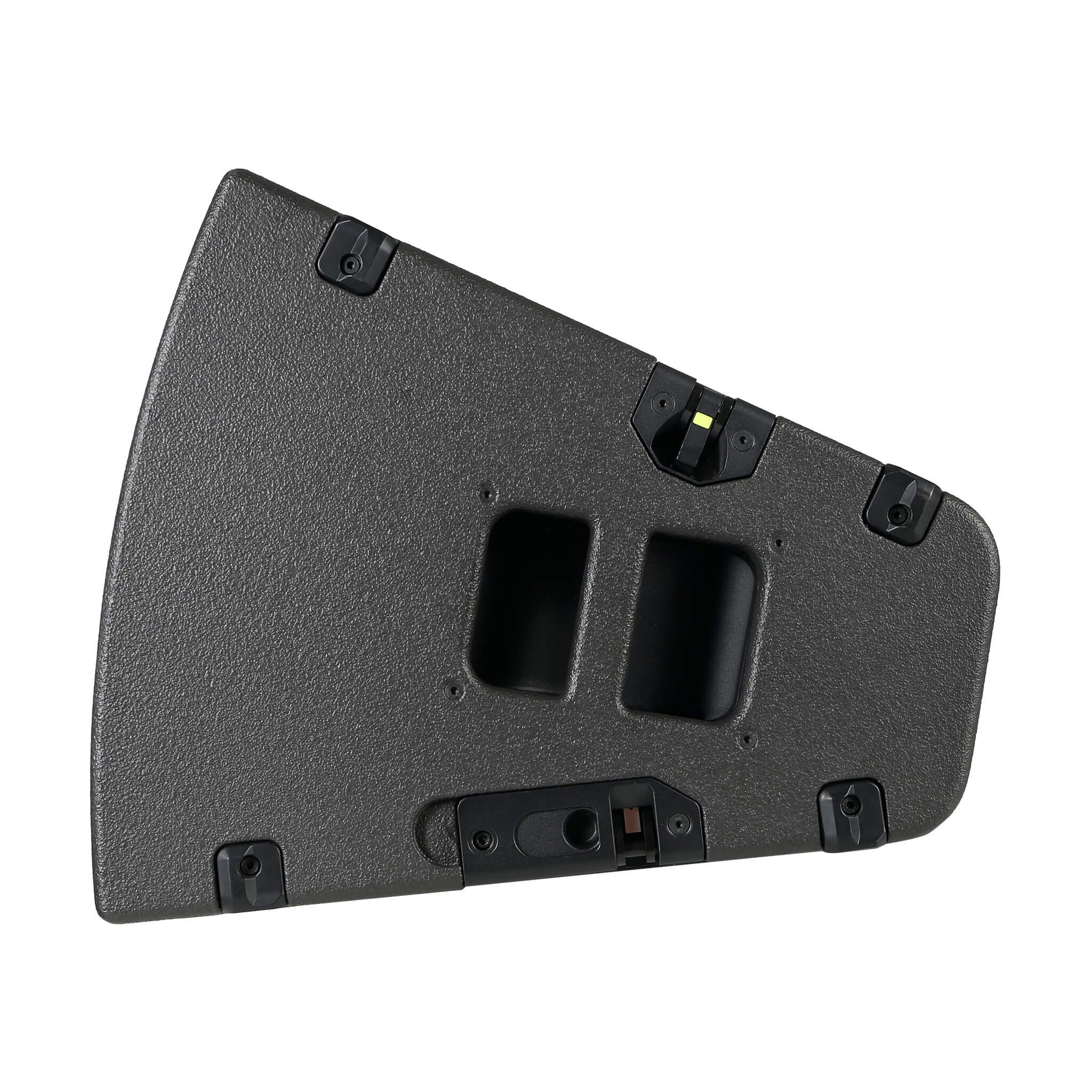

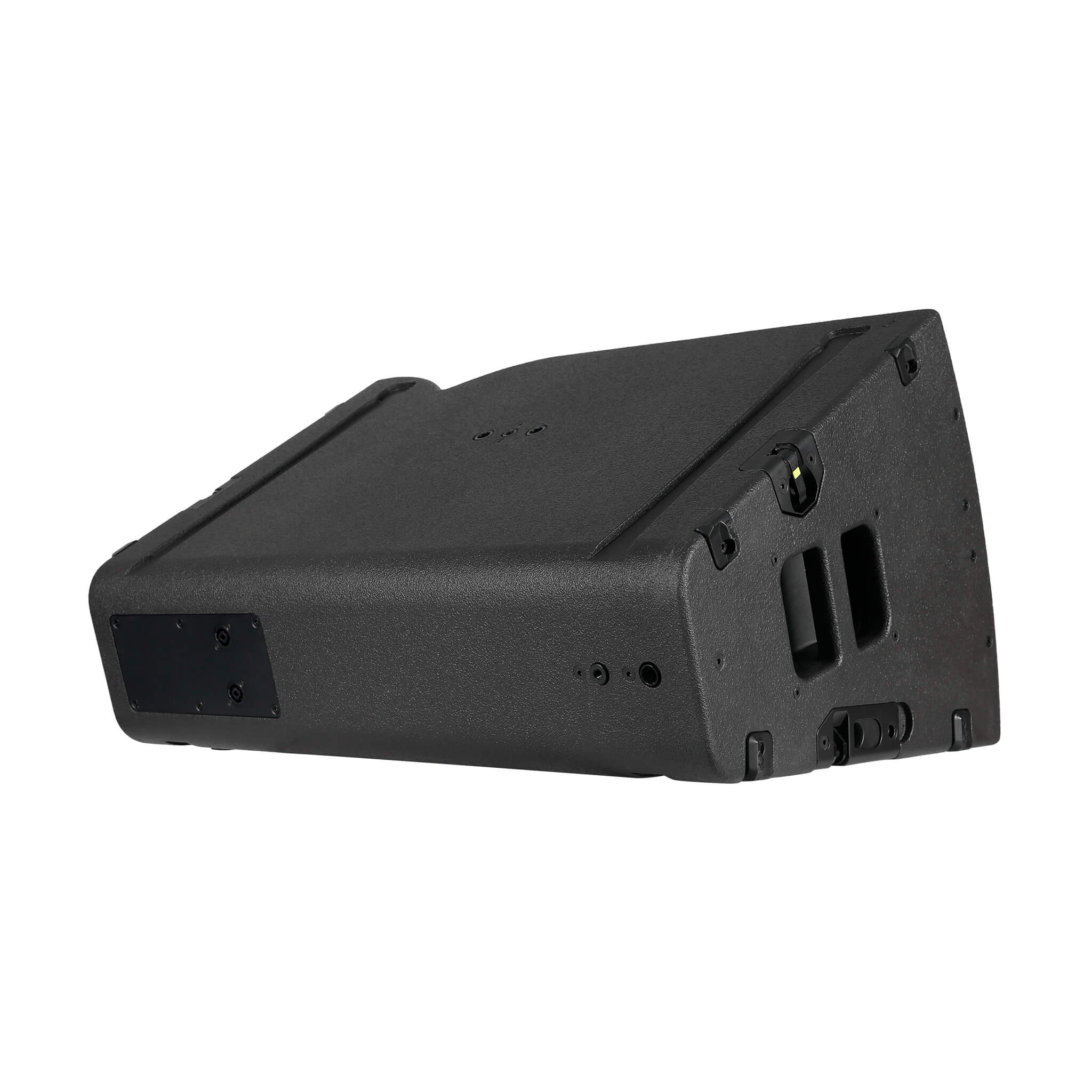

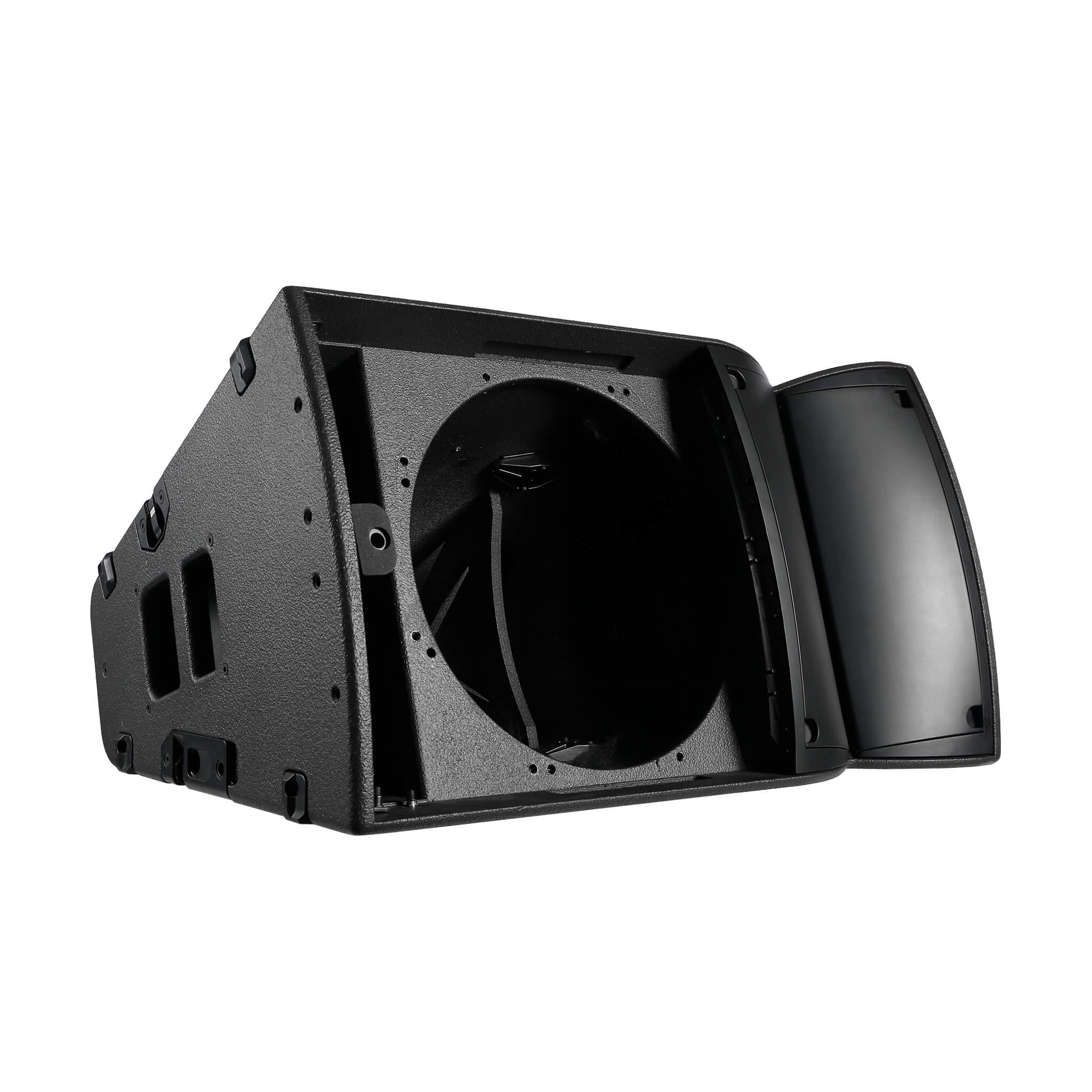

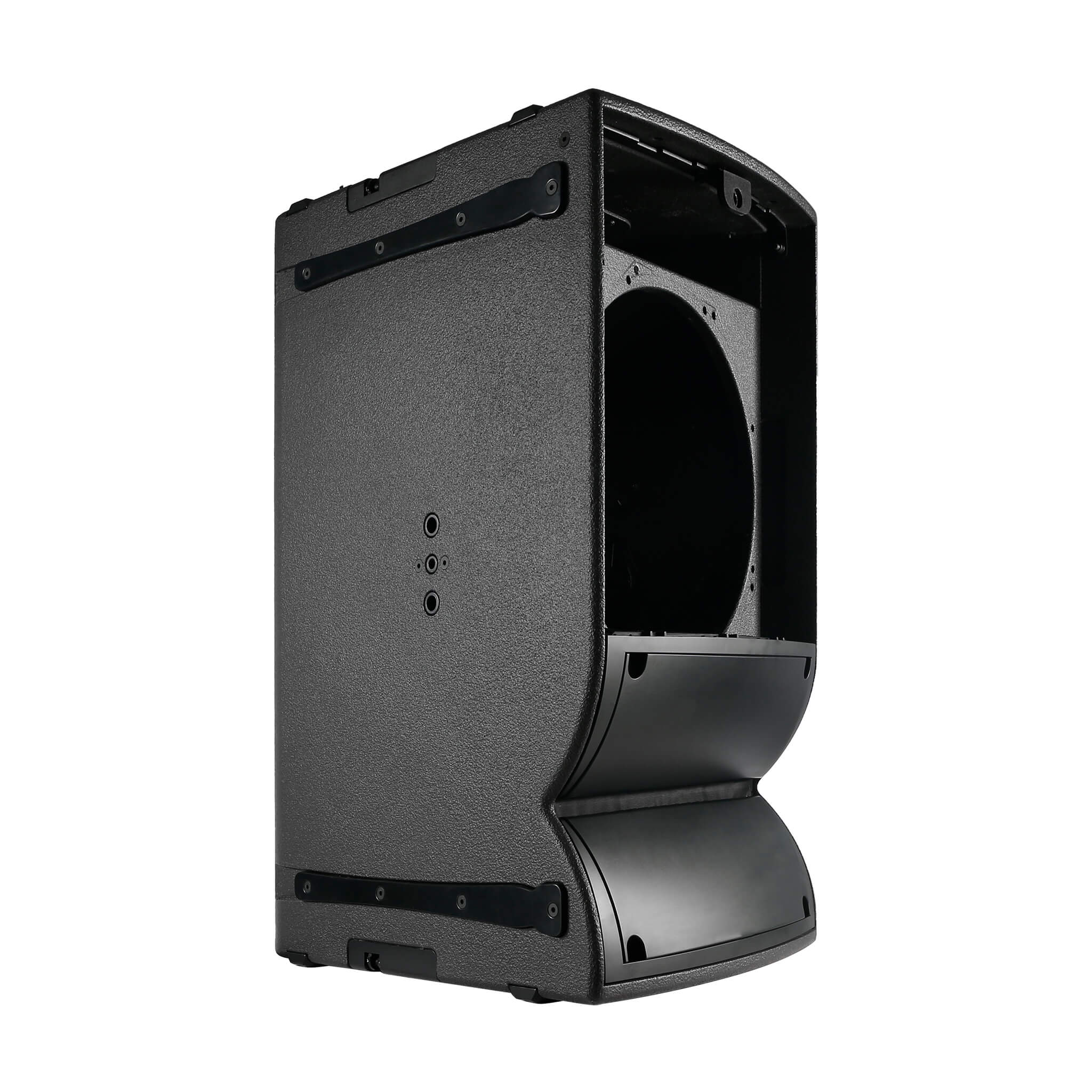

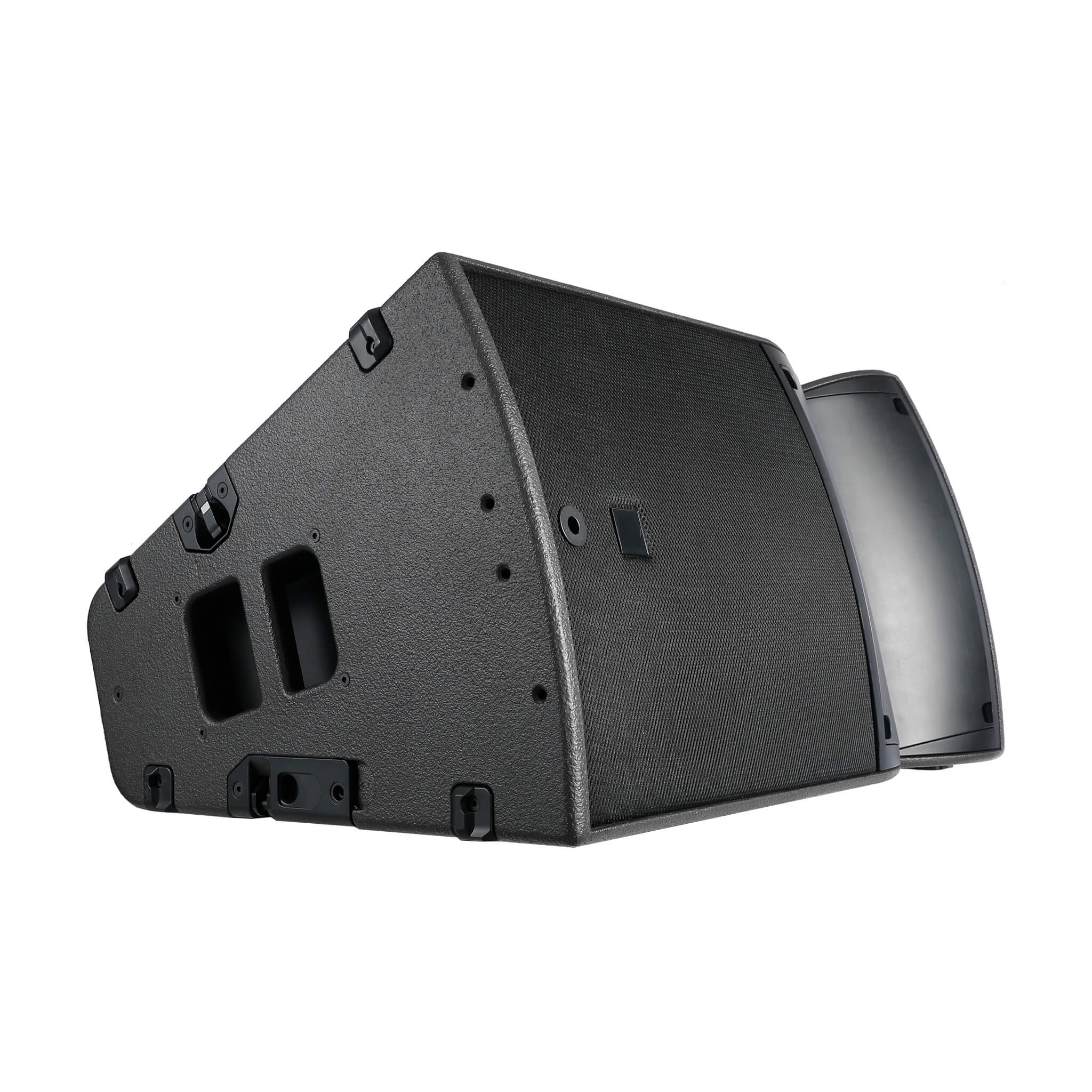

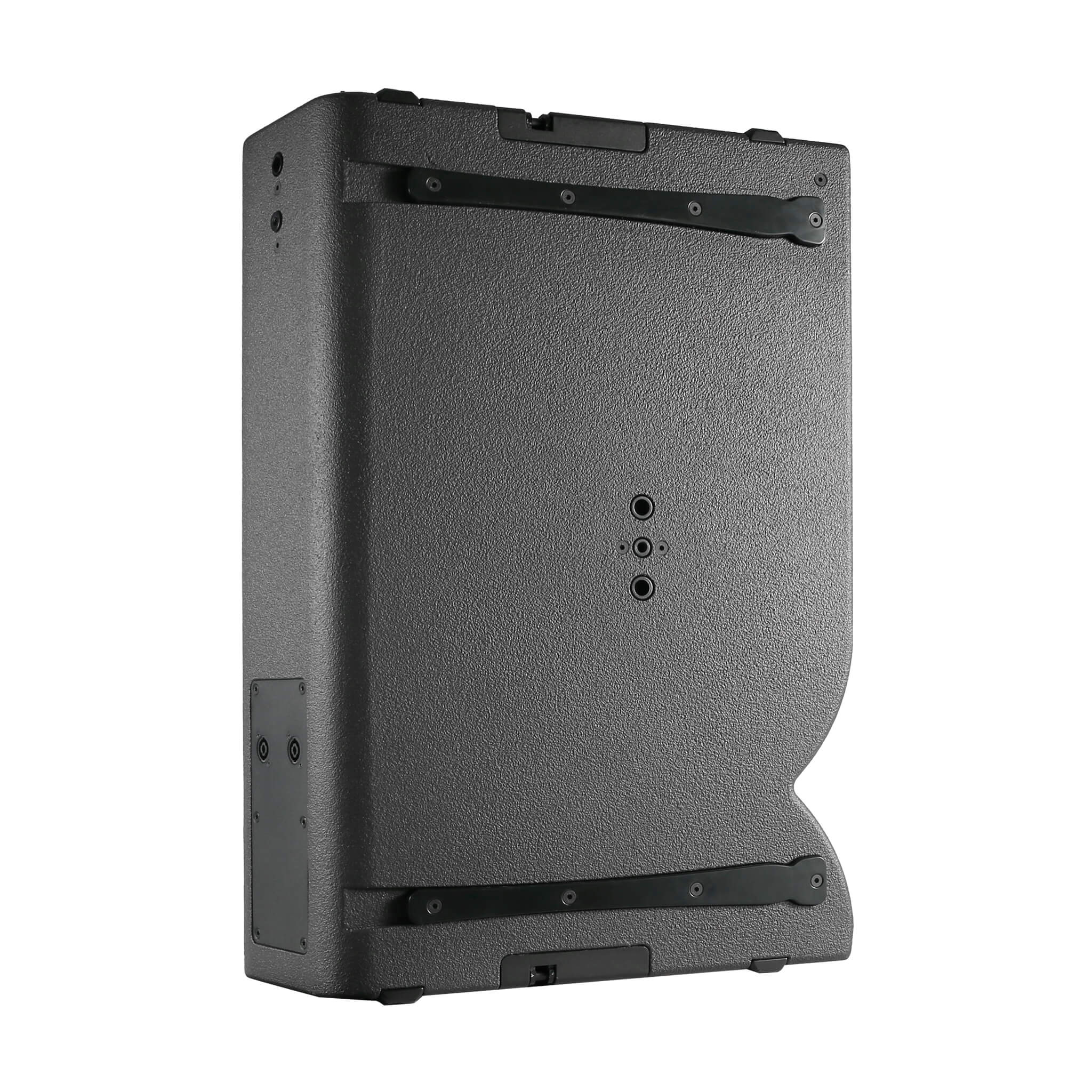

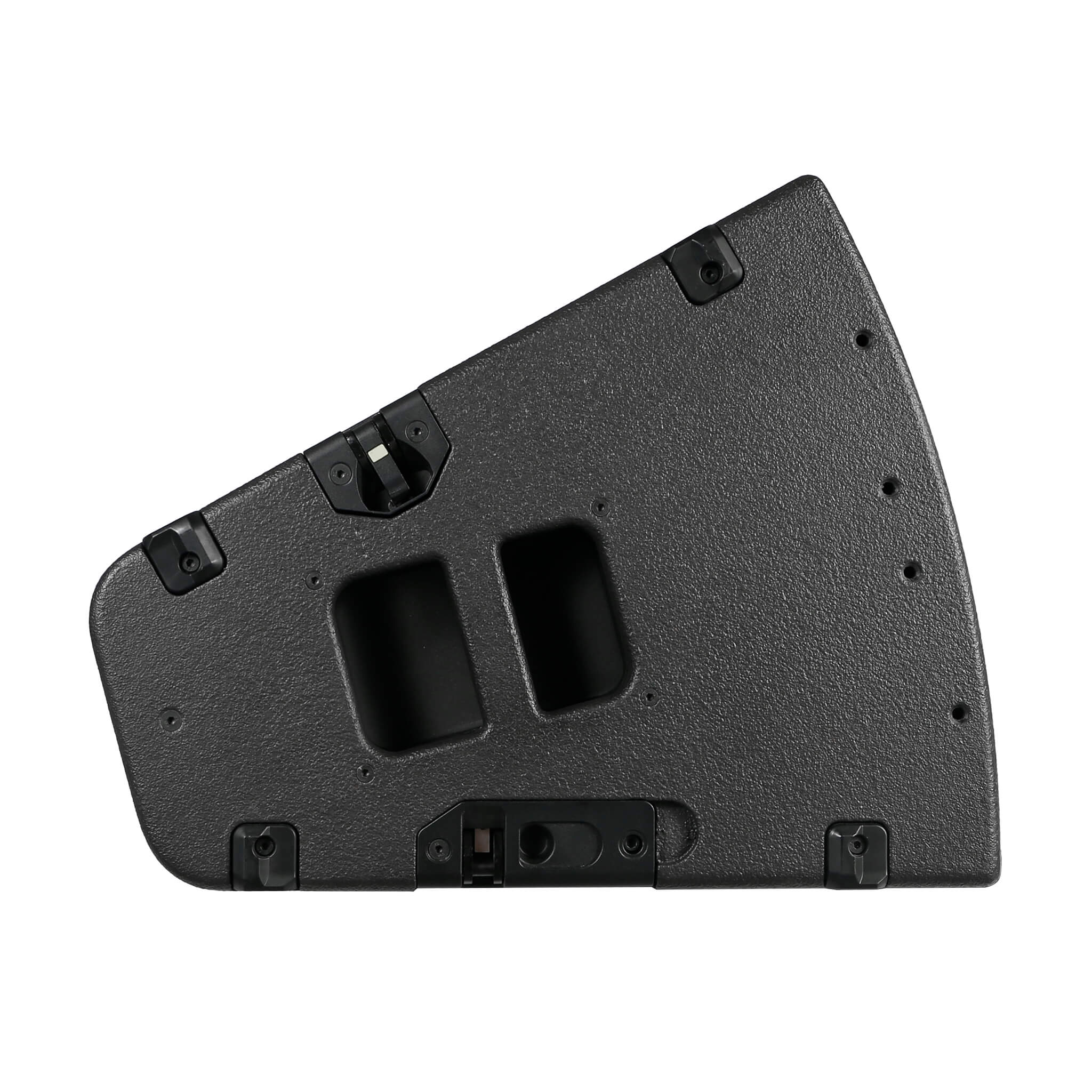

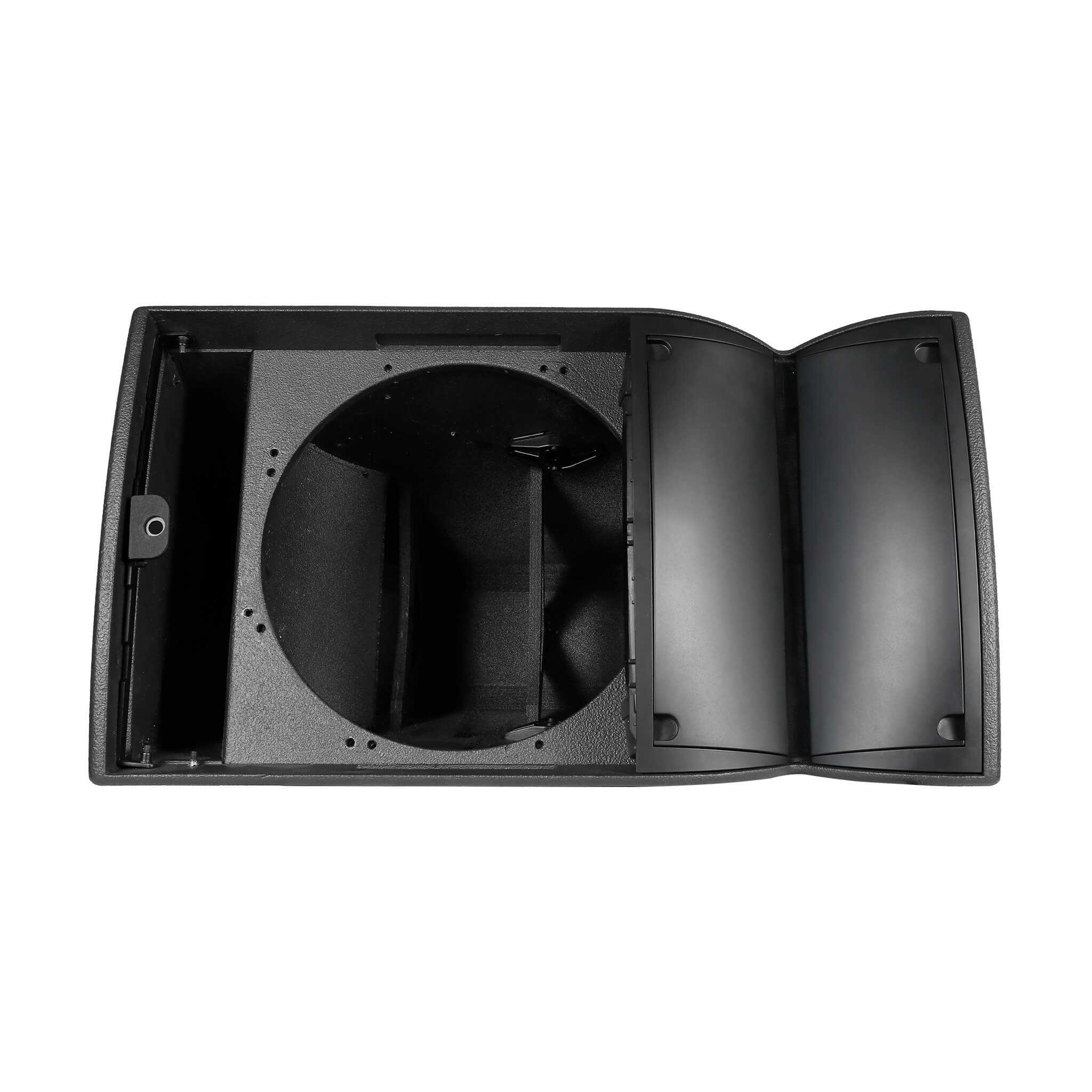

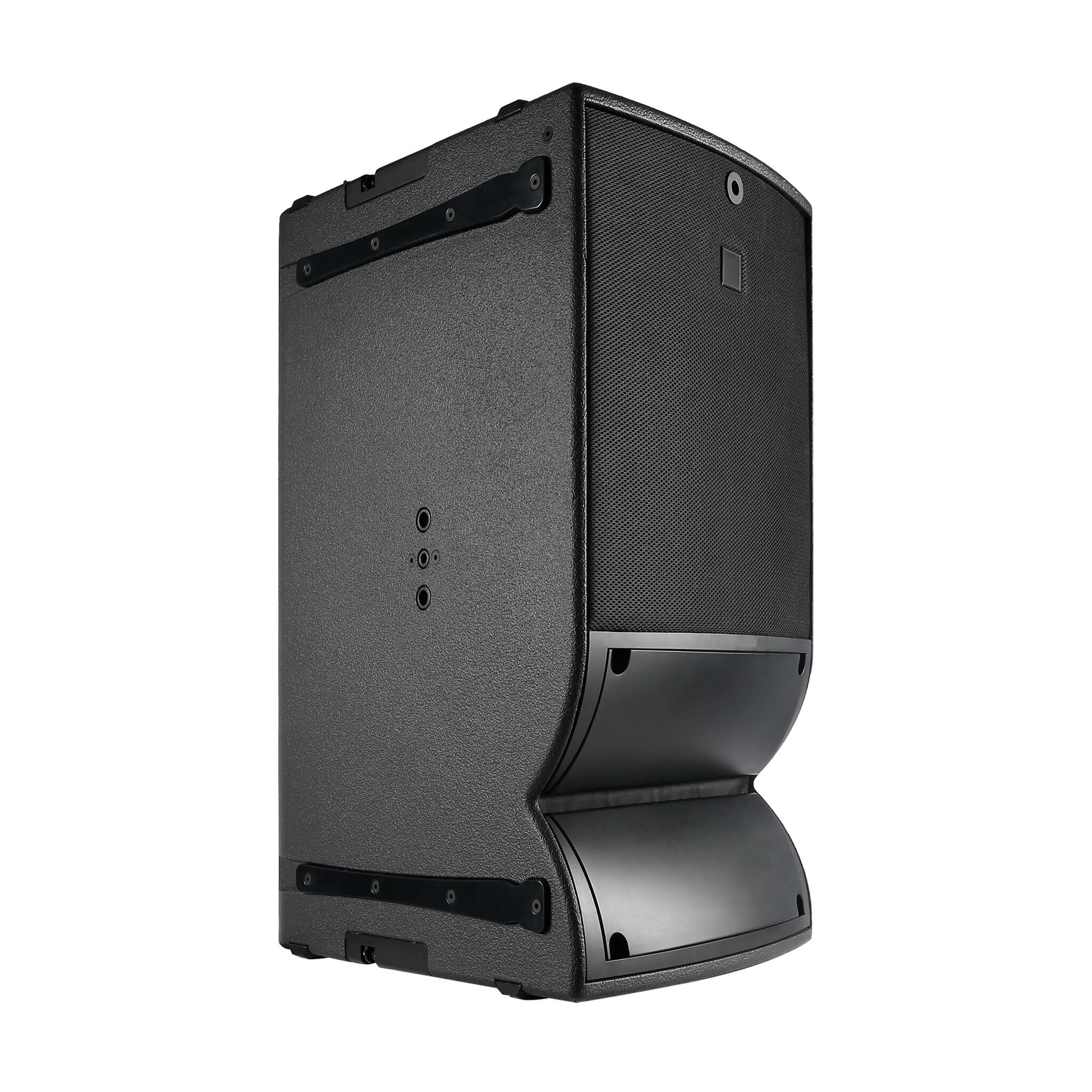

A215W Medium-Throw Single 15-Inch Point Source Loudspeaker
A215W Medium-Throw Single 15-Inch Point Source Loudspeaker is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists maximum spl: 144 dB; bandwidth: 41 Hz – 20 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 144 dB
- Bandwidth
- 41 Hz – 20 kHz
- Weight
- 46 kg / 101 lb
Technical specifications
- Maximum SPL
- 144 dB
- Bandwidth
- 41 Hz – 20 kHz
- Transducers
- LF: 1 × 15″ • HF: 1 × 3″ compression driver
- Usable bandwidth (-10 dB)
- 42 Hz – 20 kHz ([A15])
- Nominal directivity (-6 dB)

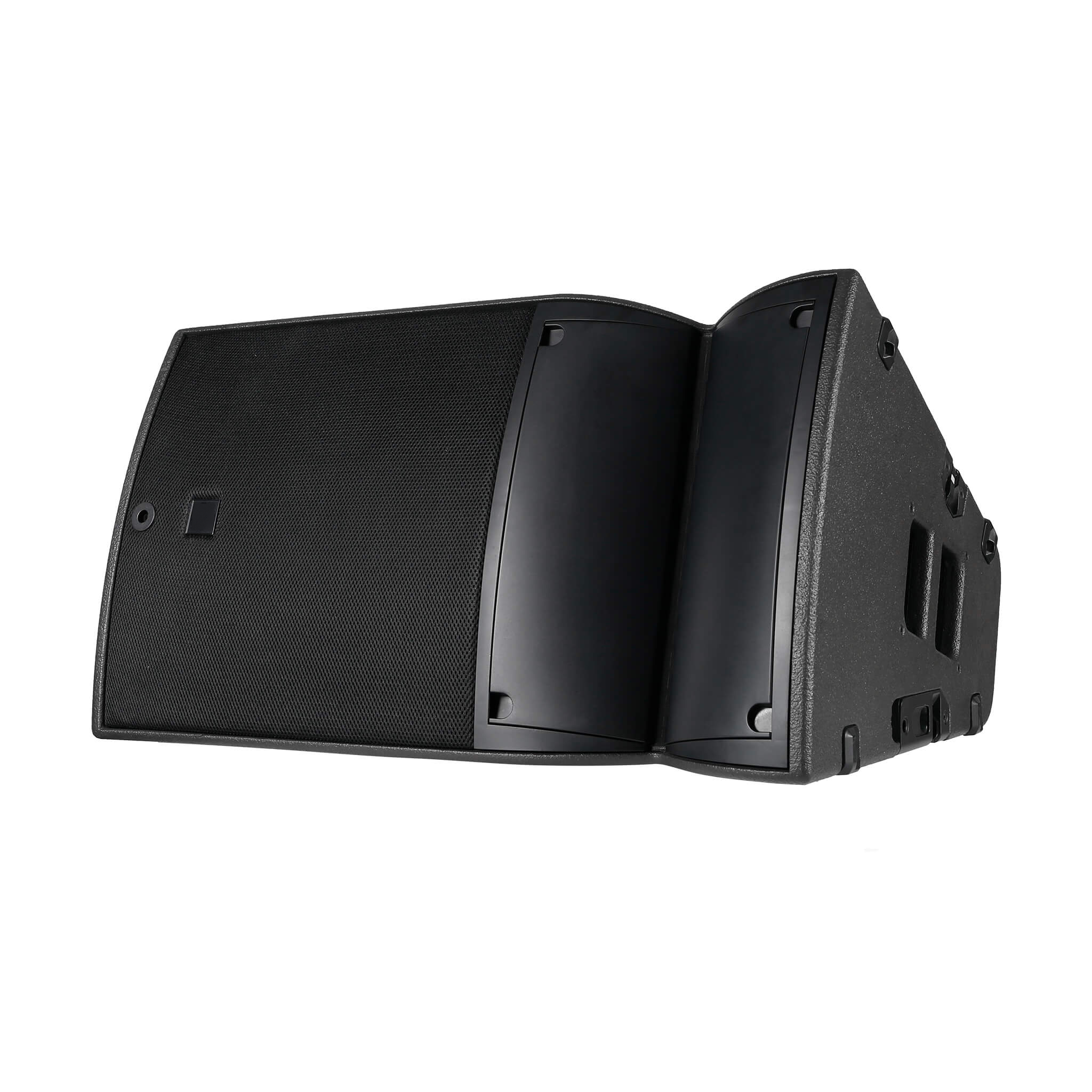

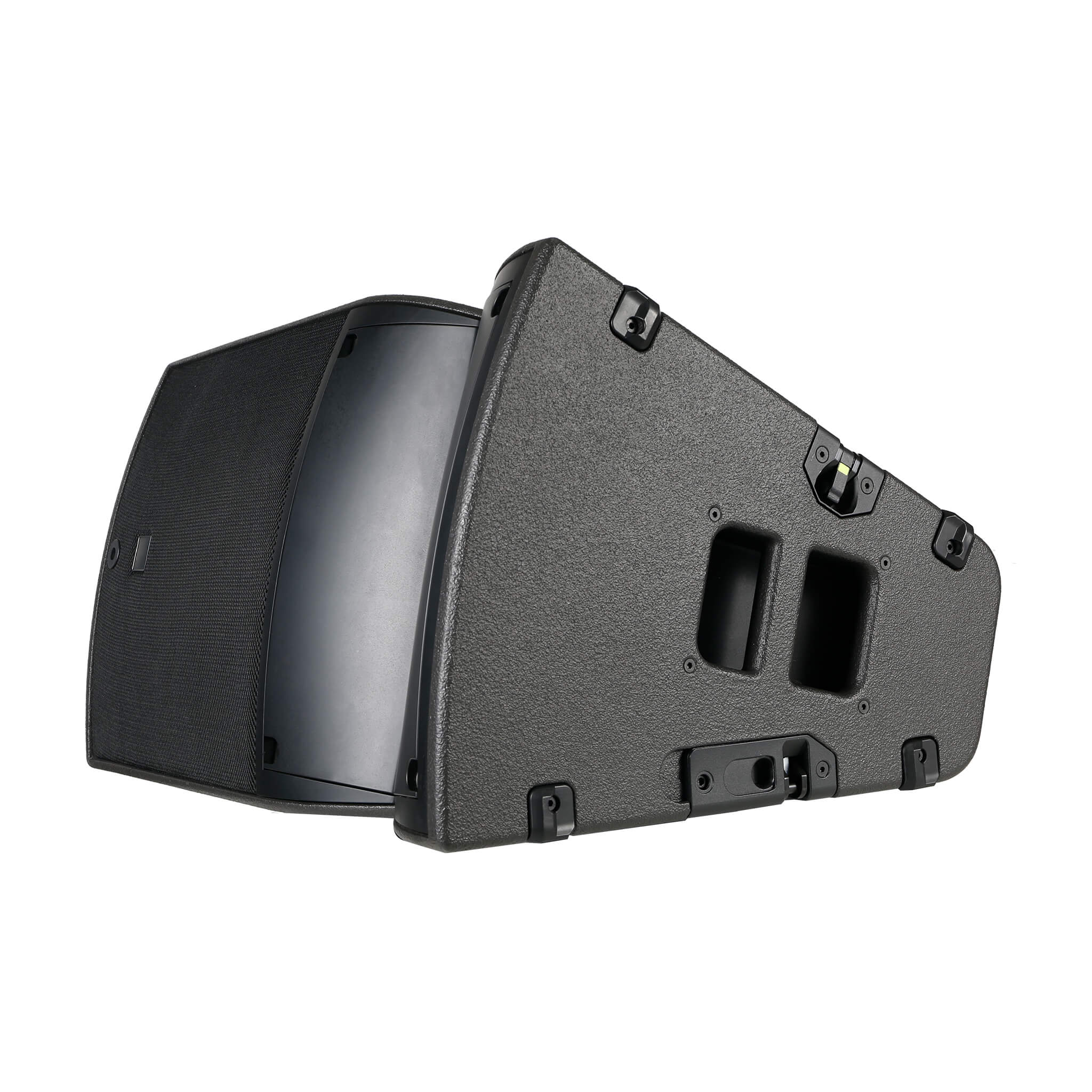

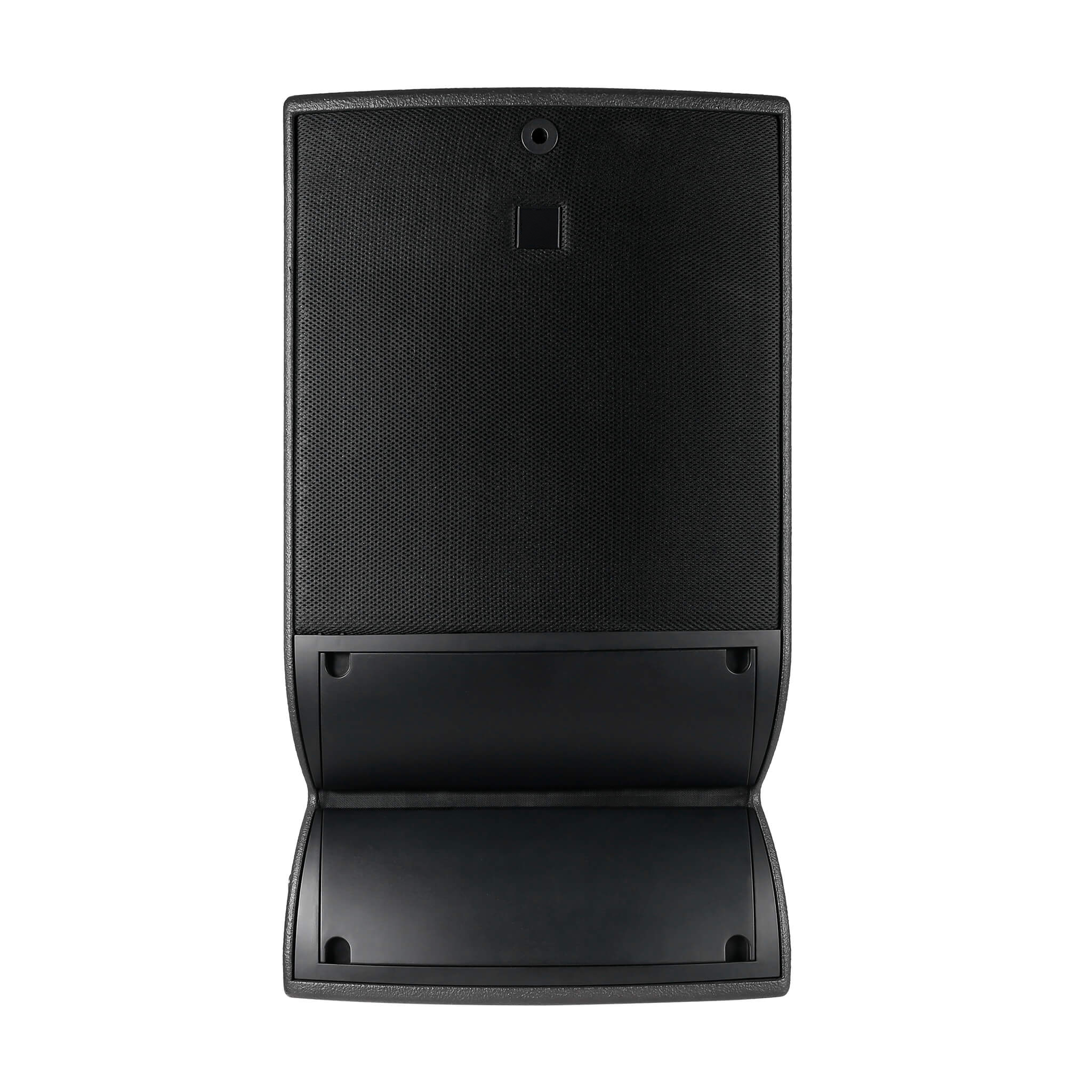

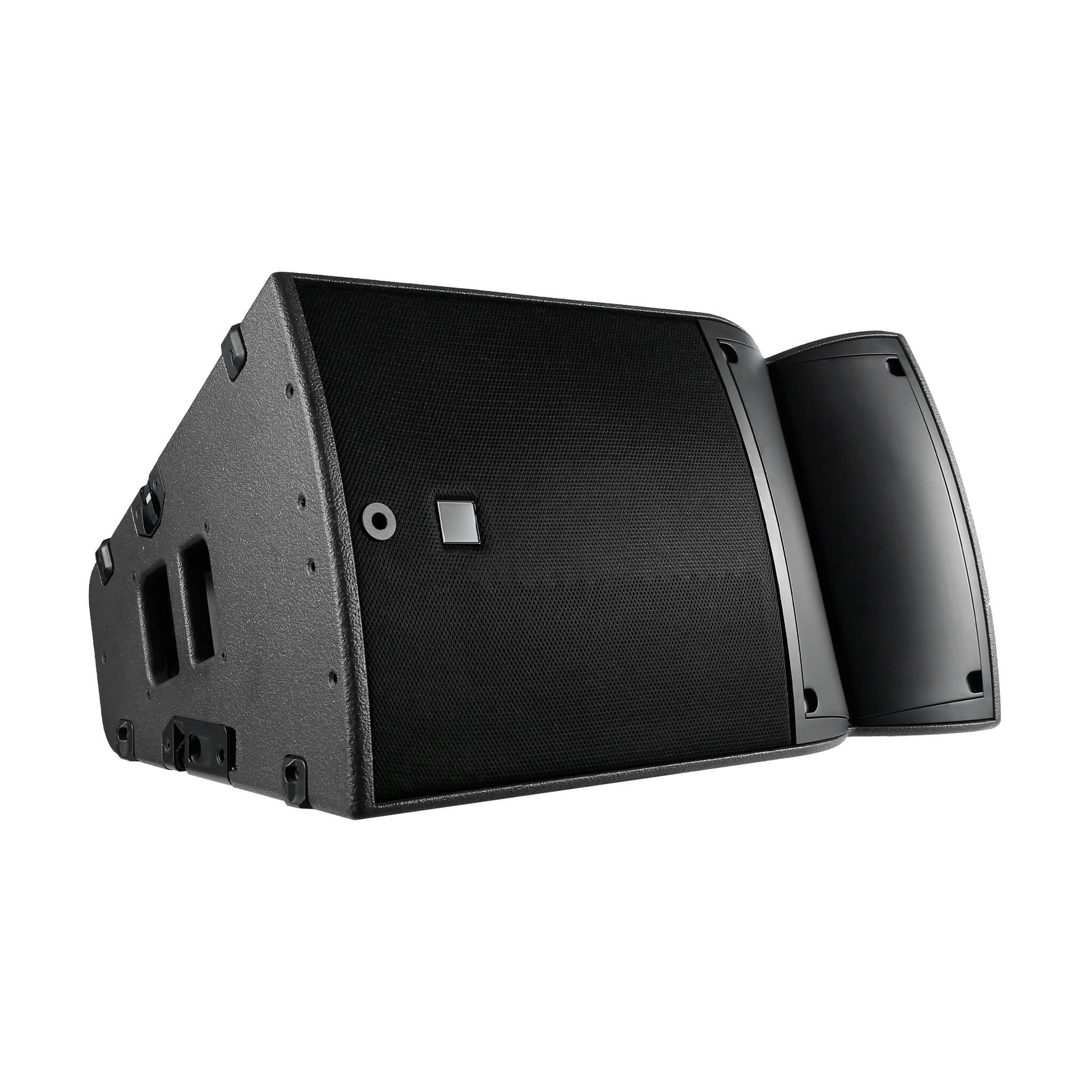

- Enclosure: 30° L-Fins: 110° / 70° symmetric , 90° asymmetric
- Transducers
- LF: 1 × 15″ cone drivers HF: 1 × 3″ diaphragm compression drivers
- Acoustical load
- LF: bass-reflex, L-Vents HF: DOSC waveguide, Panflex
- Nominal impedance
- 8 Ω
- Connectors

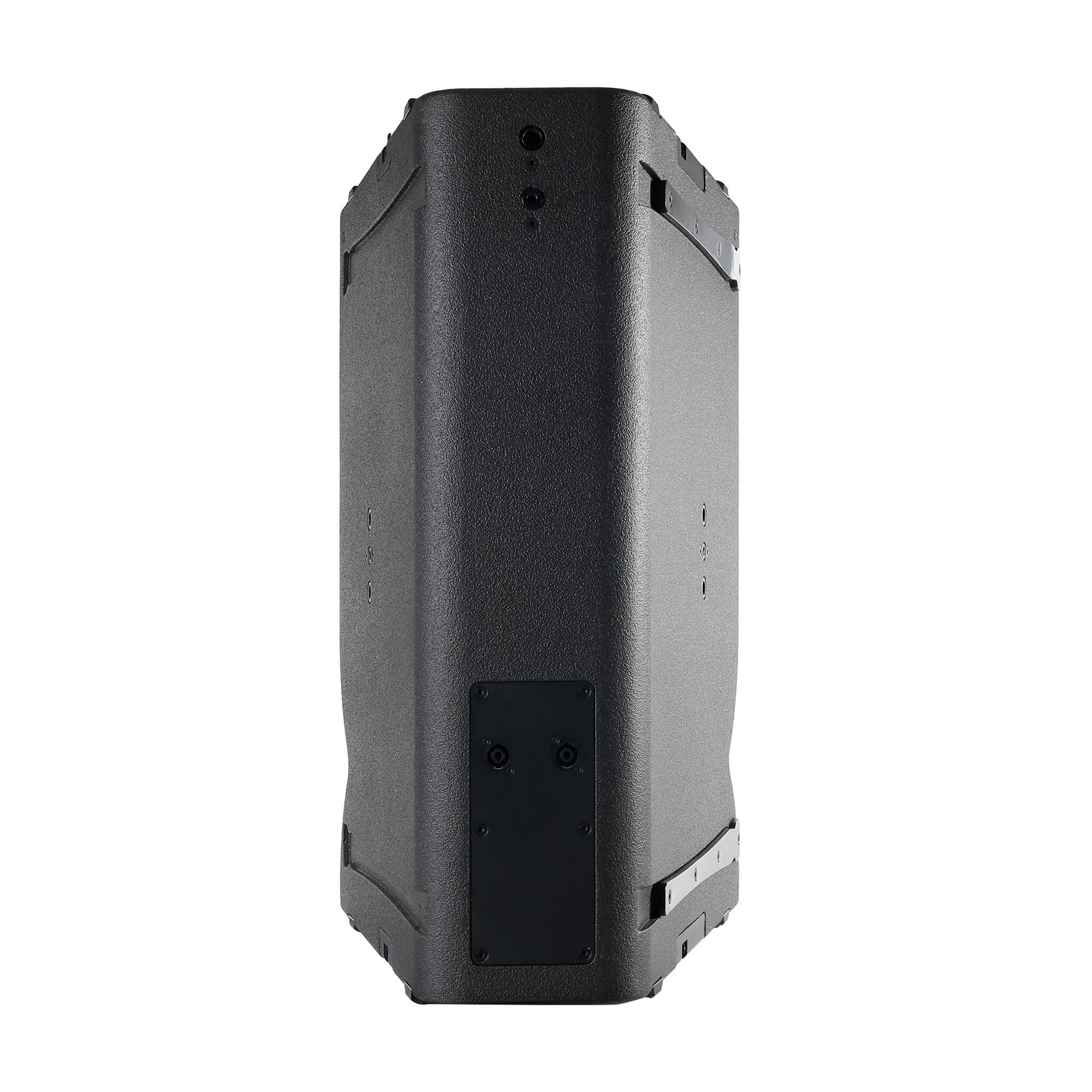

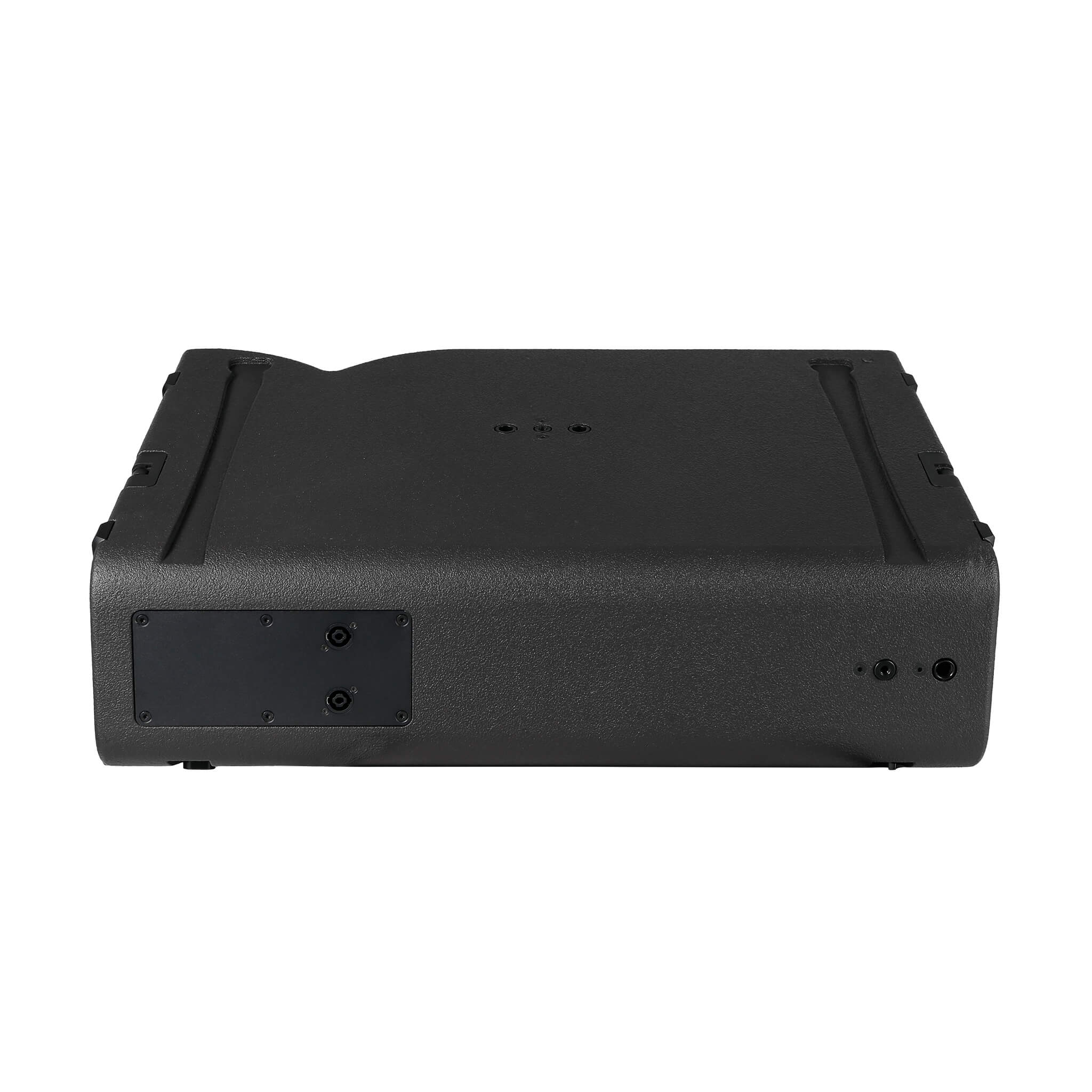

- IN: 1 × 4-point speakON LINK: 1 × 4-point speakON
- HF transducers
- 1 × 3″ diaphragm compression drivers
- Acoustical load
- LF: bass-reflex, L-Vents
- HF
- DOSC waveguide, Panflex
- LINK
- 1 × 4-point speakON
Physical specifications
- Dimensions
- 850 × 423 × 600 mm
- Weight
- 46 kg / 101 lb
- Cabinet
- Baltic beech and birch plywood
- Front
- Coated steel grill Acoustically neutral 3D fabric
- Finish
- Dark grey brown Pantone 426 C
- IP
- IP55
- Front
- Coated steel grill
Compatibility and deployment
- Rigging and handling
- Flush-fitting two-point rigging system 1 handle, 8 corner stops and 2 ground runners
- Rigging components
- steel with anti-corrosion coating
- Rigging and handling
- Flush-fitting two-point rigging system
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum SPL | 144 dB |
|---|---|
| Bandwidth | 41 Hz – 20 kHz |
| Transducers | • LF: 1 × 15″ • HF: 1 × 3″ compression driver |
| Dimensions | 850 × 423 × 600 mm |
| Weight | 46 kg / 101 lb |
| Usable bandwidth (-10 dB) | 42 Hz – 20 kHz ([A15]) |
| Maximum SPL1 | 141 dB ([A15]) |
| Nominal directivity (-6 dB) | Enclosure: 30° L-Fins: 110° / 70° symmetric , 90° asymmetric |
| Transducers | LF: 1 × 15″ cone drivers HF: 1 × 3″ diaphragm compression drivers |
| Acoustical load | LF: bass-reflex, L-Vents HF: DOSC waveguide, Panflex |
| Nominal impedance | 8 Ω |
| Connectors | IN: 1 × 4-point speakON LINK: 1 × 4-point speakON |
| Rigging and handling | Flush-fitting two-point rigging system 1 handle, 8 corner stops and 2 ground runners |
| Weight (net) | 33 kg / 73 lb |
| Cabinet | Premium grade Baltic beech and birch plywood |
| Front | Coated steel grill Acoustically neutral 3D fabric |
| Rigging components | High grade steel with anti-corrosion coating |
| Finish | Dark grey brown Pantone 426 C |
| IP | IP55 |
