Product identification
- Model
- A215F Medium-Throw Single 15-Inch Point Source Loudspeaker
- Product category
- Point Source Loudspeakers

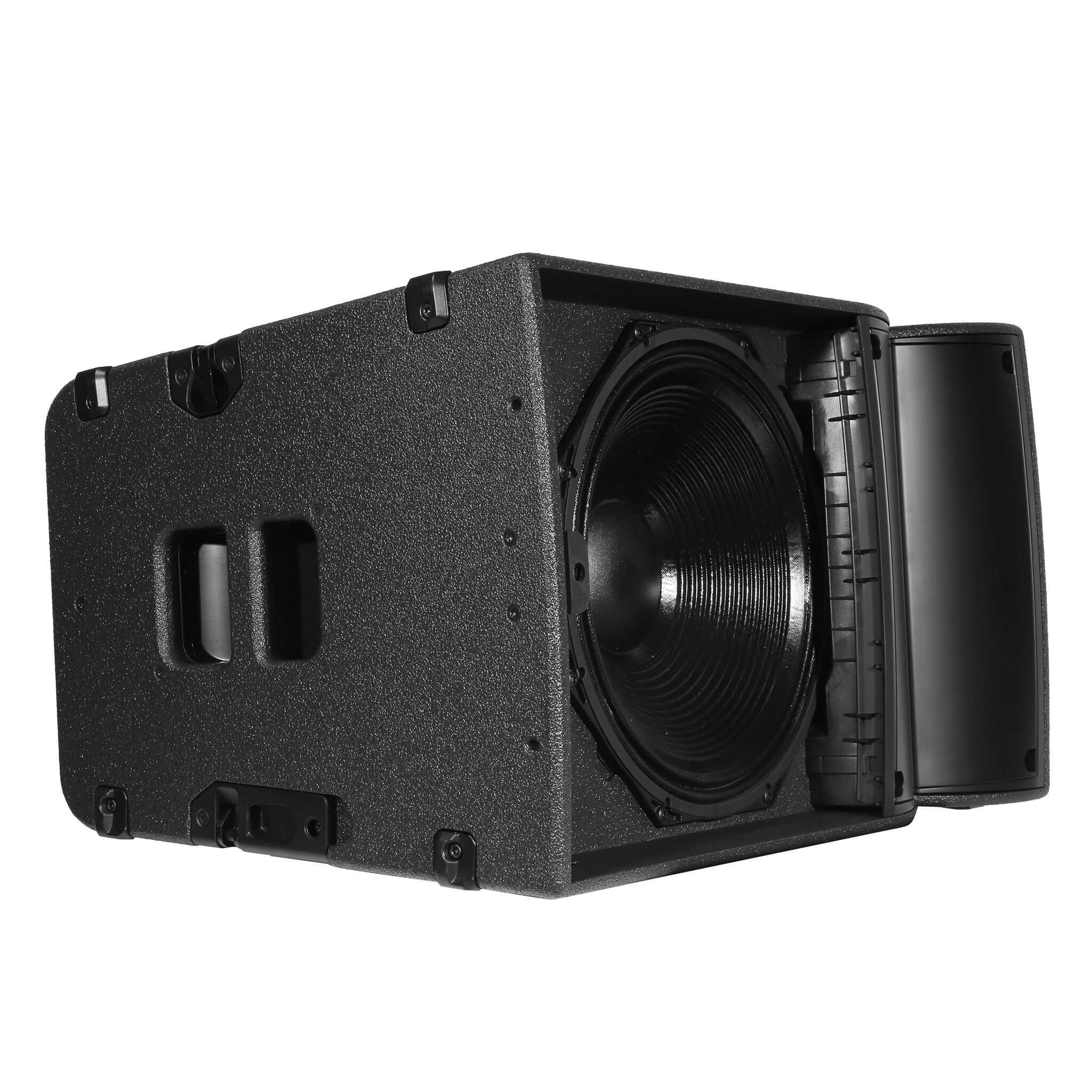

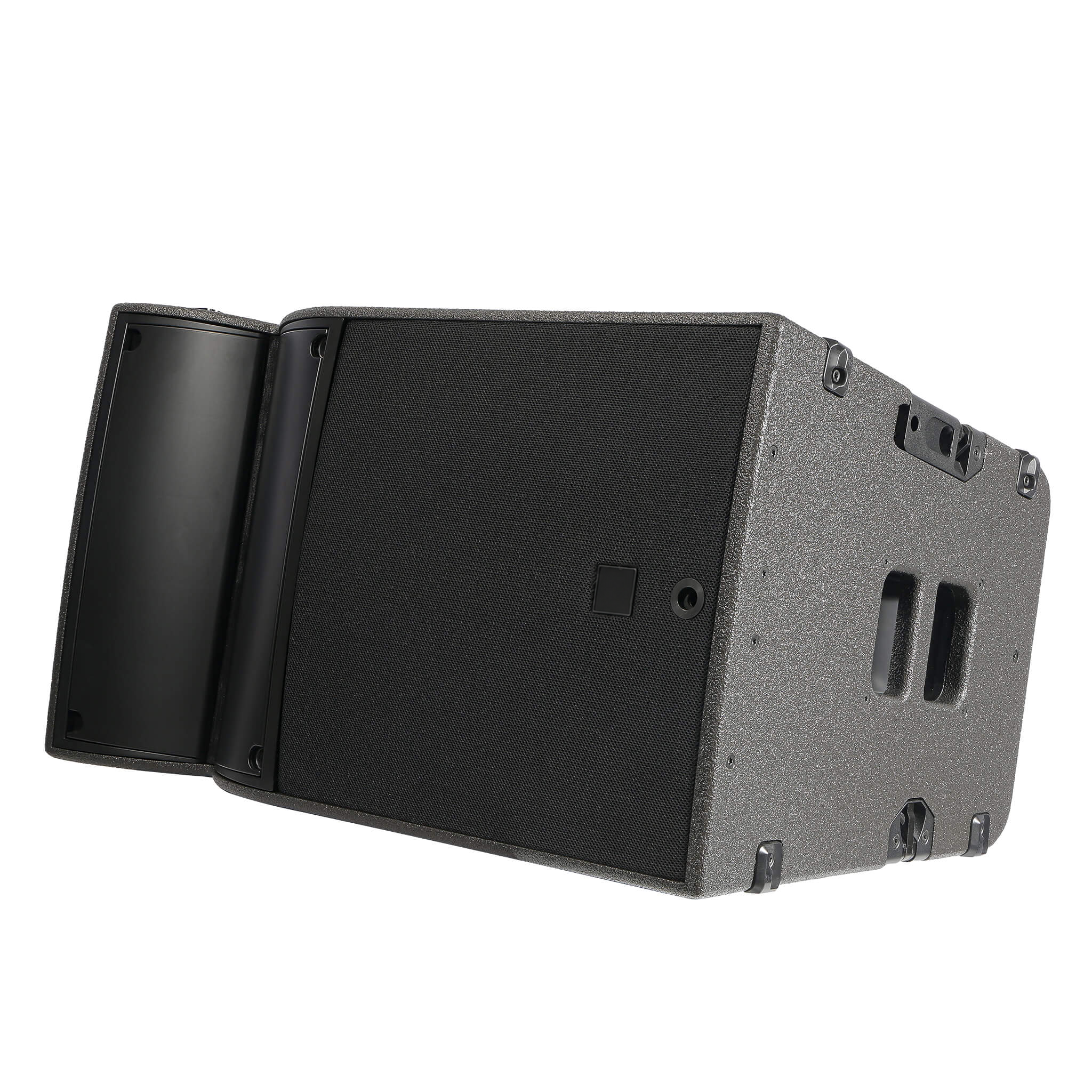

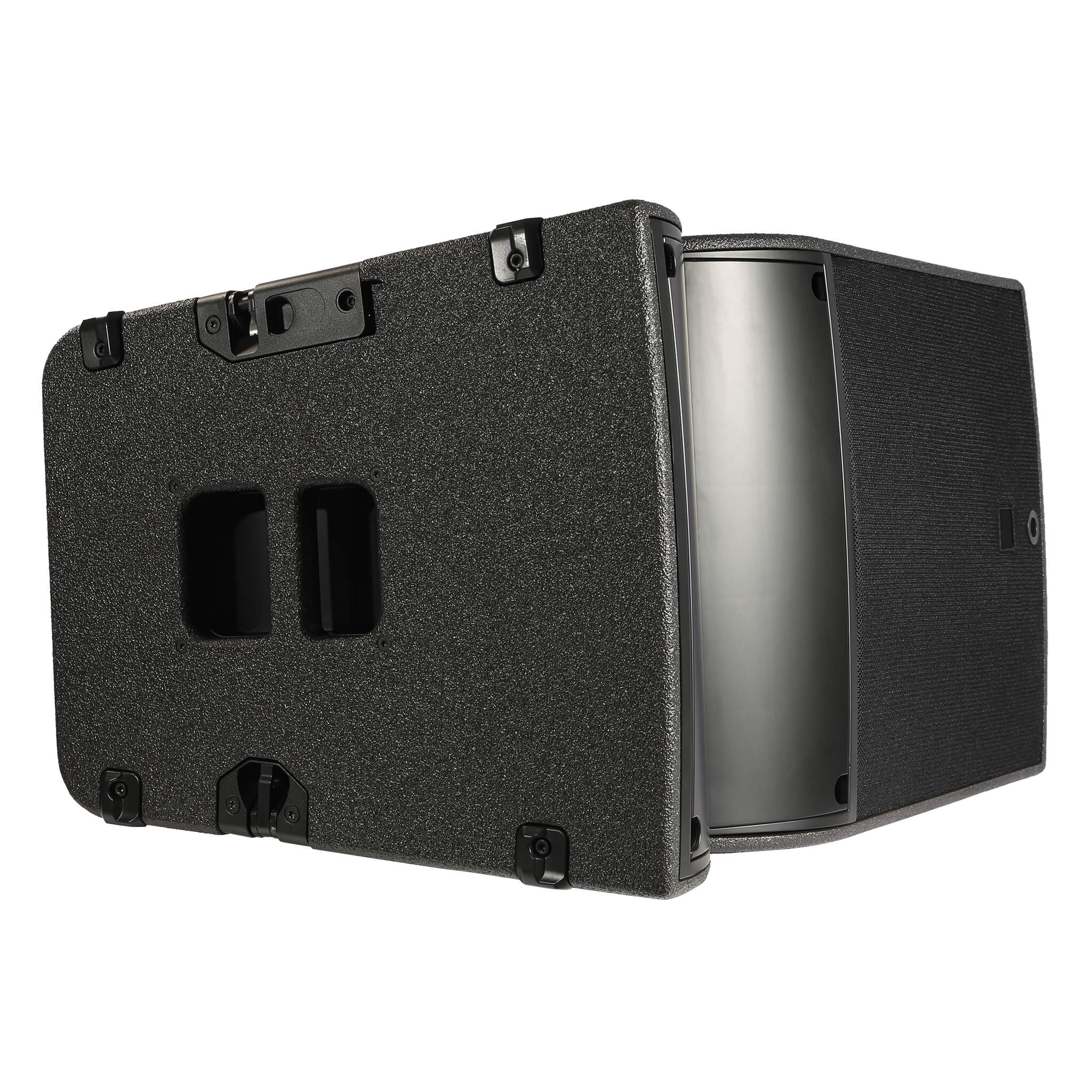

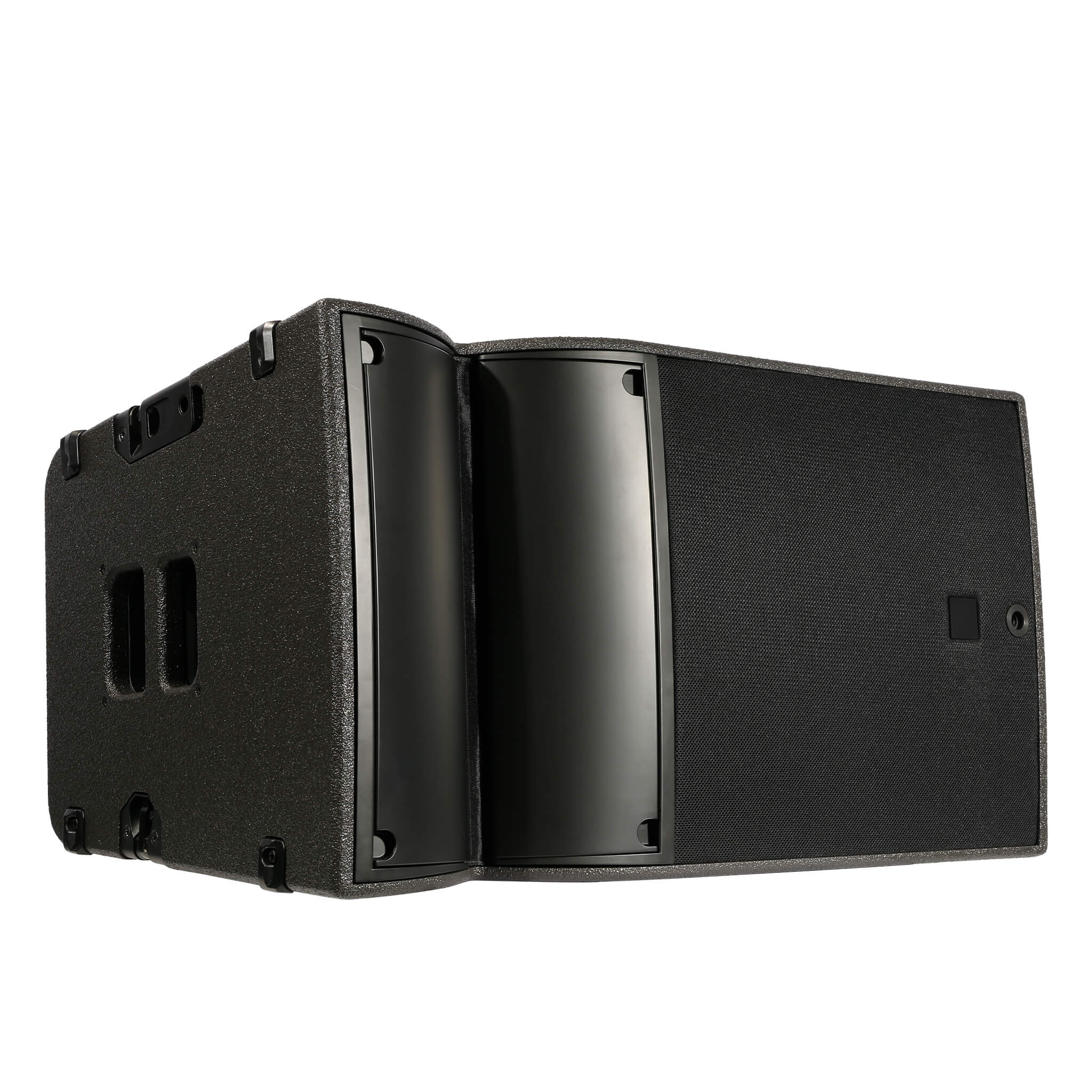

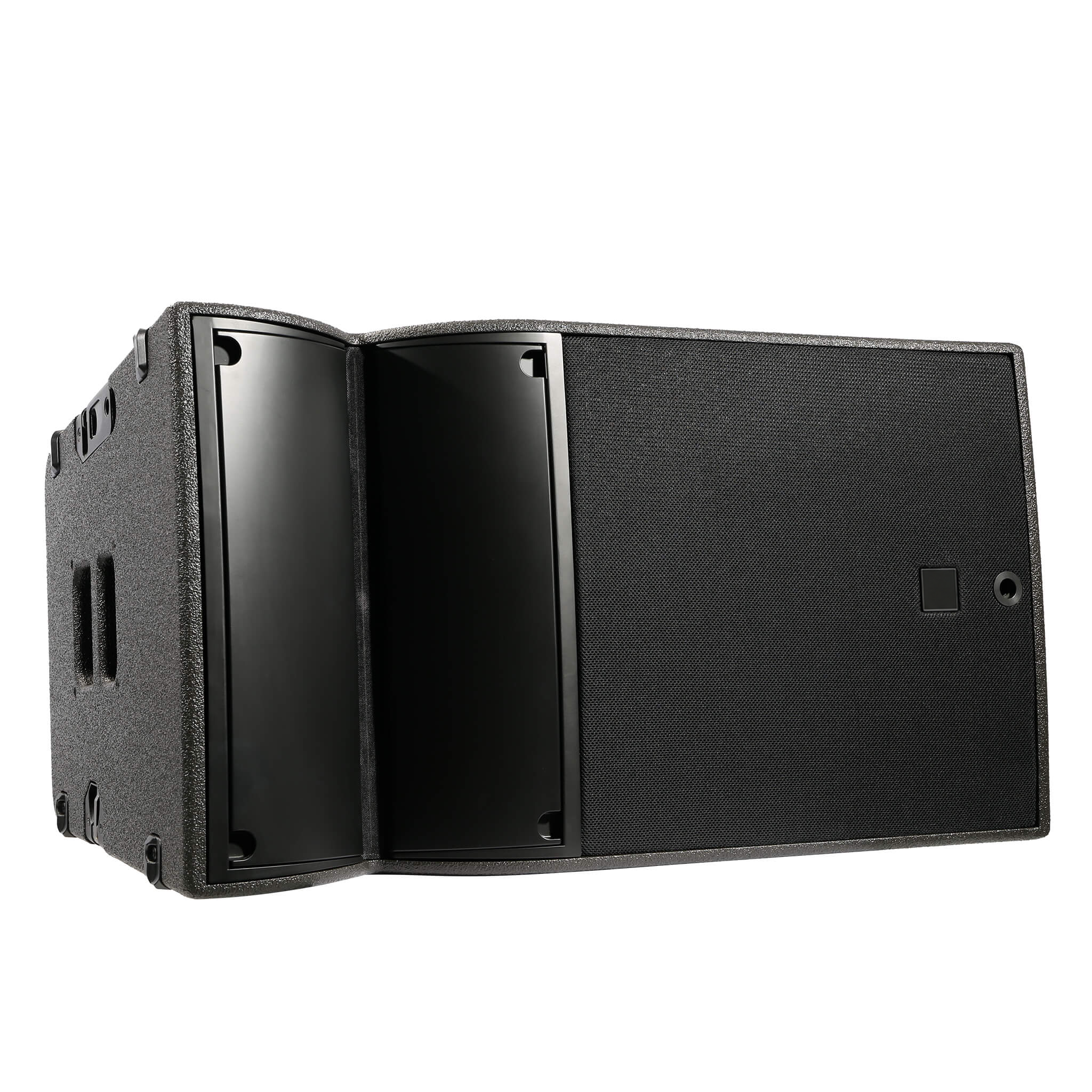

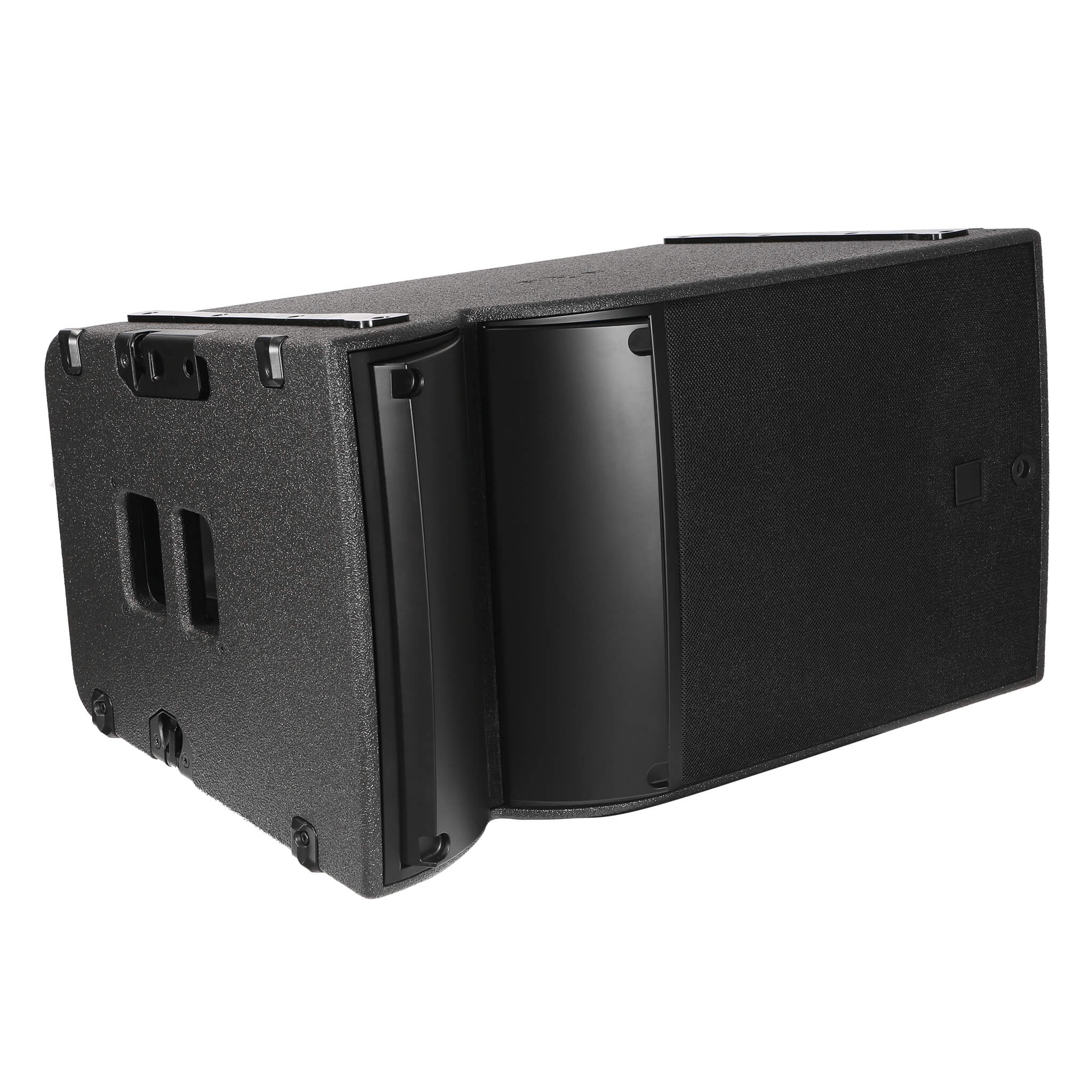

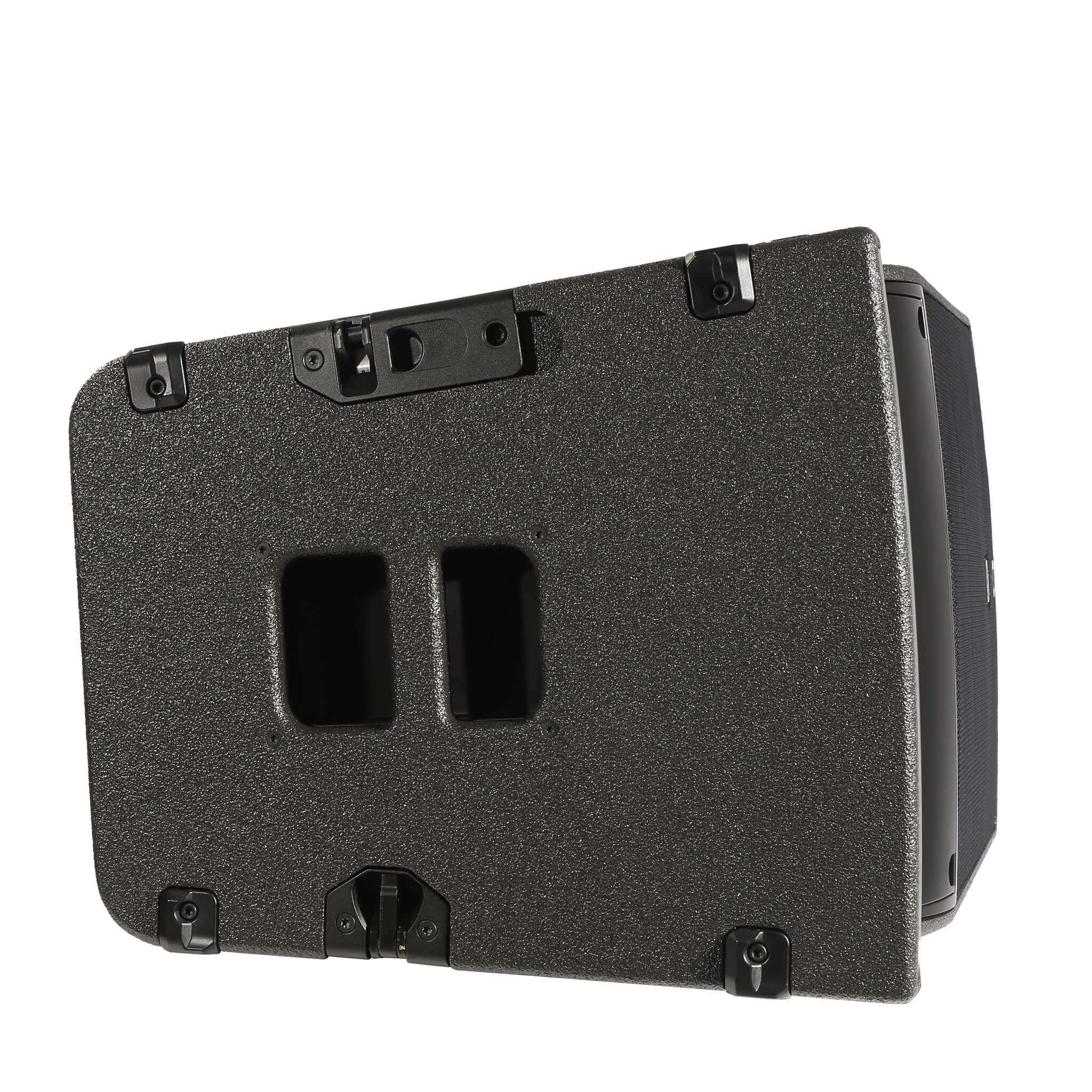

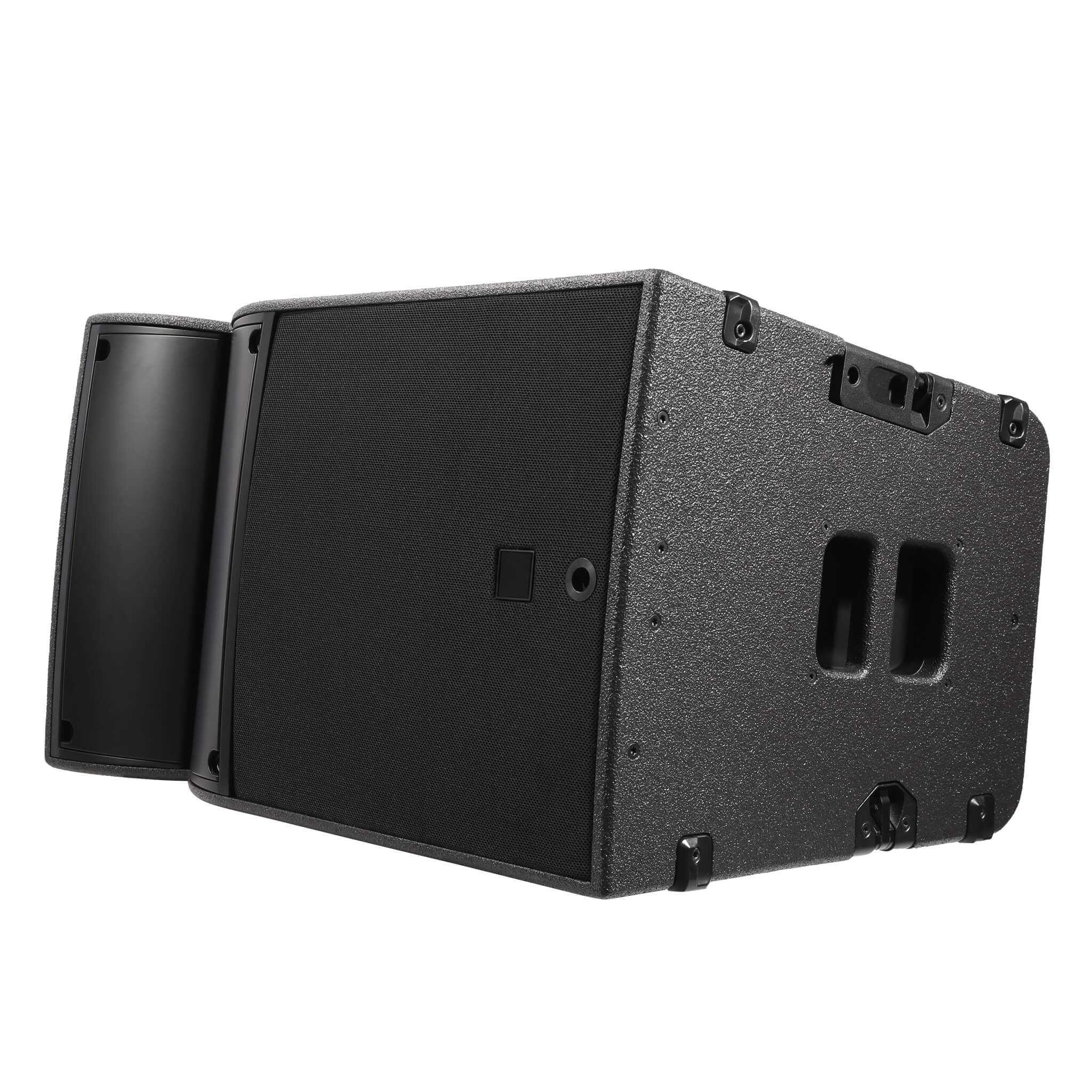

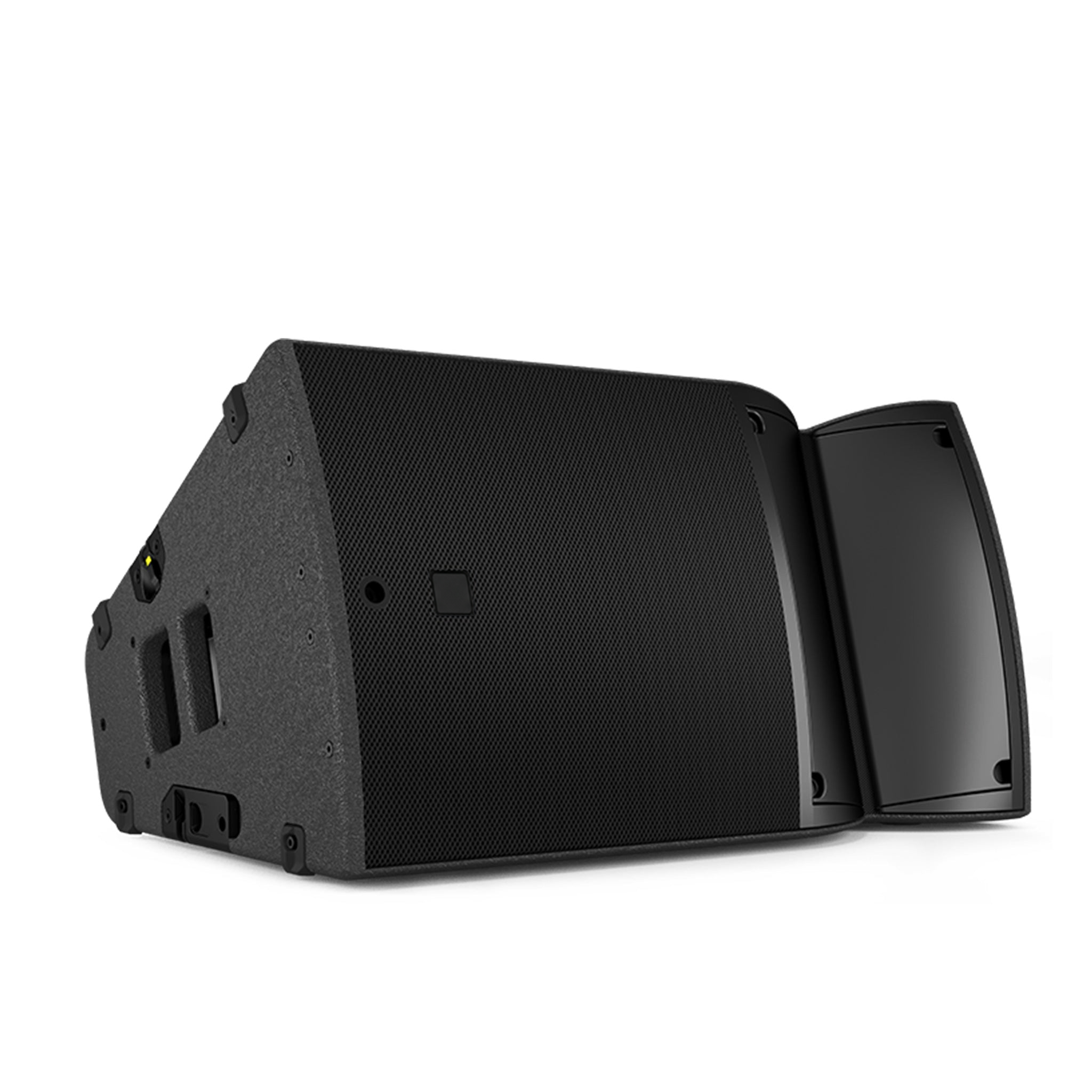

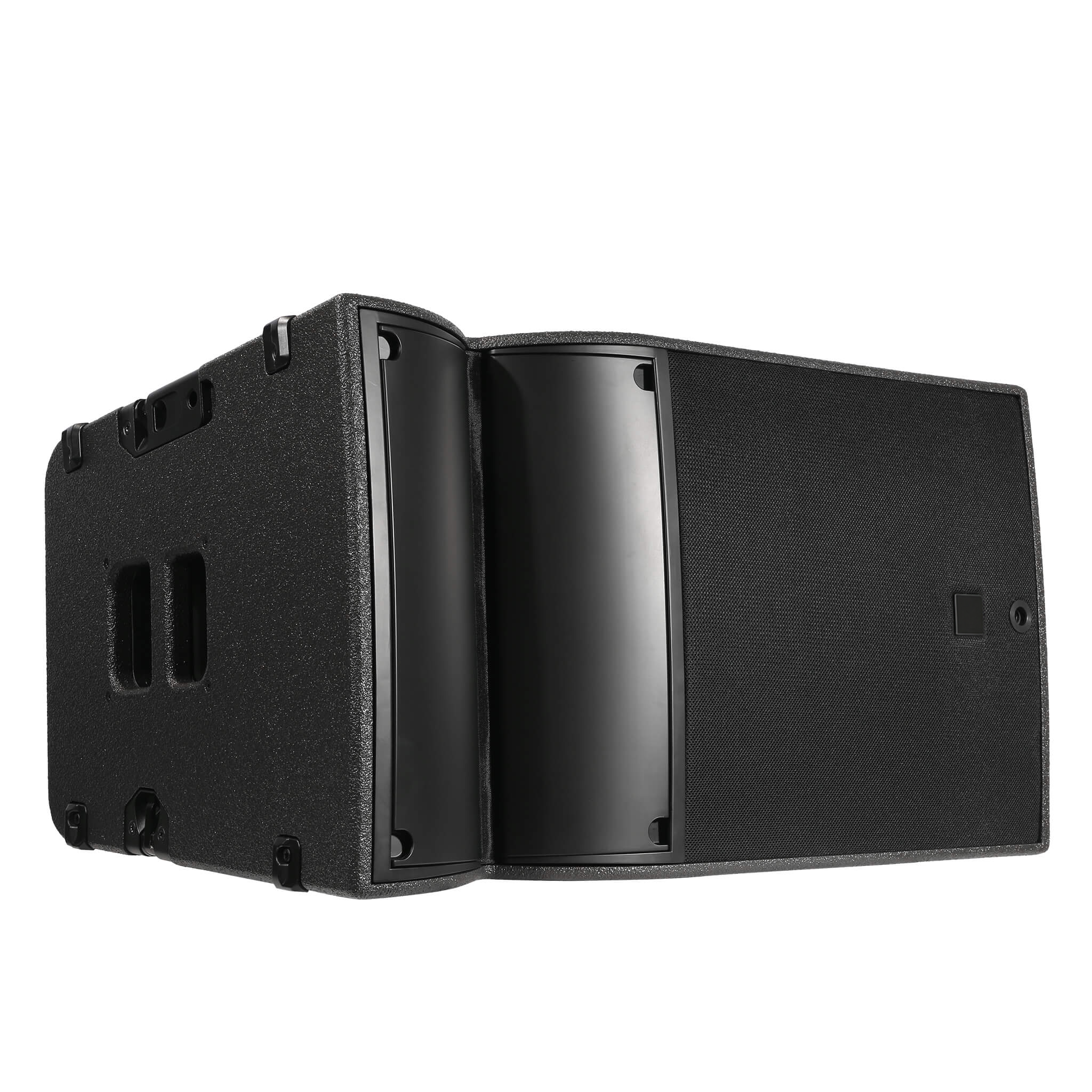

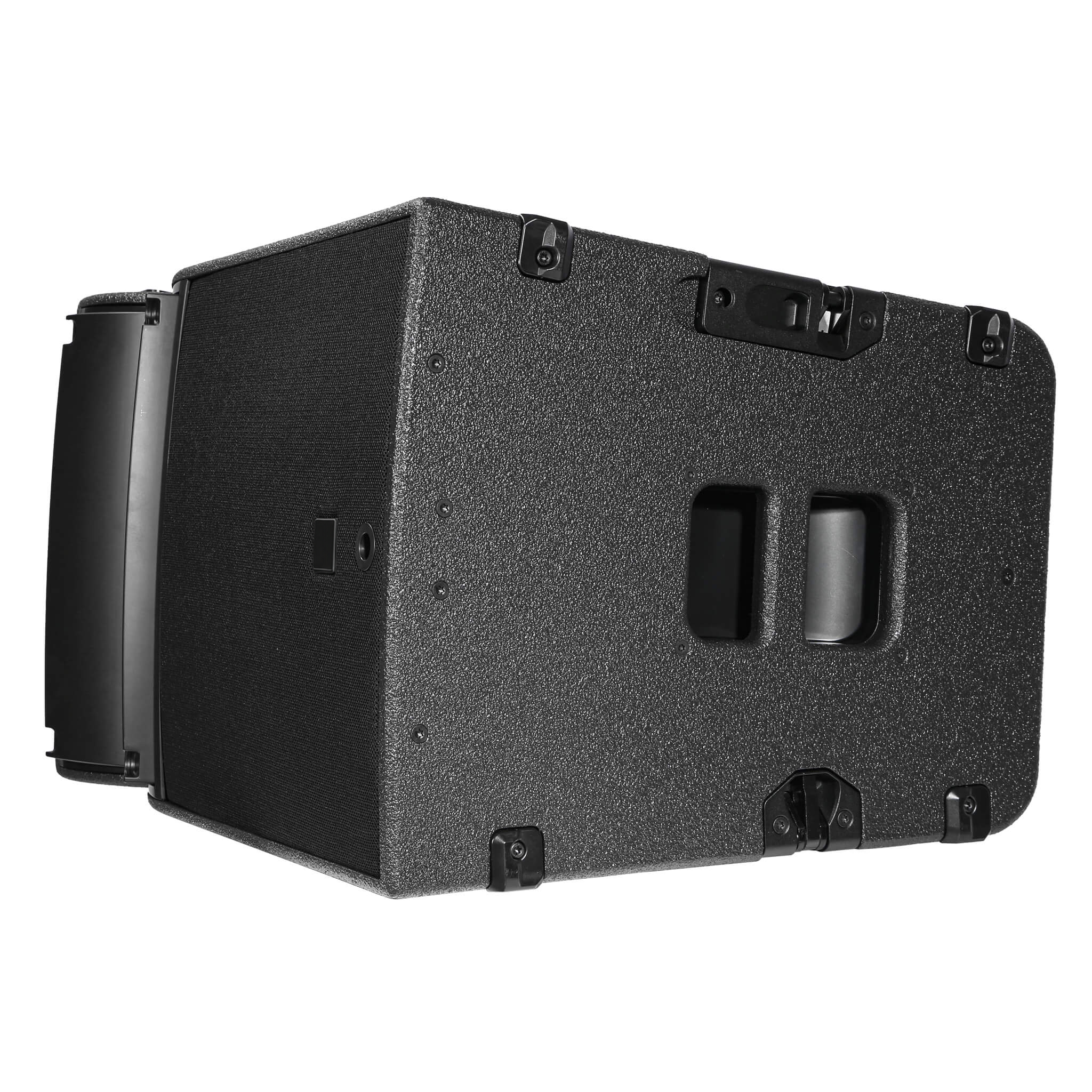

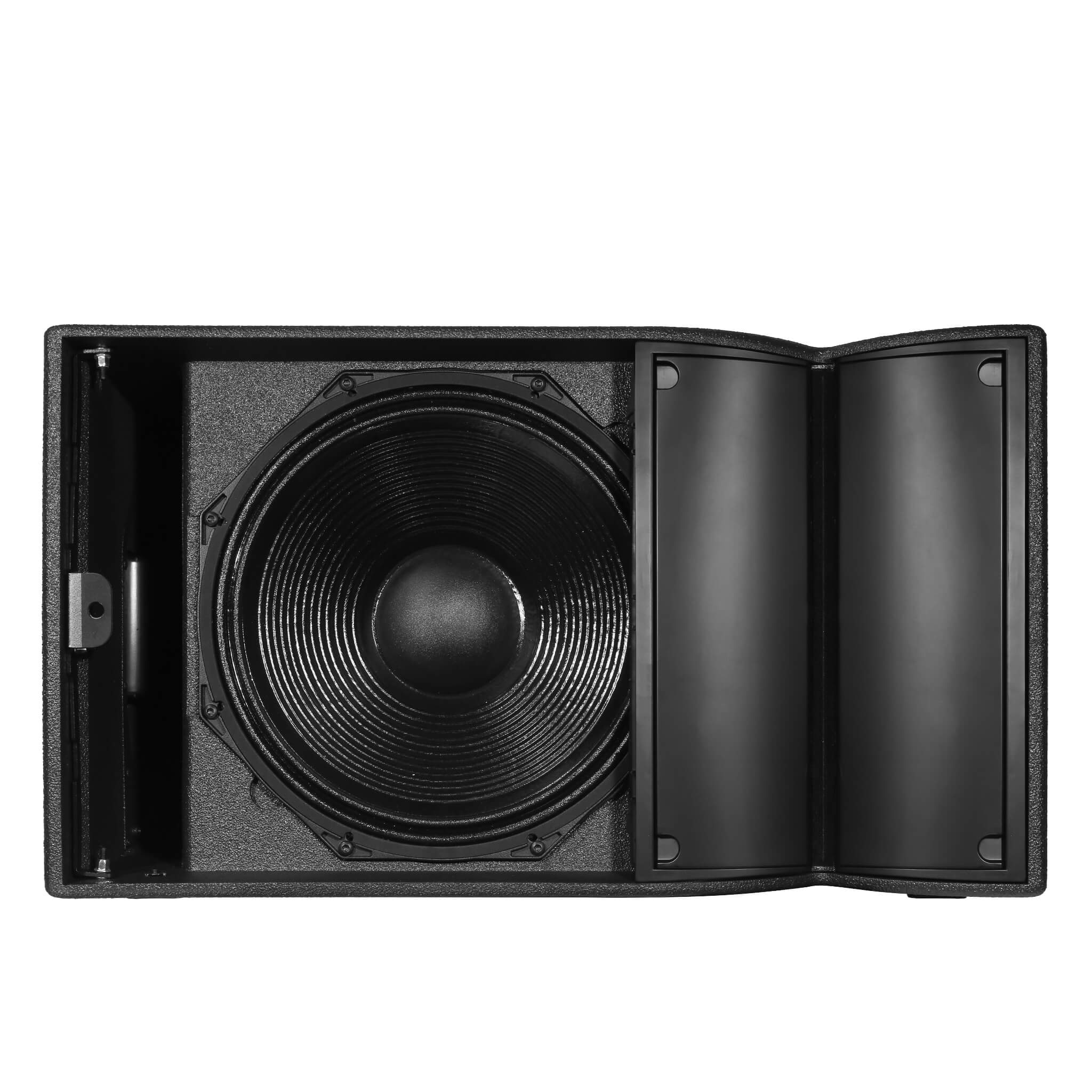

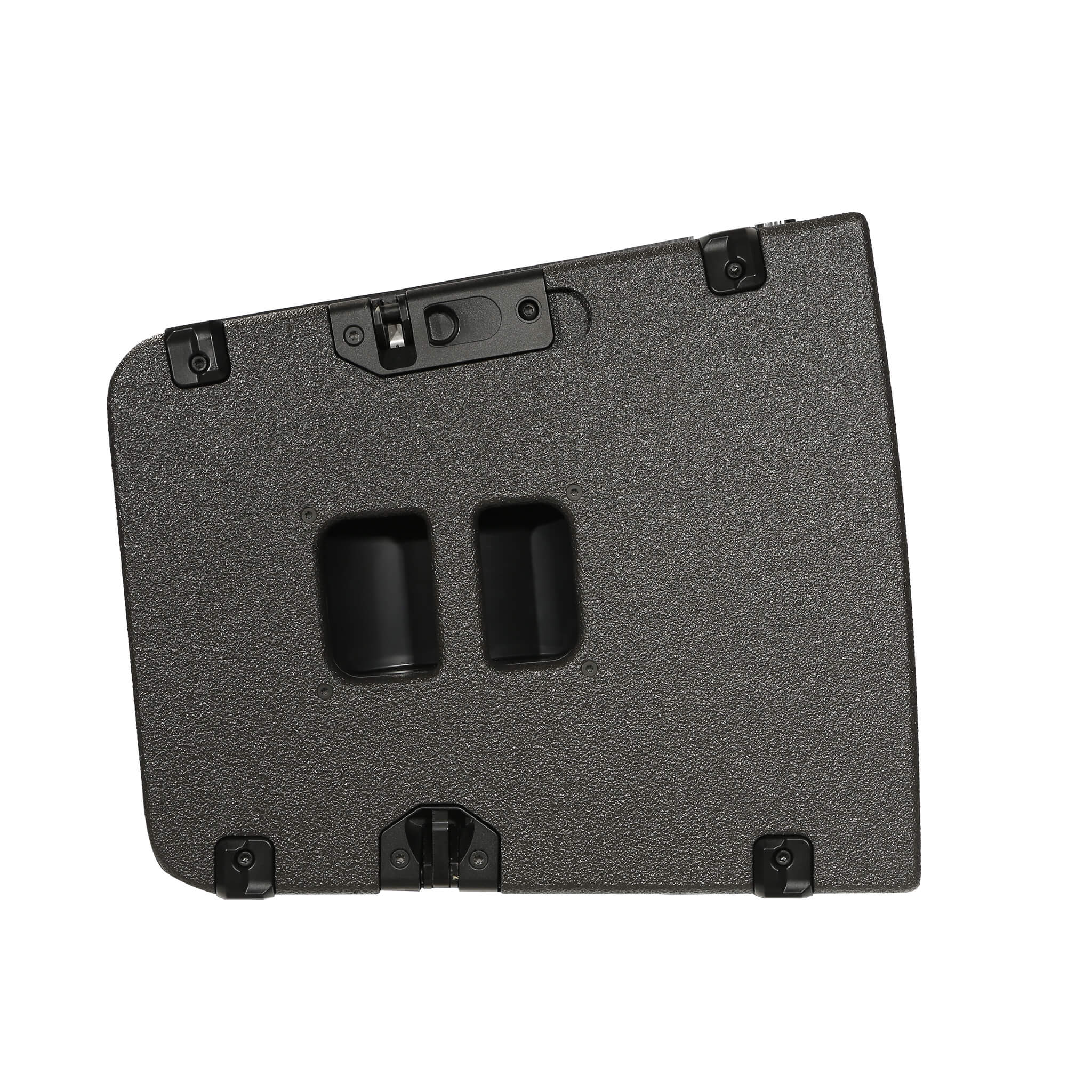

A215F Medium-Throw Single 15-Inch Point Source Loudspeaker
A215F Medium-Throw Single 15-Inch Point Source Loudspeaker is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists max spl: 144 dB; bandwidth (-5 db): 41 Hz – 20 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Max SPL
- 144 dB
- Bandwidth (-5 dB)
- 41 Hz – 20 kHz
- Weight
- 46 kg / 101 lb
Technical specifications
- Configuration
- Medium-throw loudspeaker, 2-way passive, single 15″ LF
- Max SPL
- 144 dB
- Bandwidth (-5 dB)
- 41 Hz – 20 kHz
- LF transducers
- 2 × 15″
- HF transducers
- 1 × 3″ compression driver
- Directivity
- H: 10° × 50° | V: scalable
- Nominal Impedance
- 8 Ω
- Power Handling
- 1000 W AES / 2000 W Program / 4000 W Peak
- Usable bandwidth (-10 dB)
- 41 Hz – 20 kHz ([A15])
- Maximum SPL1
- 144 dB ([A15])
- LF
- bass-reflex, L-Vents HF: DOSC waveguide, Panflex
- IN
- 1 × 4-point speakON LINK: 1 × 4-point speakON
- Transducers
- LF: 2 × 15″
- L-Fins
- 110° / 70° symmetric , 90° asymmetric
- HF transducers
- 1 × 3″ diaphragm compression drivers
- LF
- bass-reflex, L-Vents
- HF
- DOSC waveguide, Panflex
- LINK
- 1 × 4-point speakON
Physical specifications
- Weight
- 46 kg / 101 lb
- Dimensions (H × W × D)
- 850 × 423 × 600 mm
- Enclosure
- 10° L-Fins: 110° / 70° symmetric , 90° asymmetric
- Cabinet
- Baltic beech and birch plywood
- Front
- Coated steel grill Acoustically neutral 3D fabric
- Finish
- Dark grey brown Pantone 426 C
- IP
- IP55
- Front
- Coated steel grill
Compatibility and deployment
- Rigging and handling
- Flush-fitting two-point rigging system 1 handle, 8 corner stops and 2 ground runners
- Rigging components
- steel with anti-corrosion coating
- Function / configuration
- 2-way passive constant curvature WST 10°
- Function / configuration
- amplified by LA4X / LA8 / LA12X
- Function / configuration
- Nominal directivity (-6 dB)
- Function / configuration
- Connectors
- Rigging and handling
- Flush-fitting two-point rigging system
- Function / configuration
- 2-way passive constant curvature WST 10° amplified by LA4X / LA8 / LA12X
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Configuration | Medium-throw loudspeaker, 2-way passive, single 15″ LF |
|---|---|
| Max SPL | 144 dB |
| Bandwidth (-5 dB) | 41 Hz – 20 kHz |
| LF | 2 × 15″ |
| HF | 1 × 3″ compression driver |
| Weight | 46 kg / 101 lb |
| Directivity | H: 10° × 50° | V: scalable |
| Dimensions (H × W × D) | 850 × 423 × 600 mm |
| Nominal Impedance | 8 Ω |
| Power Handling | 1000 W AES / 2000 W Program / 4000 W Peak |
| Usable bandwidth (-10 dB) | 41 Hz – 20 kHz ([A15]) |
| Maximum SPL1 | 144 dB ([A15]) |
| Enclosure | 10° L-Fins: 110° / 70° symmetric , 90° asymmetric |
| LF | 1 × 15″ cone drivers HF: 1 × 3″ diaphragm compression drivers |
| LF | bass-reflex, L-Vents HF: DOSC waveguide, Panflex |
| IN | 1 × 4-point speakON LINK: 1 × 4-point speakON |
| Rigging and handling | Flush-fitting two-point rigging system 1 handle, 8 corner stops and 2 ground runners |
| Weight (net) | 35 kg / 77 lb |
| Cabinet | Premium grade Baltic beech and birch plywood |
| Front | Coated steel grill Acoustically neutral 3D fabric |
| Rigging components | High grade steel with anti-corrosion coating |
| Finish | Dark grey brown Pantone 426 C |
| IP | IP55 |
Downloads
| Title | File type | Download |
|---|---|---|
| YL A215F Selected Technical DataEnglish | PDF74 KB |
