Product identification
- Model
- A210W / A10 Wide 10-Inch 2-Way Passive Medium-Throw Point Source Loudspeaker
- Product category
- Point Source Loudspeakers

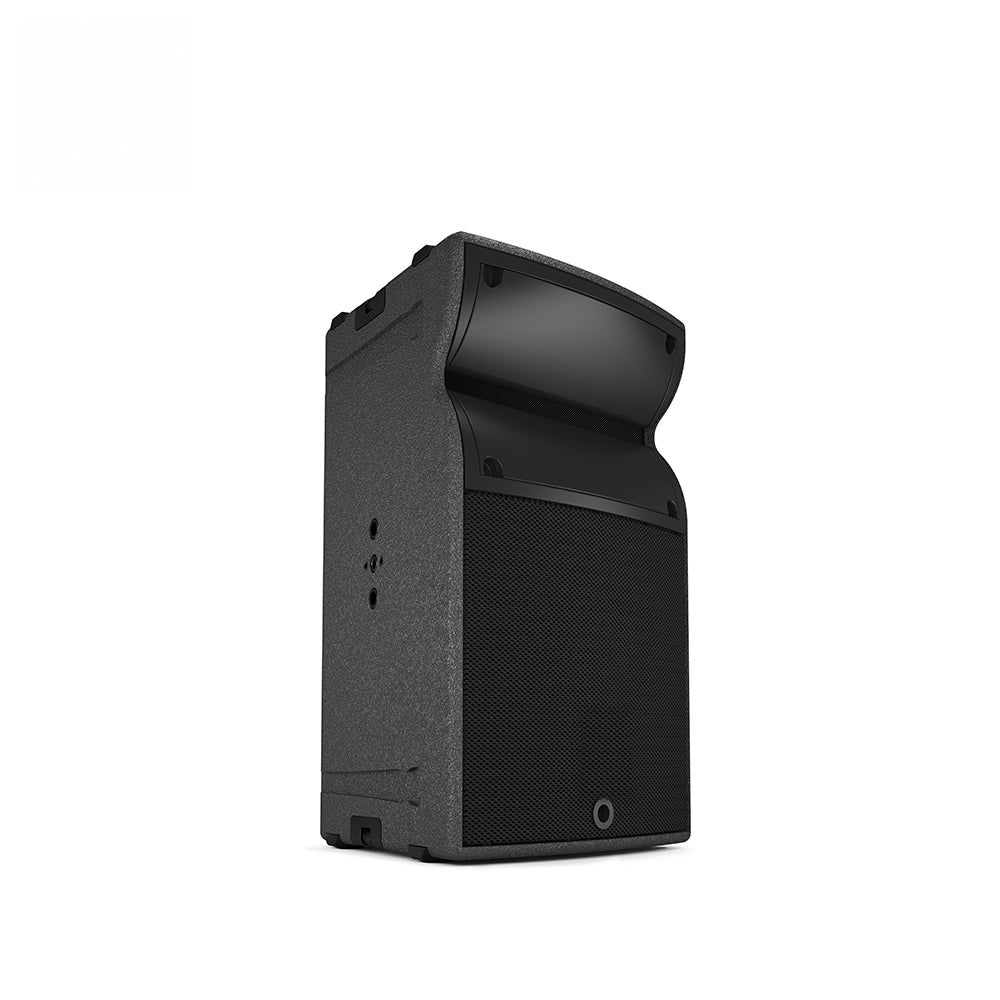

A210W / A10 Wide 10-Inch 2-Way Passive Medium-Throw Point Source Loudspeaker
A210W / A10 Wide 10-Inch 2-Way Passive Medium-Throw Point Source Loudspeaker is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists usable bandwidth: 67 Hz - 20 kHz (-10 dB); maximum spl: 137 dB peak at 1 m, free field. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 137 dB peak at 1 m, free field
- Usable bandwidth
- 67 Hz - 20 kHz (-10 dB)
- Net weight
- 20 kg / 44 lb
Technical specifications
- System type
- 2-way passive constant-curvature line source
- Usable bandwidth
- 67 Hz - 20 kHz (-10 dB)
- Maximum SPL
- 137 dB peak at 1 m, free field
- Nominal directivity
- 30-degree vertical enclosure coverage; 70 / 110-degree symmetric or 90-degree asymmetric horizontal coverage
- Transducers
- 1 x 10-inch neodymium LF driver and 1 x 2.5-inch diaphragm neodymium HF compression driver
- Nominal impedance
- 8 ohms
- Connectors
- 2 x 4-point speaker connectors, IN / LINK
- Broad medium-throw coverage
- the 30-degree enclosure enables compact radial arrays with expansive audience coverage.
- Adaptable directivity
- selectable 70-degree or 110-degree symmetric coverage and 90-degree asymmetric coverage.
- Model
- A210W / A10 Wide
- Horizontal coverage
- 70 / 110 degrees symmetric or 90 degrees asymmetric
- LF transducer
- 1 x 10-inch neodymium cone driver, bass-reflex
- HF transducer
- 1 x 2.5-inch diaphragm neodymium compression driver
- Safety
- 1 x DIN580-compatible M8 insert
- Control
- Compatible amplified controller with approved A10 preset
- Flexible deployment

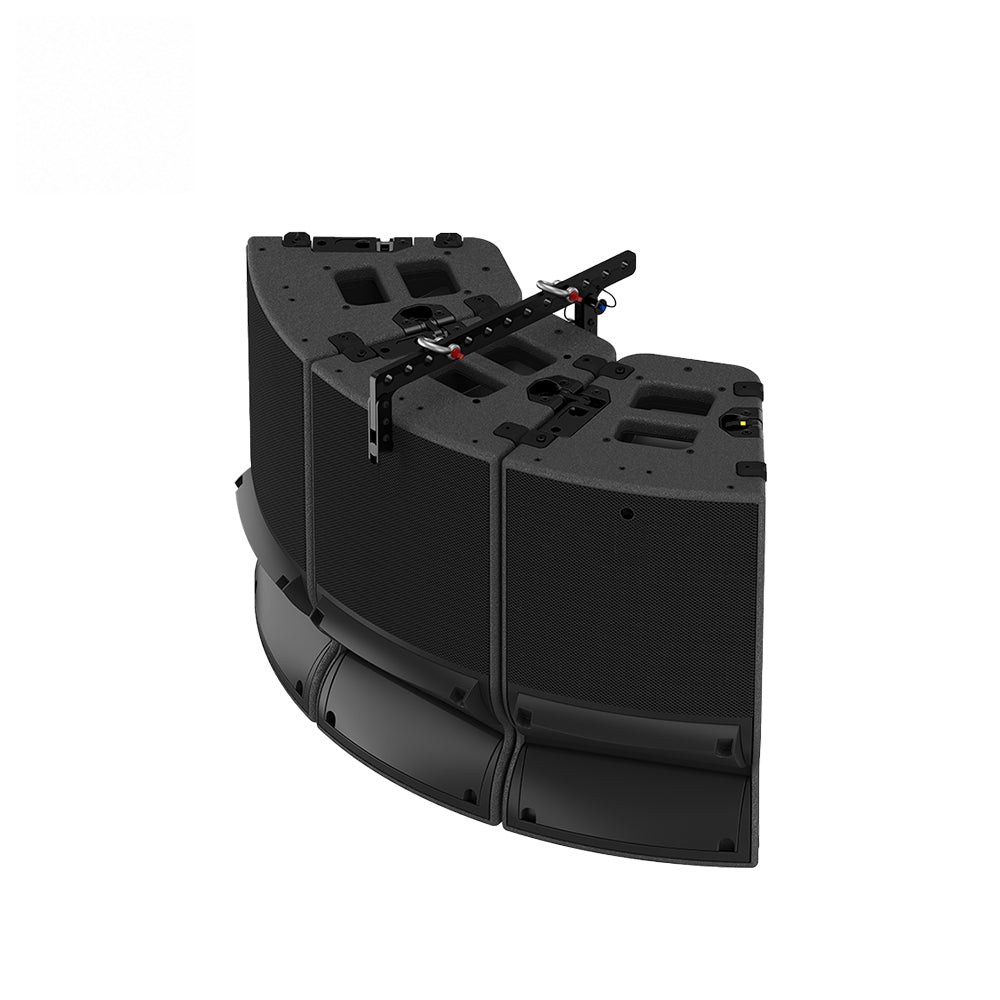

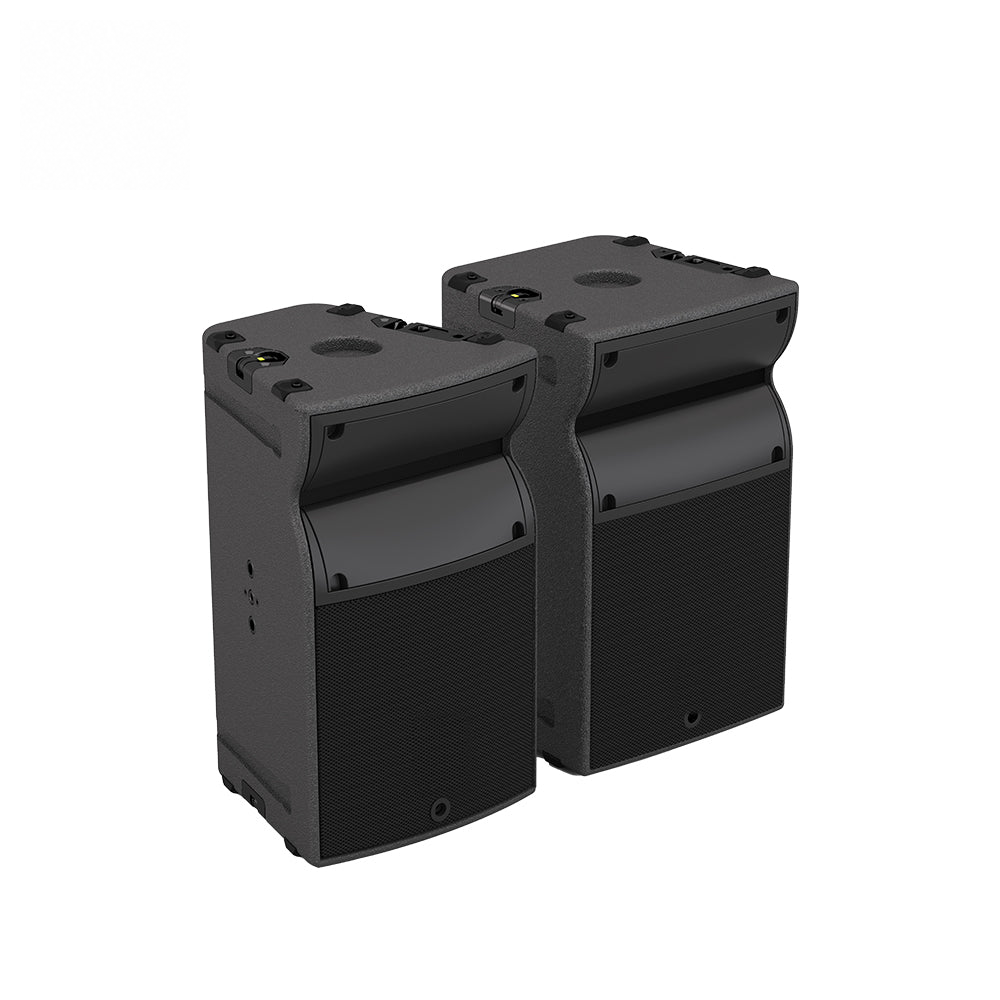

- fly or stack in vertical and horizontal arrays, or deploy individually for pole-mounted, fill and delay duties.
Physical specifications
- Dimensions
- 581 x 347 x 367 mm
- Net weight
- 20 kg / 44 lb
- Protection rating
- IP55
- High output from a compact cabinet
- up to 137 dB maximum SPL from a single 10-inch passive enclosure.
- Vertical enclosure coverage
- 30 degrees
- Cabinet
- Premium-grade Baltic beech and birch plywood
- Touring-ready construction
- integral two-point rigging, plywood cabinet and IP55 weather protection.
Compatibility and deployment
- Rigging
- Flush-fitting two-point rigging system
- Applications
- Touring, theatres, clubs, houses of worship, sports venues, distributed reinforcement, front-fill and delay systems
- Function / configuration
- Connection, Rigging & Physical Data
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| System type | 2-way passive constant-curvature line source |
|---|---|
| Usable bandwidth | 67 Hz - 20 kHz (-10 dB) |
| Maximum SPL | 137 dB peak at 1 m, free field |
| Nominal directivity | 30-degree vertical enclosure coverage; 70 / 110-degree symmetric or 90-degree asymmetric horizontal coverage |
| Transducers | 1 x 10-inch neodymium LF driver and 1 x 2.5-inch diaphragm neodymium HF compression driver |
| Nominal impedance | 8 ohms |
| Connectors | 2 x 4-point speaker connectors, IN / LINK |
| Dimensions | 581 x 347 x 367 mm |
| Net weight | 20 kg / 44 lb |
| Protection rating | IP55 |
| Broad medium-throw coverage | the 30-degree enclosure enables compact radial arrays with expansive audience coverage. |
| High output from a compact cabinet | up to 137 dB maximum SPL from a single 10-inch passive enclosure. |
| Adaptable directivity | selectable 70-degree or 110-degree symmetric coverage and 90-degree asymmetric coverage. |
| Model | A210W / A10 Wide |
| Vertical enclosure coverage | 30 degrees |
| Horizontal coverage | 70 / 110 degrees symmetric or 90 degrees asymmetric |
| LF transducer | 1 x 10-inch neodymium cone driver, bass-reflex |
| HF transducer | 1 x 2.5-inch diaphragm neodymium compression driver |
| Rigging | Flush-fitting two-point rigging system |
| Safety | 1 x DIN580-compatible M8 insert |
| Cabinet | Premium-grade Baltic beech and birch plywood |
| Control | Compatible amplified controller with approved A10 preset |
| Applications | Touring, theatres, clubs, houses of worship, sports venues, distributed reinforcement, front-fill and delay systems |
