Product identification
- Model
- A210F / A10 Focus 10-Inch 2-Way Passive Medium-Throw Point Source Loudspeaker
- Product category
- Point Source Loudspeakers

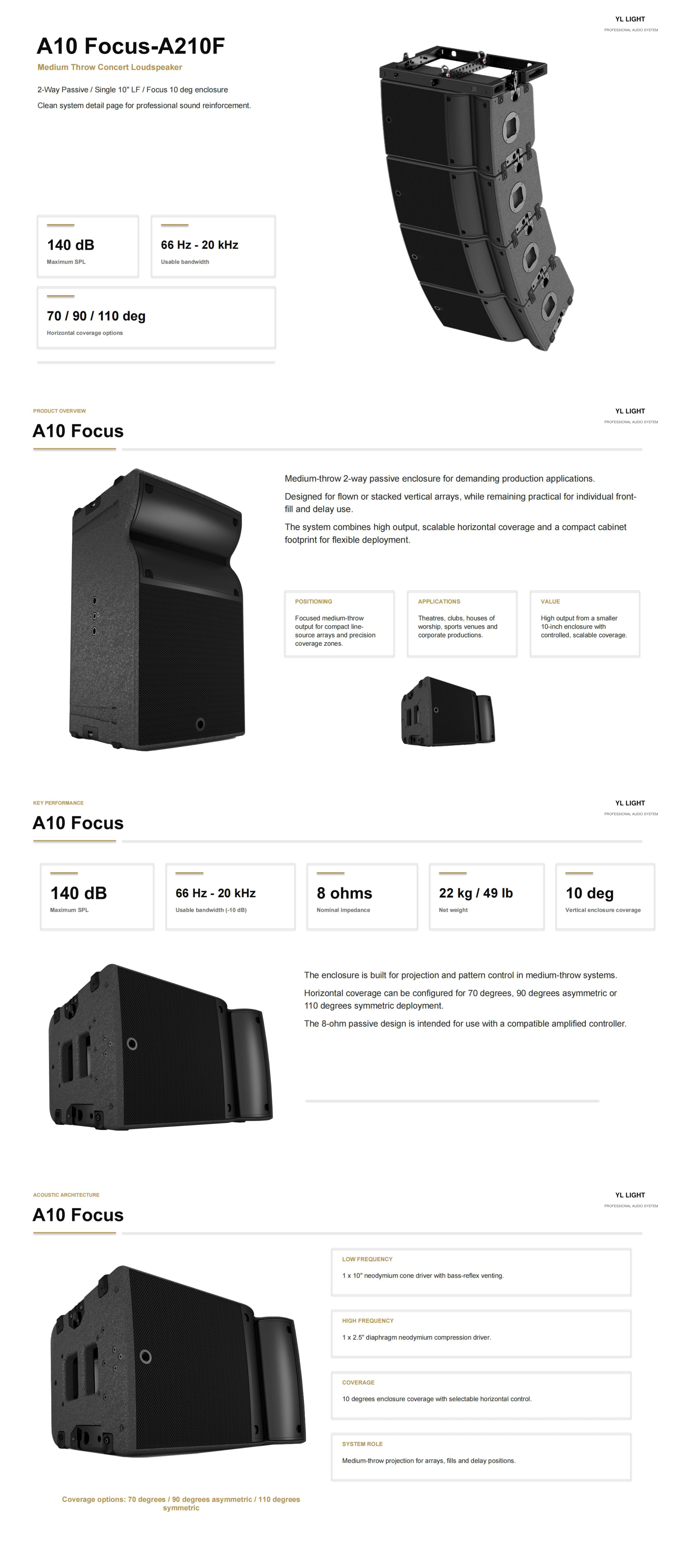

A210F / A10 Focus 10-Inch 2-Way Passive Medium-Throw Point Source Loudspeaker
A210F / A10 Focus 10-Inch 2-Way Passive Medium-Throw Point Source Loudspeaker is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists usable bandwidth: 66 Hz - 20 kHz (-10 dB); maximum spl: 140 dB peak at 1 m, free field. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 140 dB peak at 1 m, free field
- Usable bandwidth
- 66 Hz - 20 kHz (-10 dB)
- Net weight
- 22 kg / 49 lb
Technical specifications
- System type
- 2-way passive constant-curvature line source
- Usable bandwidth
- 66 Hz - 20 kHz (-10 dB)
- Maximum SPL
- 140 dB peak at 1 m, free field
- Nominal directivity
- 10-degree vertical enclosure coverage; 70 / 110-degree symmetric or 90-degree asymmetric horizontal coverage
- Transducers
- 1 x 10-inch neodymium LF driver and 1 x 2.5-inch diaphragm neodymium HF compression driver
- Nominal impedance
- 8 ohms
- Connectors
- 2 x 4-point speaker connectors, IN / LINK
- Concert-level output
- up to 140 dB maximum SPL from a compact single 10-inch enclosure.
- Precision medium-throw coverage
- focused projection for production applications up to 35 m.
- Adaptable directivity
- selectable 70-degree or 110-degree symmetric coverage and 90-degree asymmetric coverage.
- Model
- A210F / A10 Focus
- Horizontal coverage
- 70 / 110 degrees symmetric or 90 degrees asymmetric
- LF transducer
- 1 x 10-inch neodymium cone driver, bass-reflex
- HF transducer
- 1 x 2.5-inch diaphragm neodymium compression driver
- Safety
- 1 x DIN580-compatible M8 insert
- Control
- Compatible amplified controller with approved A10 preset
- Flexible deployment
- fly or stack in vertical and horizontal arrays, or deploy individually for front-fill and delay duties.

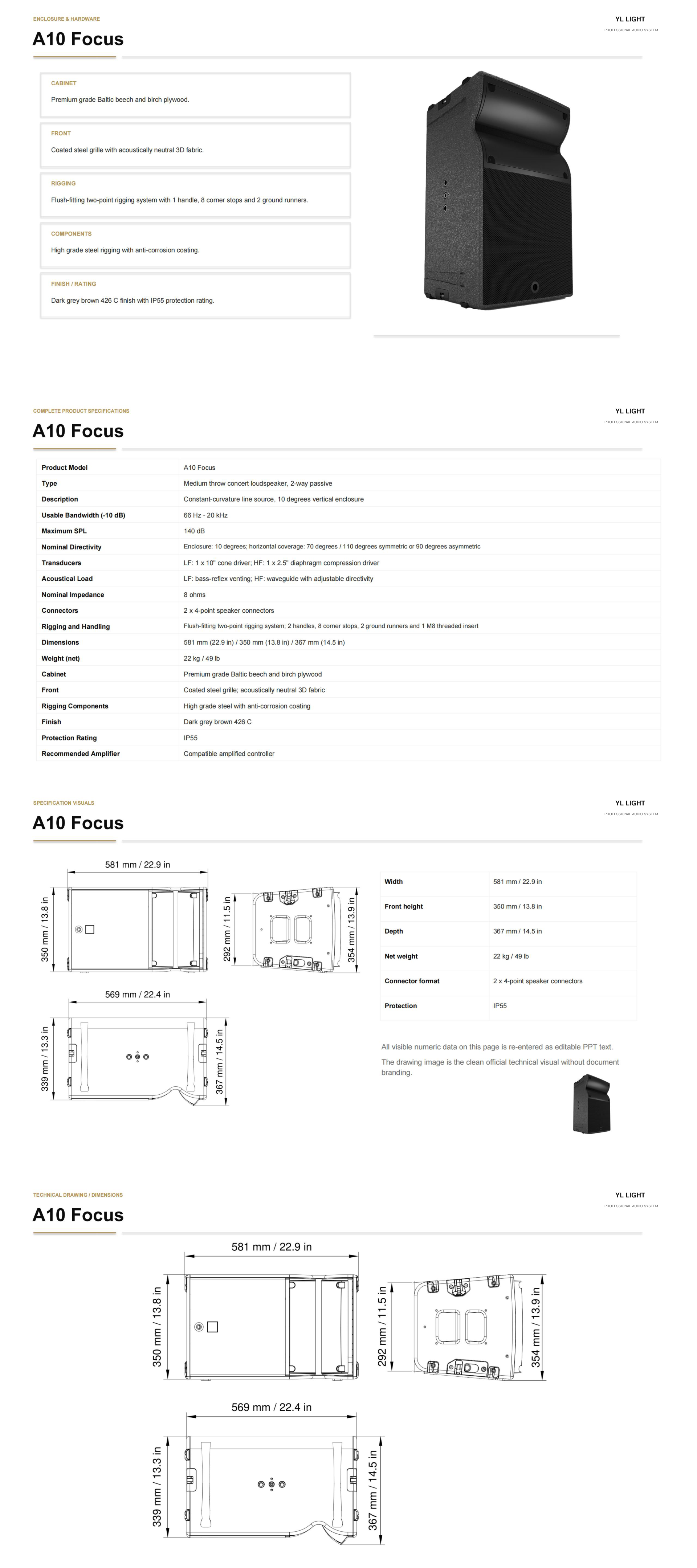

Physical specifications
- Dimensions
- 581 x 350 x 367 mm
- Net weight
- 22 kg / 49 lb
- Protection rating
- IP55
- Vertical enclosure coverage
- 10 degrees
- Cabinet
- Premium-grade Baltic beech and birch plywood
- Touring-ready construction
- integral two-point rigging, plywood cabinet and IP55 weather protection.
Compatibility and deployment
- Rigging
- Flush-fitting two-point rigging system
- Applications
- Touring, theatres, clubs, houses of worship, sports venues, front-fill and delay systems
- Function / configuration
- Connection, Rigging & Physical Data
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| System type | 2-way passive constant-curvature line source |
|---|---|
| Usable bandwidth | 66 Hz - 20 kHz (-10 dB) |
| Maximum SPL | 140 dB peak at 1 m, free field |
| Nominal directivity | 10-degree vertical enclosure coverage; 70 / 110-degree symmetric or 90-degree asymmetric horizontal coverage |
| Transducers | 1 x 10-inch neodymium LF driver and 1 x 2.5-inch diaphragm neodymium HF compression driver |
| Nominal impedance | 8 ohms |
| Connectors | 2 x 4-point speaker connectors, IN / LINK |
| Dimensions | 581 x 350 x 367 mm |
| Net weight | 22 kg / 49 lb |
| Protection rating | IP55 |
| Concert-level output | up to 140 dB maximum SPL from a compact single 10-inch enclosure. |
| Precision medium-throw coverage | focused projection for production applications up to 35 m. |
| Adaptable directivity | selectable 70-degree or 110-degree symmetric coverage and 90-degree asymmetric coverage. |
| Model | A210F / A10 Focus |
| Vertical enclosure coverage | 10 degrees |
| Horizontal coverage | 70 / 110 degrees symmetric or 90 degrees asymmetric |
| LF transducer | 1 x 10-inch neodymium cone driver, bass-reflex |
| HF transducer | 1 x 2.5-inch diaphragm neodymium compression driver |
| Rigging | Flush-fitting two-point rigging system |
| Safety | 1 x DIN580-compatible M8 insert |
| Cabinet | Premium-grade Baltic beech and birch plywood |
| Control | Compatible amplified controller with approved A10 preset |
| Applications | Touring, theatres, clubs, houses of worship, sports venues, front-fill and delay systems |
Downloads
| Title | File type | Download |
|---|---|---|
| YL A210F Selected Technical DataEnglish | PDF74 KB | |
| A210F Illustrated Product Guide (12 pages)English | PDF5.4 MB |

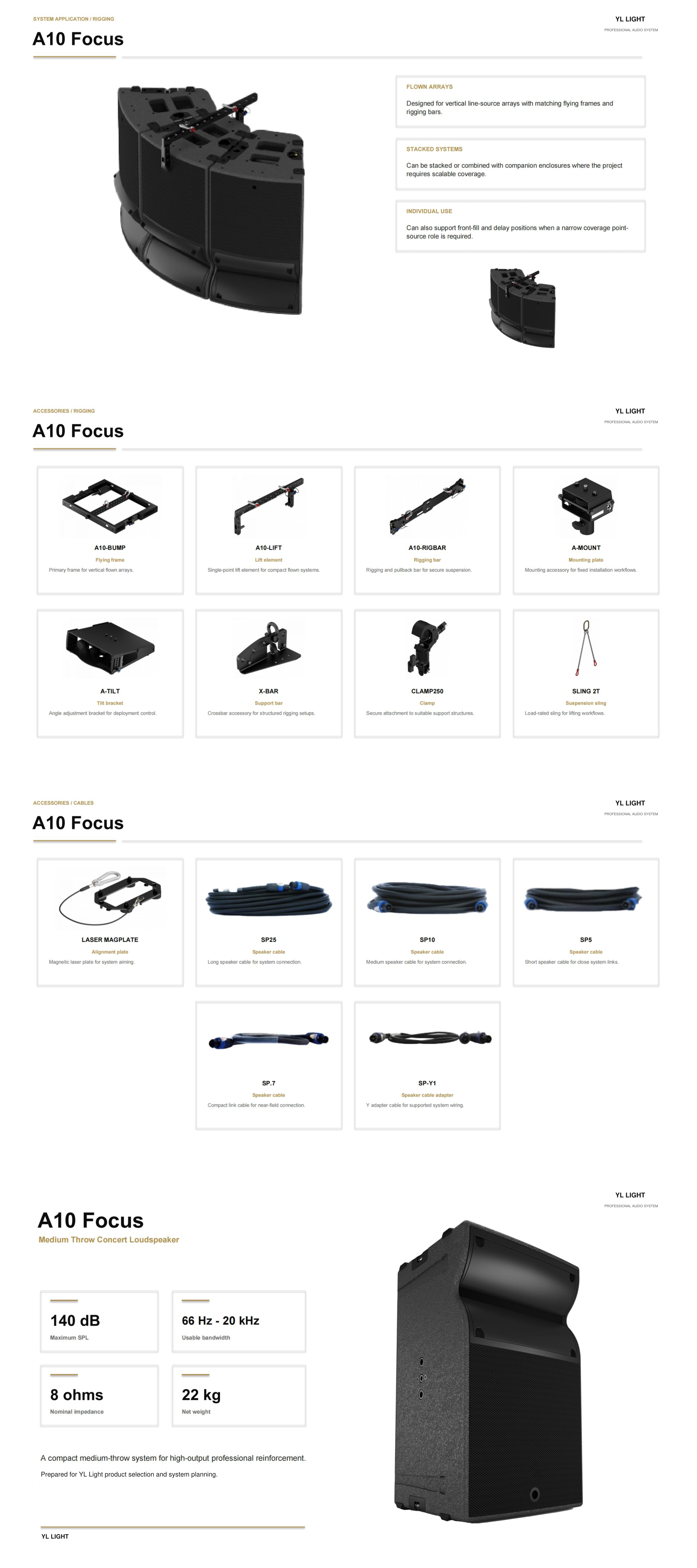

System accessories
