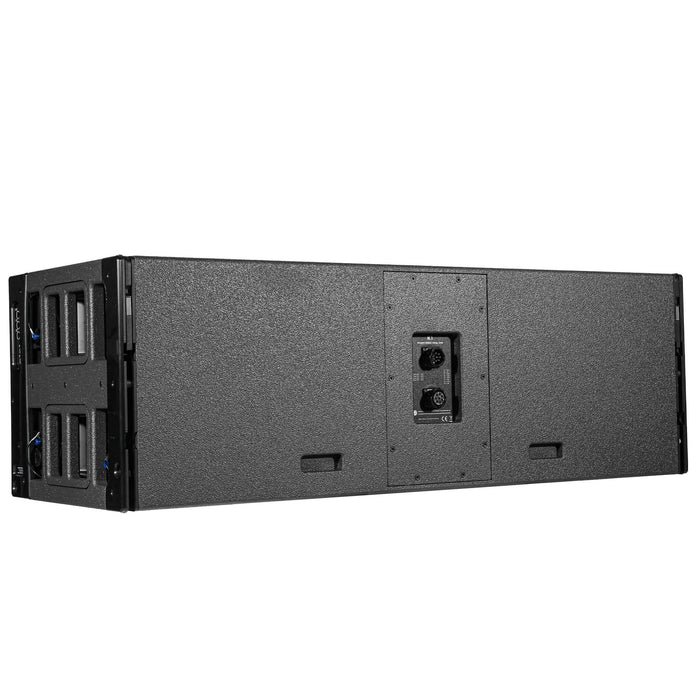

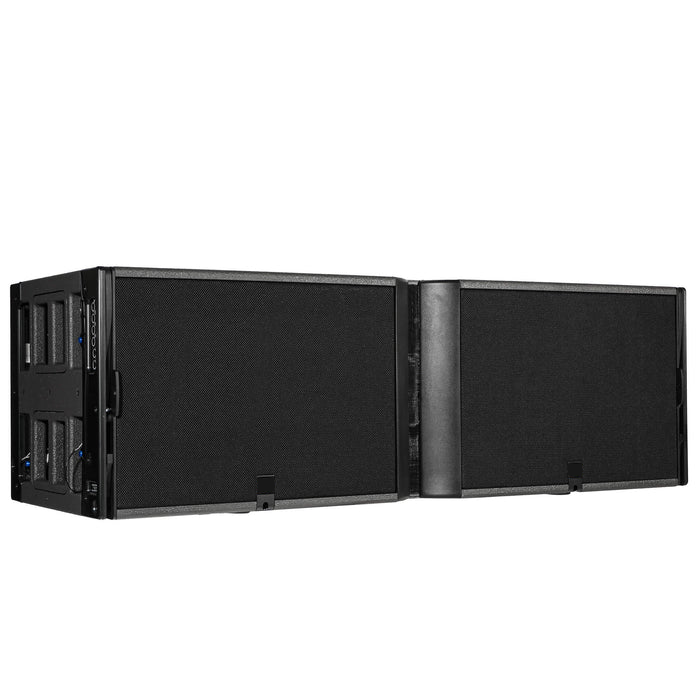

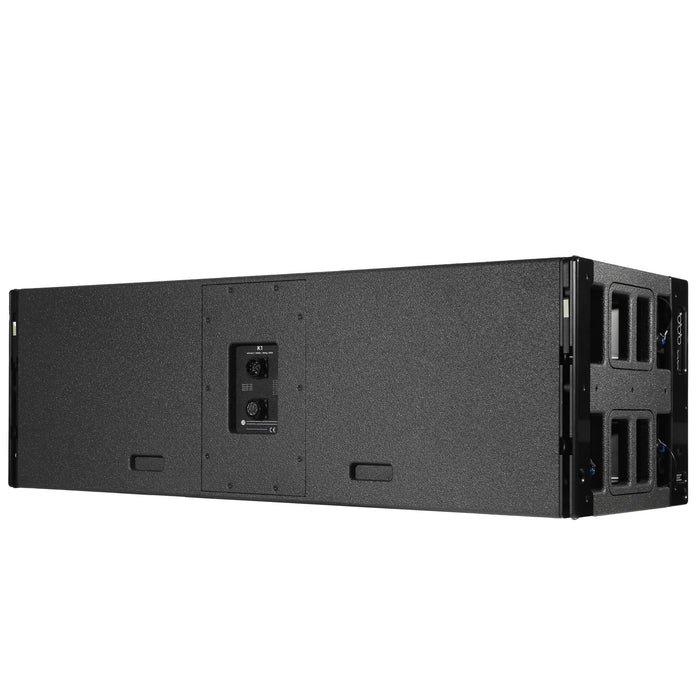

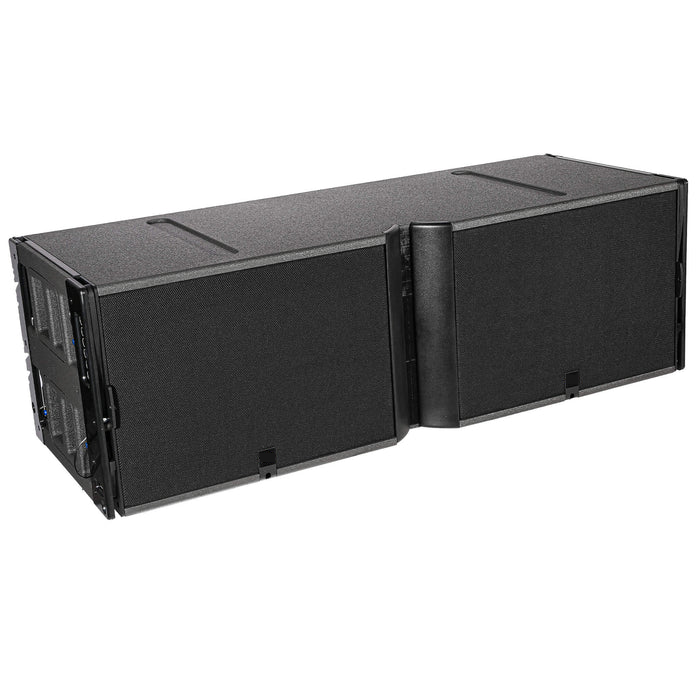

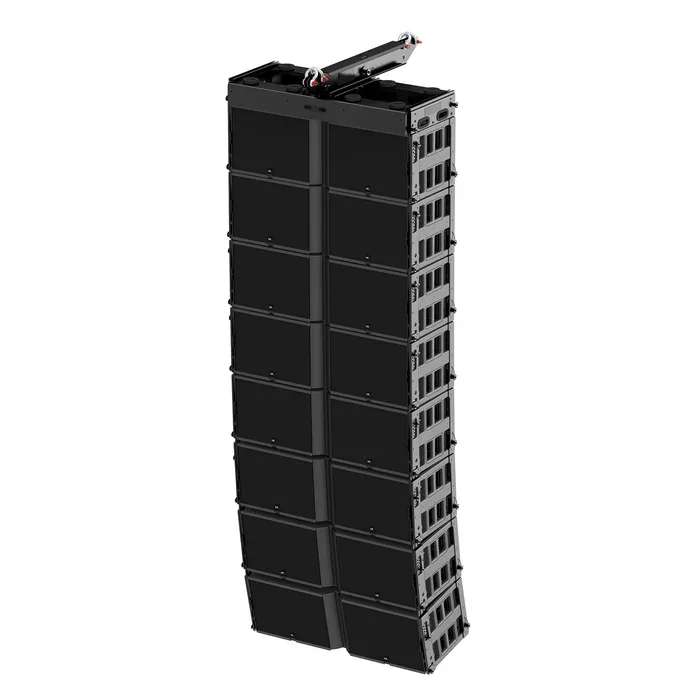

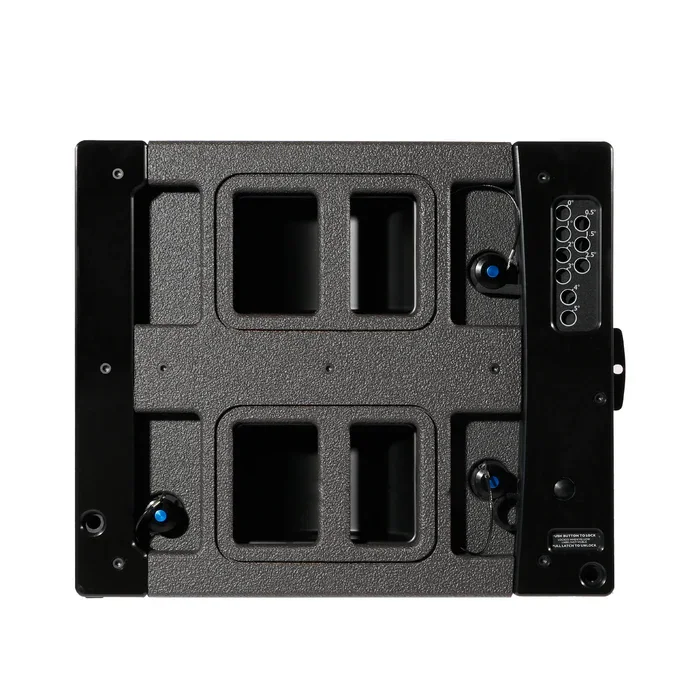

K1–K215 Line Array
A large-format 3-way line array with dual 15-inch low-frequency drivers and 90° × 5° coverage.
WHATSAPPRequest a Quote- Maximum SPL
- 149 dB
- Bandwidth (−5 dB)
- 35 Hz–20 kHz
- Weight
- 106 kg / 234 lb
Product identification
- Model
- K1–K215 Line Array
- Product category
- Line arrays
Technical specifications
- Configuration
- Large-format 3-way line array
- Maximum SPL
- 149 dB
- Bandwidth (−5 dB)
- 35 Hz–20 kHz

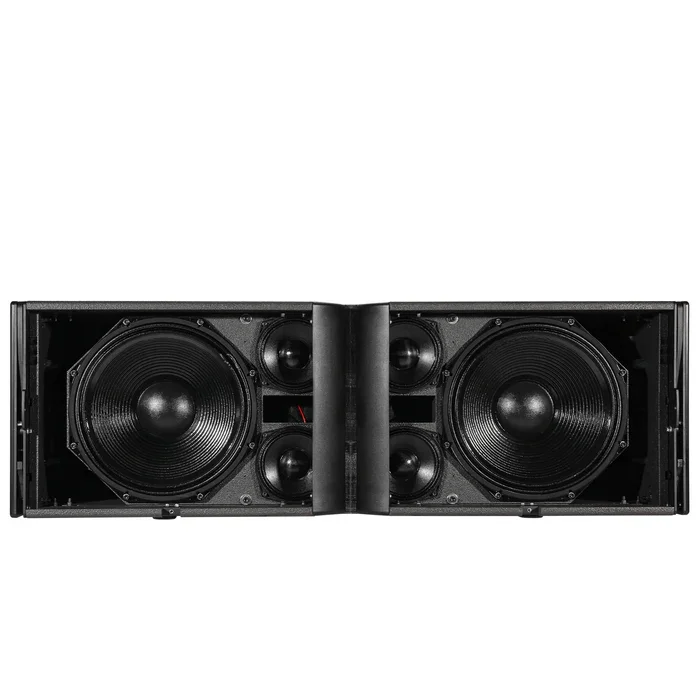

- Low-frequency drivers
- 2 × 15-inch
- Mid-frequency drivers
- 4 × 6.5-inch
- High-frequency drivers
- 3 × 3-inch
- Coverage
- 90° horizontal × 5° vertical
- Nominal impedance
- 8 Ω
- Power handling
- 1500 W AES / 3000 W program
Physical specifications
- Weight
- 106 kg / 234 lb
- Dimensions (H × W × D)
- 1350 × 520 × 720 mm
Compatibility and deployment
Function / configuration: A large-format 3-way line array with dual 15-inch low-frequency drivers and 90° × 5° coverage.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Configuration | Large-format 3-way line array |
|---|---|
| Maximum SPL | 149 dB |
| Bandwidth (−5 dB) | 35 Hz–20 kHz |
| Low-frequency drivers | 2 × 15-inch |
| Mid-frequency drivers | 4 × 6.5-inch |
| High-frequency drivers | 3 × 3-inch |
| Weight | 106 kg / 234 lb |
| Coverage | 90° horizontal × 5° vertical |
| Dimensions (H × W × D) | 1350 × 520 × 720 mm |
| Nominal impedance | 8 Ω |
| Power handling | 1500 W AES / 3000 W program |
Downloads
Product documents are being prepared. Contact YL for the current information for K1–K215 Line Array.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for K1–K215 Line Array.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of K1–K215 Line Array and the configuration you need.
