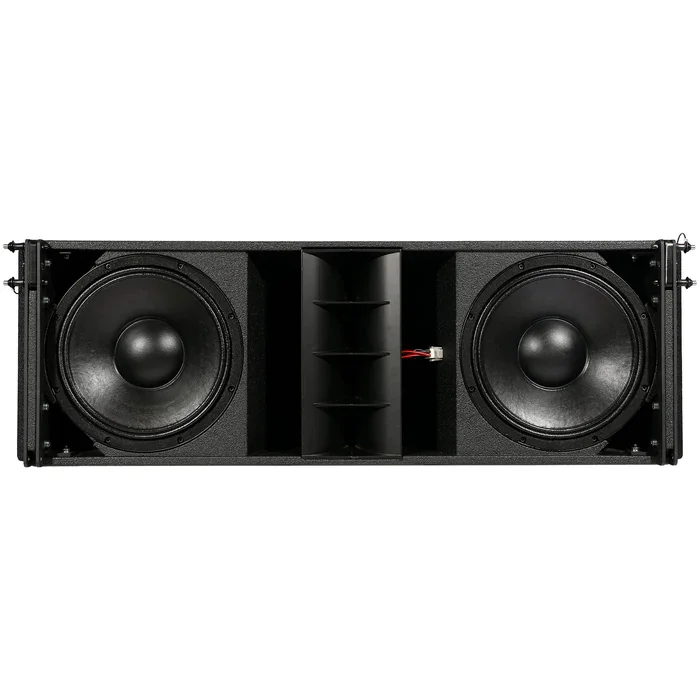

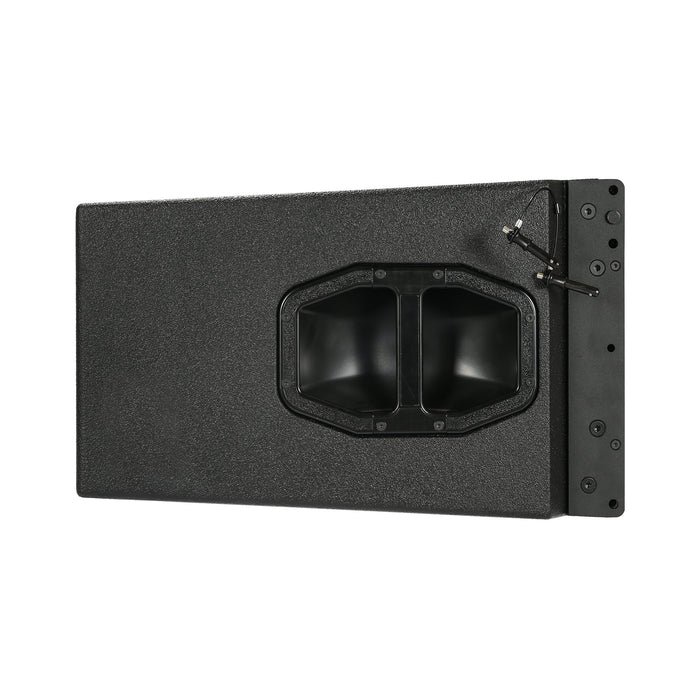

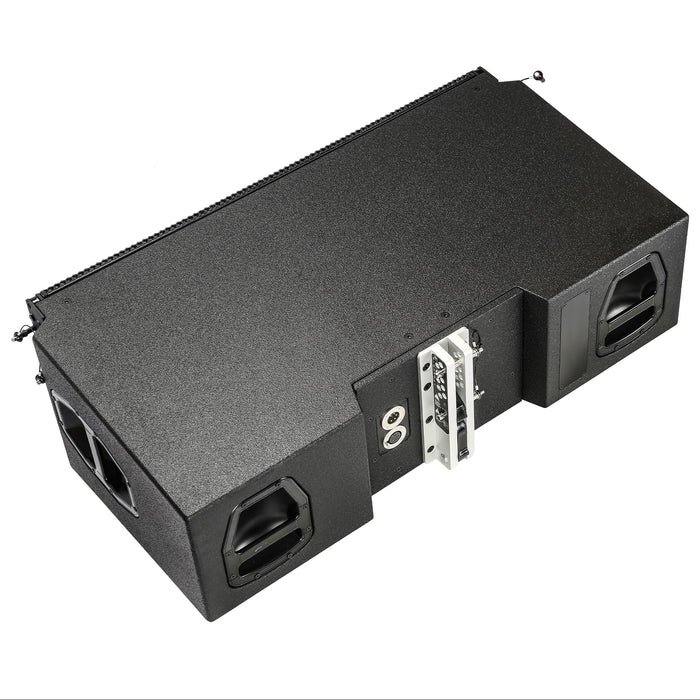

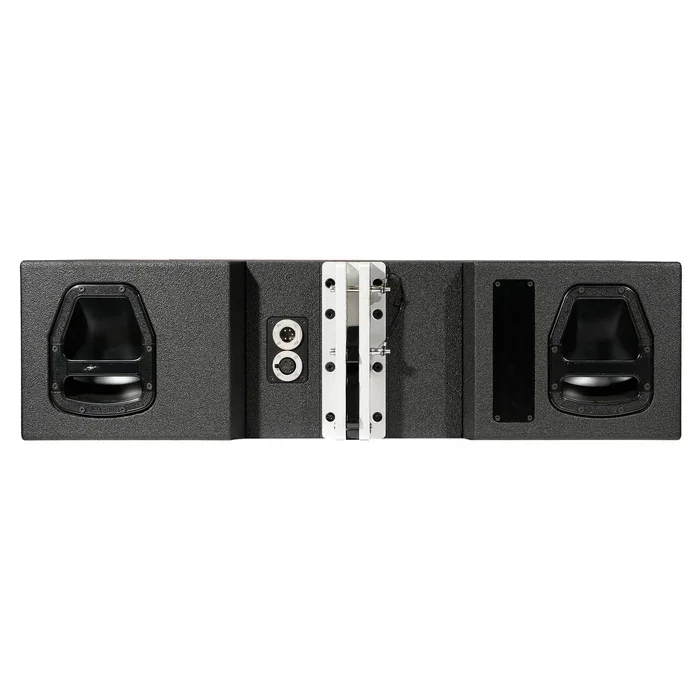

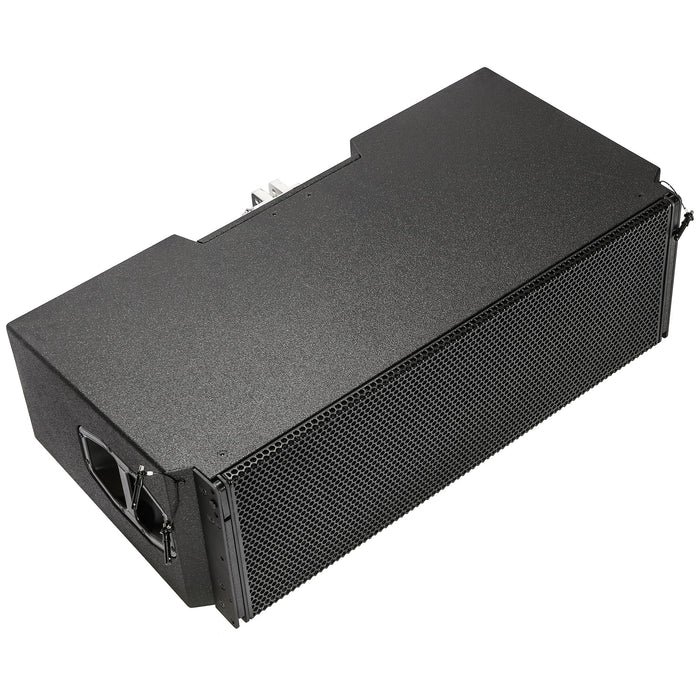

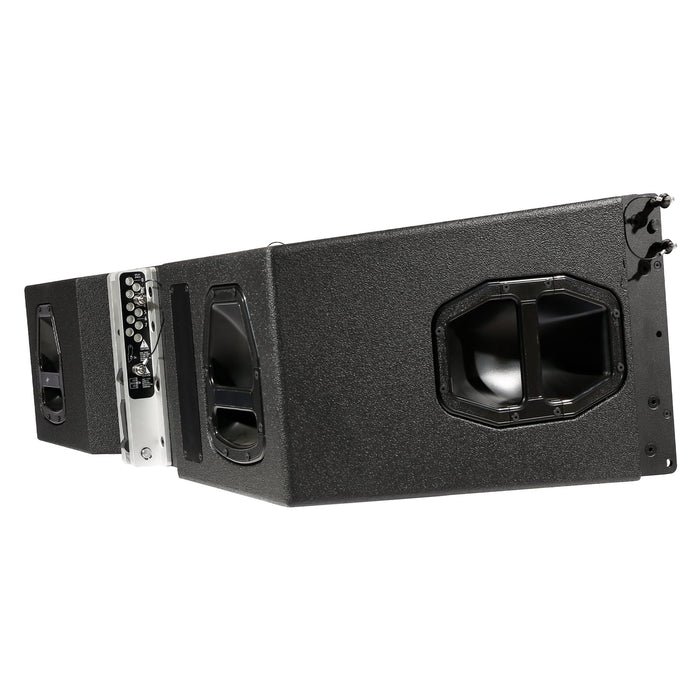

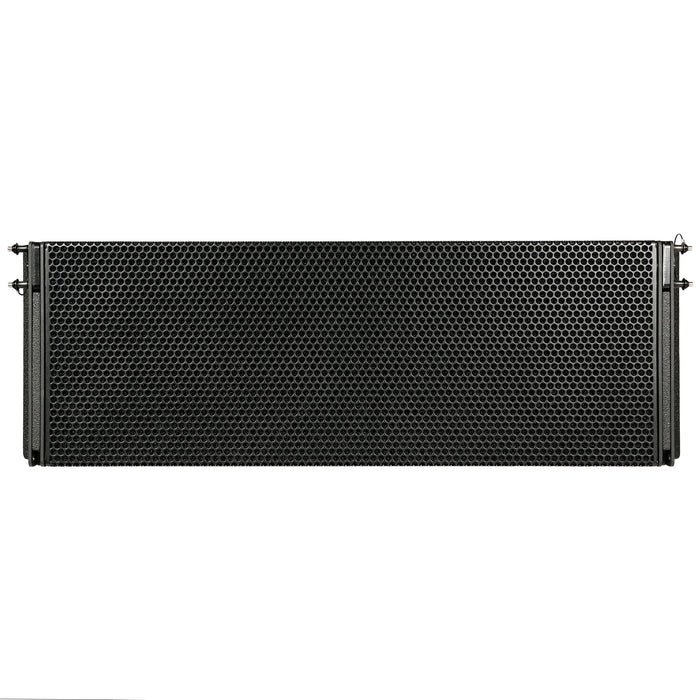

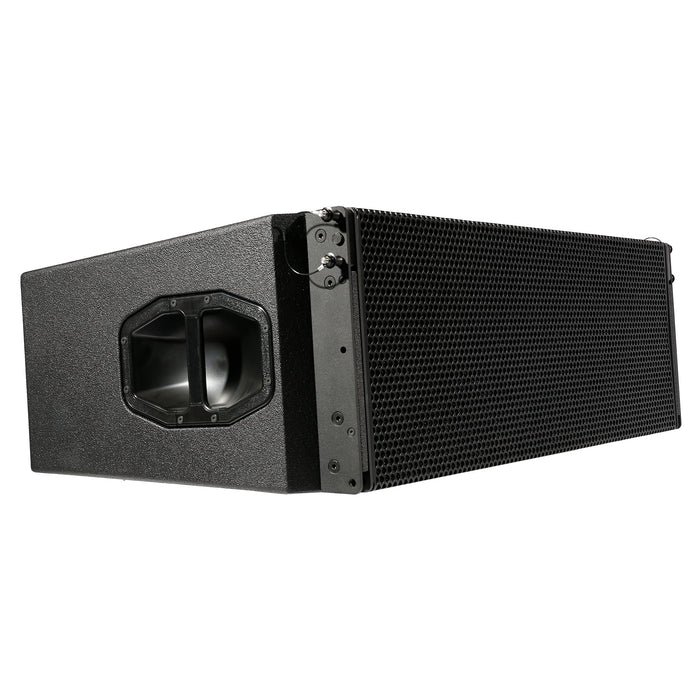

J8–J212F Line Array — product photo 1

YL Light YL-B&B Line Array Systems

J8–J212F Line Array

A large-format 3-way line array with dual 12-inch low-frequency drivers.

WHATSAPPRequest a Quote

View specifications

Maximum SPL: 145 dB
Bandwidth (−5 dB): 39 Hz – 20 kHz
Weight: 54 kg / 119 lb

Product identification

Model: J8–J212F Line Array
Product category: Line arrays

Technical specifications

Configuration: Large-format line array, 3-way
Maximum SPL: 145 dB
Bandwidth (−5 dB): 39 Hz – 20 kHz
Low-frequency drivers: 2 × 12″
Mid-frequency drivers: 1 × 10″
High-frequency drivers: 2 × 1.4″ compression drivers
Coverage / directivity: J212F H: 80° | J212W H: 120° | V: 10°
Nominal impedance: 8 Ω
Power handling: 800 W AES / 1600 W Program / 3200 W Peak

Physical specifications

Weight: 54 kg / 119 lb
Dimensions (H × W × D): 580 × 1100 × 600 mm

Compatibility and deployment

Function / configuration: A large-format 3-way line array with dual 12-inch low-frequency drivers.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

J8–J212F Line Array technical specifications
Configuration	Large-format line array, 3-way
Maximum SPL	145 dB
Bandwidth (−5 dB)	39 Hz – 20 kHz
Low-frequency drivers	2 × 12″
Mid-frequency drivers	1 × 10″
High-frequency drivers	2 × 1.4″ compression drivers
Weight	54 kg / 119 lb
Coverage / directivity	J212F H: 80° \| J212W H: 120° \| V: 10°
Dimensions (H × W × D)	580 × 1100 × 600 mm
Nominal impedance	8 Ω
Power handling	800 W AES / 1600 W Program / 3200 W Peak

Downloads

Product documents are being prepared. Contact YL for the current information for J8–J212F Line Array.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for J8–J212F Line Array.

Ask about compatible accessories

Product videos

Ask for an available demonstration of J8–J212F Line Array and the configuration you need.

Request a product demonstration
