Planning this product into your project
Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.
Dust and Smoke-Oil Resistant 380W Moving Head Beam Light
Moving Head Beam Light
WHATSAPPRequest a QuoteMoving Head Beam LightsSpecification
| Rated power | 550W |
|---|---|
| DMX channels | 16CH DMX512 |
| Movement | Pan 540 degrees / tilt 270 degrees / fine channels |
| Product | Dust and Smoke-Oil Resistant 380W Moving Head Beam Light |
| Input voltage | AC100-220V, 50/60Hz |
| Control modes | DMX512 / RDM / sound / auto / master-slave |
| Color wheel | 14 colors + white |
| Fixed gobos | 13 fixed gobos + open |
| Dimming / strobe | 0-100% dimming; variable and random strobe |
| Electrical protection | Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is on the rear power p anel. |
Product details
Product configuration
- Movement
- Pan 540 degrees / tilt 270 degrees / fine channels
- Product
- Dust and Smoke-Oil Resistant 380W Moving Head Beam Light
- Dimming / strobe
- 0-100% dimming; variable and random strobe
Optical performance
- Rated power
- 550W
- Color wheel
- 14 colors + white
- Fixed gobos
- 13 fixed gobos + open
Control and connections
- DMX channels
- 16CH DMX512
- Input voltage
- AC100-220V, 50/60Hz
- Control modes
- DMX512 / RDM / sound / auto / master-slave
Construction and dimensions
Electrical protection: Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is on the rear power p anel.
What to confirm for your quotation
- Provide the throw distance, mounting height and beam or coverage required.
- Confirm the exact light source, optical functions and channel mode for the quoted variant.
- Request relevant photometric data and a demonstration using the intended colour and zoom settings.
- Check power, connectors, weight, protection rating and the included mounting accessories.
Product setup and control reference — pages 2–3
Model-specific setup, control and technical reference pages. Follow the verification notes shown in the guide; unconfirmed modes, ratings and installation data are not a final specification for the supplied fixture. Download the full reference guide for readable tables and all stated limitations.

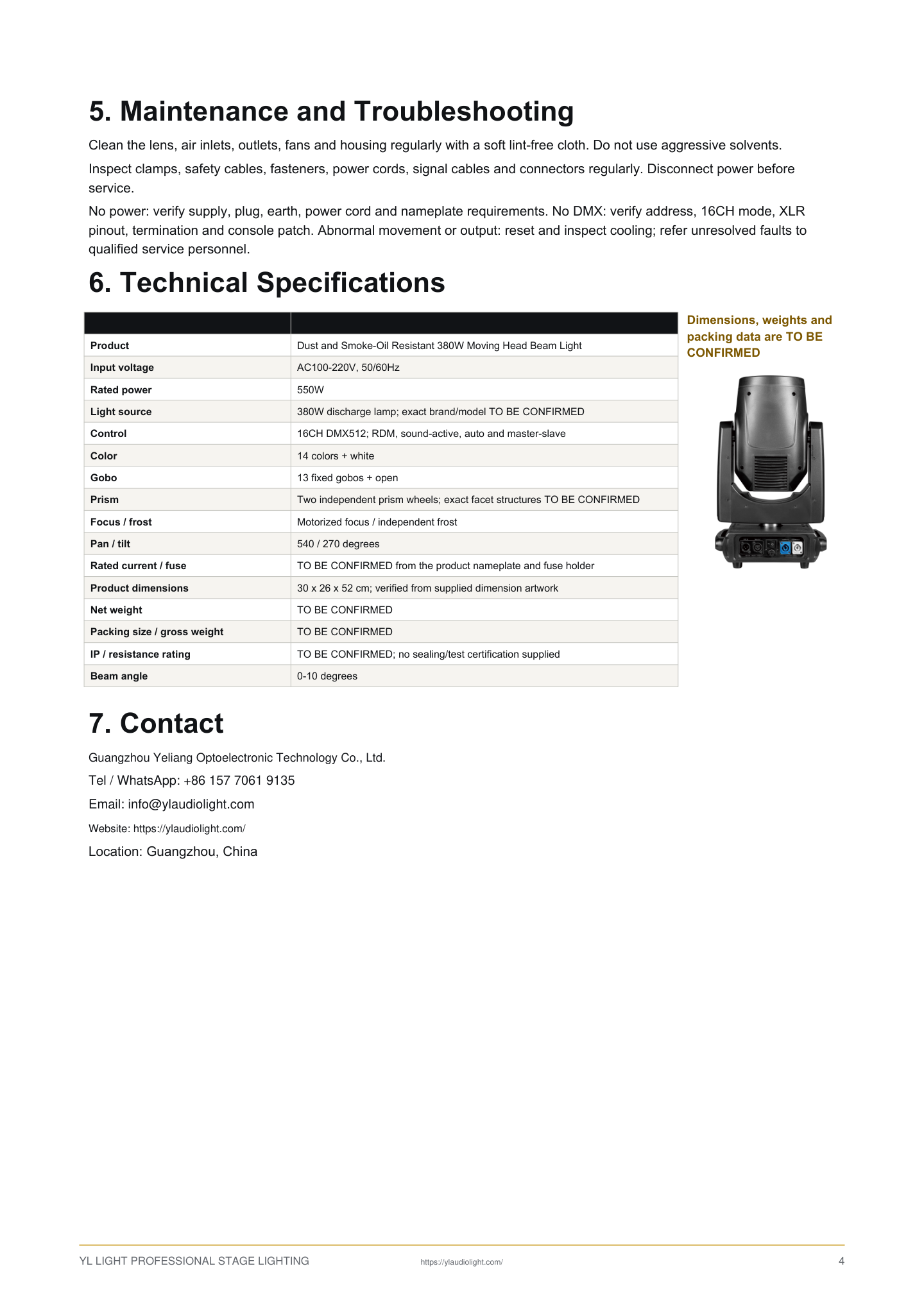

Product setup and control reference — pages 4–4
Model-specific setup, control and technical reference pages. Follow the verification notes shown in the guide; unconfirmed modes, ratings and installation data are not a final specification for the supplied fixture. Download the full reference guide for readable tables and all stated limitations.
