Product identification
- Model
- DHL 30A–DL30A
- Product category
- Line arrays

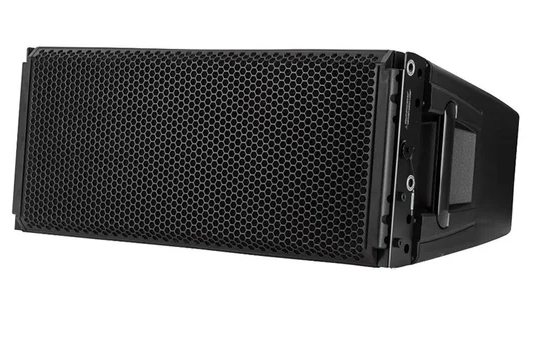

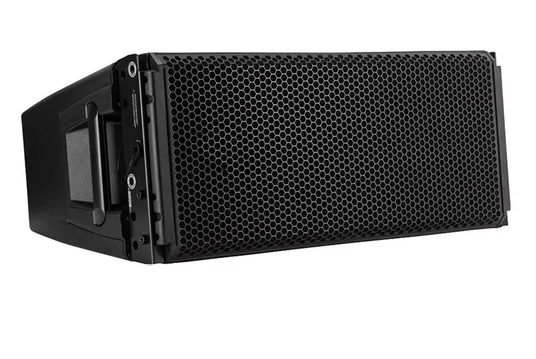

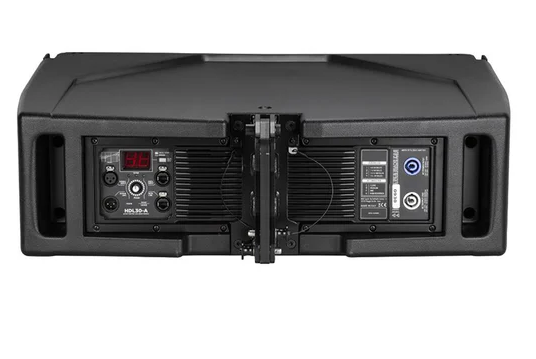

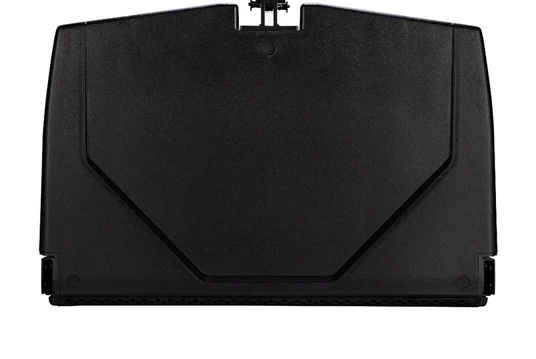

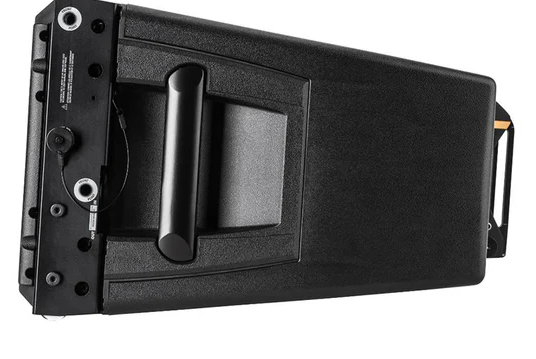

DHL 30A–DL30A
An active line array listing with dual 10-inch neodymium woofers, DSP and network system control.
WHATSAPPRequest a Quote- Maximum SPL
- 137 dB
- Low-frequency drivers
- 2 × 10-inch neodymium, 2.5-inch voice coils
- High-frequency driver
- 1.4-inch titanium compression driver, 4-inch voice coil
Technical specifications
- Low-frequency drivers
- 2 × 10-inch neodymium, 2.5-inch voice coils
- High-frequency driver
- 1.4-inch titanium compression driver, 4-inch voice coil
- Maximum SPL
- 137 dB
- DSP
- 48 kHz / 32-bit
- Phase correction
- FIR
- System control
- Network remote control
- Crossover
- 680 Hz
Compatibility and deployment
Function / configuration: An active line array listing with dual 10-inch neodymium woofers, DSP and network system control.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Low-frequency drivers | 2 × 10-inch neodymium, 2.5-inch voice coils |
|---|---|
| High-frequency driver | 1.4-inch titanium compression driver, 4-inch voice coil |
| Maximum SPL | 137 dB |
| DSP | 48 kHz / 32-bit |
| Phase correction | FIR |
| System control | Network remote control |
| Crossover | 680 Hz |
Downloads
Product documents are being prepared. Contact YL for the current information for DHL 30A–DL30A.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for DHL 30A–DL30A.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of DHL 30A–DL30A and the configuration you need.
