Planning this product into your project
Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.
Specification
| Rated power | 450W |
|---|---|
| DMX channels | 16CH DMX512 |
| Movement | Pan 540 degrees / tilt 270 degrees / fine channels |
| Product | 230W Moving Head Beam Light |
| Input voltage | AC100-220V, 50/60Hz |
| Control modes | DMX512 / sound / auto / master-slave |
| Color wheel | 14 colors + white |
| Fixed gobos | 17 fixed gobos + open |
| Prism system | Single 16-facet prism; indexed and bidirectional rotation |
| Frost / color effect | Frost insertion and an additional color-effect range on CH8 |
| Focus | Motorized focus; product note describes dual-motor HD focusing |
| Dimming / strobe | 0-100% dimming; variable and random strobe |
| Size / weight | 40 x 34 x 52 cm; 15.3 kg net / 17.5 kg gross |
| Lamp control | Lamp off and lamp on ranges on CH16; reset ranges on CH15 |
| Electrical protection | Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is on the rear power p anel. |
Product details
Product configuration
- Movement
- Pan 540 degrees / tilt 270 degrees / fine channels
- Product
- 230W Moving Head Beam Light
- Focus
- Motorized focus; product note describes dual-motor HD focusing
- Dimming / strobe
- 0-100% dimming; variable and random strobe
Optical performance
- Rated power
- 450W
- Color wheel
- 14 colors + white
- Fixed gobos
- 17 fixed gobos + open
- Prism system
- Single 16-facet prism; indexed and bidirectional rotation
- Frost / color effect
- Frost insertion and an additional color-effect range on CH8
Control and connections
- DMX channels
- 16CH DMX512
- Input voltage
- AC100-220V, 50/60Hz
- Control modes
- DMX512 / sound / auto / master-slave
- Lamp control
- Lamp off and lamp on ranges on CH16; reset ranges on CH15
Construction and dimensions
- Size / weight
- 40 x 34 x 52 cm; 15.3 kg net / 17.5 kg gross
- Electrical protection
- Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is on the rear power p anel.
What to confirm for your quotation
- Provide the throw distance, mounting height and beam or coverage required.
- Confirm the exact light source, optical functions and channel mode for the quoted variant.
- Request relevant photometric data and a demonstration using the intended colour and zoom settings.
- Check power, connectors, weight, protection rating and the included mounting accessories.

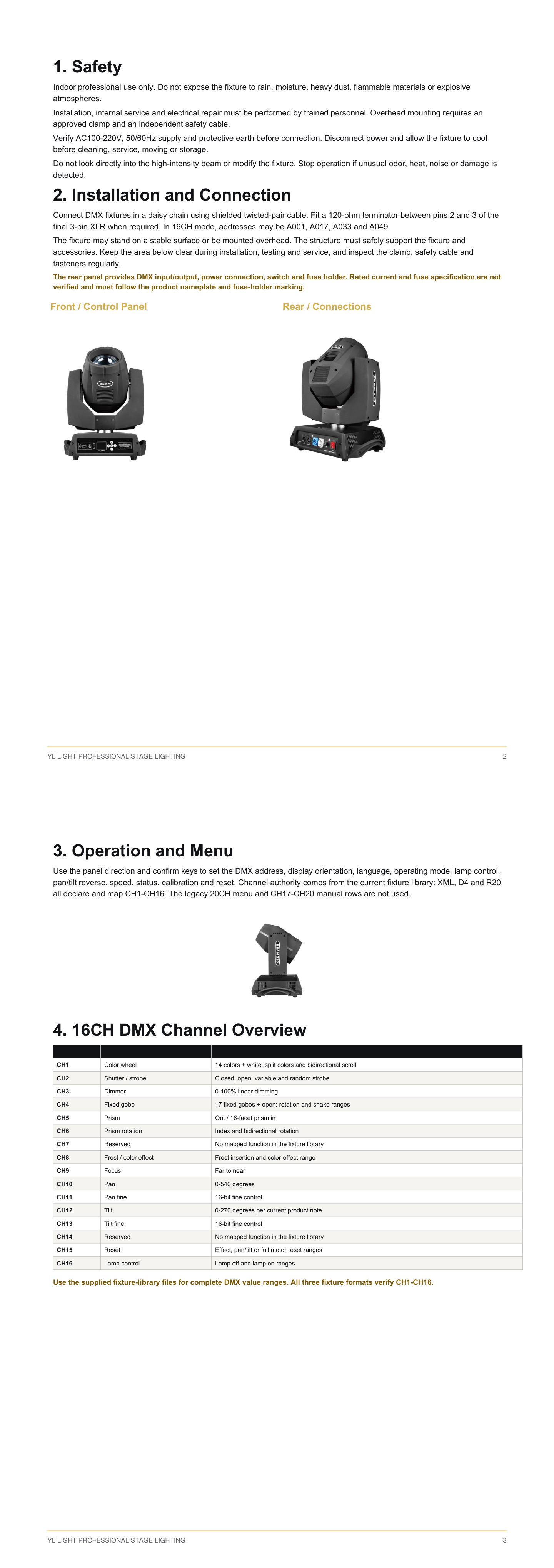

Product setup and control reference — pages 2–3
Model-specific setup, control and technical reference pages. Follow the verification notes shown in the guide; unconfirmed modes, ratings and installation data are not a final specification for the supplied fixture. Download the full reference guide for readable tables and all stated limitations.

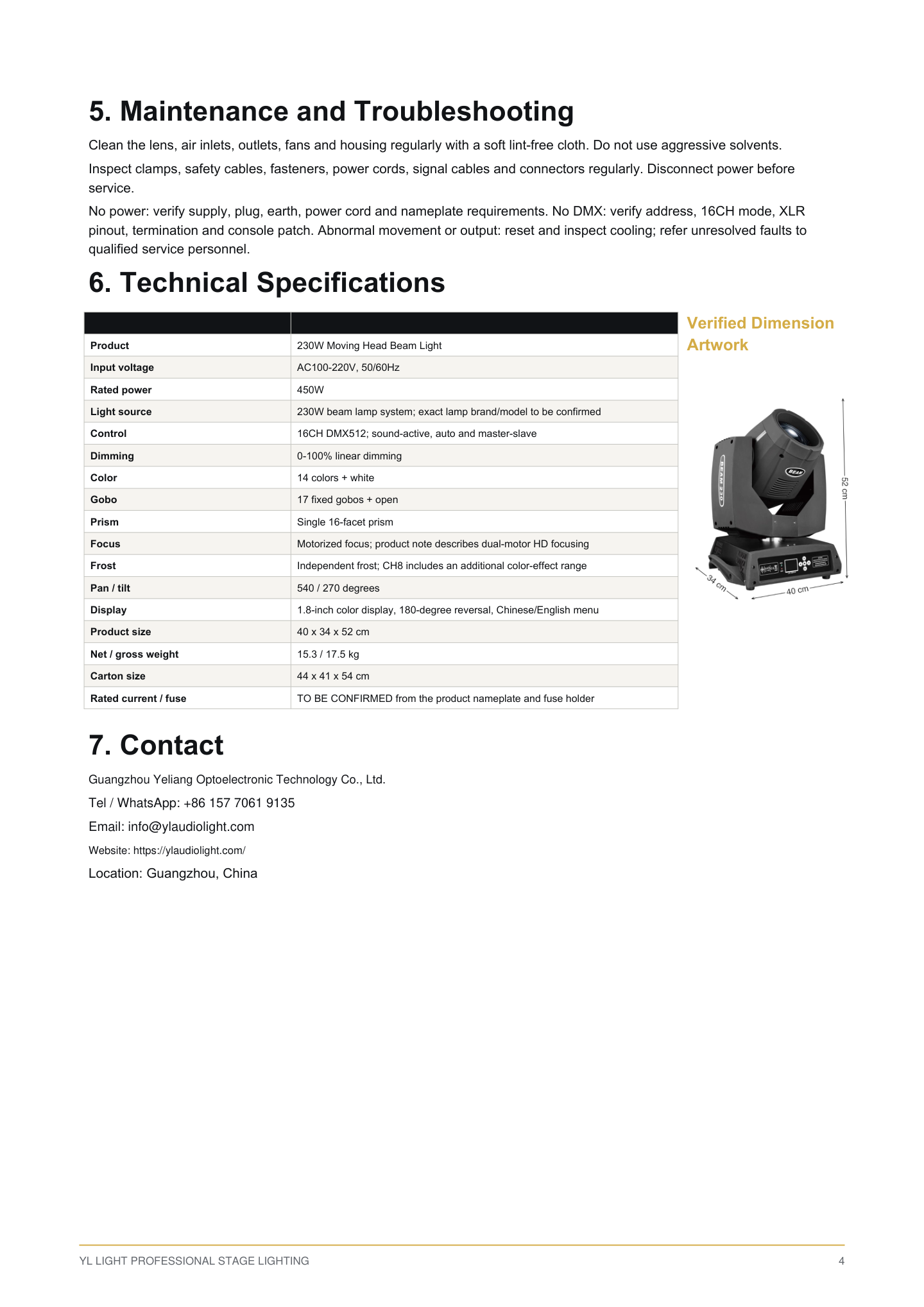

Product setup and control reference — pages 4–4
Model-specific setup, control and technical reference pages. Follow the verification notes shown in the guide; unconfirmed modes, ratings and installation data are not a final specification for the supplied fixture. Download the full reference guide for readable tables and all stated limitations.
