10 x 60W RGBW Rattlesnake Moving Head Bar Light with Auxiliary LEDs
Moving Head Bar Light

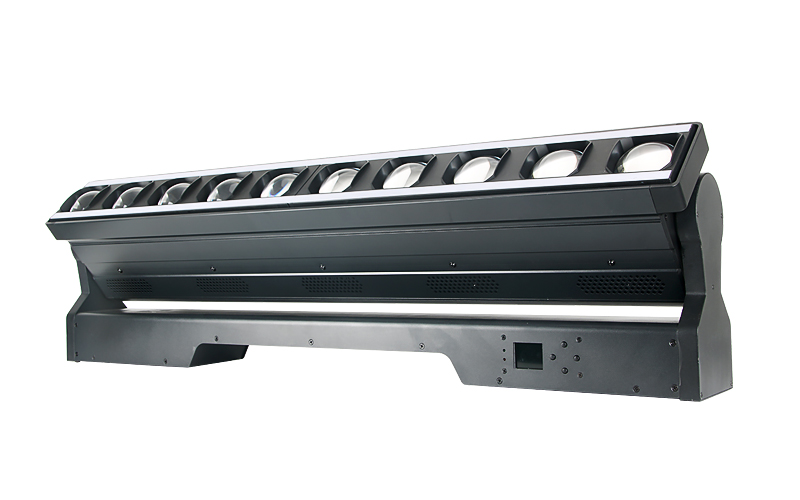

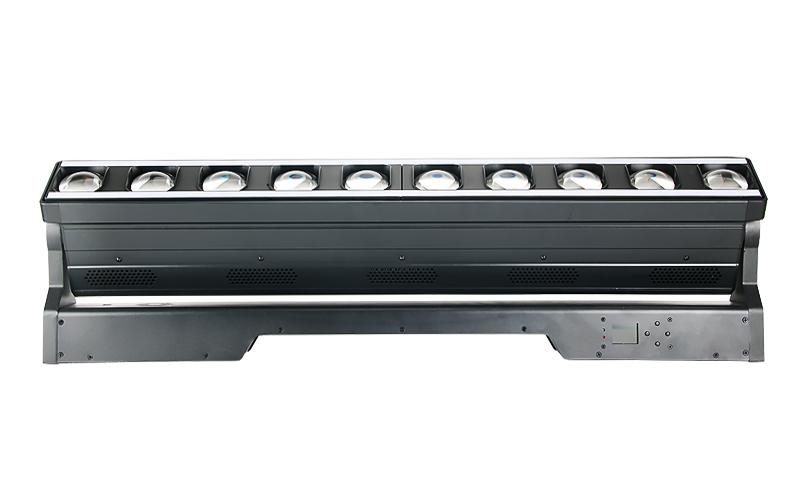

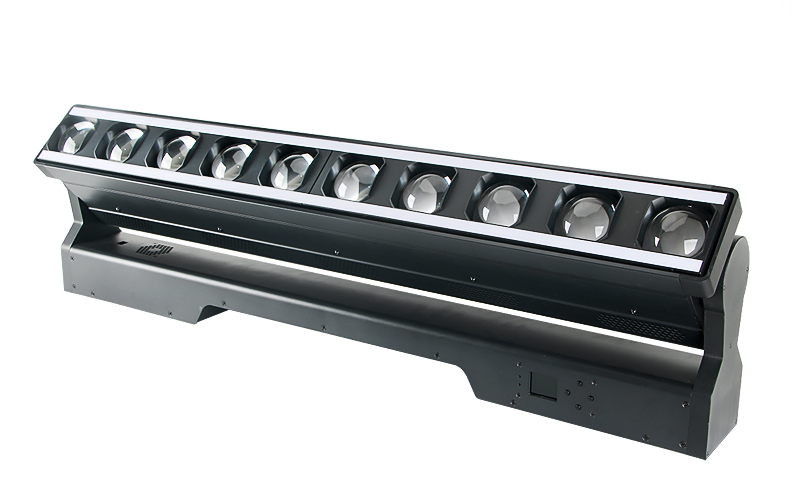

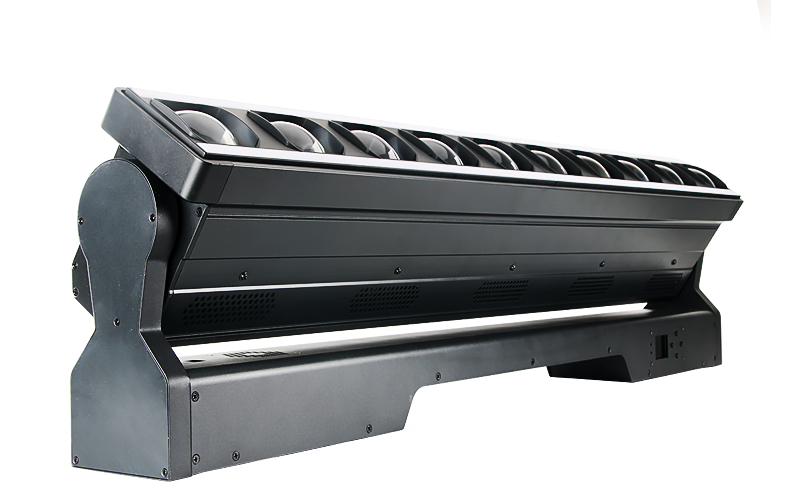

A 10 x 60W RGBW rattlesnake moving head bar: ten tilting heads on one 1-metre bar plus 140 auxiliary pixels, for waves, fans and chases on concert, TV and club stages. The heads tilt on the Y axis with focus control, and the main and auxiliary layers each have their own colour, strobe and effect channels.
32-bit linear dimming, 1-30 Hz strobe, RDM and five DMX modes from 26 to 186 channels. 14.6 kg; easy to line up across a truss.
Specification
| Light source | 10 x 60W RGBW 4-in-1 LEDs |
|---|---|
| Auxiliary LEDs | 140 x 0.3W 5050 5-in-1 LEDs |
| Rated power | 600W |
| Input voltage | AC100-240V, 50/60Hz |
| Features | Y-axis tilt, beam, focus, strobe, auxiliary effects |
| Dimming | 32-bit, 0-100% linear |
| Strobe | 1-30 Hz |
| Control modes | DMX512, RDM, auto, master-slave, sound-active |
| DMX channels | 26 / 36 / 60 / 66 / 186CH |
| Connections | DMX in / out, power in / out |
| Housing | Metal, black |
| Protection rating | IP20 (indoor) |
| Operating temperature | -30°C to 50°C |
| Net weight | 14.6 kg |
| Packing size | 108 x 18 x 36 cm |
| Gross weight | 16 kg |
