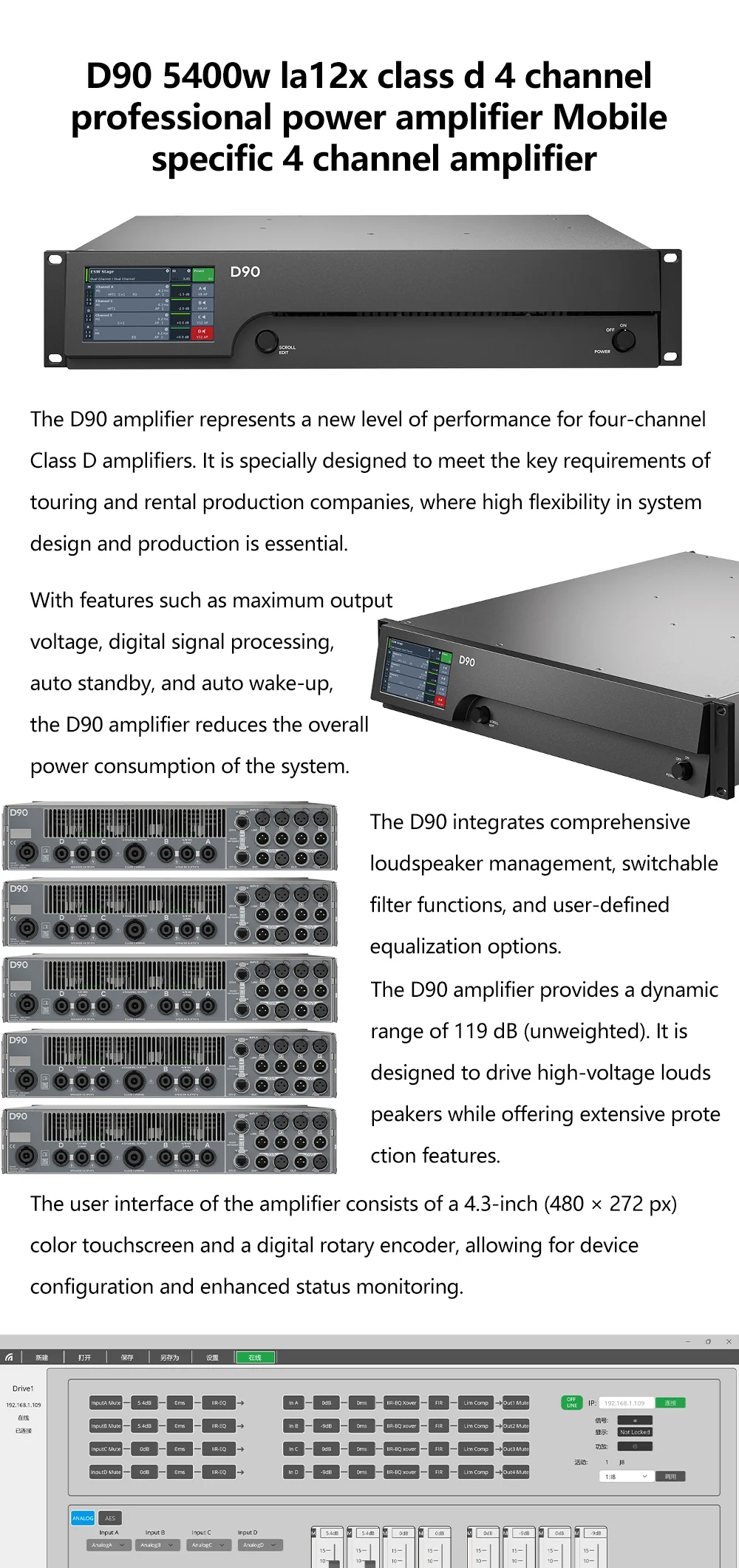

D90 5400w la12x class d 4 channel professional power amplifier Mobile specific 4 channel amplifier

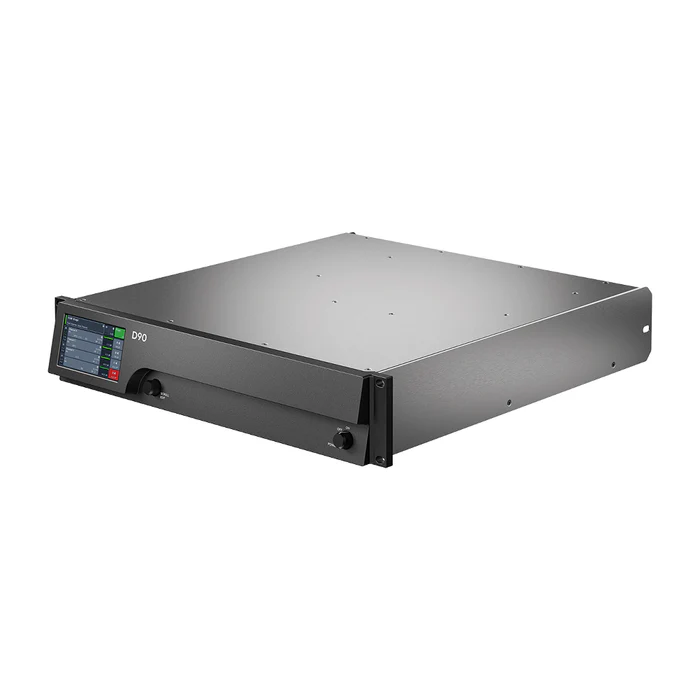

D90 amplifier
Mobile specific four channel amplifier
Maximum output power
4 x 5400/2700 W into 4/8 Ω
Maximum output voltage/current
210 Vpeak / 78 Apeak
Monitoring display, Color TFT touchscreen, 4.3″ / 480 x 272 pixel
All current d&b loudspeaker setup
Digital Signal Processing
Equalizer
2 x 16-band PEQ/notch/shelving/asymmetric
Latency analog and digital inputs
0.3 ms
Delay setting
0.3 ms – 10 s
Configurations
current LA-Proaudioinc loudspeakers
Function switches
LA-Proaudioinc loudspeaker specific circuits
Frequency generator
Pink noise or Sine wave 10 Hz – 20 kHz

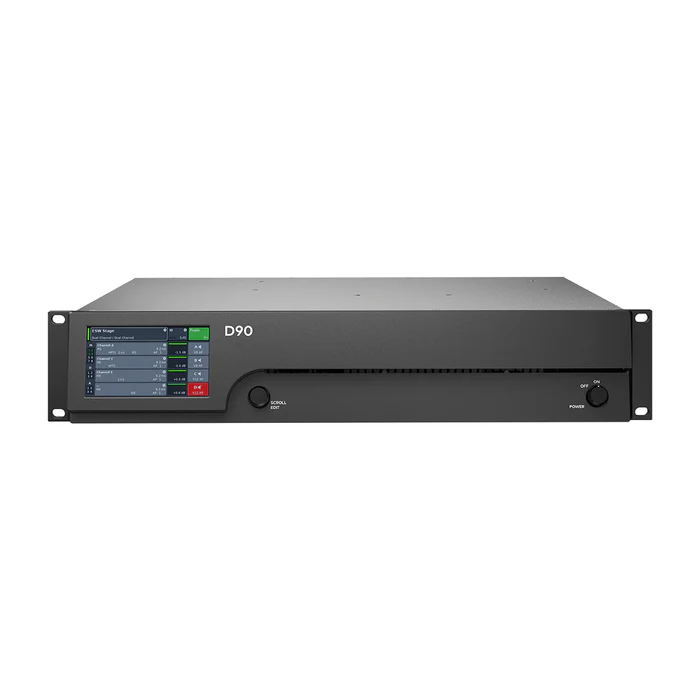

Controls and indicators
Power
Mains power switch
SCROLL/EDIT
Digital rotary encoder
Display
Colour TFT touchscreen, 4.35″/480 x 272 pixel

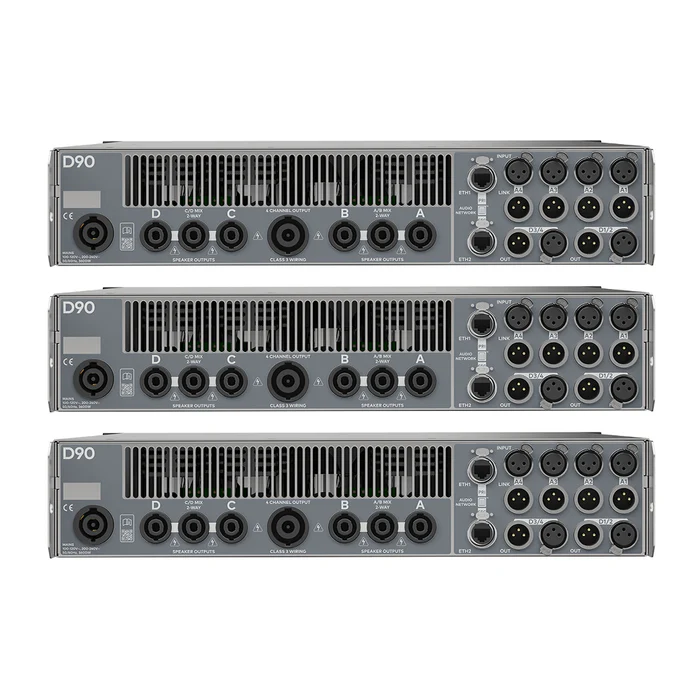

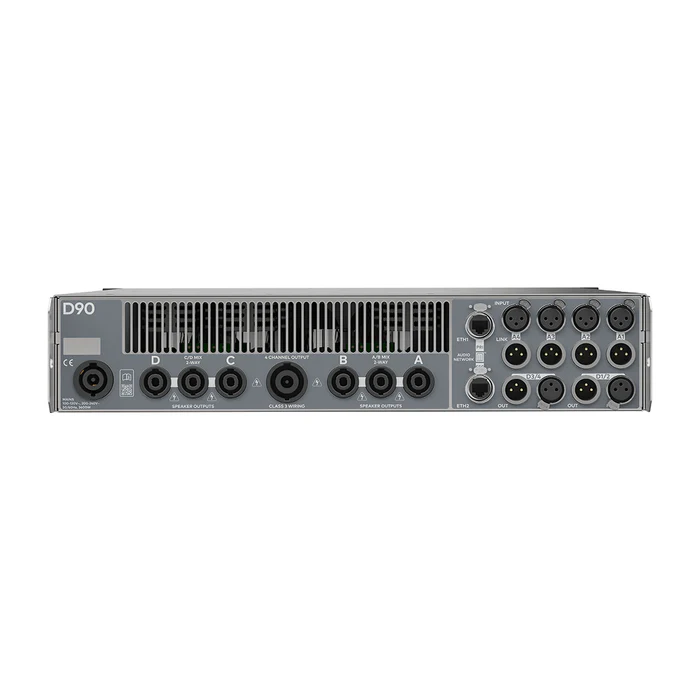

Connectors
Sampling frequency Digital AES/EBU
44.1, 48, 96, 192 kHz
INPUT ANALOG (A1 – A4)
3 pin XLR female
ANALOG LINK (A1 – A4)
3 pin XLR male
INPUT DIGITAL (D1/2, D3/4)
3 pin XLR female AES3
DIGITAL LINK (Output)
3 pin XLR male
Speaker outputs A/B/C/D
4 x NL4
Mix TOP/SUB / 2-Way Active output A/B and C/D
2 x NL4
4 Channel output
1 x NL8
Ethernet
2 x RJ 45, 1 Gbit/100 Mbit Ethernet
Data (linear setting with subsonic filter)
Maximum output power per channel (THD+N < 0.5%, all channels driven)
CF = 12 dB at 4 / 8 ohms
4 x 5400/2700 W
Power supply
Type
Autosensing switch mode power supply with active Power Factor Correction (PFC)
Rated mains voltage
100 – 127 / 208 – 240 V, 50 – 60 Hz
Dimensions / weight
Dimensions (H x W x D)
2 RU x 19″ x 512 mm/20.2″
Weight
18.8 kg
41.5 lb
